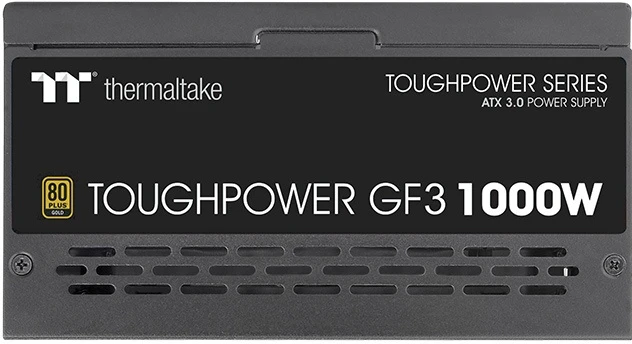

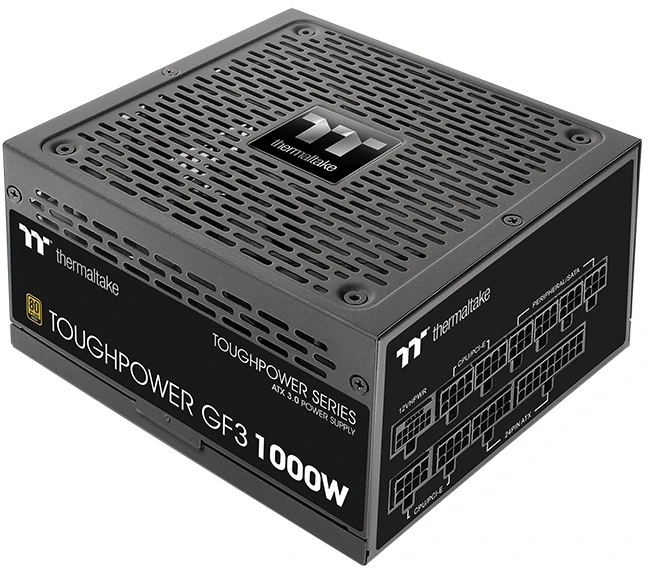

Thermaltake Toughpower GF3 Gold 1000W

Продуктов код: S24354
Запитване за Thermaltake Toughpower GF3 Gold 1000W
Лизингов калкулатор
Характеристика Стойност
Мощност 1000 W
Сертификат 80 Plus GOLD
Тип окабеляване Модулно
Формат ATX
Размери (mm) 160 x 150 x 86 mm
Захранване 100 V - 240 V
50~60 Hz
Специални характеристики Active PFC
FANLESS
LLC+DC-DC

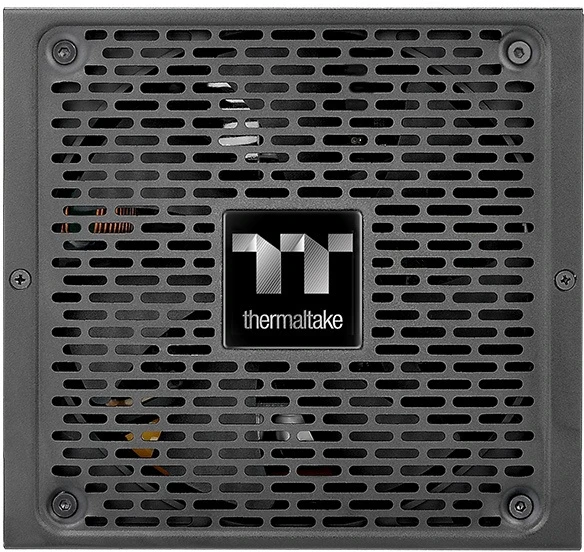

Вентилатор (PSU) 135 mm вентилатор
Fluid Dynamic Bearing
Тегло (PSU) 1.72 kg

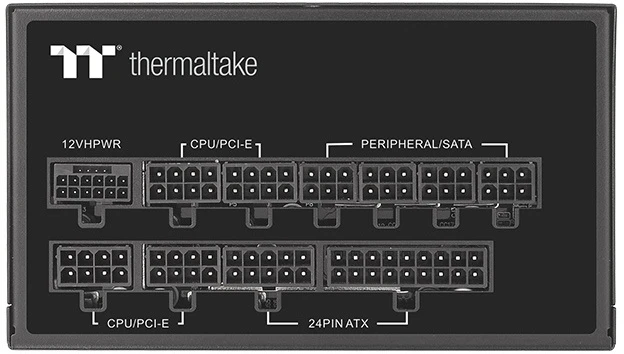

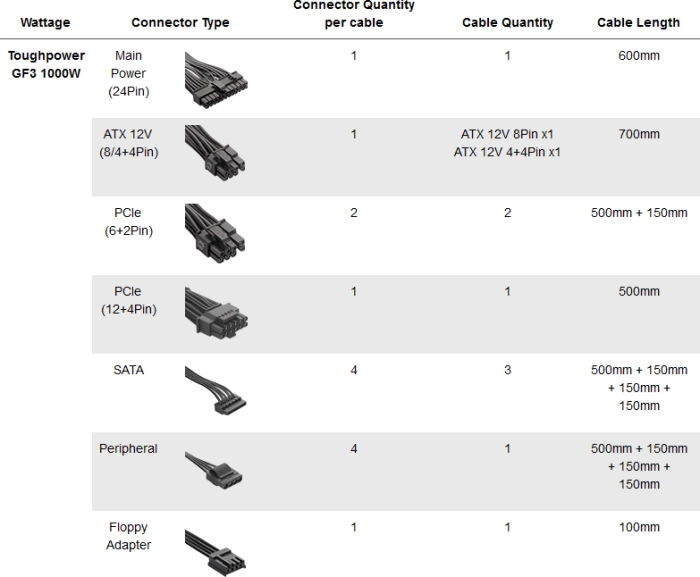

Конектори (PSU) ATX 24-pin x 1
CPU 4+4-pin x 2
PCI-e 6+2-pin x 4
SATA x 12
MOLEX x 4
PCI-e 5.0 12VHPWR 16(12+4) pin x 1
Защити OVP (Over Voltage Protection)
OCP (Over Current Protection)
UVP (Under Voltage Protection)
OPP (Over Power Protection)
OTP (Over Temperature Protection)
SCP (Short Circuit Protection)
Cybenetics certification Efficiency: Gold
Noise: Standard+
Други (PSU) Manufacturer (OEM): CWT (Channel Well Technology)
ATX 3.x | PCIe 5.x ATX 3.0 | PCIe 5.0
Гаранция 120 месеца
Арт. номера
PS-TPD-1000FNFAGE-4


Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.

The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1000W can deliver up to 600W for PCIe 5.0 graphics cards.

Note: Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
