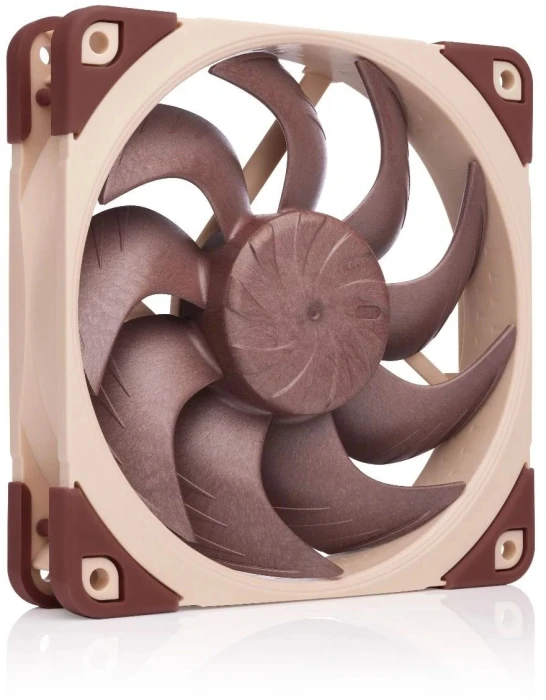

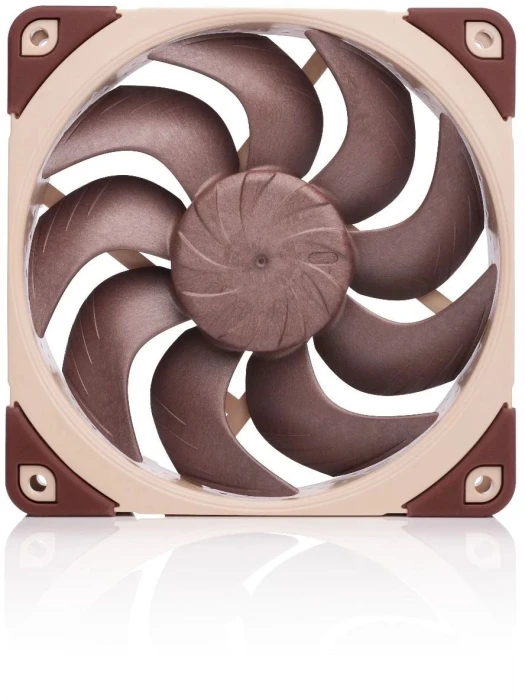

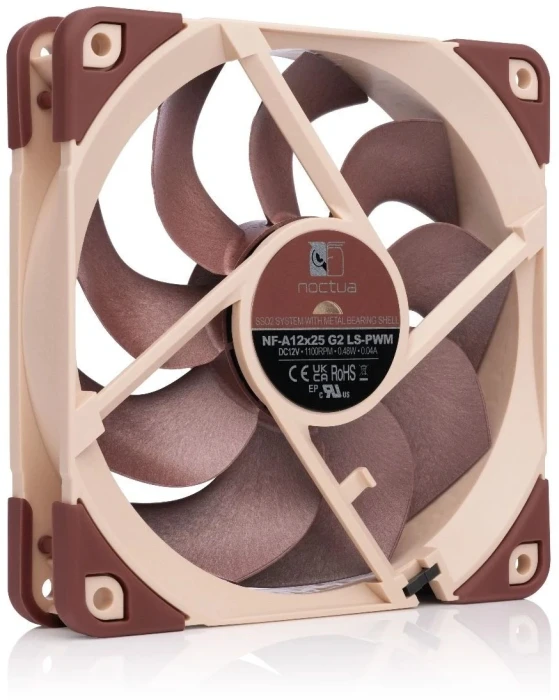

Noctua NF-A12x25 G2 LS-PWM
Noctua NF-A12x25 G2 LS-PWM
Next-gen 120mm fan
| Характеристика | Стойност |
|---|---|
| Вентилатор | 120 mm |
| Обороти до | 1100 rpm |
| Обороти min/max | 0 ~ 1100 rpm |
| Въздушен поток до | 39.02 CFM |
| Ниво на шум до | 11.8 dBA |
| Конектор | 4-pin |
| Статично налягане | 1.08 mm H₂O |
| Размери (mm) | 120 x 120 x 25 |
| Вид лагер | SSO2 Bearing |
| Волтаж | 12 V DC |
| Външен цвят | Кафяв |
| АМПЕРАЖ (A) | 0.04 A |
| Гаранция | 72 месеца |
| Арт. номера |
A12x25-G2-LS-PWM
|

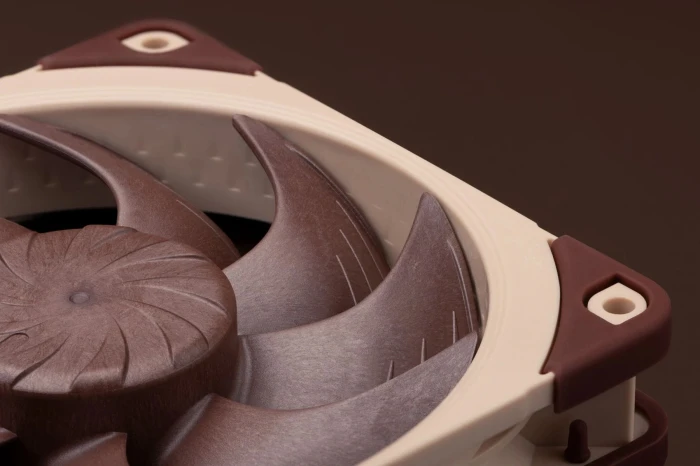

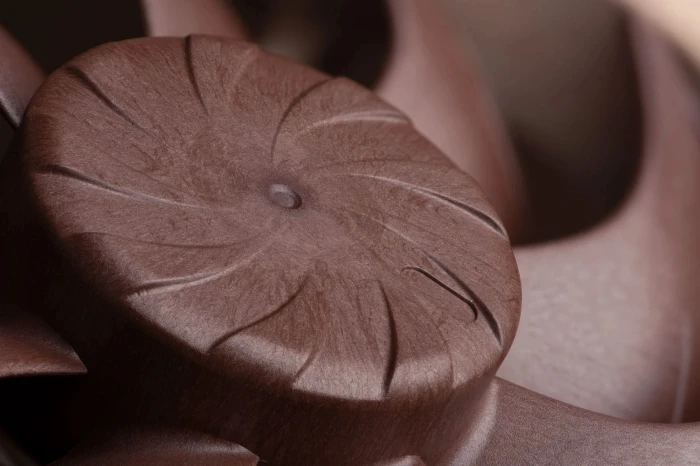

The NF-A12x25 G2 is the second-generation, further improved successor to the groundbreaking NF-A12x25 and 120mm sister model to the award-winning 140mm NF-A14x25 G2: Like its much-acclaimed predecessor, it is made from Sterrox LCP and features an extremely tight tip-clearance of only 0.5mm. At the same time, its further optimised Progressive Bend impeller with winglets, Flow Acceleration Channels and the new Centrifugal Turbulator Hub enable the G2 version to surpass the original NF-A12x25’s performance, making it Noctua’s undisputed new flagship in the 120mm range.
Just like its predecessor and the 140mm version, the NF-A12x25 G2 is a true all-rounder that yields superb results in all types of usage, regardless of whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, static pressure demanding scenarios such as on heatsinks and water cooling radiators.
For application-specific optimisation, the NF-A12x25 G2’s AAO (Advanced Acoustic Optimisation) frame can be combined with the included NA-AVG1 anti-vibration gasket for a tighter seal on radiators or the optional NA-IS1-12 inlet side spacer frame, which can help to achieve superior suction acoustics and flow rates in challenging “pull“ configurations.
The 4-pin LS-PWM version is a low-speed, PWM-enabled variant that is ideal for semi-passive setups or ultra-low-noise applications that require near-silent acoustics and PWM based speed control. Its super-low-loss etaPERF motor with Smooth Commutation Drive 2 technology combines unprecedented energy efficiency with a superb running smoothness that is guaranteed to satisfy even the most noise-sensitive users.
Topped off with Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25 G2 is a premium-quality product through and through. Its superior performance, comprehensive feature set, cutting-edge construction and state-of-the-art materials set a new standard within Noctua’s portfolio and make it an elite choice for the most discerning demands.

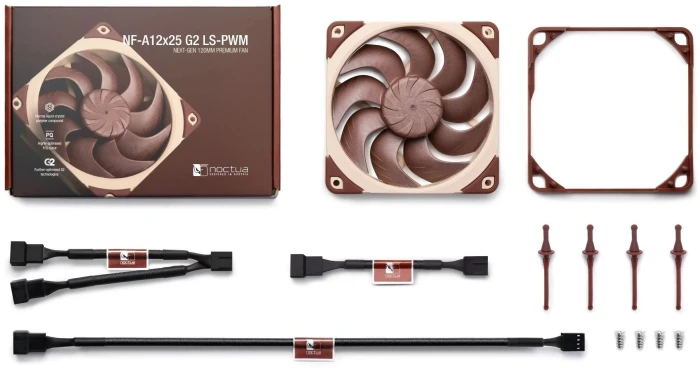

Съдържание на комплекта:
- NA-RC8 Low-Noise Adaptor (L.N.A.)
- NA-YC1 4-pin PWM splitter cable
- NA-EC1 30cm extension cable
- 4x NA-AV2 anti-vibration mounts
- NA-AVG1 anti-vibration gasket for water cooling radiators
- Fan screws
