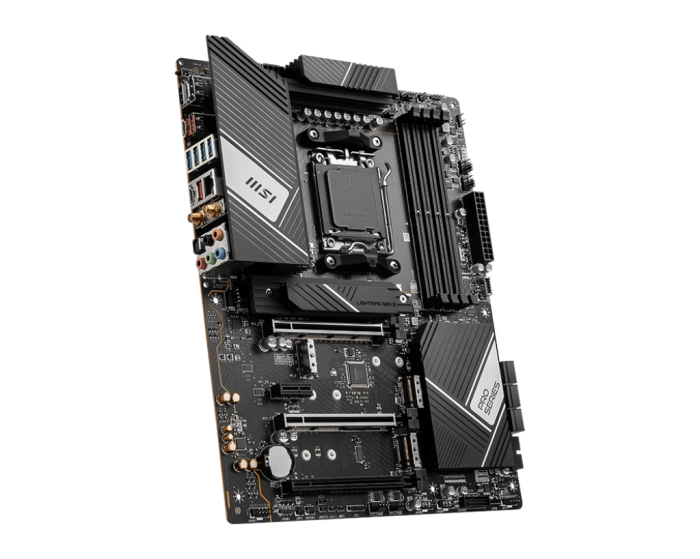

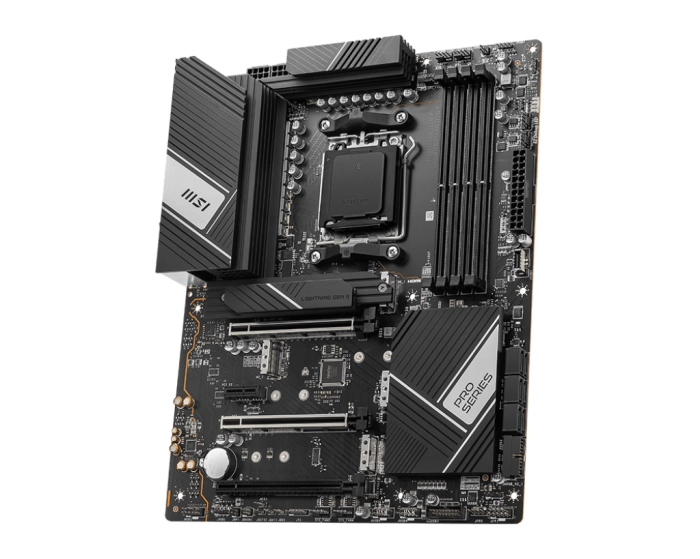

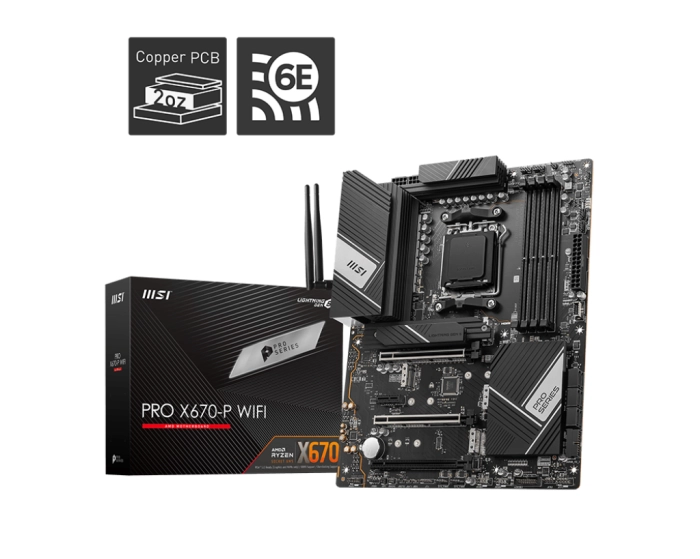

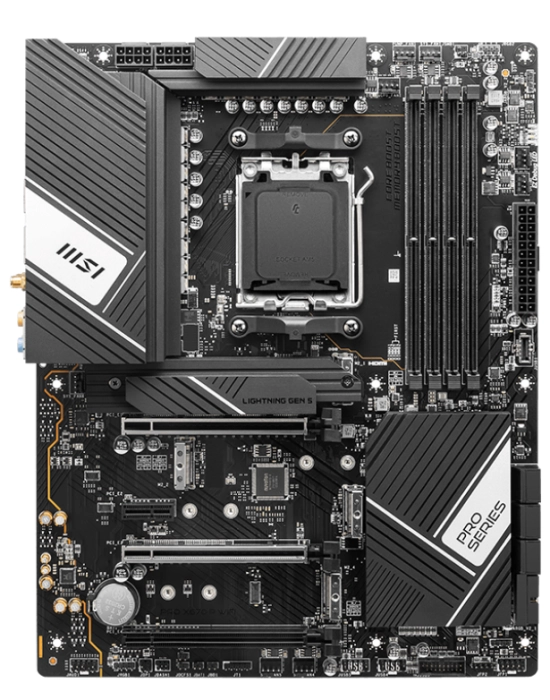

MSI PRO X670-P WIFI
MSI PRO X670-P WIFI
ATX, Socket AM5, 4x DDR5, 3x PCI-E x16 slots, 4x M.2 slots, 1x HDMI, 2x DP (1x Type-C), 4x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB 3.2 Gen2, 1x USB 3.2 Gen2x2, Type-C, 7.1 HD Audio, 2.5G LAN, Wi-Fi 6E, BT, 3Y
| Характеристика | Стойност |
|---|---|
| Чипсет | AMD X670 |
| CPU Socket | AM5 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Аудио | Realtek ALC4080 |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Поддържани процесори | AMD Ryzen™ 8000/7000 Series Desktop Processors |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Свързаност | 1 x RJ-45 |
| Слотoве PCI-E x16 | 3 x PCIe 5.0 x16 |
| Други | Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 10 SATA III-600 (6) Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 10 PCI Express 5.0 x4 (1 x M.2) Storage Controller: Supports: Ниво 0, Ниво 1, Ниво 10 PCI Express 4.0 x4 (3 x M.2) |
| Вграден Wi-Fi | Wi-Fi 802.11ax |
| Вграден Bluetooth | Bluetooth V5.2 |
| Височина | 304.8 мм |
| Ширина | 243.84 мм |
| Видео портове |
1 x DisplayPort 1 x HDMI |
| USB портове |
4 (USB 3.2 (type A)) 2 (USB 3.2 (type A)); 1 (USB 3.2 (type C)) 1 (USB 3.2 (type C)) |
| Аудио интерфейс |
5 (3.5 мм мини жак) 1 x S/PDIF |
| Гаранция | 36 месеца |
| Арт. номера |
PRO_X670-P_WIFI
67241
|
PRO X670-P WIFI
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6600+MHz (OC)

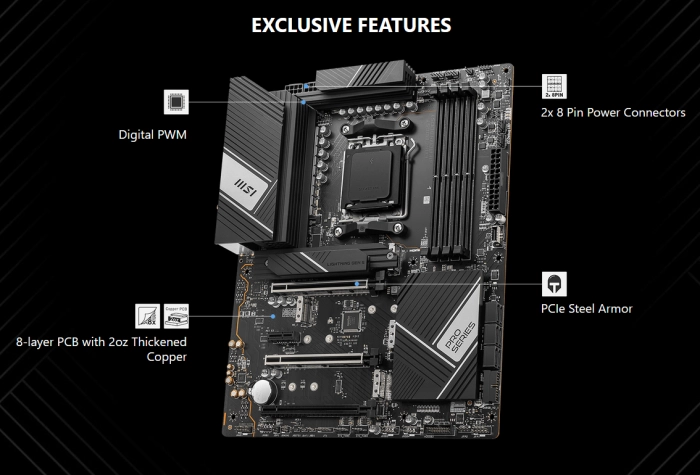

- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost

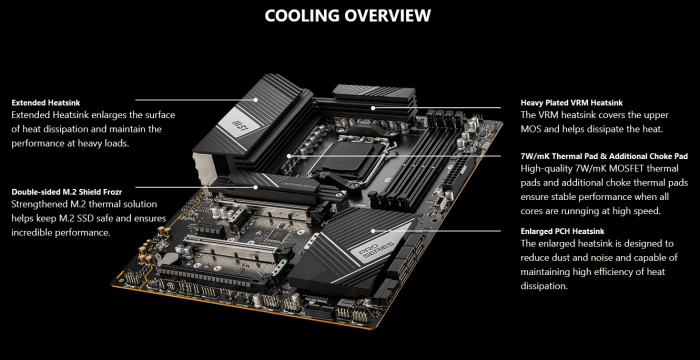

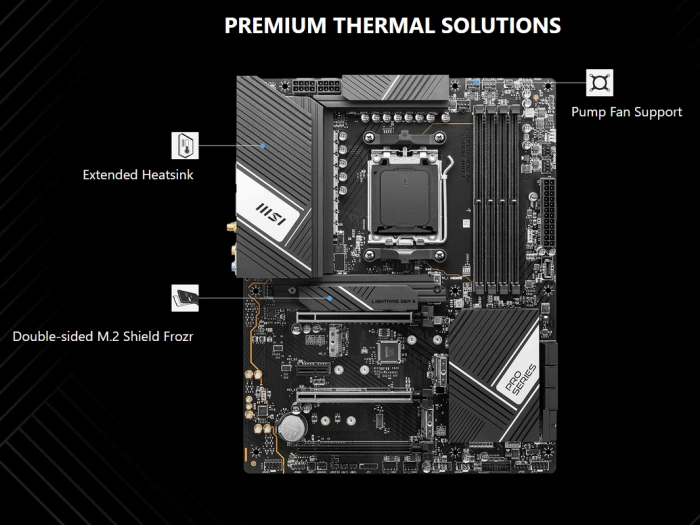

- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material

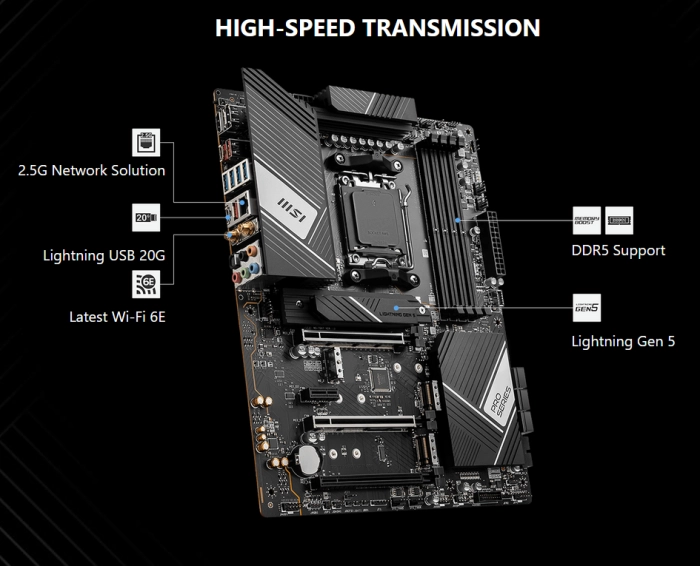

- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Memory
4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6600+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Expansion Slot
1x PCI-E x16 slot
Supports x16/x4/x2
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 PCIe 4.0 supports up to x2 (From Chipset)
Storage
4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
Internal I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

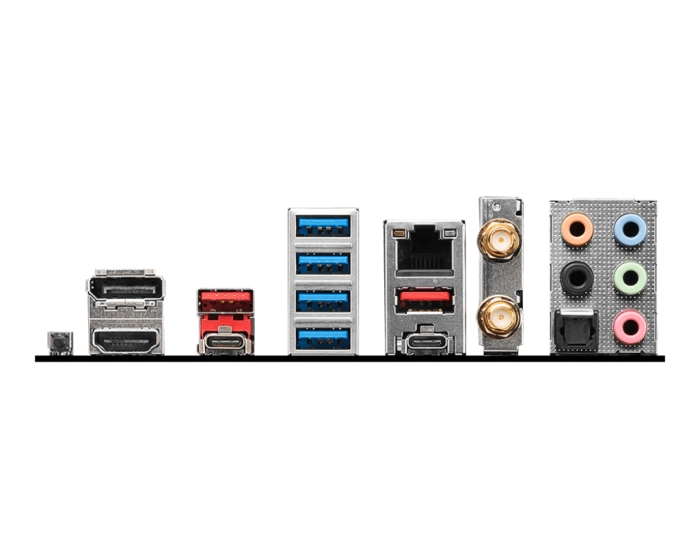

Back Panel Ports
- DisplayPort
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 1 5Gbps (Type-A)
- 2.5G LAN
- Wi-Fi / Bluetooth
- Audio connectors
- Flash BIOS Button
- HDMI™
- USB 3.2 Gen 2 10Gbps (Type-C Display port)
- USB 3.2 Gen 2x2 20Gbps (Type-C)
- USB 3.2 Gen 2 10Gbps (Type-A)
- S/PDIF-OUT
