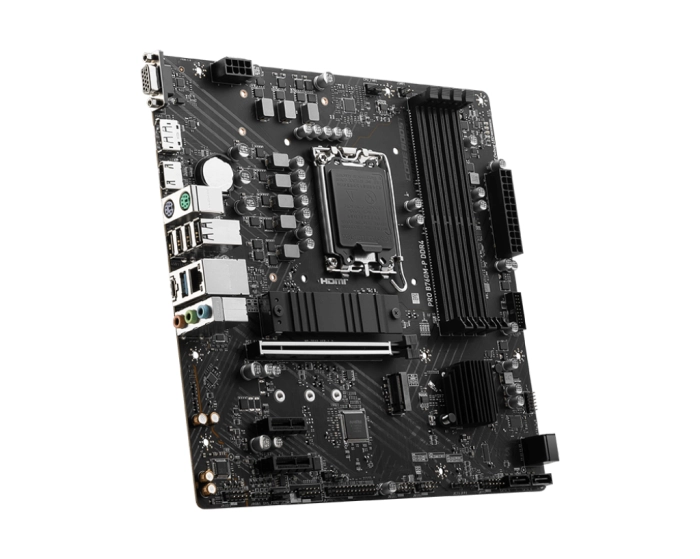

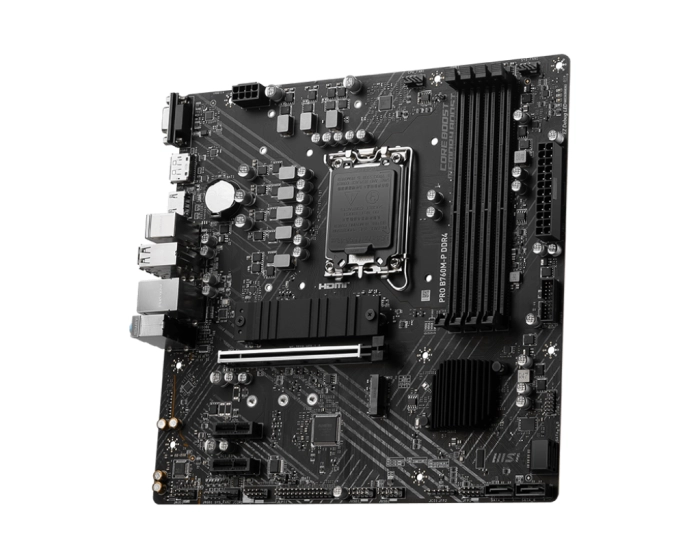

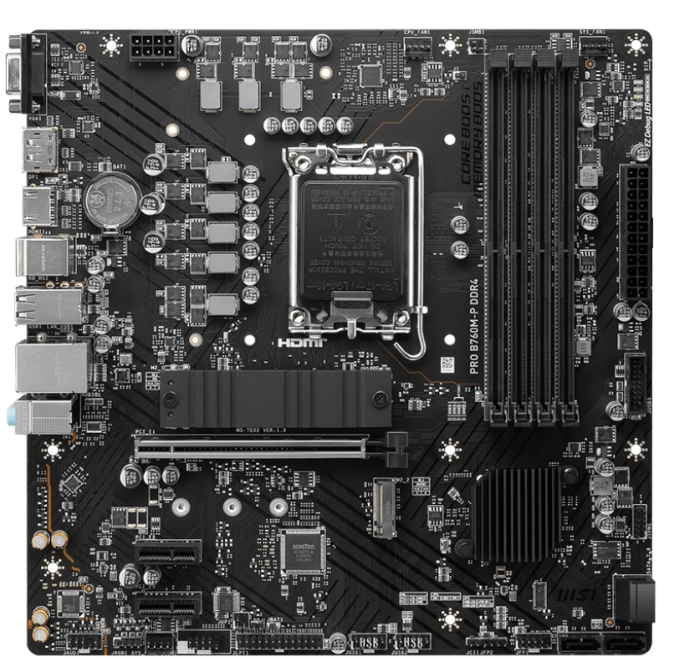

MSI PRO B760M-P DDR4
mATX, Socket 1700, Dual Channel DDR4 4800(OC)MHz, 1x PCIe x16 slots, 2x M.2 slots, 1x HDMI, 1x DP, 1x VGA, 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 1, 4x USB 2.0, 7.1 HD Audio, 1Gbps LAN
MSI PRO B760M-P DDR4
mATX, Socket 1700, Dual Channel DDR4 4800(OC)MHz, 1x PCIe x16 slots, 2x M.2 slots, 1x HDMI, 1x DP, 1x VGA, 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 1, 4x USB 2.0, 7.1 HD Audio, 1Gbps LAN
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1700 |
| Чипсет | Intel B760 |
| Форм фактор | Micro ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | |
| Аудио | Realtek ALC897 |
| LAN | Realtek RTL8111H |
| Поддържани процесори | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Слотoве PCI-E x16 | 1 |
| Слотoве PCI-E x1 | 2 |
| Поддържани технологии | Windows® 11 64-bit, Windows® 10 64-bit |
| M2 слот |
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | SATA RAID 0/1/5/10 |
| Размери (MB) | 243.84 x 243.84 mm |
| Гаранция | 36 месеца |
| Арт. номера |
PRO_B760M-P_DDR4
67766
|
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

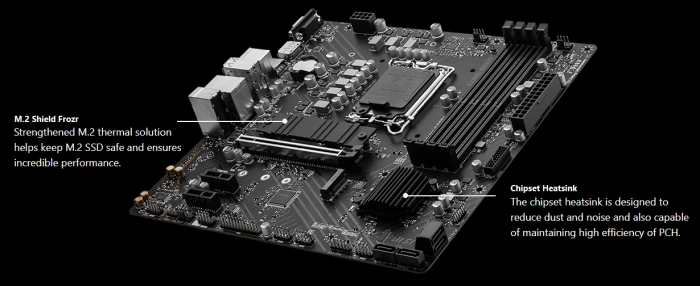

- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
| Chipset | INTEL B760 |
|---|---|
| CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | Support HDMI™ 1.4, maximum resolution of 4K 30Hz* Support DP 1.4, maximum resolution of 4K 60Hz* Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 1x HDMI 1x DisplayPort 1x D-Sub |
| Slot | 1x PCI-E x16 slot (Qty) 2x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Storage | 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| LED FEATURE | 4x EZ Debug LED |

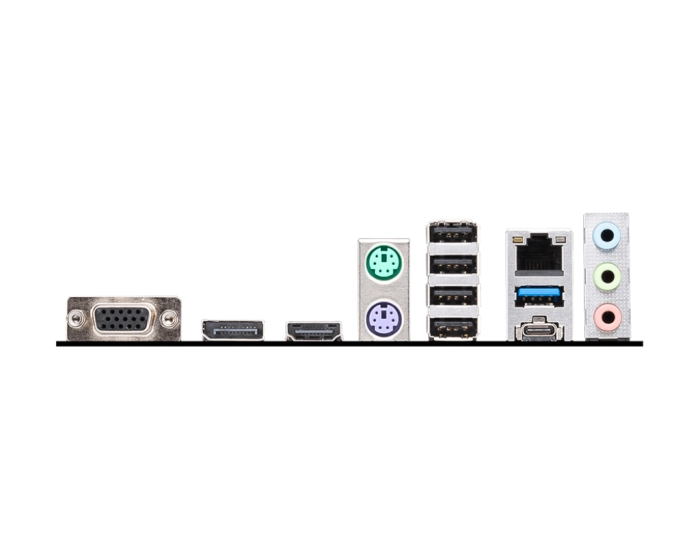

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX 243.84mmx243.84mm |

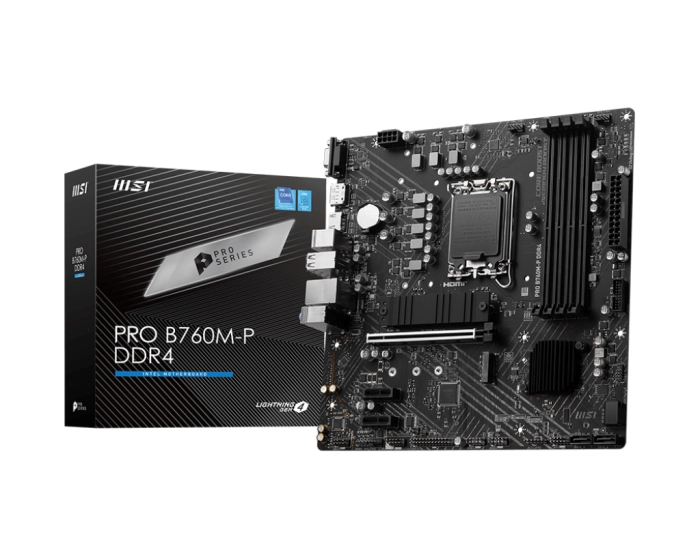

| BOX CONTENT |  |
