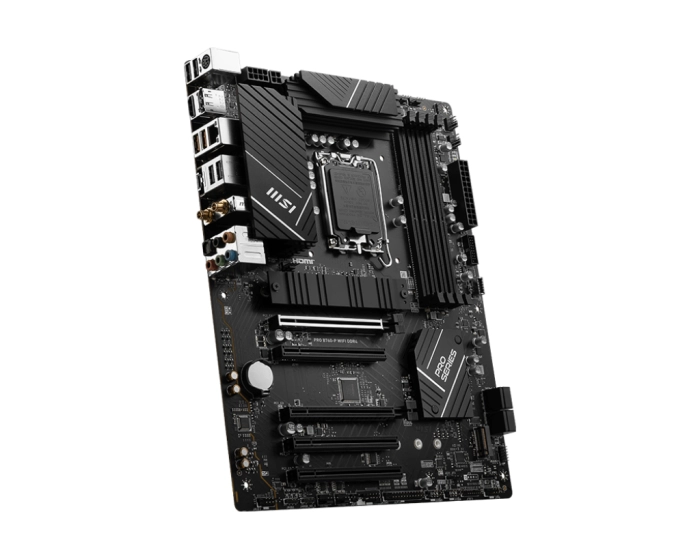

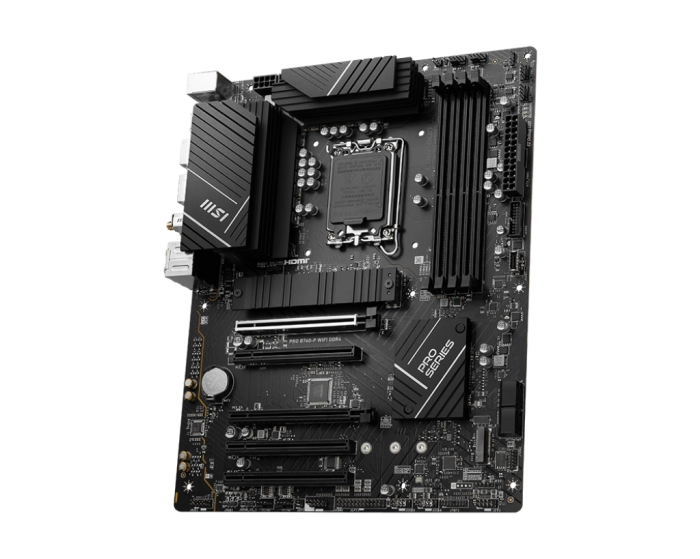

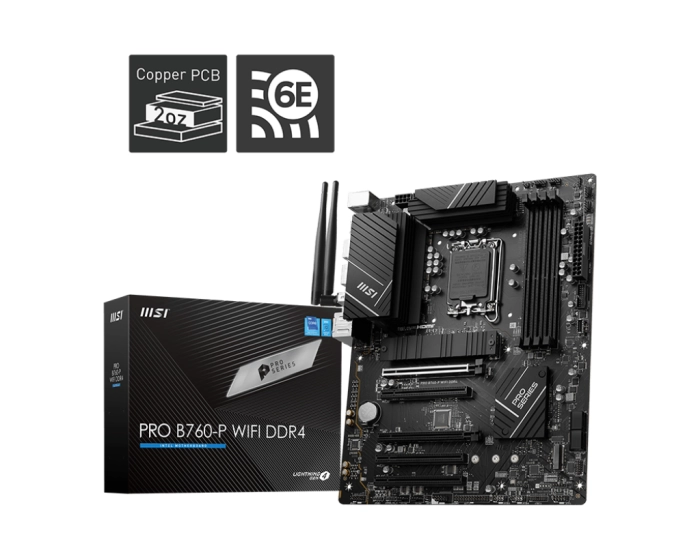

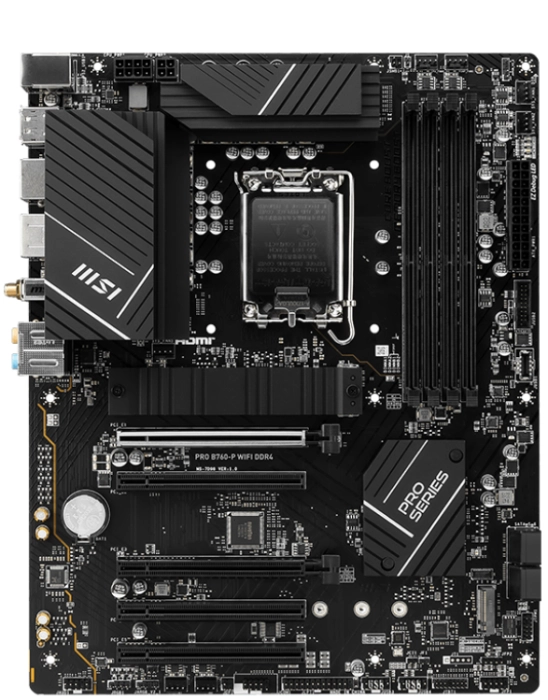

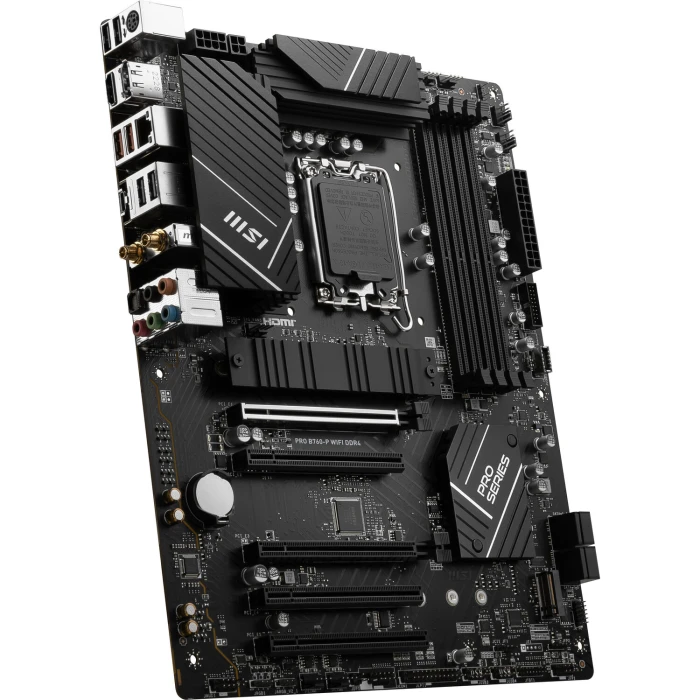

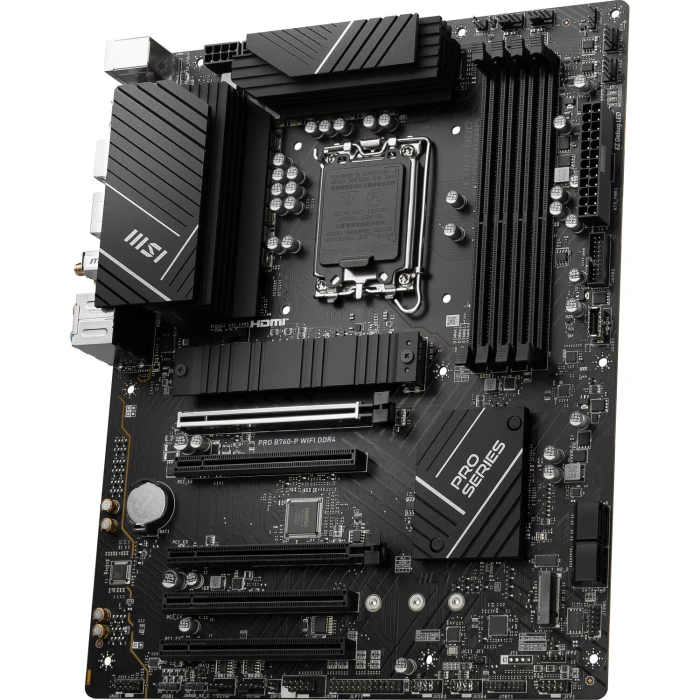

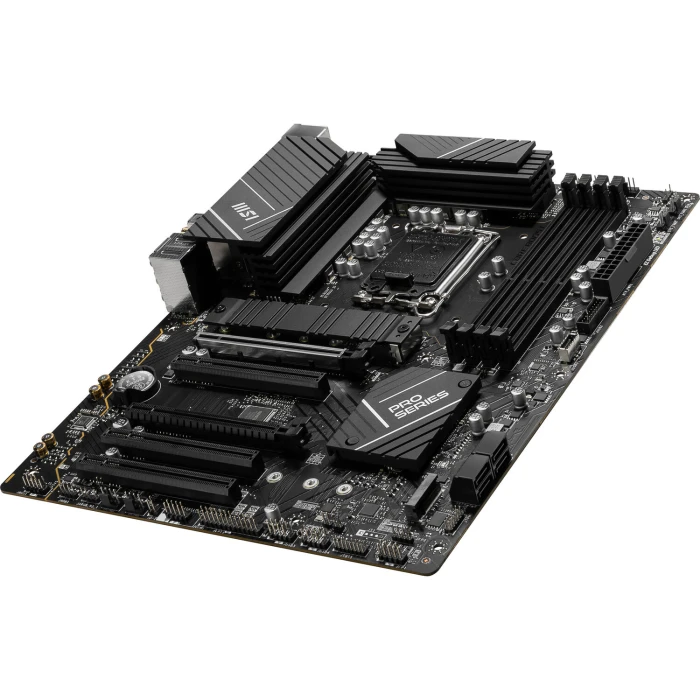

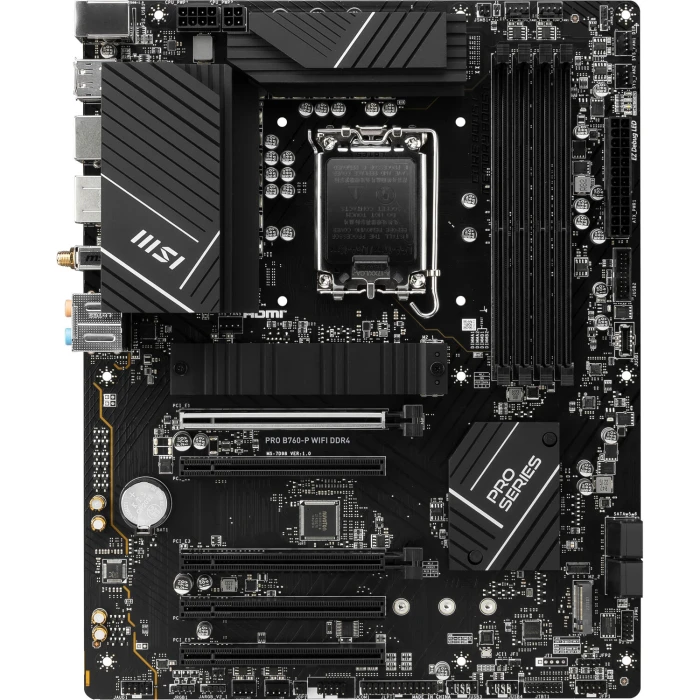

MSI PRO B760-P WIFI DDR4
ATX, Socket 1700, Dual Channel DDR4 5333(OC)MHz, 2x PCIe x16 slots, 2x M.2 slots, 1x HDMI, 1x DP, 1x USB 3.2 Gen 2x2 Type-C, 3x USB 3.2 Gen 2, 4x USB 2.0, 7.1 HD Audio, 2.5Gbps LAN, WI-FI 6E, BT, 3Y
MSI PRO B760-P WIFI DDR4
ATX, Socket 1700, Dual Channel DDR4 5333(OC)MHz, 2x PCIe x16 slots, 2x M.2 slots, 1x HDMI, 1x DP, 1x USB 3.2 Gen 2x2 Type-C, 3x USB 3.2 Gen 2, 4x USB 2.0, 7.1 HD Audio, 2.5Gbps LAN, WI-FI 6E, BT, 3Y
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | Intel B760 |
| CPU Socket | 1700 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR4 |
| Аудио | Realtek ALC897 7.1 HD |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Поддържани процесори | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 |
| Поддръжка на Dual channel | Да |
| Слотoве PCI-E x16 |
PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x16 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 PCIe 3.0 supports up to x1 (From Chipset) |
| Поддържани технологии | Windows® 11 64-bit, Windows® 10 64-bit |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| M2 слот |
M.2_1 (From CPU) supports up to PCIe 4.0 x4 M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode |
| Вграден Wi-Fi | Intel® Wi-Fi 6E |
| Вграден Bluetooth | Bluetooth V5.3 |
| Размери (MB) | 304.8 x 243.84 mm |
| Поддръжка на RAID | SATA RAID 0/1/5/10 |
| Гаранция | 36 месеца |
| Арт. номера |
PRO_B760-P_WIFI_DDR4
67765
|
PRO B760-P WIFI DDR4
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)

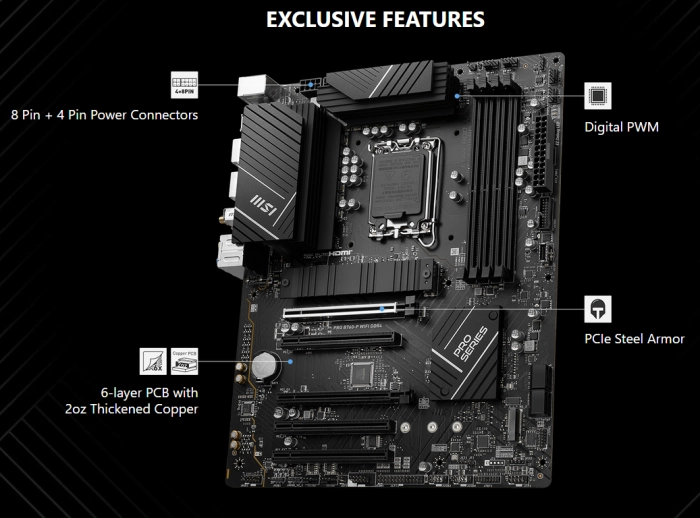

- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

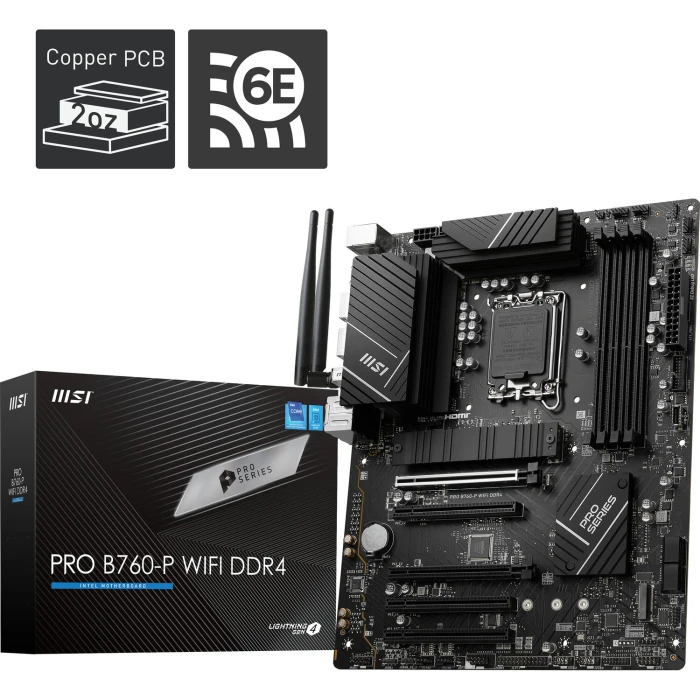

- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

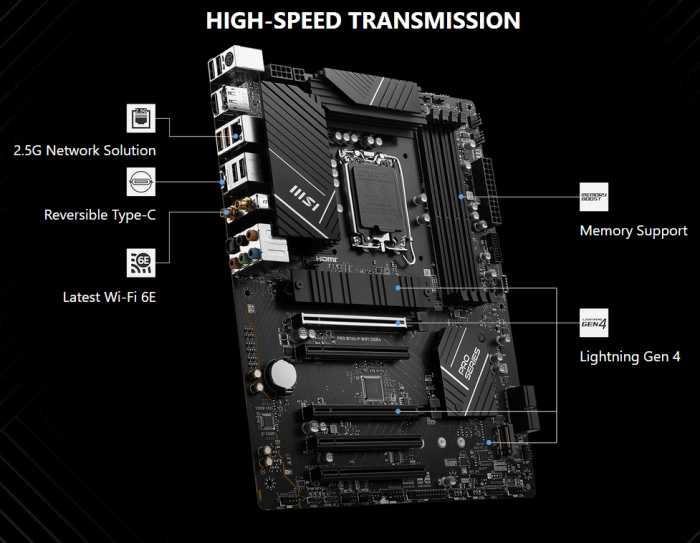

- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | INTEL B760 |
|---|---|
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics | Support HDMI™ 2.1, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 1x HDMI™ 1x DisplayPort |
| EXPANSION SLOT | 5x PCI-E x16 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x16 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen1 Type C |
| LED FEATURE | 4x EZ Debug LED |

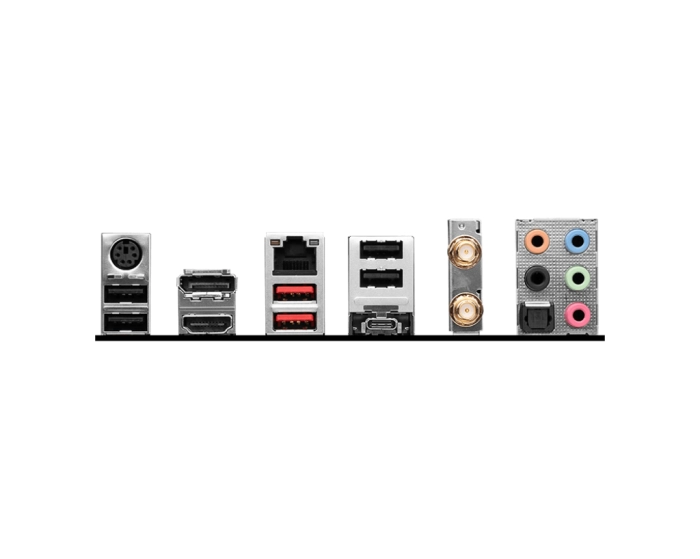

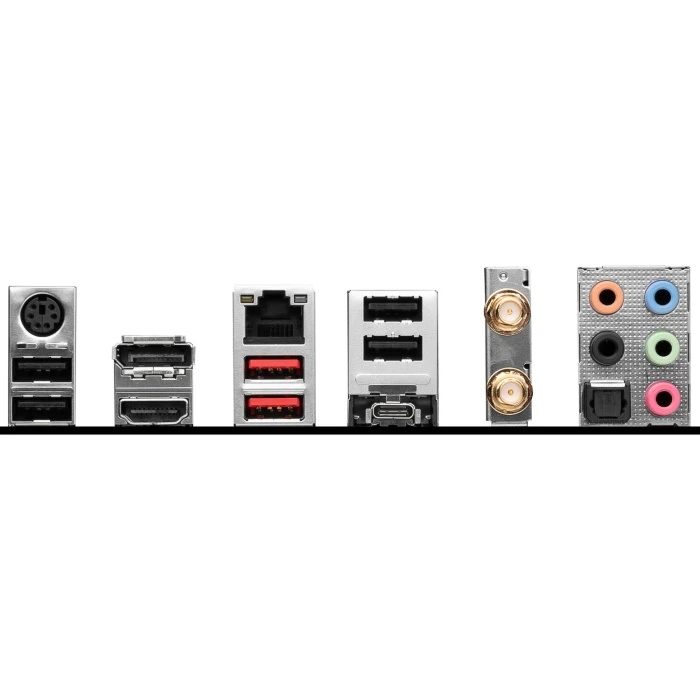

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |

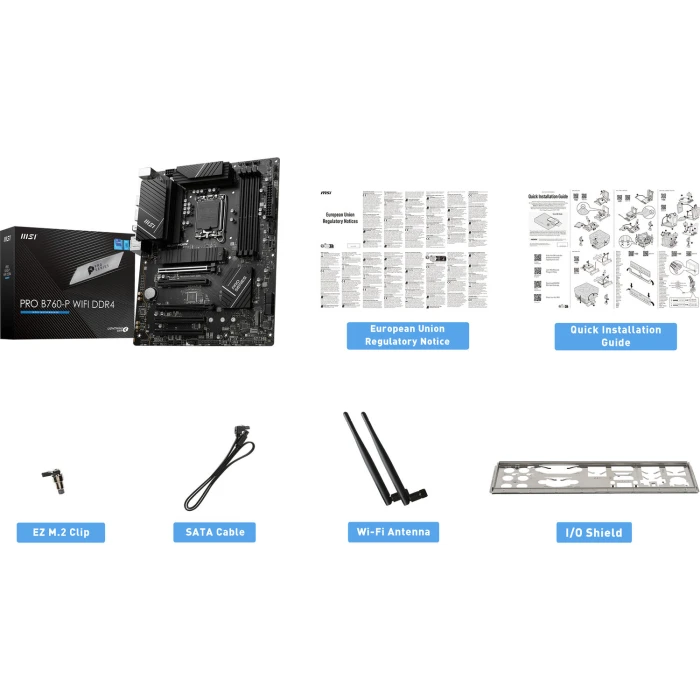

| BOX CONTENT |  |
