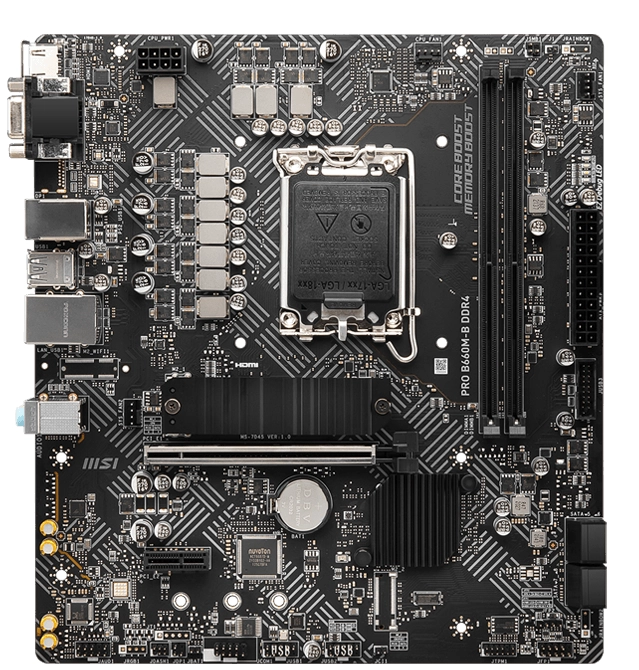

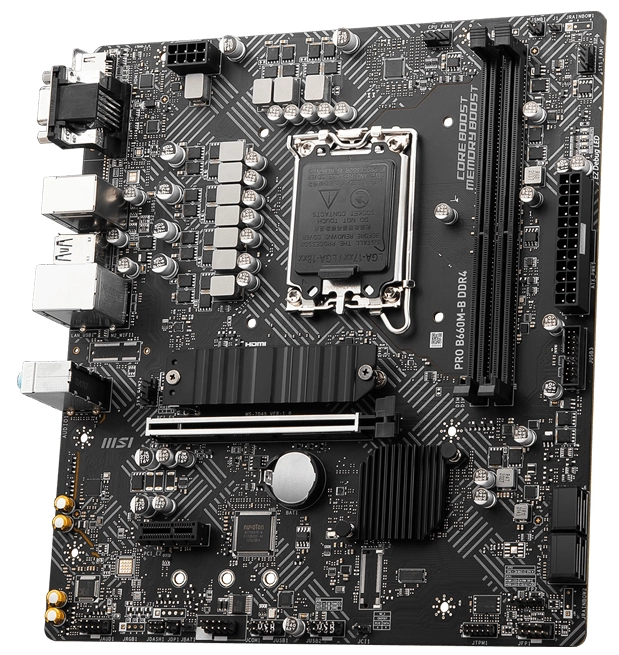

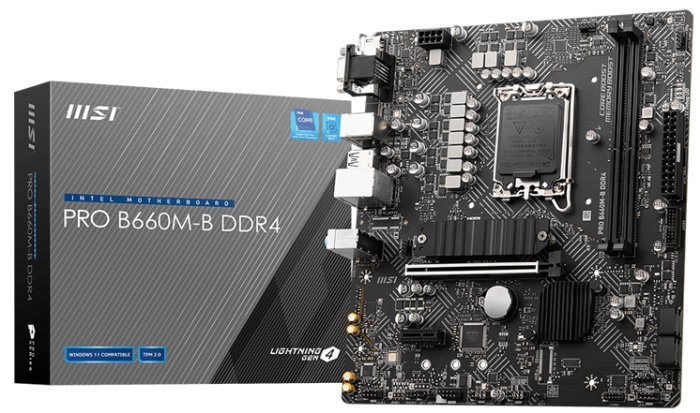

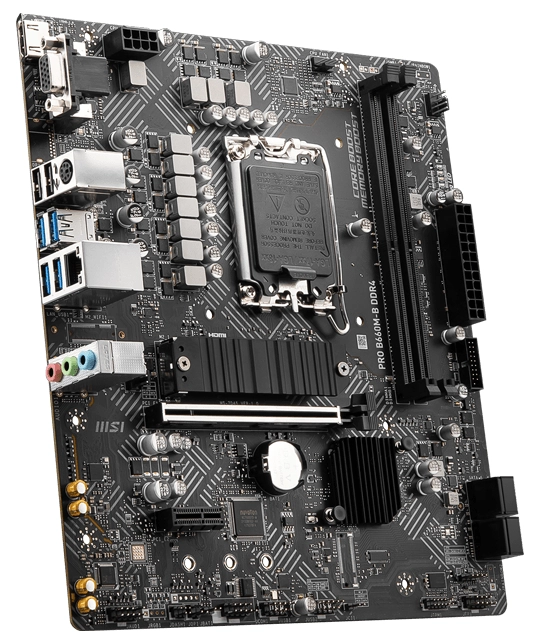

MSI PRO B660M-B DDR4
911-7D45-003
| Характеристика | Стойност |
|---|---|
| Чипсет | Intel B660 |
| CPU Socket | 1700 |
| Форм фактор | Micro ATX |
| Слотове памет | 2 |
| Поддържана памет | DDR4 |
| Аудио | 7.1 CH HD Audio Realtek ALC897 |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Поддържани процесори | 13th/12th Gen Intel |
| Максимален капацитет RAM памет | 64 GB |
| Честота памет | up to 4600 MHz |
| Поддръжка на Dual channel | Да |
| Слотoве PCI-E x16 | 1 x PCIe 4.0 x16 |
| Слотoве PCI-E x1 | 1 |
| M2 слот | 1x M.2 slot PCIe 4.0 x4 |
| Размери (MB) | 24.4 cm x 22.0 cm |
| Поддръжка на RAID | 0, 1, 5, 10 |
| Заден панел I/O |
1 x HDMI 1 x PS/2 keyboard/mouse 1 x RJ-45 LAN 1 x VGA (D-Sub) 2 x USB 2.0 3 x Audio jacks 4 x USB 3.2 Gen 1 |
| Гаранция | 36 месеца |
| Арт. номера |
67474
|
MSI PRO B660M-B DDR4
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4600+(OC) MHz

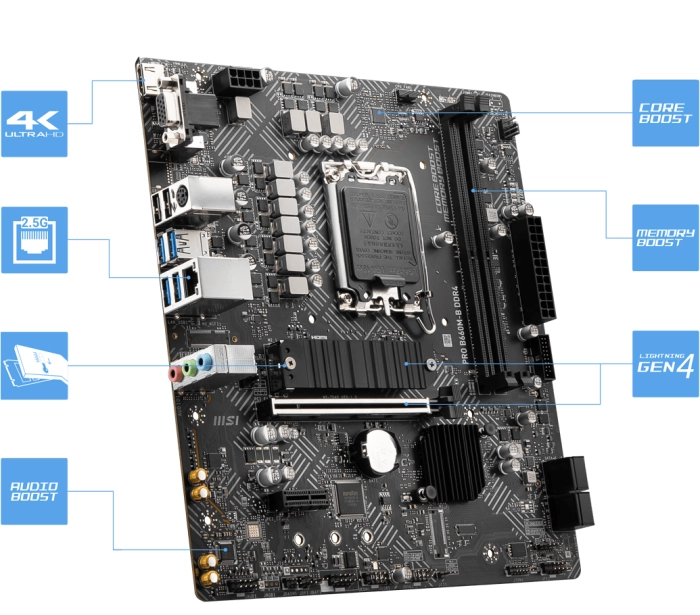

- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

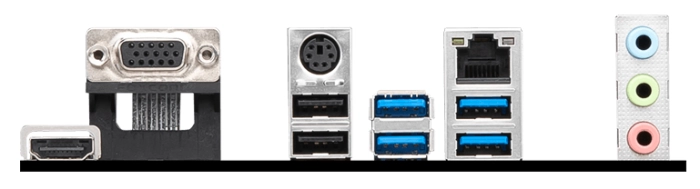

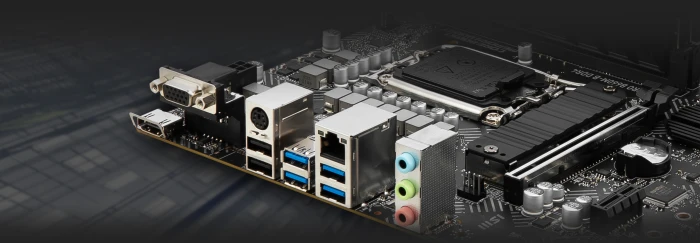

- VGA
- Keyboard / Mouse
- LAN port
- Audio connector
- HDMI™
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
