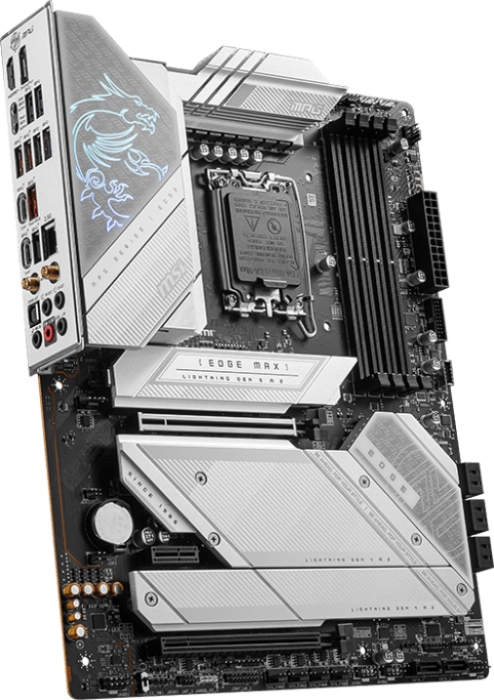

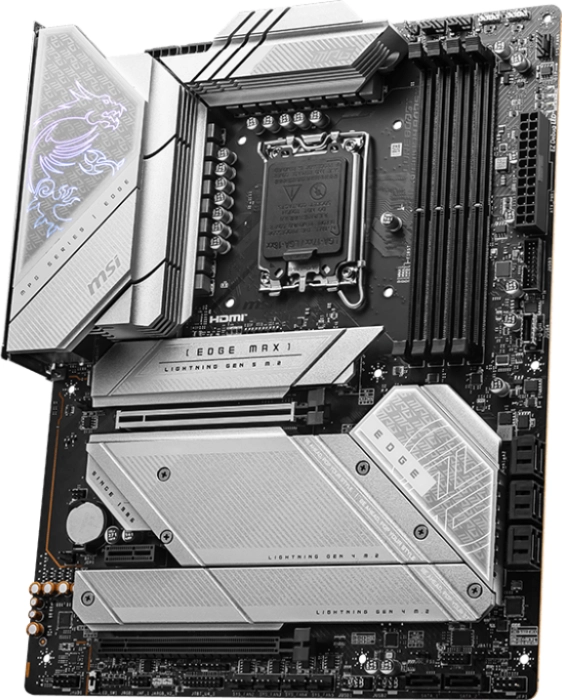

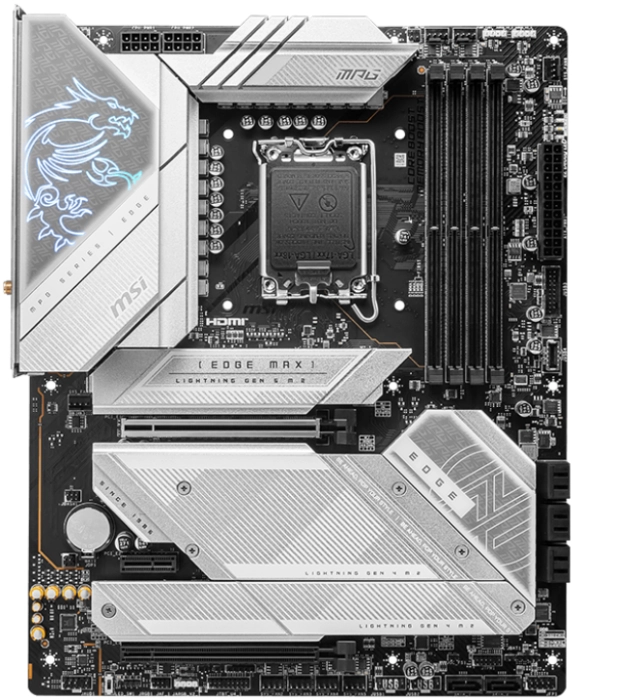

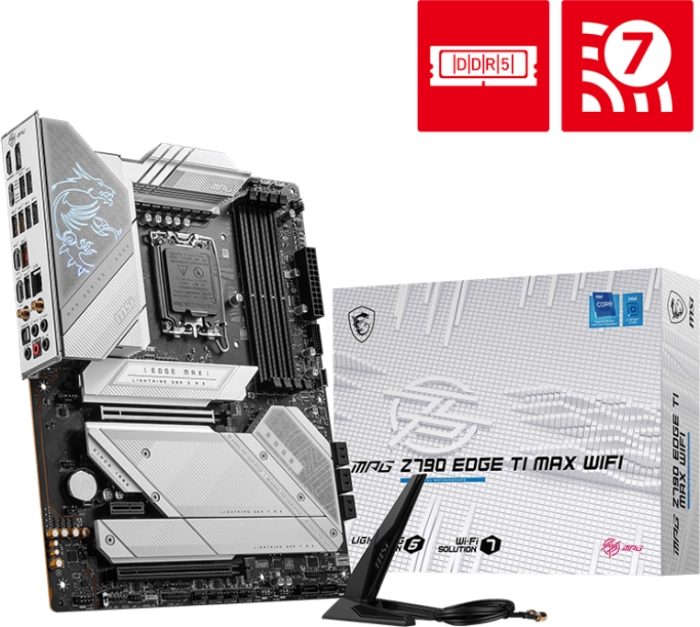

MSI MPG Z790 EDGE TI MAX WIFI DDR5
MSI MPG Z790 EDGE TI MAX WIFI DDR5
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | Intel Z790 |
| CPU Socket | 1700 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Аудио | Realtek ALC4080 |
| LAN | Intel® 2.5Gb |
| Поддържани процесори | 14th/13th/12th Gen Intel |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 7800 MHz |
| Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) |
| Слотoве PCI-E x1 | 1 x PCIe 3.0 x1 |
| SATA Интерфейс | 8 x SATA3 6.0 Gb/s |
| M2 слот |
1 x PCIe Gen5 x4 4 x PCIe Gen4 x4 |
| Вграден Wi-Fi | Wi-Fi 7 |
| Вграден Bluetooth | Bluetooth V5.4 |
| Размери (MB) | 304.8 x 243.84 mm |
| Поддръжка на RAID | 0, 1, 5, 10 |

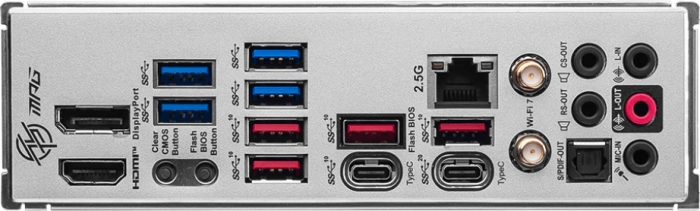

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x Clear CMOS button 1 x DisplayPort 1 x HDMI 1 x Optical SPDIF Out 1 x RJ-45 LAN 1 x USB 3.2 Gen 2 Type-C 1 x USB 3.2 Gen 2x2 Type-C 2 x Antenna Ports 4 x USB 3.2 Gen 1 4 x USB 3.2 Gen 2 5 x audio jacks |
| Гаранция | 36 месеца |
| Арт. номера |
MPG_Z790_EDGE_TI_MAX_WIFI
|

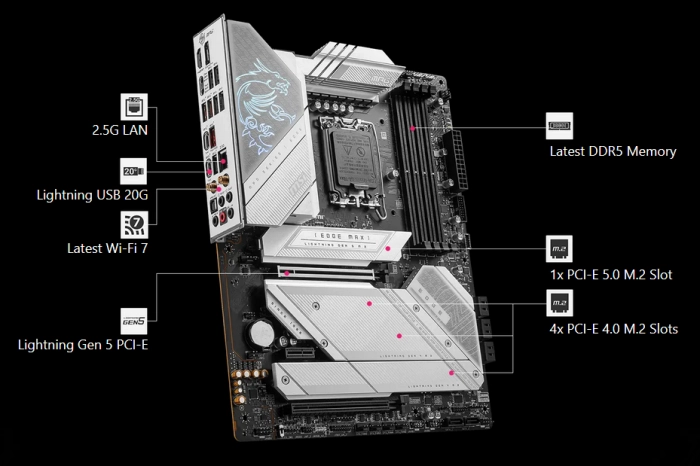

- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
