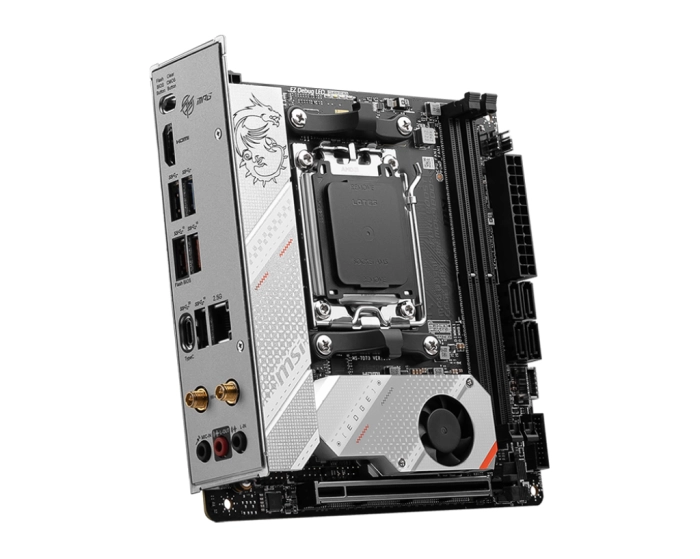

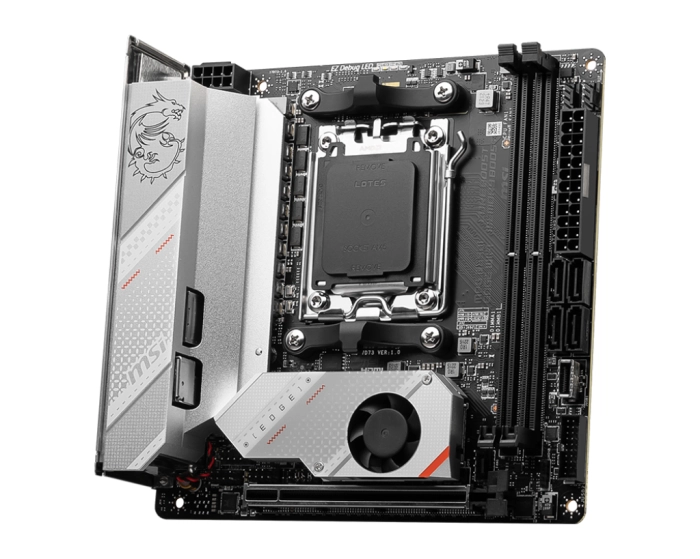

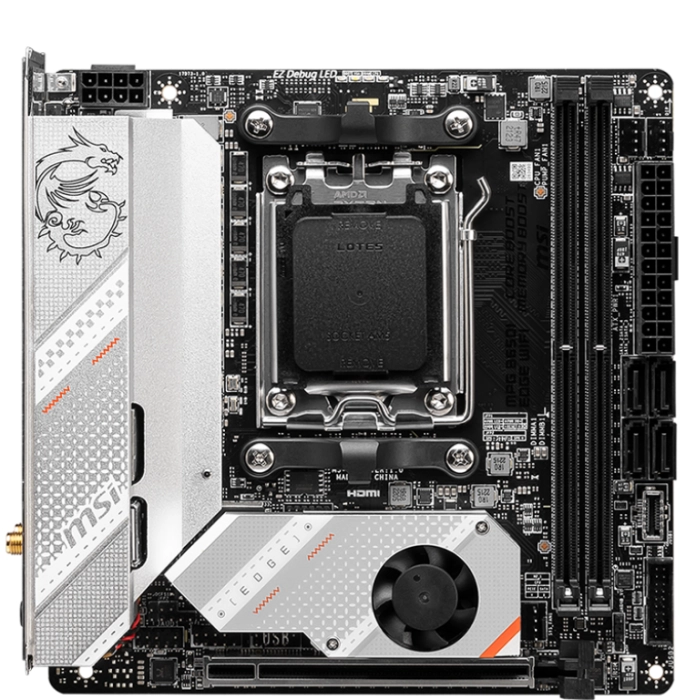

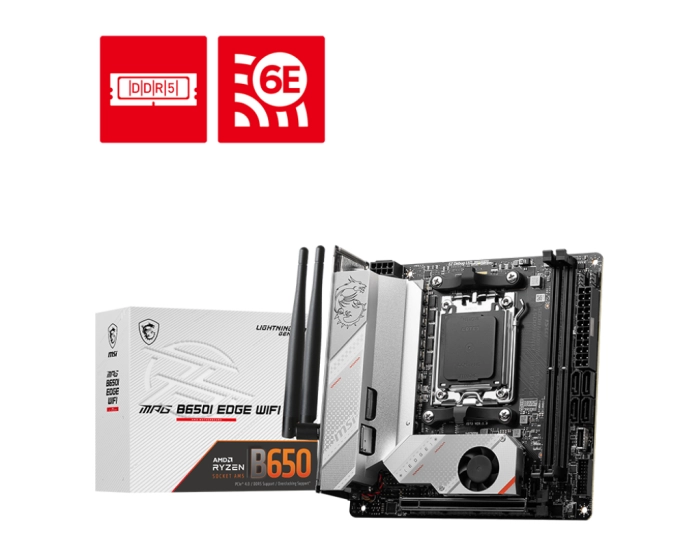

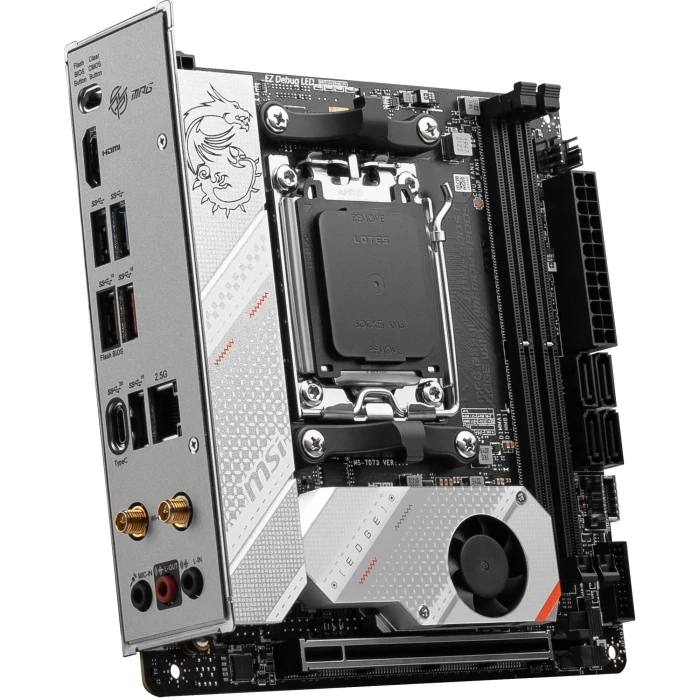

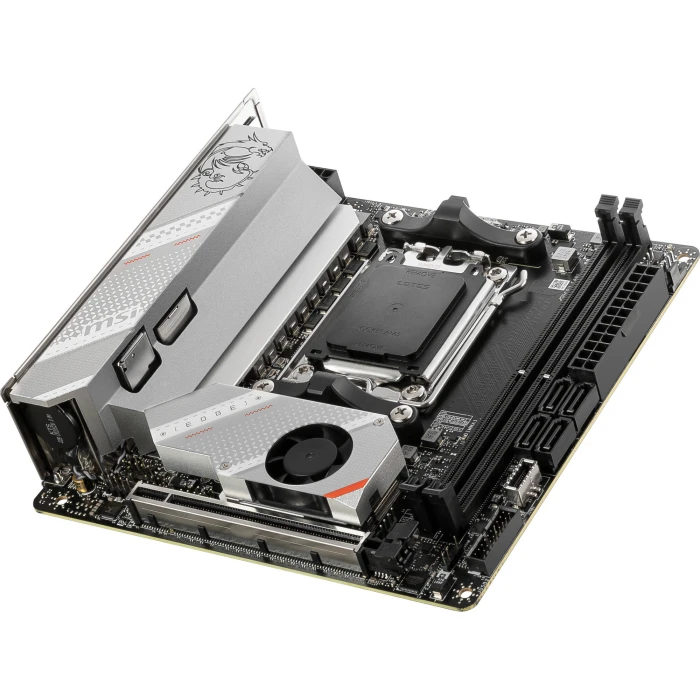

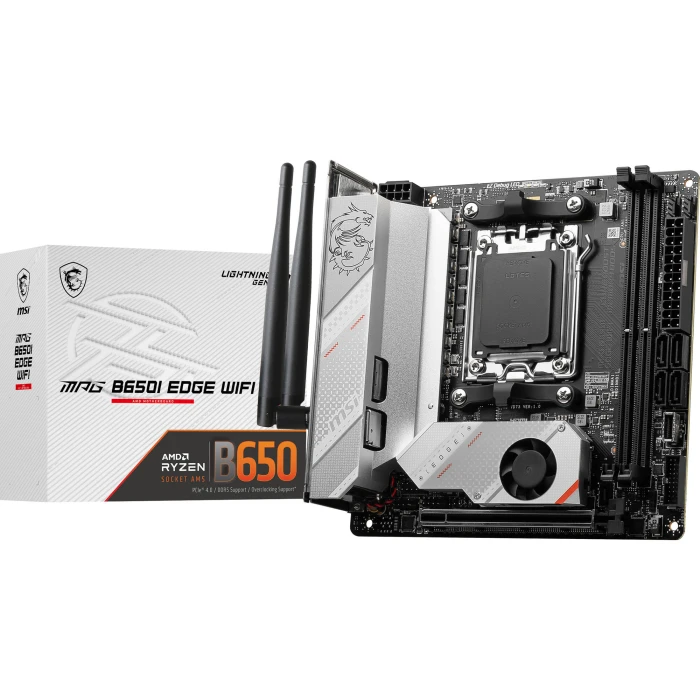

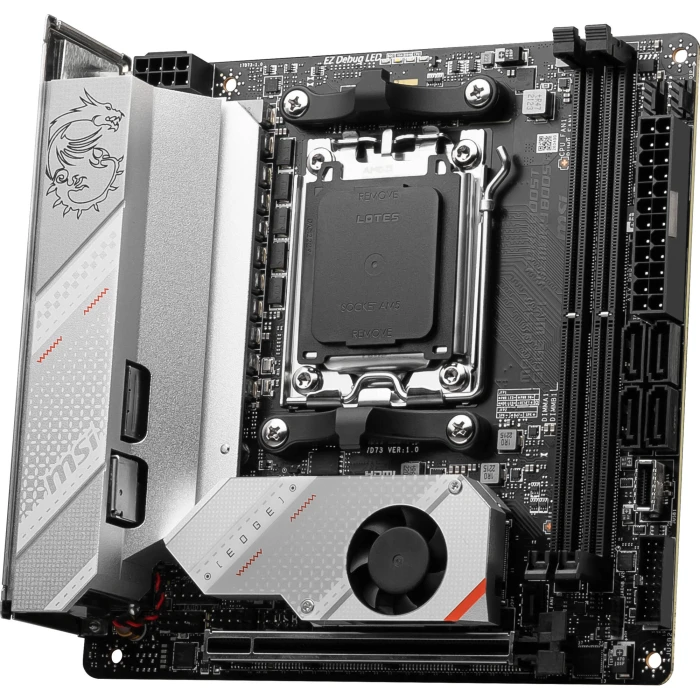

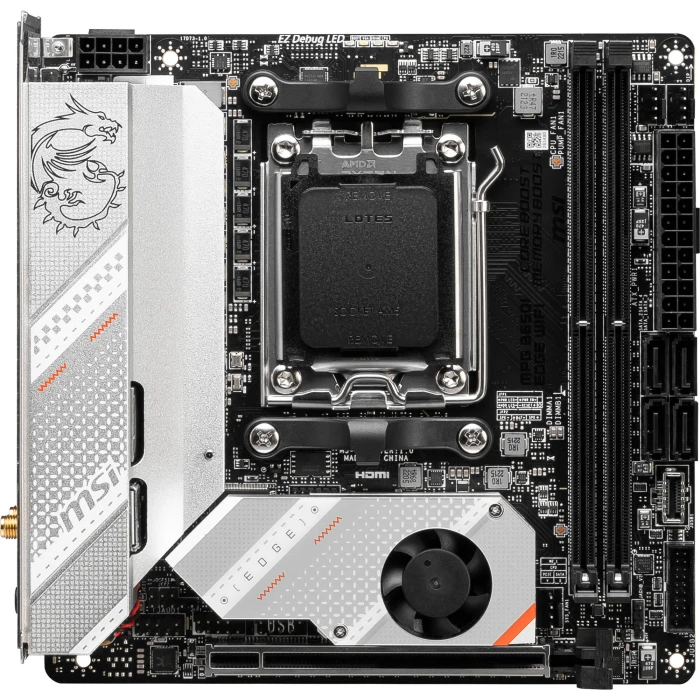

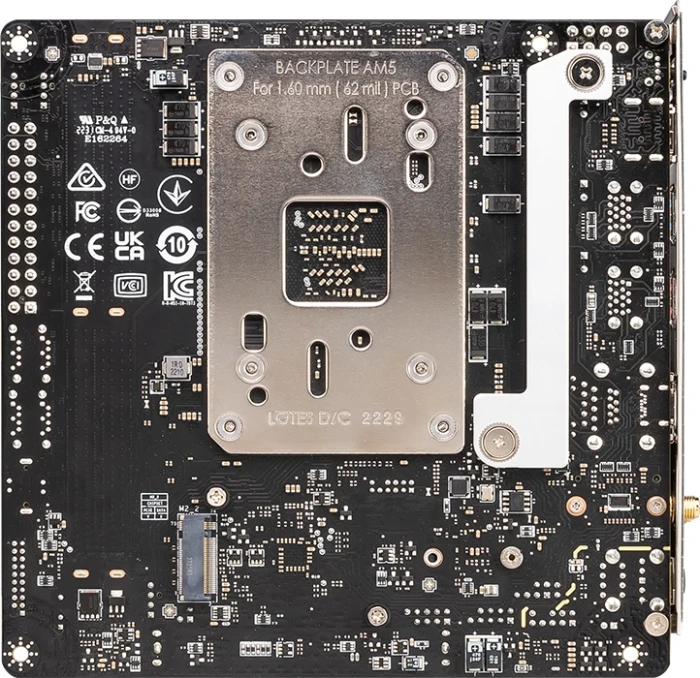

MSI MPG B650I EDGE WIFI
m-ITX, Socket AM5, Dual Channel DDR5 6600+MHz (OC), 1x PCIe x16 slot, 2x M.2 slot, 1x HDMI, 3x USB 3.2 Gen 2, 2x USB 3.2 Gen 1, 1x USB 3.2 Gen2x2 Type C, 7.1 HD Audio, 2.5Gbps LAN, WIFI, BT, 3Y
MSI MPG B650I EDGE WIFI
m-ITX, Socket AM5, Dual Channel DDR5 6600+MHz (OC), 1x PCIe x16 slot, 2x M.2 slot, 1x HDMI, 3x USB 3.2 Gen 2, 2x USB 3.2 Gen 1, 1x USB 3.2 Gen2x2 Type C, 7.1 HD Audio, 2.5Gbps LAN, WIFI, BT, 3Y
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | AMD B650 |
| CPU Socket | AM5 |
| Форм фактор | Mini ITX |
| Слотове памет | 2 |
| Поддържана памет | DDR5 |
| Аудио | Realtek ALC4080 |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Поддържани процесори | AMD Ryzen™ 8000/7000 Series Desktop Processors |
| Максимален капацитет RAM памет | 64 GB |
| Честота памет | DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Поддръжка на Dual channel | Да |
| Слотoве PCI-E x16 | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| Поддържани технологии | Windows® 11 64-bit, Windows® 10 64-bit |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| M2 слот |
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Вграден Wi-Fi | 802.11ax Wi-Fi 6E |
| Вграден Bluetooth | Bluetooth V5.2 |
| Размери (MB) | 170 x 170 mm |
| Поддръжка на RAID | 0,1,10 |
| Гаранция | 36 месеца |
| Арт. номера |
MPG_B650I_EDGE_WIFI
|
MPG B650I EDGE WIFI
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 6600+(OC) MHz
- Enhanced Power Design: Direct 8+2+1 VRM power, Core Boost, Memory Boost

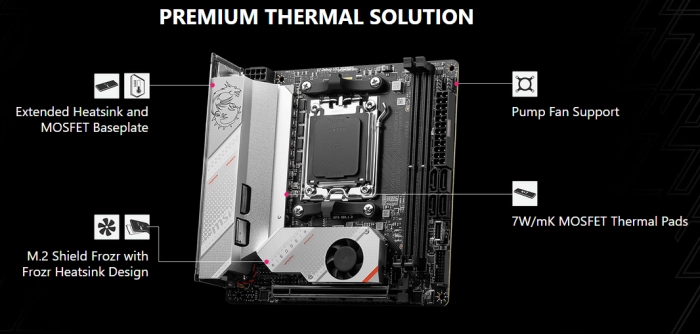

- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 10-layer PCB made by 2oz thickened copper and server grade level material

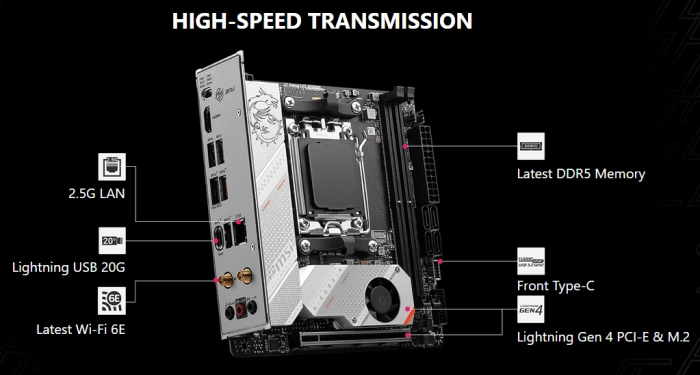

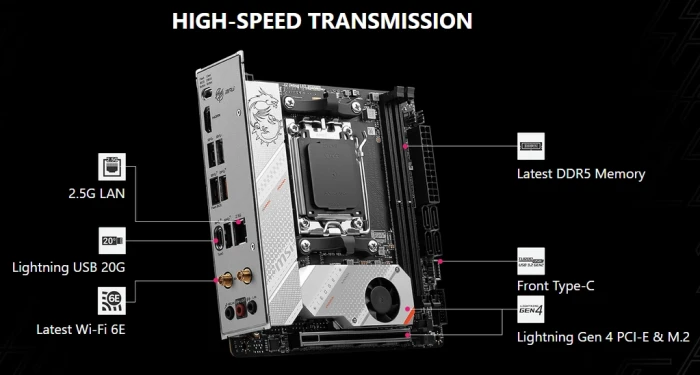

- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

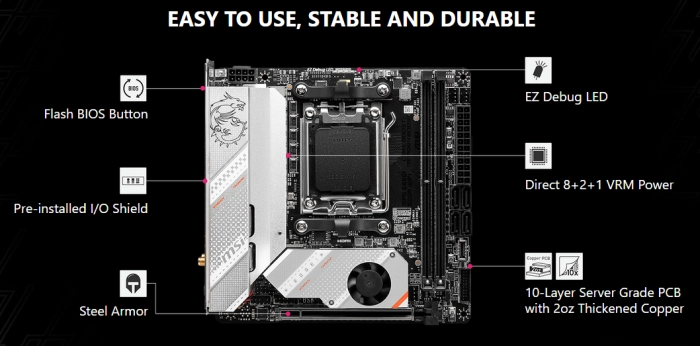

- DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | AMD B650 |
|---|---|
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| Memory | 2x DDR5, Maximum Memory Capacity 64GB Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
| Onboard Graphics | Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 1x HDMI™ |
| EXPANSION SLOT | 1x PCI-E x16 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) |
| Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G port |
| RAID | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |

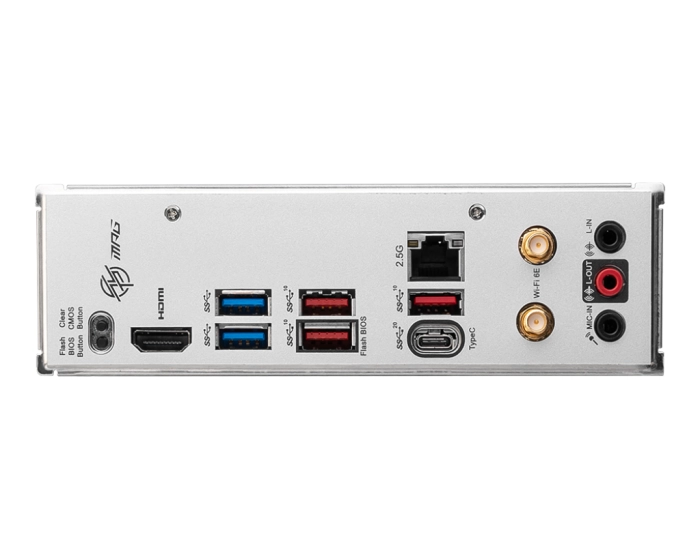

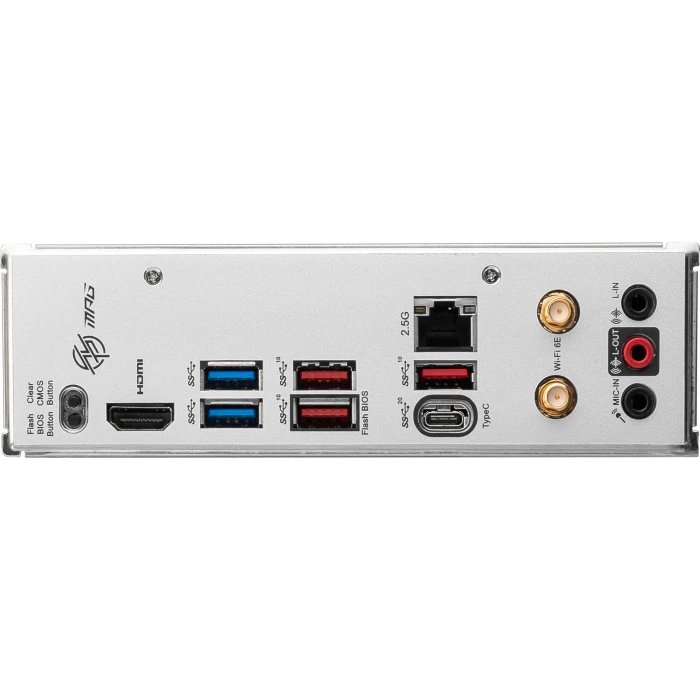

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | Mini-ITX 170mmx170mm |

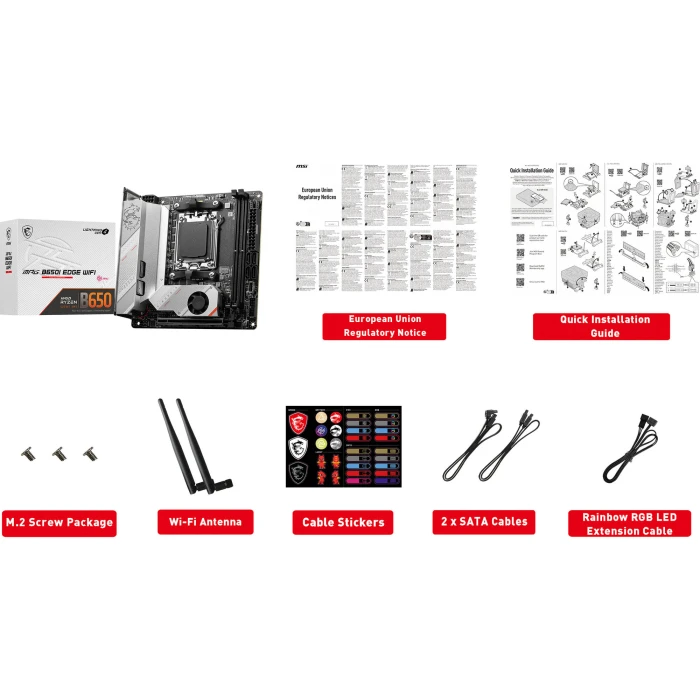

| BOX CONTENT |  |
