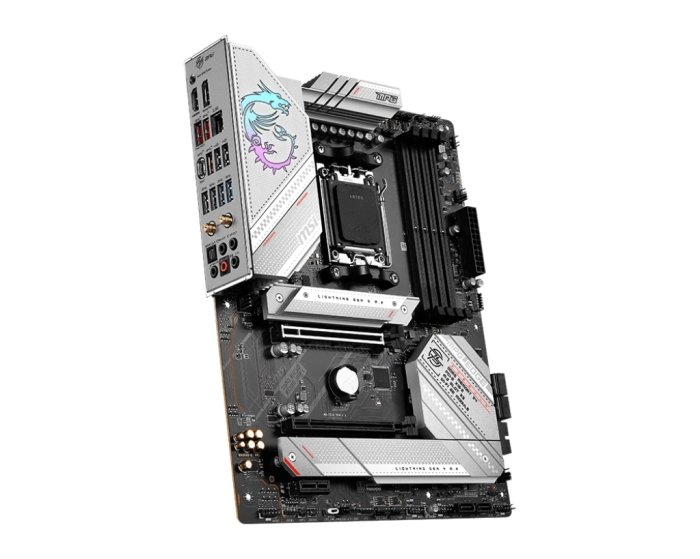

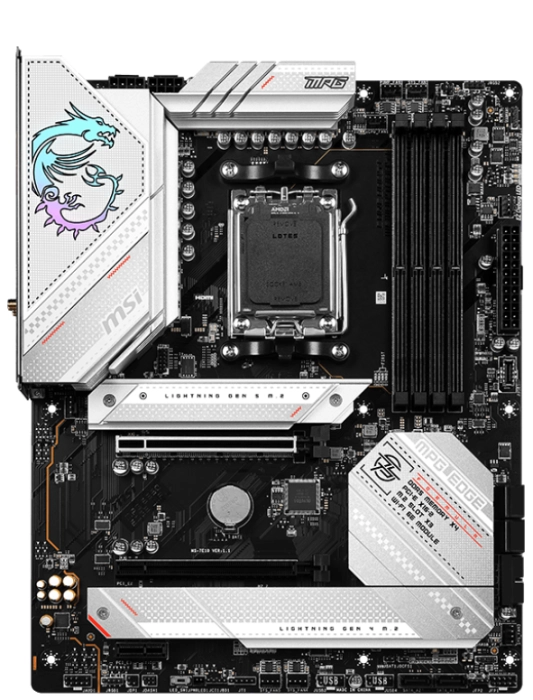

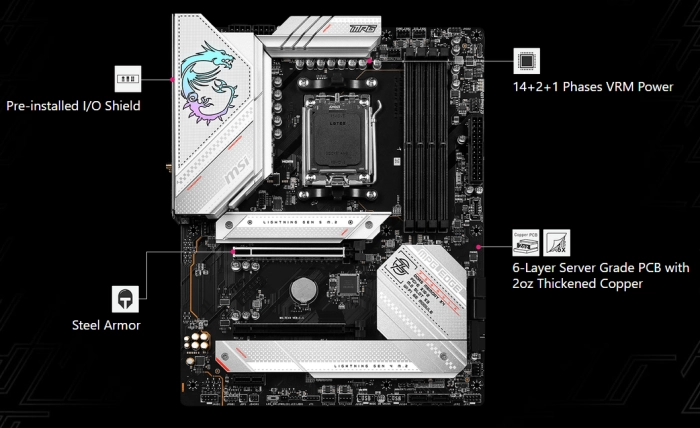

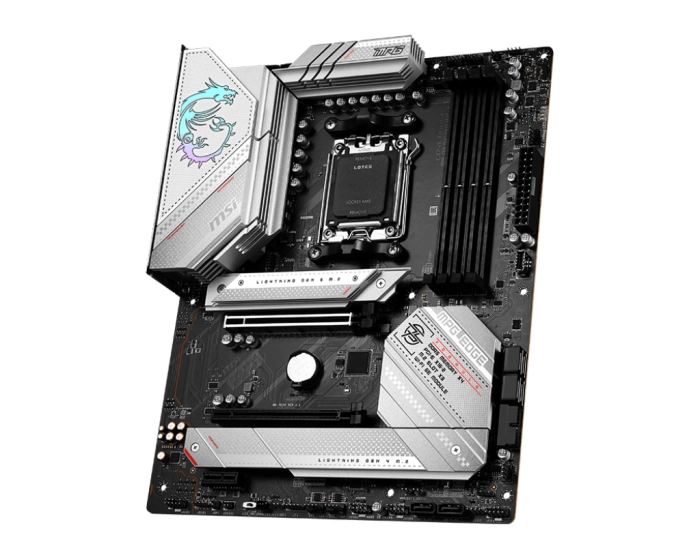

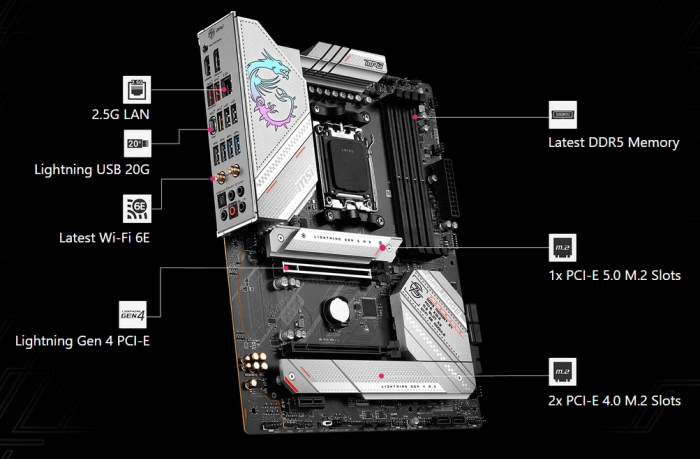

MSI MPG B650 EDGE WIFI
AM5,4xDDR5, HDMI,DP, 1xPCI-E x16 4.0, 1xPCI-E x1, 3xM.2, 6xSATA 6G, 6xUSB2.0, 6xUSB3.2 Gen1 Type A, 3xUSB3.2 Gen2 Type A, 1xUSB3.2 Gen2 Type C, 1xUSB 3.2 Gen2x2, 2.5GLAN, AMD Wi-Fi 6E, BT5.2, ATX
MSI MPG B650 EDGE WIFI
AM5,4xDDR5, HDMI,DP, 1xPCI-E x16 4.0, 1xPCI-E x1, 3xM.2, 6xSATA 6G, 6xUSB2.0, 6xUSB3.2 Gen1 Type A, 3xUSB3.2 Gen2 Type A, 1xUSB3.2 Gen2 Type C, 1xUSB 3.2 Gen2x2, 2.5GLAN, AMD Wi-Fi 6E, BT5.2, ATX
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | AMD B650 |
| CPU Socket | AM5 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Аудио | Realtek ALC4080 |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Поддържани процесори | AMD Ryzen™ 8000/7000 Series Desktop Processors |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Поддръжка на Dual channel | Да |
| Слотoве PCI-E x16 |
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset) |
| Слотoве PCI-E x1 | 1 |
| Поддържани технологии | Windows® 11 64-bit, Windows® 10 64-bit |
| SATA Интерфейс | 6 x SATA3 6.0 Gb/s |
| M2 слот |
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 |
| Вграден Wi-Fi | 802.11ax Wi-Fi 6E |
| Вграден Bluetooth | Bluetooth V5.2 |
| Размери (MB) | 304.8 x 243.84 mm |
| Поддръжка на RAID | 0,1,10 |
| Гаранция | 36 месеца |
| Арт. номера |
MPG_B650_EDGE_WIFI
67571
|
|
Chipset |
AMD B650 |
|---|---|
|
CPU |
Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
|
Memory |
4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
|
Onboard Graphics |
Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz* Support DP 1.4 HBR3, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 1x HDMI 1x DisplayPort |
|
Slot |
1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
Storage |
3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G (Qty) |
|
RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. |
|
USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
LAN |
Realtek® RTL8125BG 2.5Gbps LAN |
|
WIRELESS LAN & BLUETOOTH |
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
|
Audio |
Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
|
Internal IO |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
LED FEATURE |
4x EZ Debug LED 1x EZ LED Control switch |
|

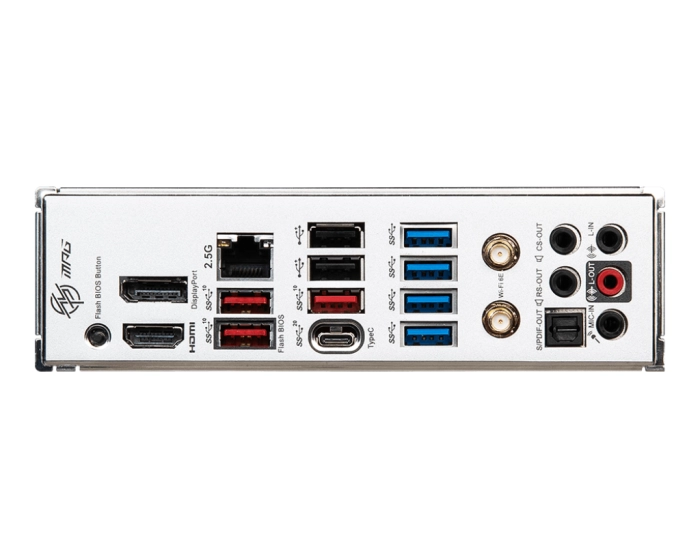

BACK PANEL PORTS |
|
|
OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
PCB Info |
ATX 243.84mmx304.8mm |
|

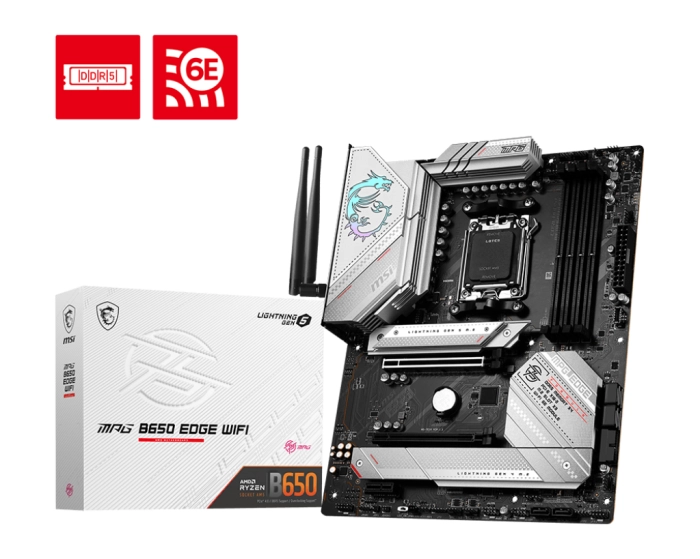

BOX CONTENT |
 |
