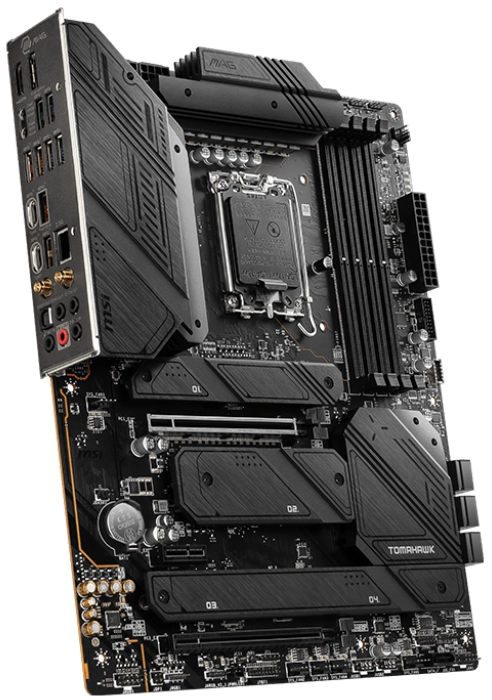

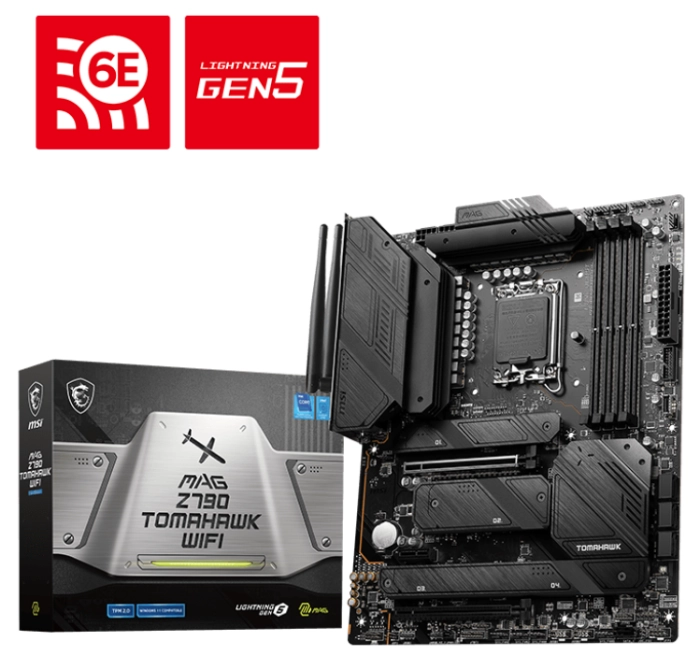

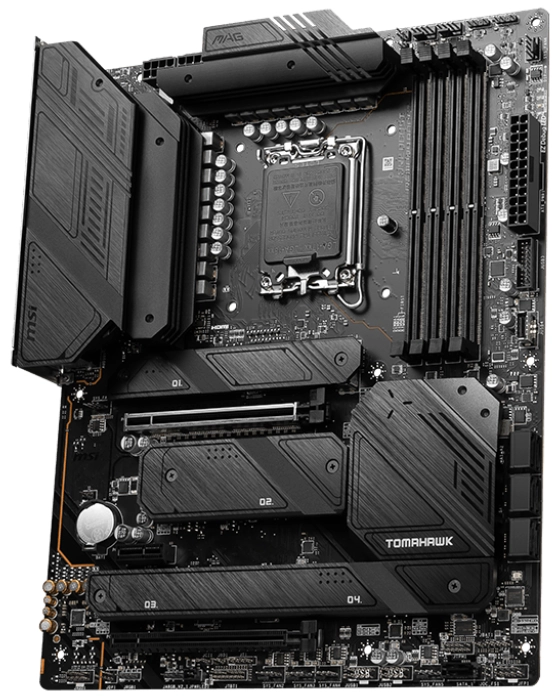

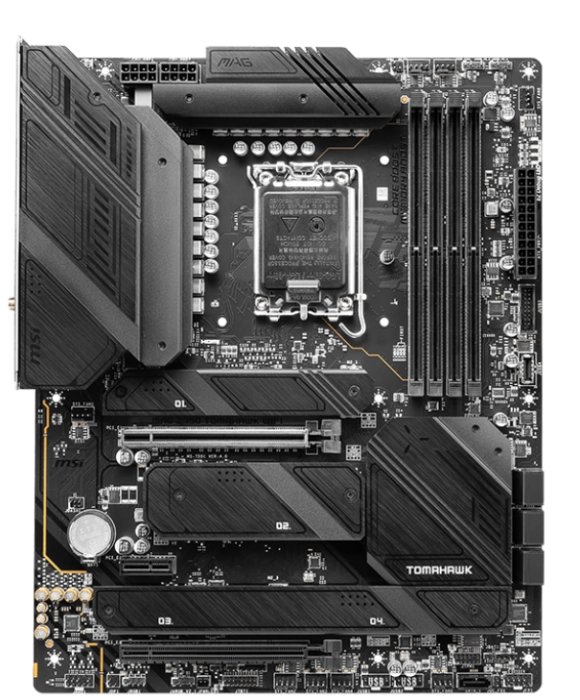

MSI MAG Z790 TOMAHAWK WIFI DDR5
ATX, Socket LGA 1700, Dual Channel DDR5 7200+(OC)MHz, 2x PCIe x16 slots, 4x M.2 slots, 1x HDMI, 1x DP, 4x USB 3.2 Gen2, 4x USB 3.2 Gen2, 4x USB 2.0, Type-C, 7.1 HD Audio, 2.5Gbps LAN
MSI MAG Z790 TOMAHAWK WIFI DDR5
ATX, Socket LGA 1700, Dual Channel DDR5 7200+(OC)MHz, 2x PCIe x16 slots, 4x M.2 slots, 1x HDMI, 1x DP, 4x USB 3.2 Gen2, 4x USB 3.2 Gen2, 4x USB 2.0, Type-C, 7.1 HD Audio, 2.5Gbps LAN
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1700 |
| Чипсет | Intel Z790 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | non-ECC |
| Аудио | Realtek ALC4080 |
| LAN | Intel® 2.5Gbps |
| Поддържани процесори | Intel 12th Gen Processors Intel 13th Gen Processors |
| Слотoве PCI-E x16 |
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 PCIe 5.0 supports up to x16 (From CPU) |
| Слотoве PCI-E x1 | 1 |
| Вграден Wi-Fi | Intel® Wi-Fi 6E |
| Вграден Bluetooth | Supports Bluetooth® 5.3, FIPS, FISMA |
| Поддръжка на RAID | 0, 1, 5, 10 |
| Видео портове |
1 x DisplayPort 1 x HDMI |
| USB портове |
4 (USB 3.2 (type A)) 2 (USB 3.2 (type C) 4x USB 3.2 Gen2 Type A |
| Гаранция | 36 месеца |
| Арт. номера |
MAG_Z790_TOMAHAWK_WIFI
68152
|
MAG Z790 TOMAHAWK WIFI
- Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz

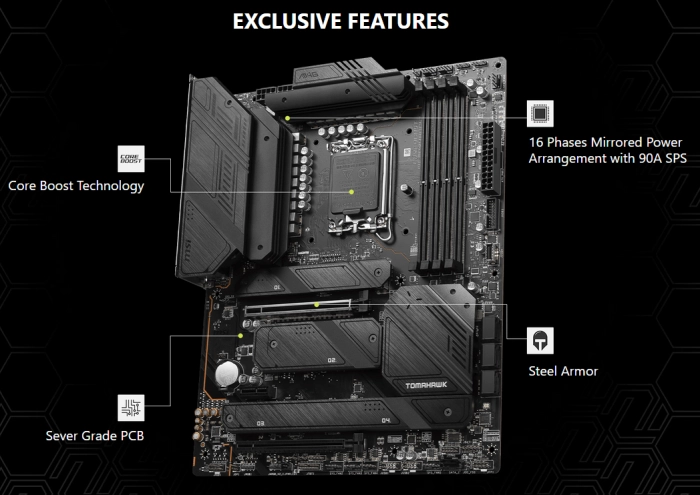

- Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
| Chipset | INTEL Z790 |
|---|---|
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 1x HDMI™ 1x DisplayPort |
| EXPANSION SLOT | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function. |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |

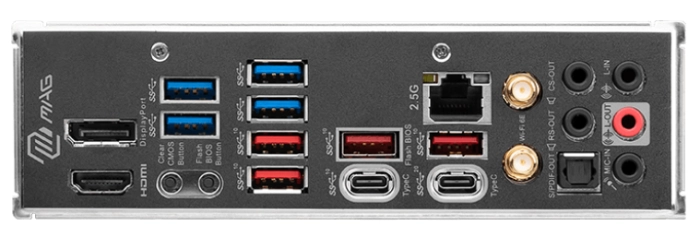

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
| BOX CONTENT |  |
