MSI MAG B850 TOMAHAWK MAX WIFI
911-7E62-002








MSI MAG B850 TOMAHAWK MAX WIFI
911-7E62-002
Лизингов калкулатор
Характеристика | Стойност |
---|---|
CPU Socket | AM5 |
Чипсет | AMD B850 |
Форм фактор | ATX |
Слотове памет | 4 |
Поддържана памет | DDR5 |
Максимален капацитет RAM памет | 256 GB |
Честота памет | up to 8400 MT/s |
Аудио | Realtek ALC4080 |
LAN | 5 Gigabit LAN Realtek RTL8126 |
Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x1 mode) |
M2 слот |
2 x PCIe Gen5 x4 1 x PCIe Gen4 x4 1 x PCIe Gen4 x2 |
SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
Вграден Wi-Fi | Wi-Fi 7 |
Вграден Bluetooth | Bluetooth V5.4 |
Поддръжка на RAID | 0, 1, 10 |

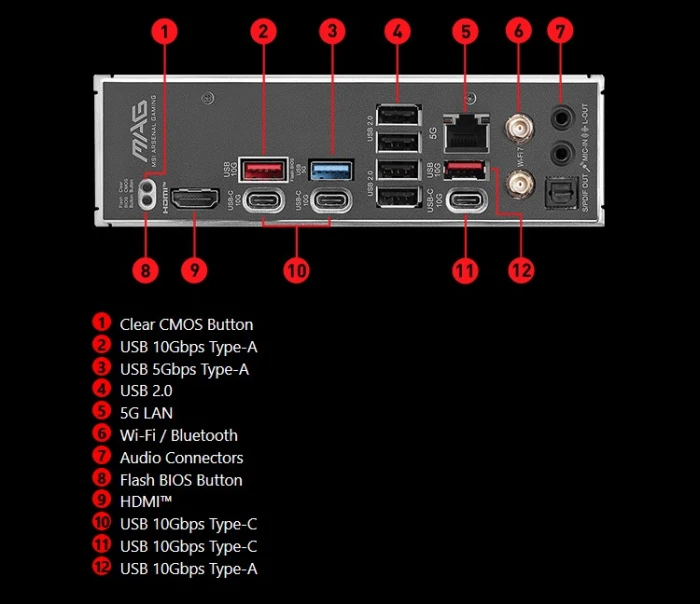

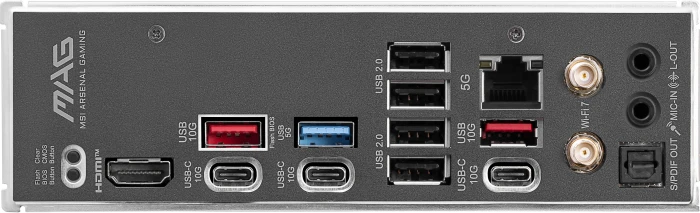

Заден панел I/O |
1 x BIOS FlashBack Button 1 x Clear CMOS button 1 x HDMI 1 x RJ-45 LAN 2 x Antenna Ports 2 x Аudio jacks 4 x USB 2.0 2 x USB 10Gbps 1 x USB 5Gbps 3 x USB 10Gbps Type-C |
Power Design | 14+2+1 |
Размери (MB) | 304.8 x 243.84 mm |
Гаранция | 36 месеца |
Арт. номера |
MAG_B850_TOMAHAWK_MAX_WIFI
70647
|
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
