MSI MAG B550 TOMAHAWK MAX WIFI
Лизингов калкулатор
Продуктът не е наличен и цената му може да не е актуална.
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM4 |
| Чипсет | AMD B550 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | up to 5100 MT/s |
| Аудио | 7.1 CH HD Audio Realtek ALC897 |
| LAN | Realtek RTL8125B 2.5Gb Ethernet |
| Поддържани процесори | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series |
| Слотoве PCI-E x16 |
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 |
| Слотoве PCI-E x1 | 2 |
| Вграден Wi-Fi | Wi-Fi 6E |
| Вграден Bluetooth | Bluetooth V5.2 |
| M2 слот | 2x M.2 slots |
| SATA Интерфейс | 6 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
MAG_B550_TOMAHAWK_MAX_WIFI
69571
|
MAG B550 TOMAHAWK MAX WIFI
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
- Supports DDR4 Memory, up to 5100+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™

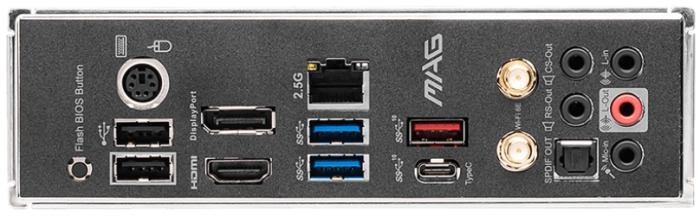

Back panel ports
- Keyboard / Mouse
- DisplayPort 1.4
- 2.5G LAN Port
- USB 3.2 Gen 2 10Gbps Type-A
- Wi-Fi / Bluetooth Antenna
- Audio Connectors
- Flash BIOS Button
- USB 2.0 Port
- HDMI™ 2.1 Port
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 2 10Gbps Type-C
- Optical S/PDIF OUT
