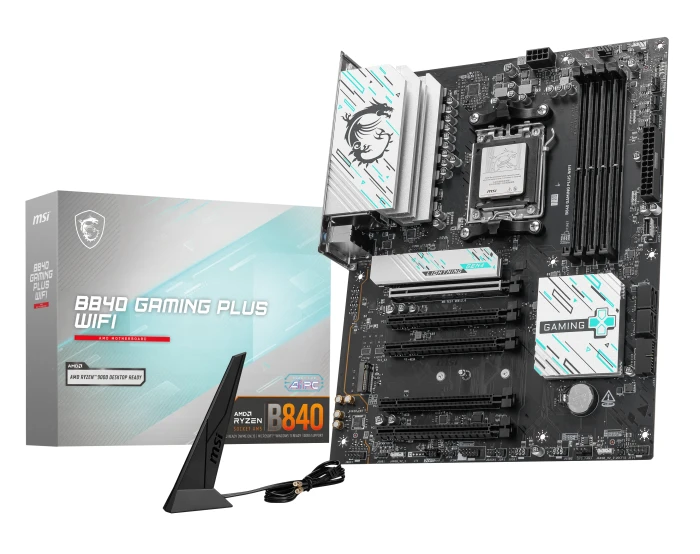

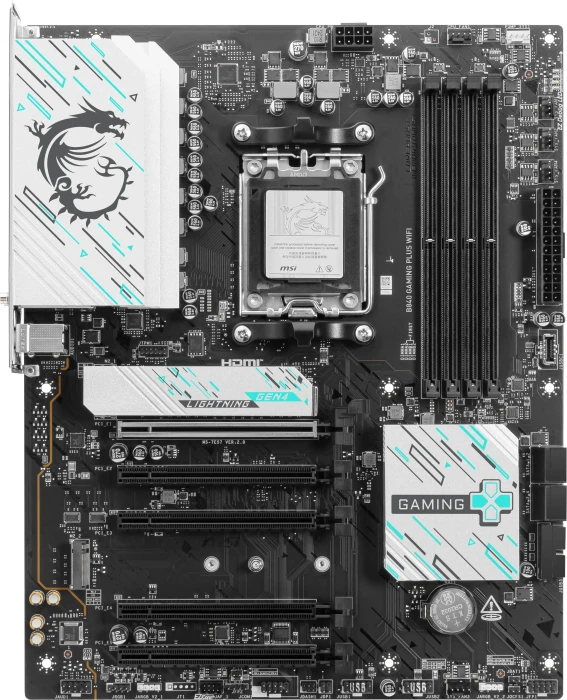

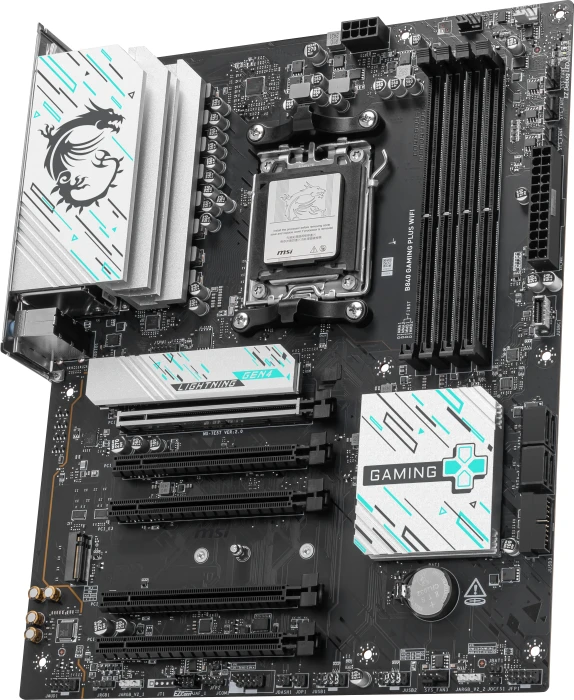

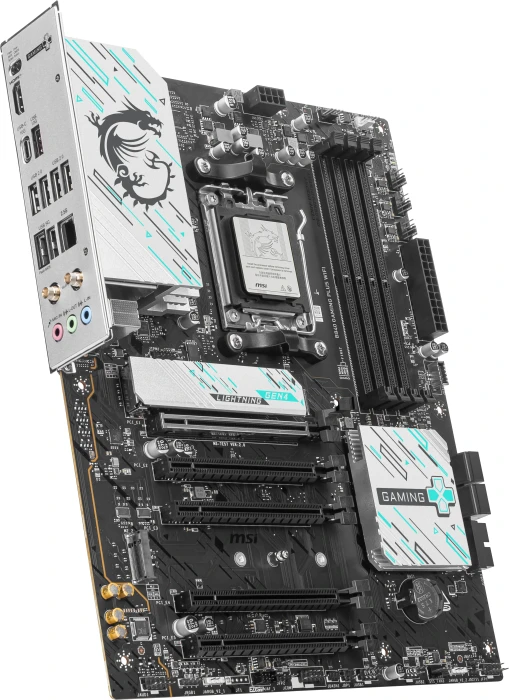

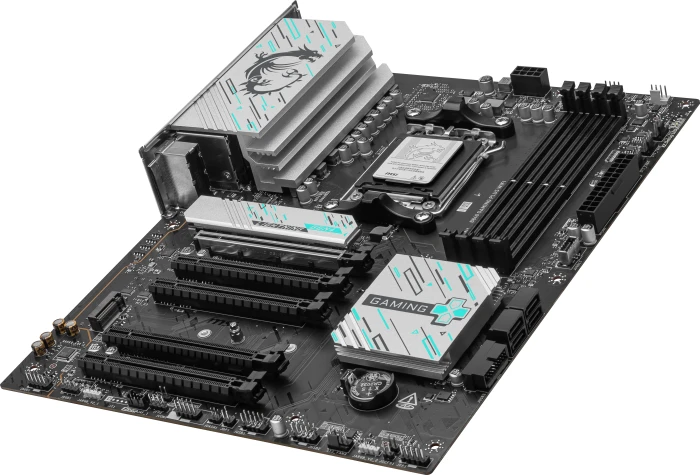

MSI B840 GAMING PLUS WIFI
Лизингов калкулатор
Продуктът не е наличен и цената му може да не е актуална.
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM5 |
| Чипсет | AMD B840 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 8000 MT/s |
| Аудио | Realtek ALC897 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Слотoве PCI-E x16 |
1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x16 (x1 mode) |
| M2 слот | 2 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Wi-Fi 7 |
| Вграден Bluetooth | Bluetooth V5.4 |
| Поддръжка на RAID | 0, 1 |

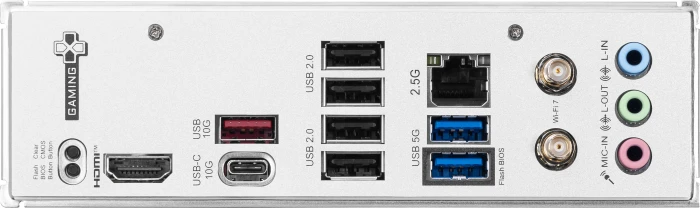

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x Clear CMOS button 1 x HDMI 1 x RJ-45 LAN 2 x Antenna Ports 3 x Audio jacks 4 x USB 2.0 1 x USB 10Gbps Type-C 2 x USB 5Gbps 1 x USB 10Gbps |
| Power Design | 7+2+1 |
| Размери (MB) | 304.8 x 243.84 mm |
| Гаранция | 36 месеца |
| Арт. номера |
B840_GAMING_PLUS_WIFI
70571
|
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
