MSI B760M PROJECT ZERO DDR5
911-7E14-004
MSI B760M PROJECT ZERO DDR5
911-7E14-004
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1700 |
| Чипсет | Intel B760 |
| Форм фактор | Micro ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 7800 MT/s |
| Аудио | Realtek ALC897 |
| LAN | Realtek 2.5Gb Ethernet |
| Поддържани процесори | 14th/13th/12th Gen Intel |
| Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) |
| Слотoве PCI-E x1 | 1 x PCIe 3.0 x1 |
| M2 слот | 2 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Не |
| Вграден Bluetooth | Не |
| Поддръжка на RAID | SATA RAID 0/1/5/10 |
| Заден панел I/O |

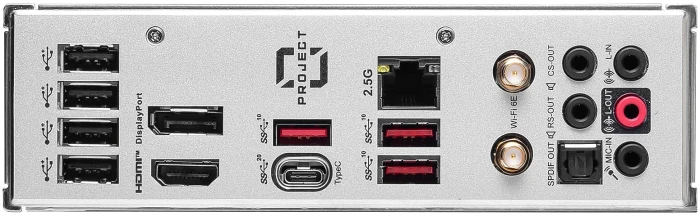

1 x DisplayPort 1 x HDMI 1 x Optical SPDIF Out 1 x RJ-45 LAN 2 x Antenna Ports 4 x USB 2.0 5 x Audio jacks 1 x USB 20Gbps Type-C 3 x USB 10Gbps |
| Размери (MB) | 243.84 x 243.84 mm |
| Гаранция | 36 месеца |
| Арт. номера |
70218
|
B760M PROJECT ZERO
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Audio Boost: Reward your ears with studio grade sound
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
