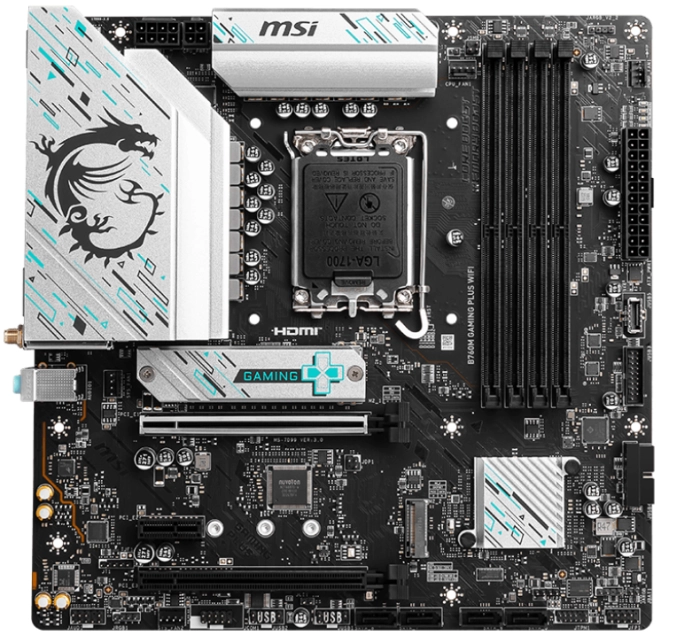

MSI B760M GAMING PLUS WIFI DDR5
Лизингов калкулатор
Продуктът не е наличен и цената му може да не е актуална.
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1700 |
| Чипсет | Intel B760 |
| Форм фактор | Micro ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 192 GB |
| Честота памет | up to 6800 MT/s |
| Аудио | Realtek ALC897 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Поддържани процесори | 14th/13th/12th Gen Intel |
| Слотoве PCI-E x16 |
1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) |
| Слотoве PCI-E x1 | 1 x PCIe 3.0 x1 |
| M2 слот | 2 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Intel® Wi-Fi 6E |
| Вграден Bluetooth | Bluetooth V5.3 |
| Поддръжка на RAID | SATA RAID 0/1/5/10 |

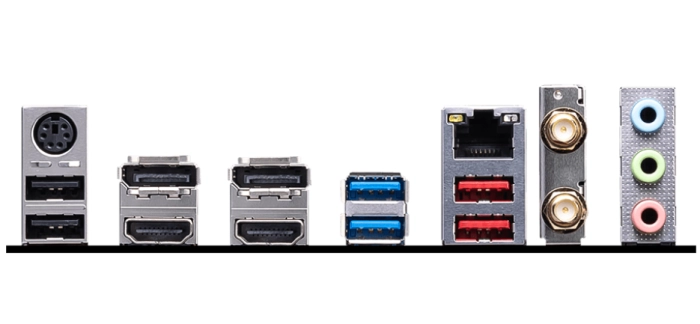

| Заден панел I/O |
1 x PS/2 Mouse/Keyboard Port 1 x RJ-45 LAN 2 x Antenna Ports 2 x DisplayPort 2 x USB 2.0 2 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 3 x Audio jacks 2 x HDMI |
| Размери (MB) | 243.84 x 243.84 mm |
| Гаранция | 36 месеца |
| Арт. номера |
B760M_GAMING_PLUS_WIFI
69189
|
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
