MSI B760 GAMING PLUS WIFI DDR5
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | Intel B760 |
| CPU Socket | 1700 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Аудио | 7.1 CH HD Audio Realtek ALC897 |
| LAN | 2.5 Gigabit Dragon RTL8125BG |
| Поддържани процесори | 13th/12th Gen Intel |
| Максимален капацитет RAM памет | 192 GB |
| Честота памет | up to 6800 MHz |
| Поддръжка на Dual channel | Да |
| Слотoве PCI-E x16 |
1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 3 x PCIe 3.0 x16 (x1 mode) |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| M2 слот | 2 x PCIe 4.0 x4 |
| Размери (MB) | 304.8 x 243.84 mm |
| Поддръжка на RAID | SATA RAID 0/1/5/10 |

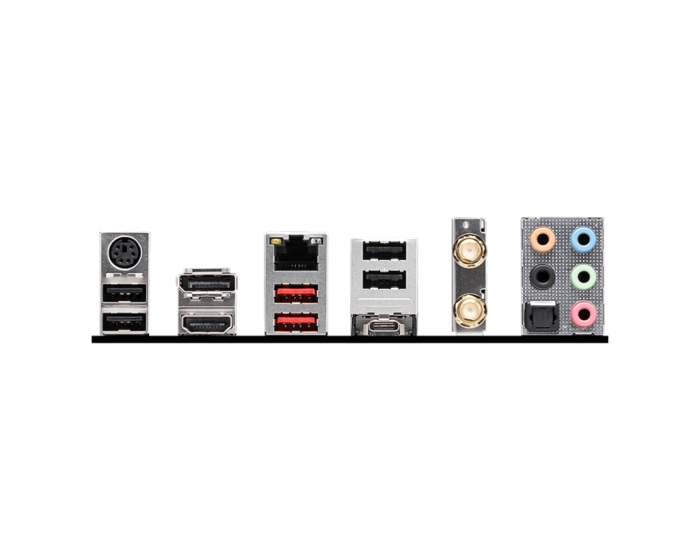

| Заден панел I/O |
1 x DisplayPort 1 x HDMI 1 x Optical SPDIF Out 1 x PS/2 Mouse/Keyboard Port 1 x RJ-45 LAN 1 x USB 3.2 Gen 2 Type-C 2 x Antenna Ports 2 x USB 3.2 Gen 2 4 x USB 2.0 5 x audio jacks |
| Гаранция | 36 месеца |
| Арт. номера |
B760_GAMING_PLUS_WIFI
69074
|
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
