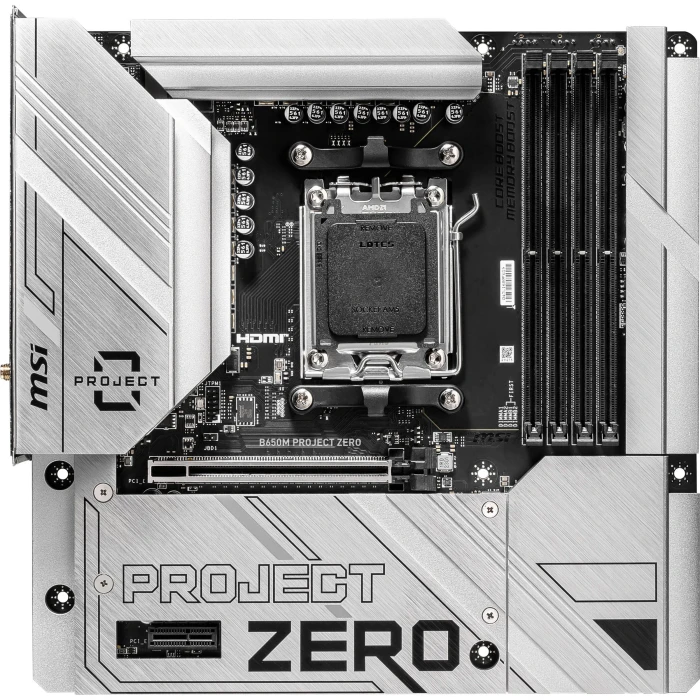

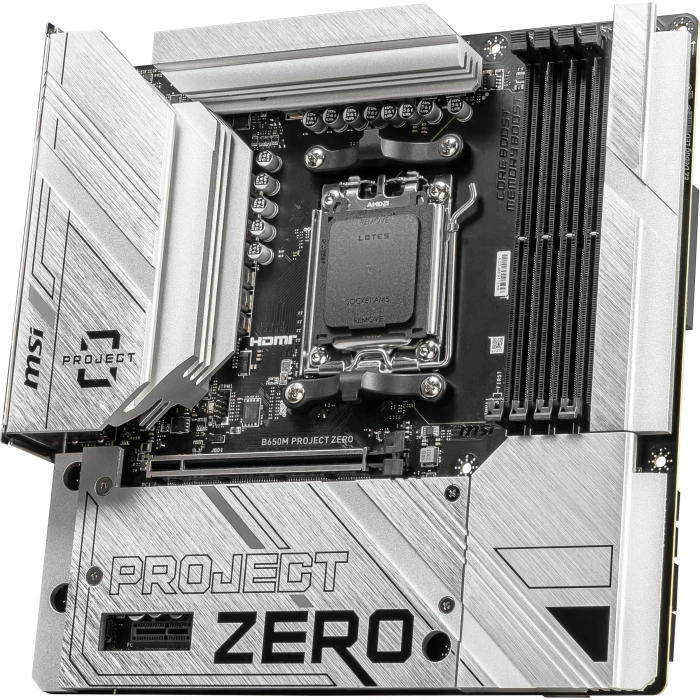

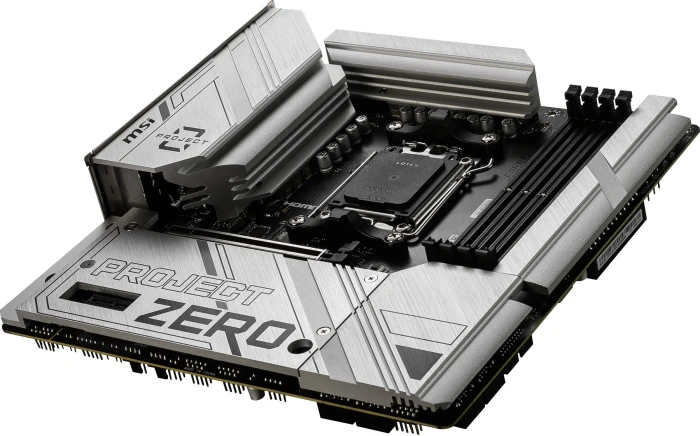

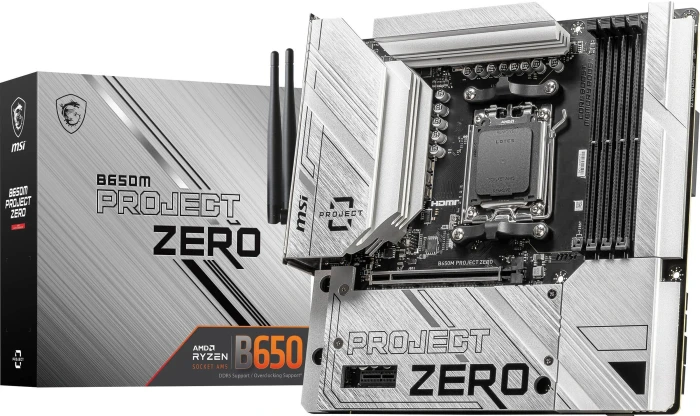

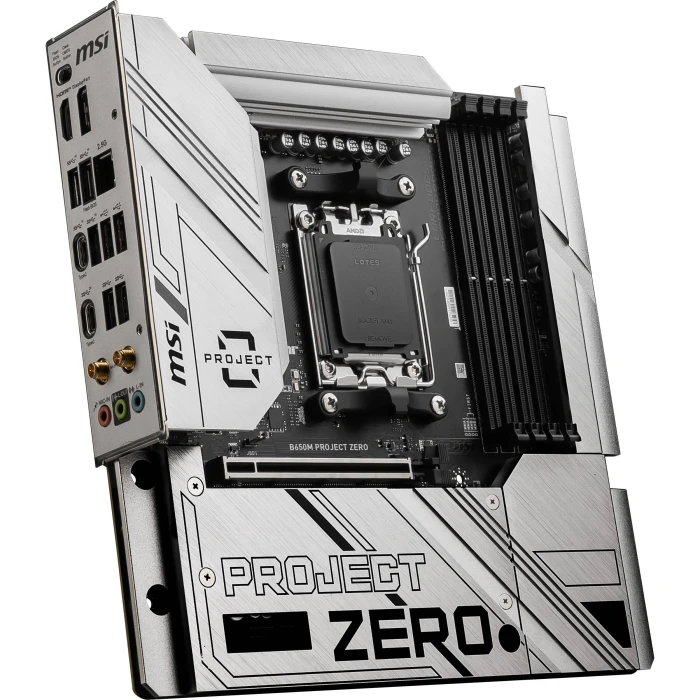

MSI B650M PROJECT ZERO

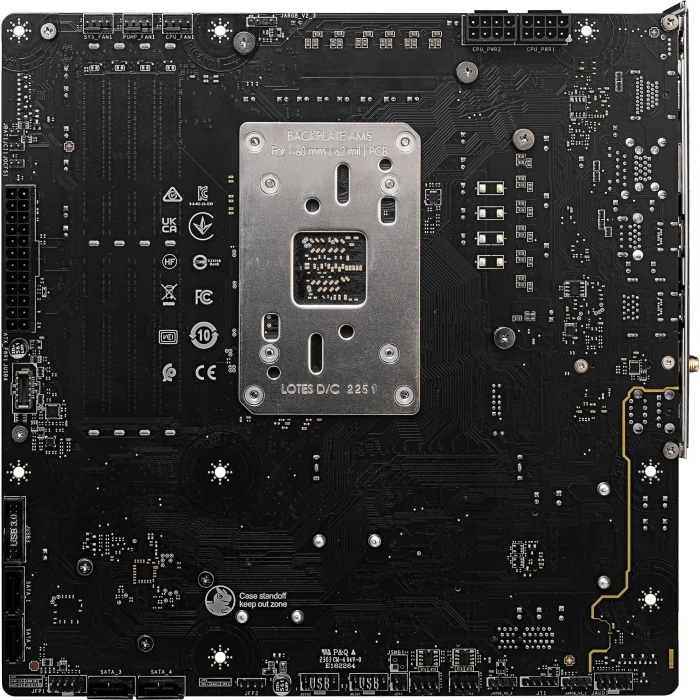

Moves the power connectors, fan connectors, and other pin headers to the back of the motherboard
MSI B650M PROJECT ZERO
Moves the power connectors, fan connectors, and other pin headers to the back of the motherboard
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM5 |
| Чипсет | AMD B650 |
| Форм фактор | Micro ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 7600 MT/s |
| Аудио | Realtek ALC897 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Слотoве PCI-E x16 | 1 x PCIe 4.0 x16 (x16 mode) |
| Слотoве PCI-E x1 | 1 x PCIe 3.0 x1 |
| M2 слот | 2 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Wi-Fi 6E |
| Вграден Bluetooth | Bluetooth V5.3 |
| Поддръжка на RAID | 0,1,10 |

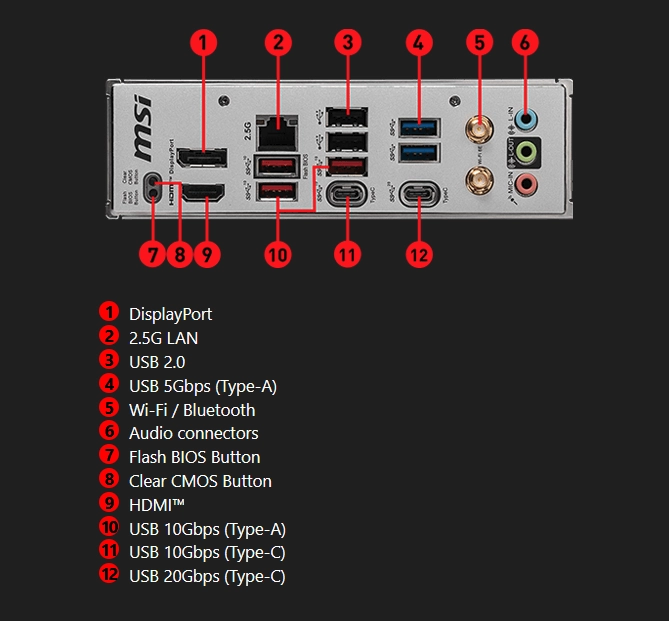

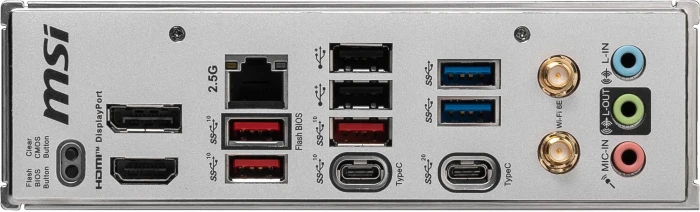

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x Clear CMOS button 1 x DisplayPort 1 x HDMI 1 x RJ-45 LAN 2 x Antenna Ports 2 x USB 2.0 3 x Audio jacks 1 x USB 10Gbps Type-C 1 x USB 20Gbps Type-C 2 x USB 5Gbps 3 x USB 10Gbps |
| Power Design | 10+2+1 |
| Размери (MB) | 24.4 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
B650M_PROJECT_ZERO
70813
|
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7600+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- Audio Boost: Reward your ears with studio grade sound
