Intel Laminar RM1 12th/13th Gen OEM

Intel® Laminar RM1 Cooler Specifications for 12th and 13th Generations Intel® Core Processors - OEM
Intel Laminar RM1 12th/13th Gen OEM
Intel Laminar RM1 12th/13th Gen OEM
Intel Laminar RM1 12th/13th Gen OEM
Intel Laminar RM1 12th/13th Gen OEM

Intel Laminar RM1 12th/13th Gen OEM

Intel® Laminar RM1 Cooler Specifications for 12th and 13th Generations Intel® Core Processors - OEM

Продуктов код: S18017
Запитване за Intel Laminar RM1 12th/13th Gen OEM
Лизингов калкулатор
Продуктът не е наличен и цената му може да не е актуална.
Характеристика Стойност
Тип охлаждане Въздушно
Сокет 1700
Скорост на въртене 600 ~ 3150 rpm
Конектор 4-pin
Ниво на шум до: 29 dBA
Размери (mm) 100 x 100 x 47 mm
Тегло (гр) 350 гр
Височина (мм) 47 мм
КАПАЦИТЕТ НА ОХЛАЖДАНЕ (TDP) 65 W
Гаранция 24 месеца


This Intel® Laminar RM1 Cooler comes in the box with 13th Generation Intel® Desktop Processors i7-13700, i7-13700F, i5-13500, i5-13400, i5-13400F, i3-13100, i3- and 13100F, as well as with 12th Generation Intel® Desktop processors i7-12700, i7-12700F, i5-12600, i5-12500, i5-12400, i5-12400F, i3-12100 and i3-12100F. These are not sold separately to end-users.

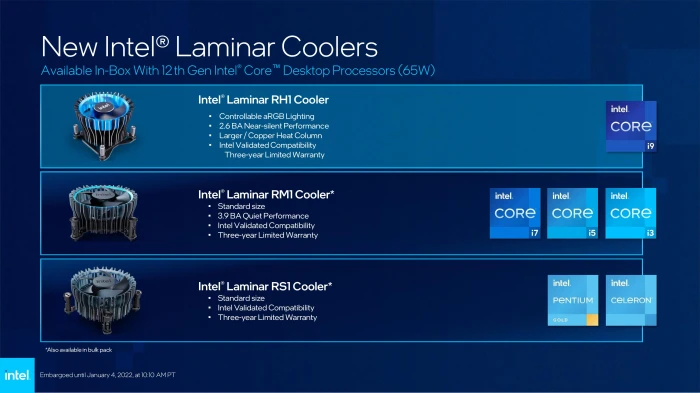

Highlights of this cooler

  • Standard size
  • 3.9 BA Quiet Performance
  • Intel Validated Compatibility
  • Three-year Limited Warranty

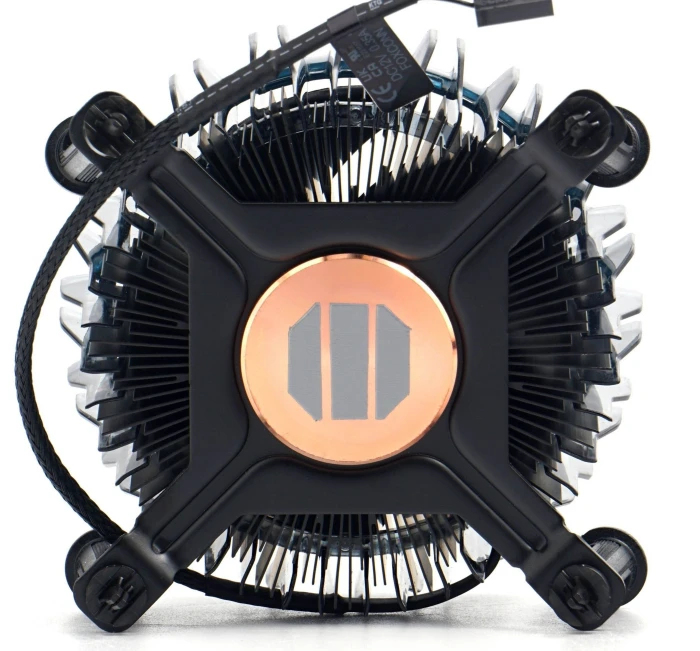

Intel® Laminar RM1 Cooler Heatsink Specifications

Heatsink fin material Aluminum
Heatsink base/core material Copper

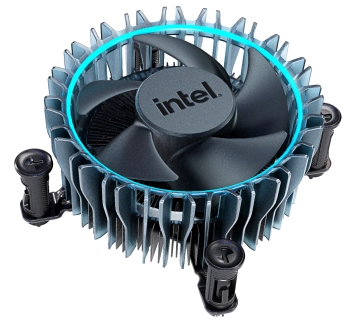

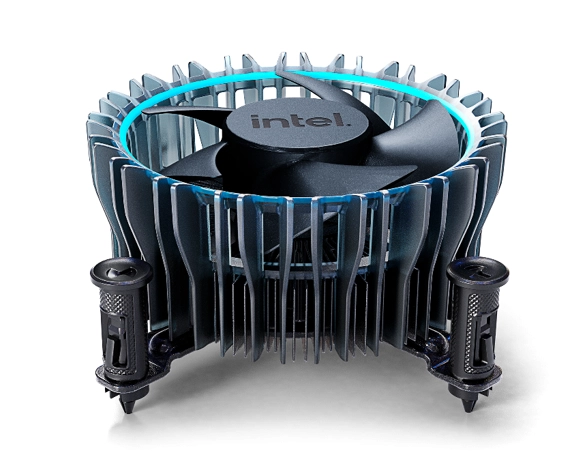

Intel Laminar RM1 Cooler



Intel® Laminar RM1 Cooler Thermal Solution Specifications

Overall Height Up to 47mm (top of fan to bottom of heatsink)
Overall Size Up to 100mm x 100mm
Mass Up to 350g
Sound Power Level 3.9 BA (2400 RPM, 40C inlet, 65W); 4.6 BA (max RPM)
Sound Pressure Level 29 dBA (2400 RPM, 40C inlet, 65W)
TDP Support Up to 65W (12th Gen Intel® Core™ Desktop Processors)
Fan Type PWM controlled variable speed fan
Connector Type 4-pin
Operating Voltage 13.2V max, 12.0V rated, 10.8V min
Current (peak) Up to 400mA
Max RPM (+/- 5%) Up to 3150 RPM
Min RPM (+/- 20%) 600 RPM
Operating Temp 0 to 70C
Operating Humidity 85% relative humidity @ 55C
Fan Protection Locked-rotor/polarity protected
Sense Frequency 2 pulses/Rev, 12V pull-up with 10Kohm
PWM Frequency 25KHz +/- 5KHz
PWM Pull-up Voltage 5.25V max
PWM Duty Cycle Range 0–100%
