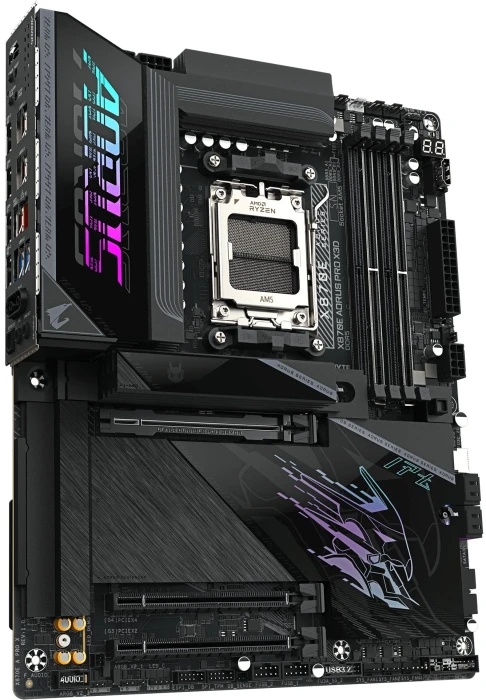

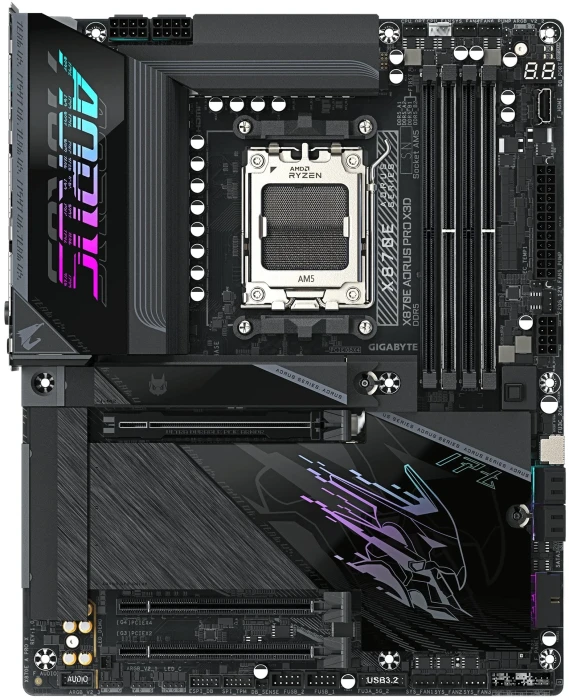

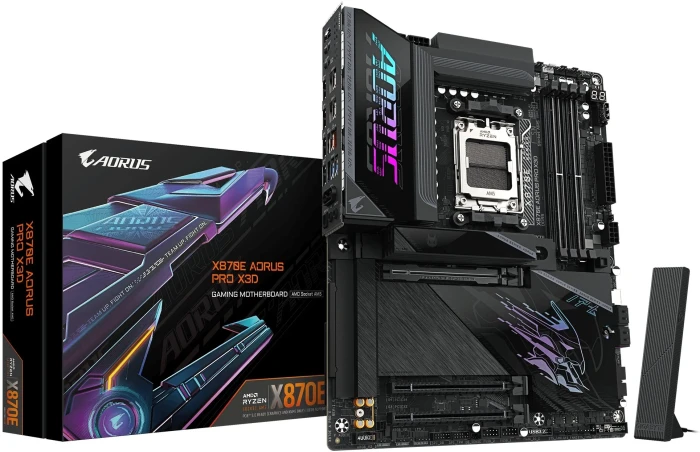

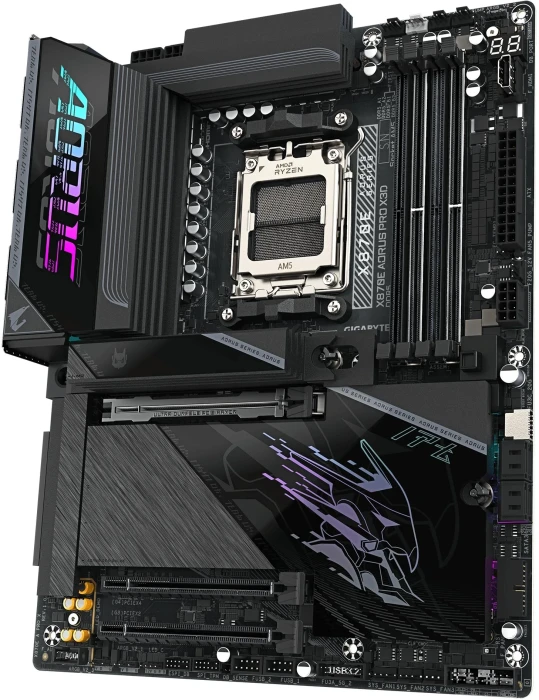

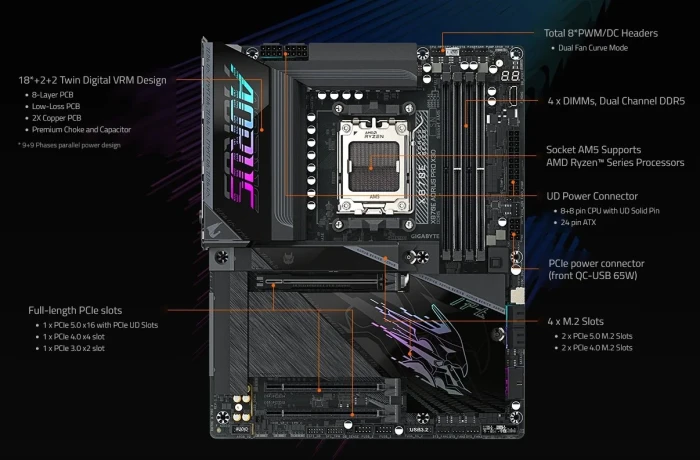

GIGABYTE X870E AORUS PRO X3D
X3D Turbo Mode 2.0 - X870E A PRO X
GIGABYTE X870E AORUS PRO X3D
X3D Turbo Mode 2.0 - X870E A PRO X
Нов
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM5 |
| Чипсет | AMD X870E |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 9000 MT/s |
| Аудио | Realtek ALC1220 |
| LAN (Ethernet) | Realtek 5Gb |
| Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Слотoве PCI-e |
1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x2 mode) |
| Вграден Wi-Fi | Wi-Fi 7 |
| Вграден Bluetooth | Bluetooth V5.4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| M2 слотове |
2 x PCIe Gen5 x4 2 x PCIe Gen4 x4 |
| Поддръжка на RAID | 0, 1, 5, 10 |

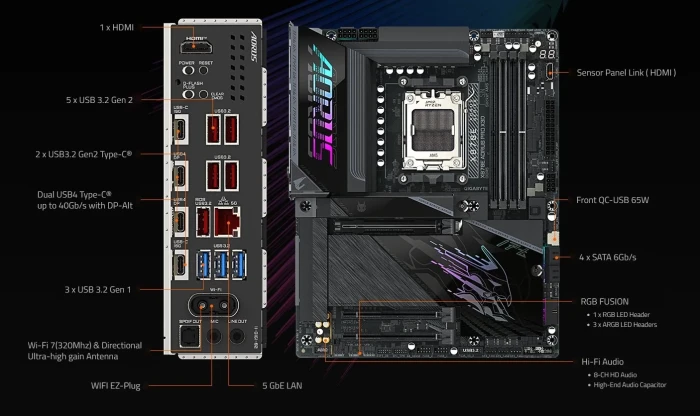

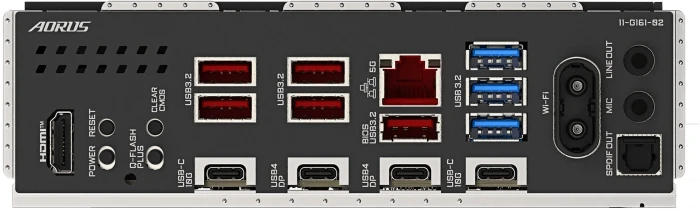

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x Clear CMOS button 1 x HDMI 1 x Optical S/PDIF Out 1 x RJ-45 LAN 2 x Antenna Ports 2 x Audio jacks 5 x USB 10Gbps 3 x USB 5Gbps 2 x USB 10Gbps Type-C 2 x USB 40Gbps Type-C Power button Reset button |
| Power Design | 18+2+2 |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
X870E.A.PRO.X
|
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- M.2 EZ-Flex : high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus : Quick Release & Screwless Design on M.2 slots and heatsinks
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4

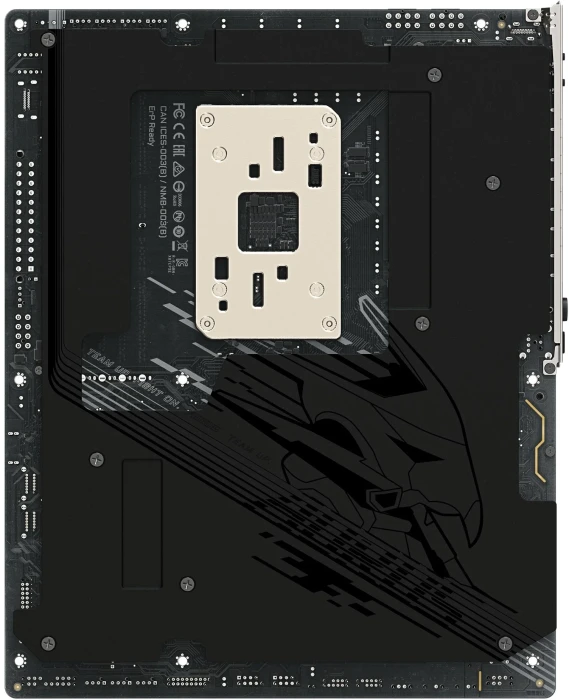

- PCB Thermal Plate : 14% thermal improvement and reinforced motherboard stability.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.

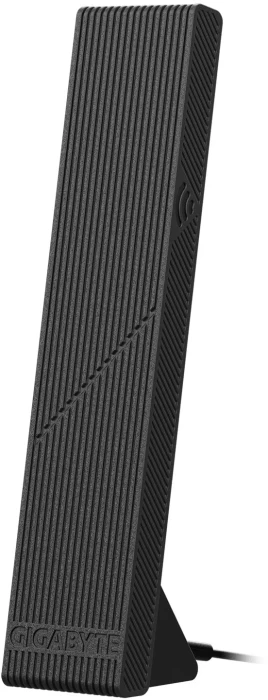

- Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
