GIGABYTE X870 AORUS ELITE WIFI7

X870 A ELITE WIFI7

Продуктов код: S26783
Запитване за GIGABYTE X870 AORUS ELITE WIFI7
Лизингов калкулатор
Характеристика Стойност
CPU Socket AM5
Чипсет AMD X870
Форм фактор ATX
Слотове памет 4
Поддържана памет DDR5
Максимален капацитет RAM памет 256 GB
Честота памет up to 8200 MT/s
Аудио Realtek ALC1220
LAN Realtek 2.5GbE
Поддържани процесори AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
Слотoве PCI-E x16 1 x PCIe 5.0 x16 (x16 mode)
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 3.0 x16 (x2 mode)
M2 слот 3 x PCIe Gen5 x4
1 x PCIe Gen4 x4
SATA Интерфейс 4 x SATA3 6.0 Gb/s
Вграден Wi-Fi Wi-Fi 7
Вграден Bluetooth Bluetooth V5.4
Поддръжка на RAID 0,1,10

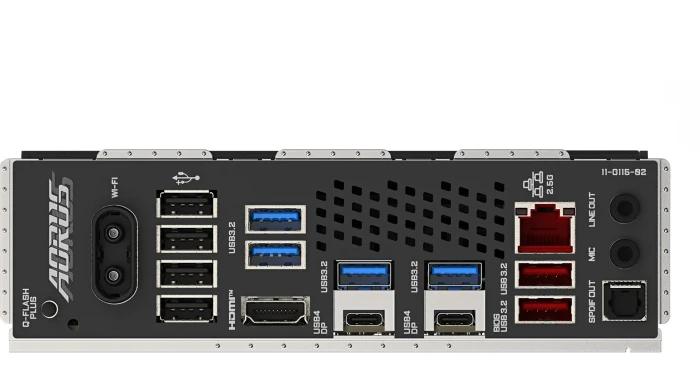

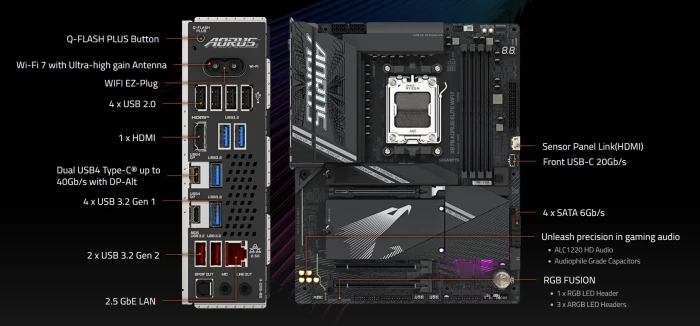

Заден панел I/O 1 x BIOS FlashBack Button
1 x HDMI
1 x Optical SPDIF Out
1 x RJ-45 LAN
2 x Antenna Ports
2 x USB 3.2 Gen 2
2 x Аudio jacks
4 x USB 2.0
4 x USB 3.2 Gen 1
2 x USB4 Type-C
Размери (MB) 30.5 cm x 24.4 cm
Гаранция 36 месеца
Арт. номера
70457
GA-MB-X870-A-ELITE-WF7


GIGABYTE X870 AORUS ELITE WIFI7

  • AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

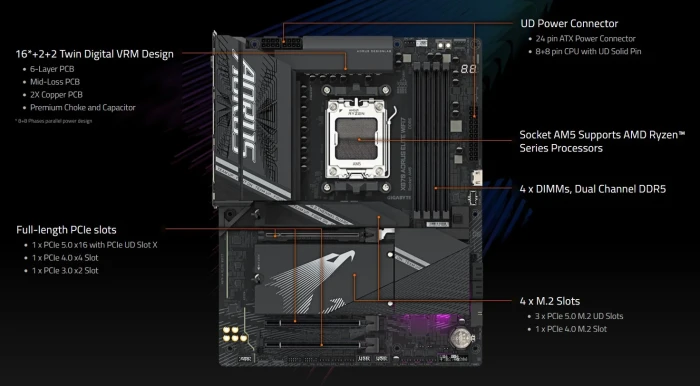

  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus:PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click:M.2 heatsinks with screwless design
  • Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard L

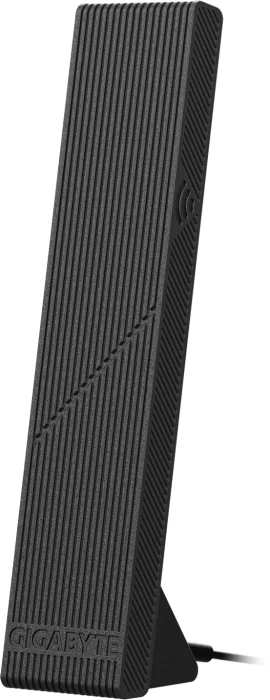

  • Fast Networking:2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
  • Reliable Audio:Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
  • Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
