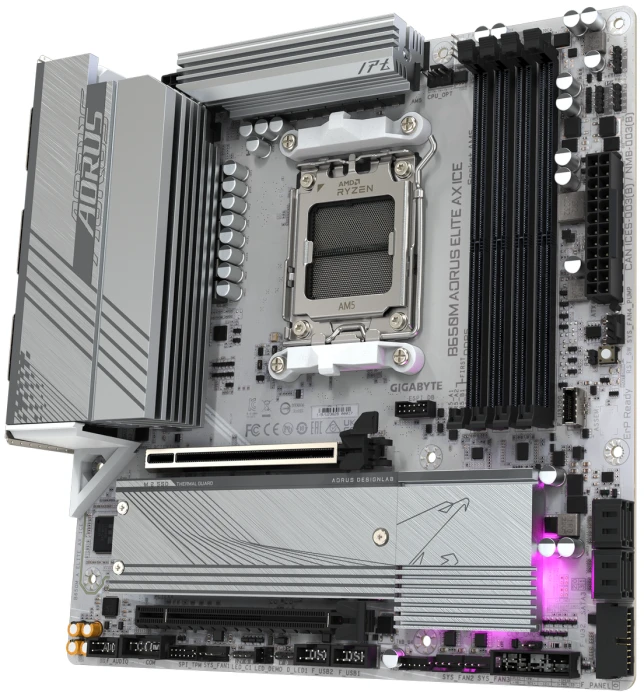

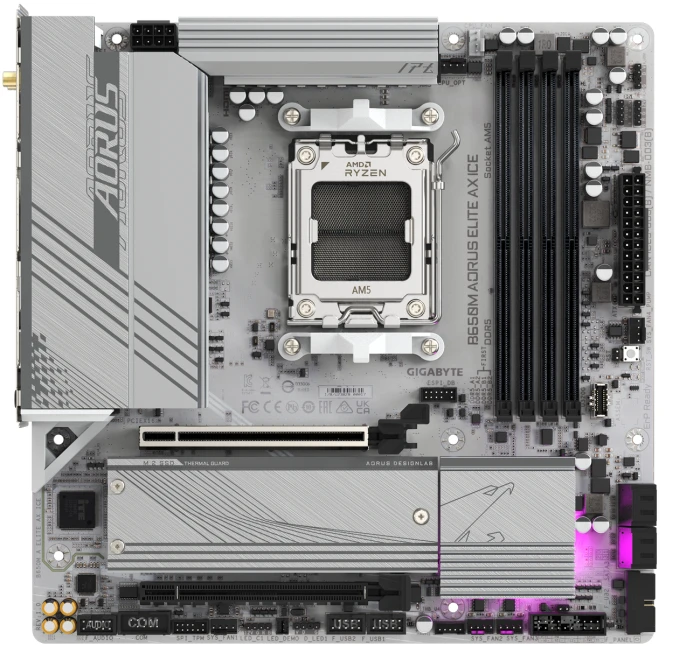

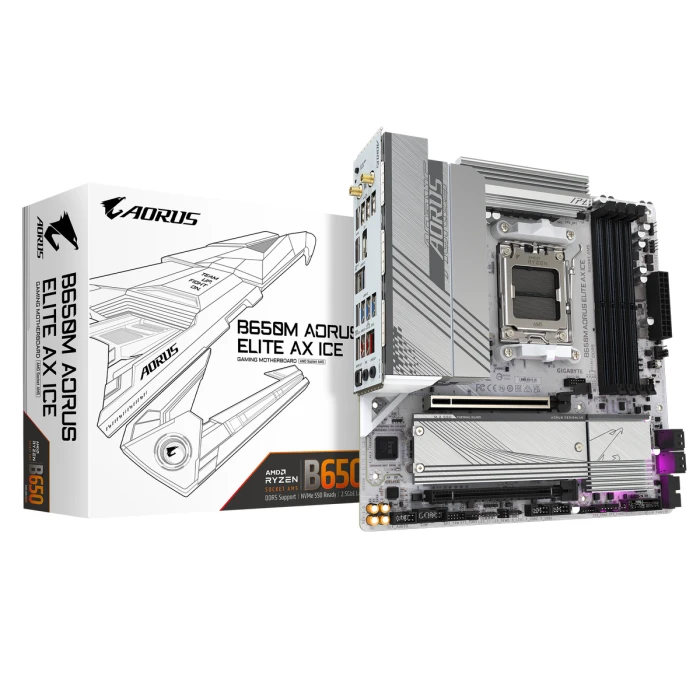

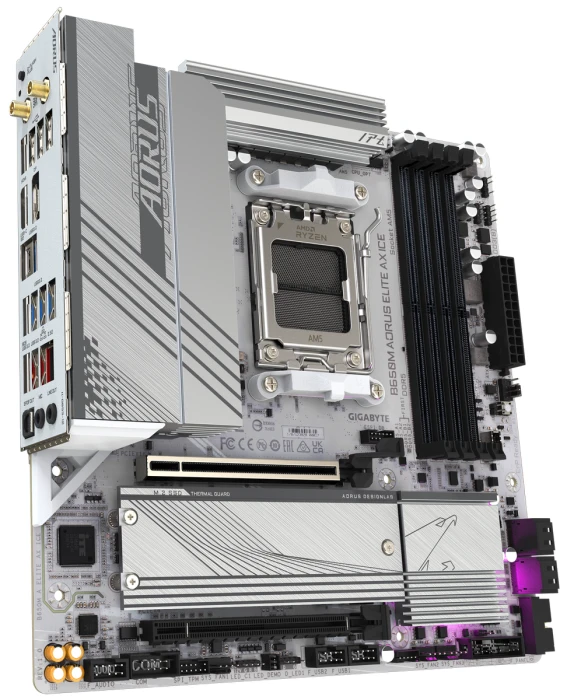

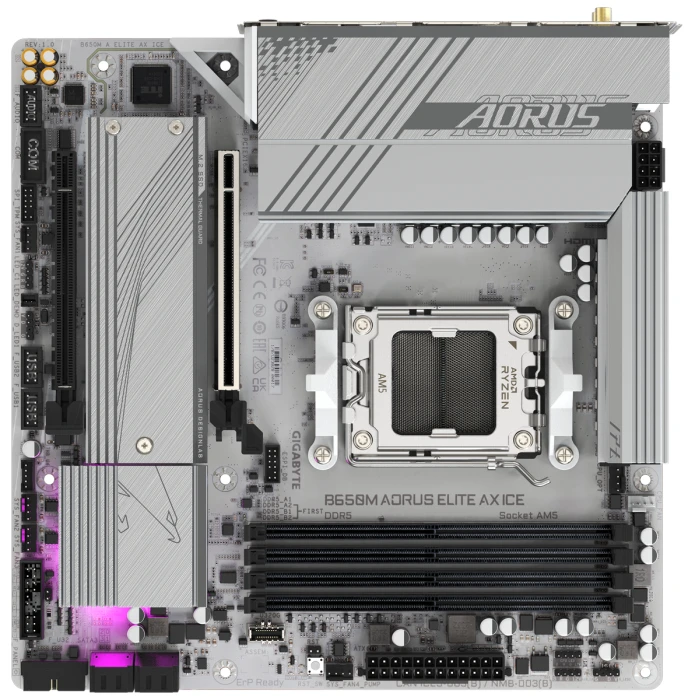

GIGABYTE B650М AORUS ELITE AX ICE

Продуктов код: S22933
Запитване за GIGABYTE B650М AORUS ELITE AX ICE
Лизингов калкулатор
Характеристика Стойност
Чипсет AMD B650
CPU Socket AM5
Форм фактор Micro ATX
Слотове памет 4
Поддържана памет DDR5
Аудио Realtek AUDIO CODEC
LAN Realtek® 2.5GbE
Поддържани процесори AMD Ryzen™ 8000/7000 Series Desktop Processors
Максимален капацитет RAM памет 192 GB
Честота памет up to 8000 MHz
Слотoве PCI-E x16 1 x PCIe 4.0 x16 (x16 mode)
1 x PCIe 4.0 x16 (x4 mode)
Поддържани технологии Windows® 11 64-bit, Windows® 10 64-bit
SATA Интерфейс 4 x SATA3 6.0 Gb/s
M2 слот 1 x PCIe 5.0 x4
1 x PCIe 4.0 x4
Вграден Wi-Fi 802.11ax Wi-Fi 6E
Вграден Bluetooth Bluetooth V5.3
Размери (MB) 24.4 cm x 24.4 cm
Поддръжка на RAID 0,1,10

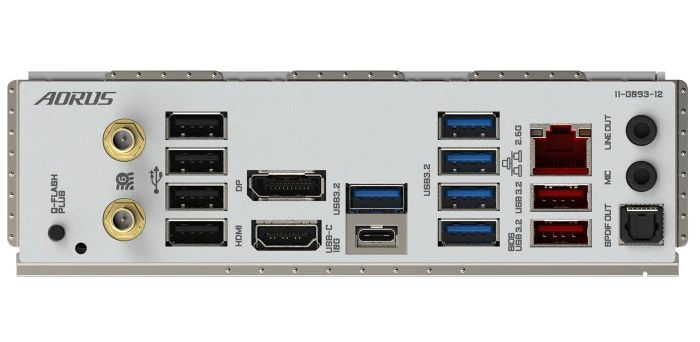

Заден панел I/O 1 x BIOS FlashBack Button
1 x DisplayPort
1 x HDMI
1 x Optical SPDIF Out
1 x RJ-45 LAN
1 x USB 3.2 Gen 2 Type-C
2 x Antenna Ports
2 x USB 3.2 Gen 2
2 x Аudio jacks
4 x USB 2.0
5 x USB 3.2 Gen 1
Гаранция 36 месеца
Арт. номера
B650M A ELITE AX ICE


  • AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance:Twin 12+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • Superfast Storage:1* PCIe 5.0 x4 and 1* PCIe 4.0 x4 M.2 Connector
  • Advanced Thermal Design & M.2 Thermal Guard :To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks:2.5GbE LAN & Wi-Fi 6E
  • Extended Connectivity:HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
