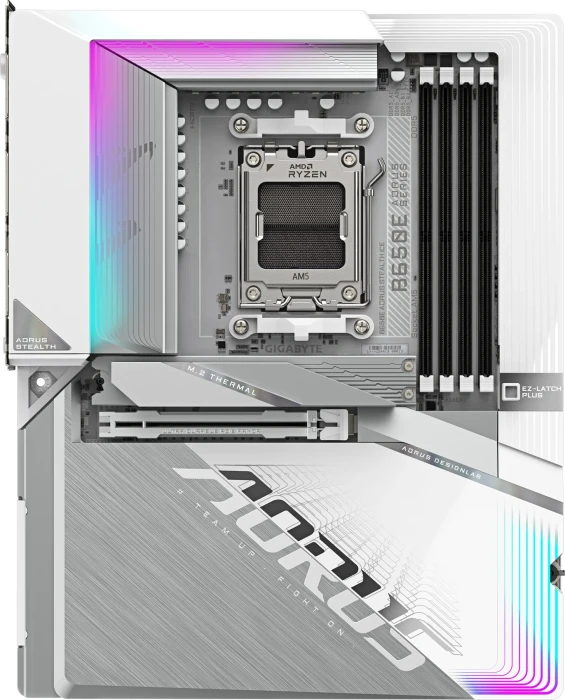

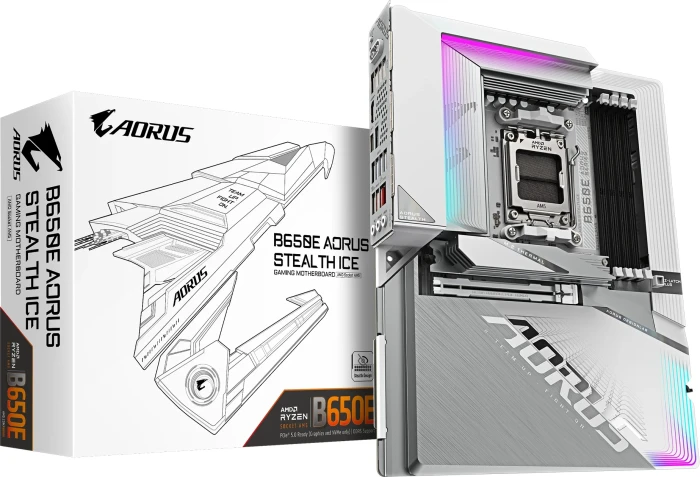

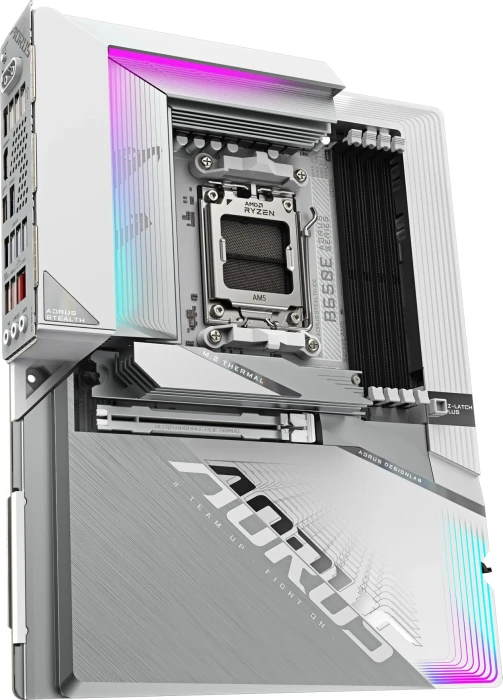

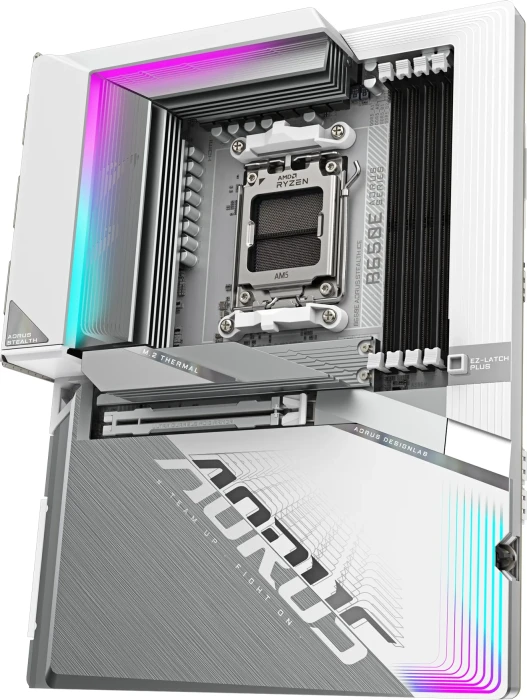

GIGABYTE B650E AORUS STEALTH ICE
B650E A STEALTH ICE | Reverse Connector Motherboard | BTF
GIGABYTE B650E AORUS STEALTH ICE
B650E A STEALTH ICE | Reverse Connector Motherboard | BTF
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM5 |
| Чипсет | AMD B650 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 8000 MT/s |
| Аудио | Realtek AUDIO CODEC |
| LAN | Realtek 2.5GbE |
| Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Слотoве PCI-E x16 | 1 x PCIe 5.0 x16 (x16 mode) |
| M2 слот |
1 x PCIe Gen5 x4 2 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Wi-Fi 7 |
| Вграден Bluetooth | Bluetooth V5.4 |
| Поддръжка на RAID | 0,1,10 |

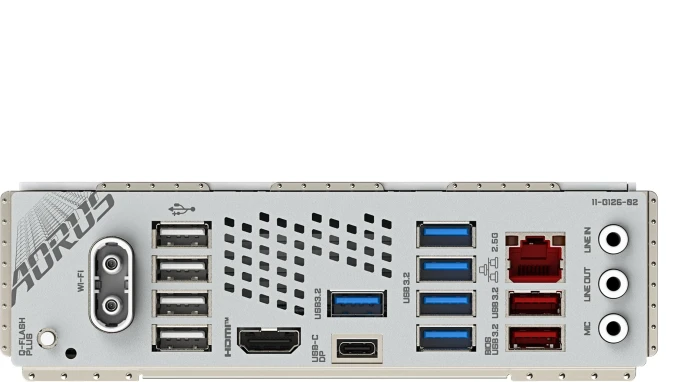

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x HDMI 1 x RJ-45 LAN 1 x USB Type-C 2 x Antenna Ports 2 x USB 3.2 Gen 2 3 x Audio jacks 4 x USB 2.0 5 x USB 3.2 Gen 1 |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
GA-MB-B650E-A-STEALTH-ICE
|
- AMD Socket AM5：Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Match: Magnetic alignment for easy installation of large heat sinks
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- UC BIOS：User-Centred intuitive UX with Quick Access function

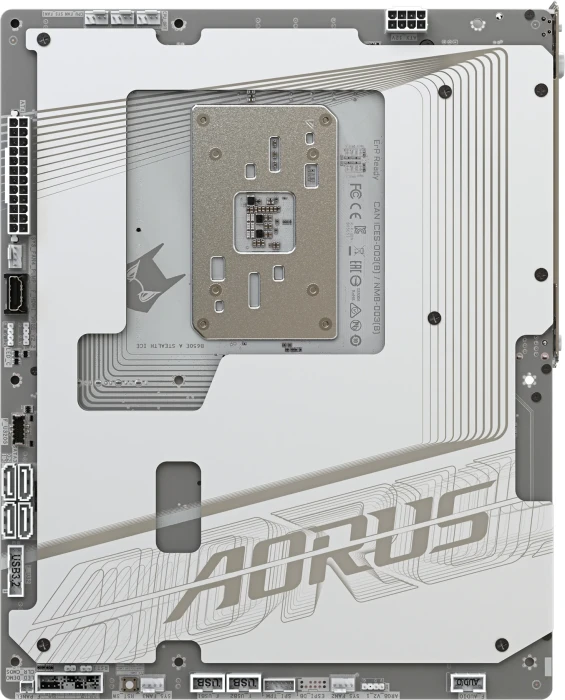

- Back Plate : With an iron base plate providing enhanced stability and support, this design not only boasts an attractive appearance but also excels in functionality
- Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain directional antenna
- Extended Connectivity：HDMI, Onboard HDMI, USB-C with DP-Alt
- Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors
- World's First true White Reverse Connector Motherboard
