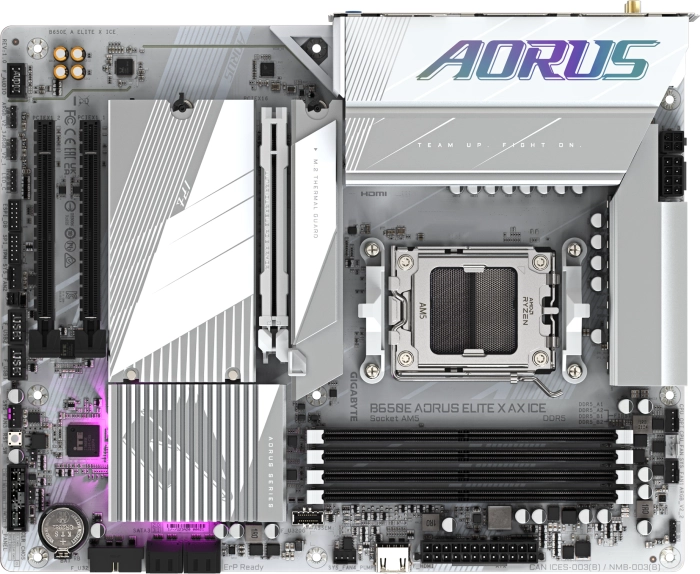

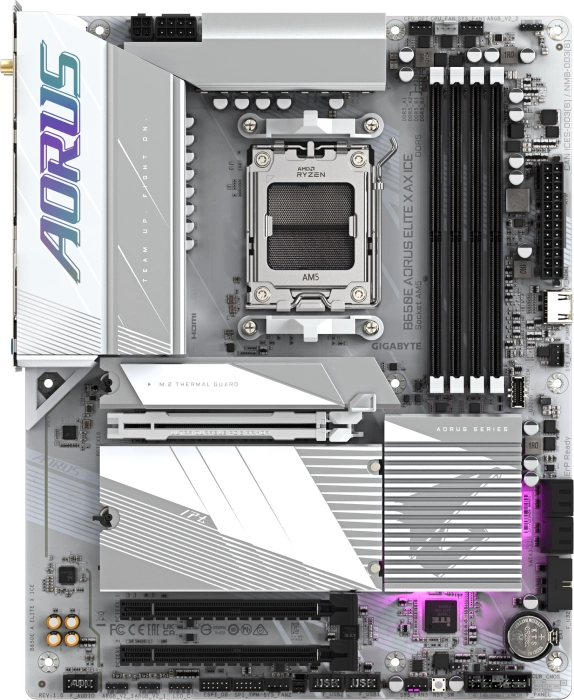

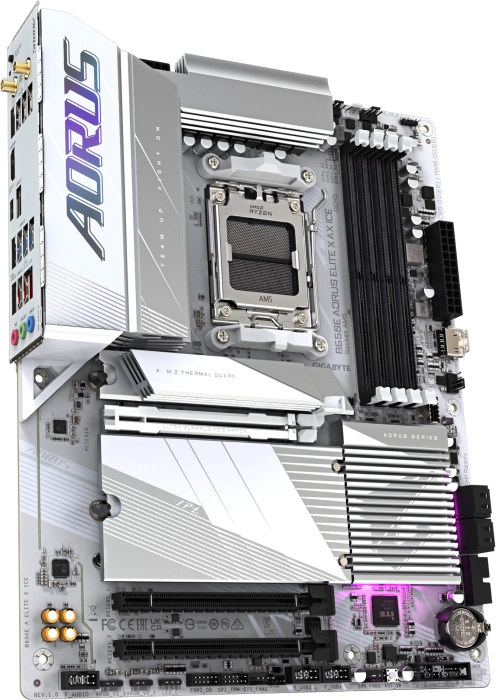

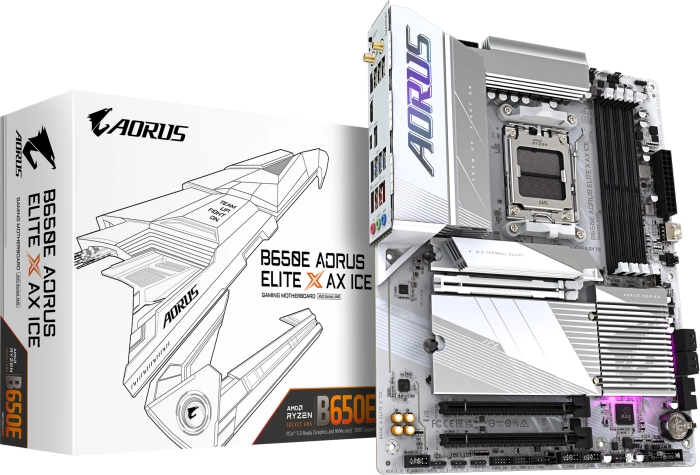

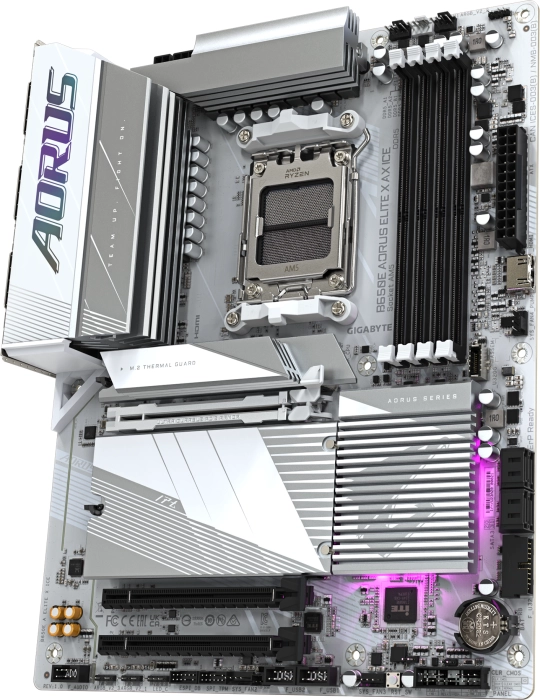

GIGABYTE B650E AORUS ELITE X AX ICE

Продуктов код: S23971

Запитване за GIGABYTE B650E AORUS ELITE X AX ICE

Лизингов калкулатор

Характеристика	Стойност
Чипсет	AMD B650
CPU Socket	AM5
Форм фактор	ATX
Слотове памет	4
Поддържана памет	DDR5
Аудио	Realtek ALC897 7.1 HD
LAN	Realtek® 2.5GbE
Поддържани процесори	AMD Ryzen™ 8000/7000 Series Desktop Processors
Максимален капацитет RAM памет	192 GB
Честота памет	up to 8000 MHz
Слотoве PCI-E x16	1 x PCIe 5.0 x16 (x16 mode) 2 x PCIe 3.0 x16 (x1 mode)
SATA Интерфейс	4 x SATA3 6.0 Gb/s
M2 слот	1 x PCIe Gen5 x4 2 x PCIe Gen4 x4
Вграден Wi-Fi	Wi-Fi 6E
Вграден Bluetooth	Bluetooth V5.3
Размери (MB)	30.5 cm x 24.4 cm
Поддръжка на RAID	0,1,10

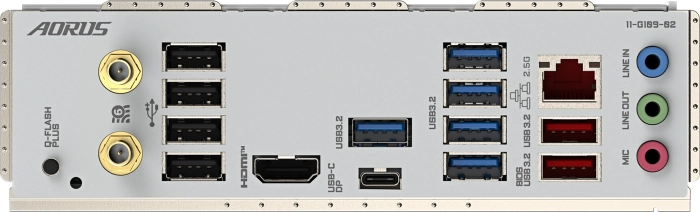

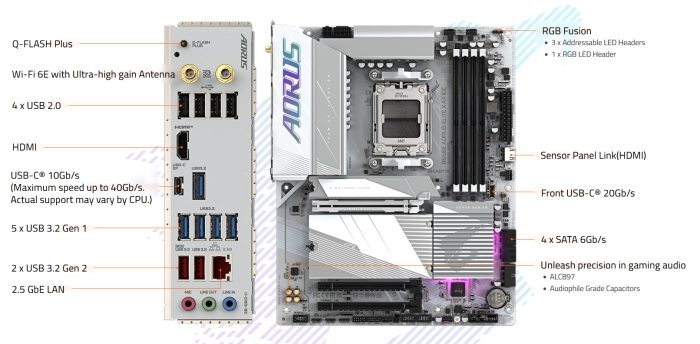

Заден панел I/O	1 x BIOS FlashBack Button 1 x HDMI 1 x RJ-45 LAN 1 x USB 3.2 Gen 2 Type-C 2 x Antenna Ports 2 x USB 3.2 Gen 2 3 x audio jacks 4 x USB 2.0 5 x USB 3.2 Gen 1
Гаранция	36 месеца
Арт. номера	GA-MB-B650E-A-ELITE-X-ICE

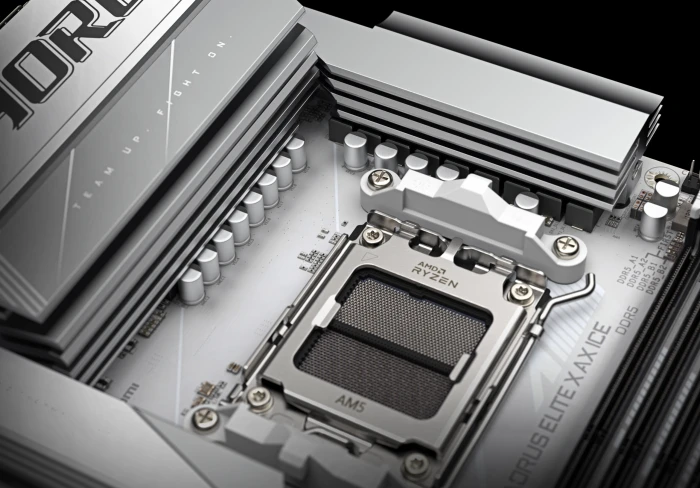

AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors

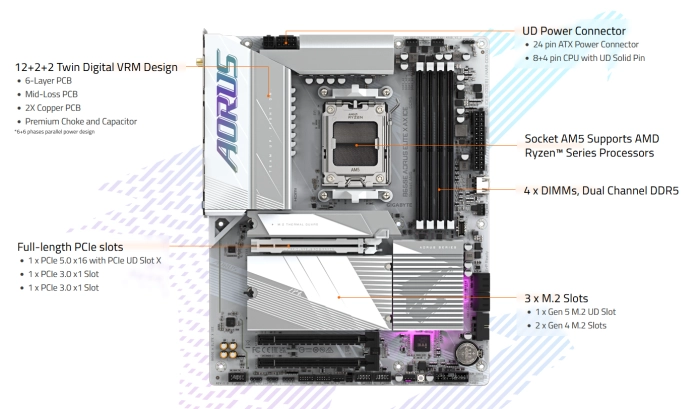

Digital twin 12+2+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click：M.2 heatsinks with screwless design
EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design
Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
UC BIOS：User-Centred intuitive UX with Quick Access function
Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x16
Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
Extended Connectivity：HDMI, Rear USB-C® support up to 40Gb/s, Front USB-C® 20Gb/s
Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors
