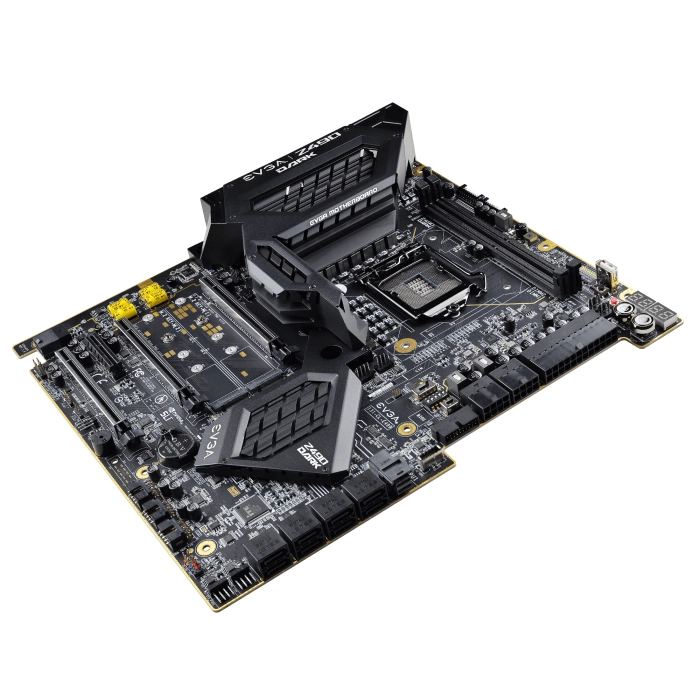

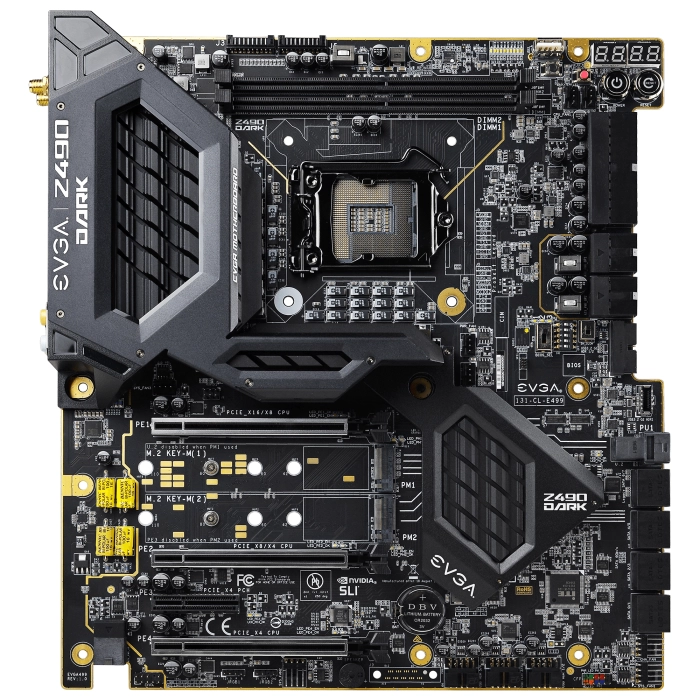

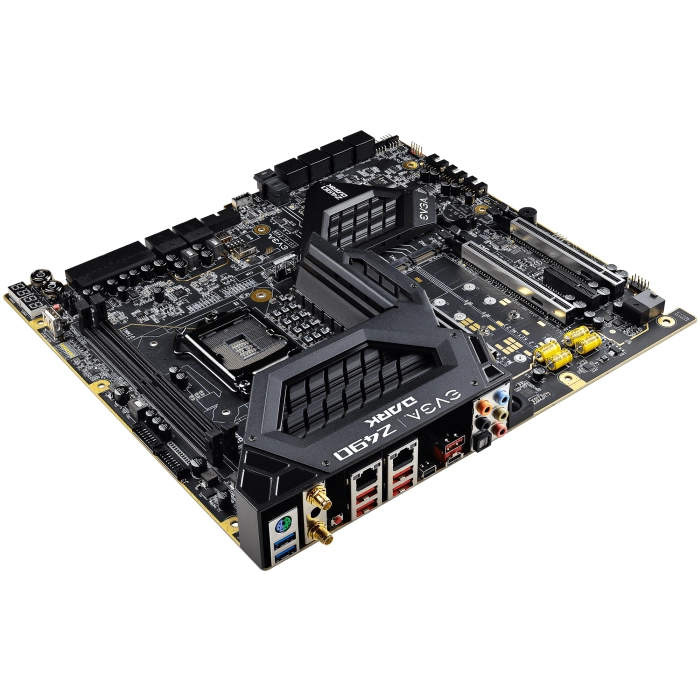

EVGA Z490 DARK K|NGP|N Edition
Дънна платка (WI-FI 6/BT 5.0), E-ATX, socket 1200, 2.5G Lan
EVGA Z490 DARK K|NGP|N Edition
Дънна платка (WI-FI 6/BT 5.0), E-ATX, socket 1200, 2.5G Lan
Този продукт е неналичен.
Продуктът не е наличен и цената му може да не е актуална.
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1200 |
| Чипсет | Intel Z490 |
| Форм фактор | Extended ATX |
| Слотове памет | 2 |
| Поддържана памет | DDR4 |
| Максимален капацитет RAM памет | 64 GB |
| Честота памет | |
| Аудио | Realtek ALC1220 |
| LAN | Intel I225-V 2.5G LAN |
| Поддържани процесори | Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Графична карта | By CPU model |
| USB 2.0 | 1 |
| Свързаност | 1 x PS/2;1 x miniDP;5 x USB 3.2 Gen 2;2 x USB 3.2 Gen 1;1 x USB 2.0 ;2 x RJ-45;5 x audio jack's + SPDIF |
| Видео слот | PCI Express |
| Конектор захранване | 1 x 24-pin;2 x 8-pin |
| Слотoве PCI-E x16 | 3 x PCIe 3.0/2.0 x16 |
| M2 слот |
Intel® Optane™ Memory Ready 2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) |
| SATA Интерфейс | 8 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Intel® Wi-Fi 6 AX201 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO |
| Вграден Bluetooth | Bluetooth V5.0 |
| Поддръжка на RAID | 0, 1, 5, 10 |
| Размери (MB) | 304.8 x 276.6 mm |
| Гаранция | 24 месеца |
Дънна платка EVGA Z490 DARK K|NGP|N Edition (WI-FI 6/BT 5.0), E-ATX, socket 1200, 2.5G Lan
The EVGA Z490 motherboards were crafted from the ground up with the features every system builder expects from a top-notch motherboard these days, and these motherboards do not disappoint:
- Dual M.2 slots w/ Intel® Optane® Support
- ARGB/RGB Headers
- 7.1 Channel Realtek Audio + EVGA NU Audio FPH
- NVIDIA® SLI® Ready with Metal Reinforced PCIe Slots
Features
- 150% Increased Socket Gold Content
- Dual EVGA Probe-It Connectors
- EVGA ELEET X1 Software Support
- EVGA's Latest GUI BIOS Featuring OC Robot and In-BIOS Stress Testing

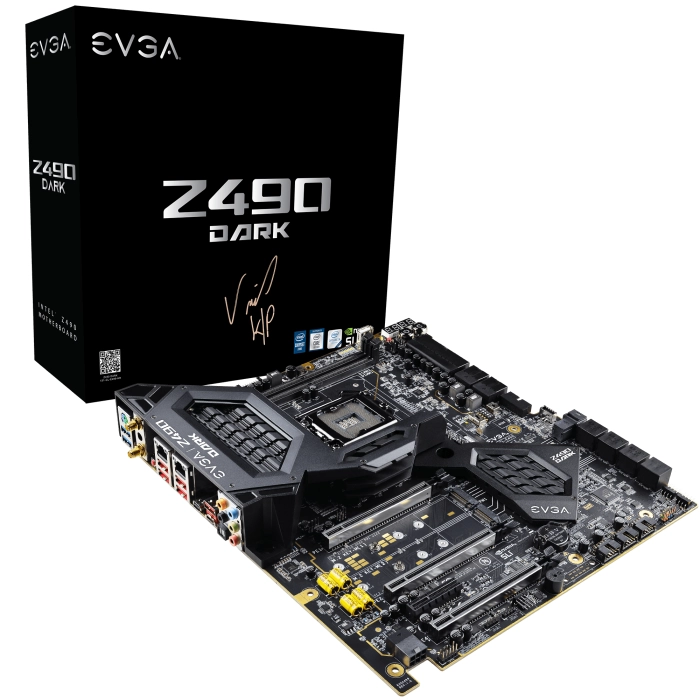

- Exclusive Z490 DARK K|NGP|N Edition box signed by K|NGP|N himself!
- Highly-Efficient 18 Phase Digital VRM
- Intel® Optane™ Memory Ready
- New Integrated EVGA Wireless Module with Intel Dual-band WiFi 6 / BT5.0 with external antenna
- Onboard ARGB and RGB Headers controlled through EVGA ELEET X1
- Onboard Clear CMOS, Power and Reset Buttons
- Onboard Temperature and Voltage Monitoring
- PCIe Disable Switches
- Realtek 7.1 Channel HD Audio + EVGA NU Audio
- Reinforced PCIe slots
- SafeBoot button resets the motherboard and goes into the BIOS with last known good settings without clearing CMOS
- Slow Mode switch locks CPU multiplier to lowest possible setting to allow users to switch between max OC and low speeds in real-time.
- SPI flashing via USB allows you to flash your BIOS without a CPU
- Triple BIOS Support
