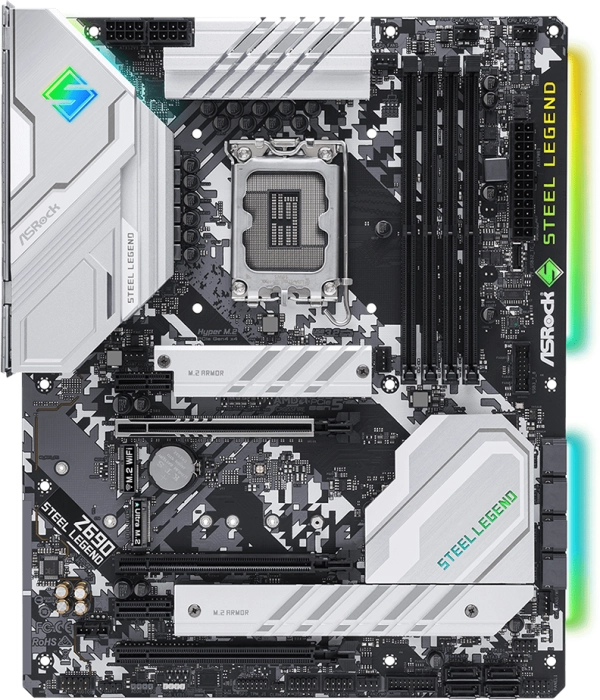

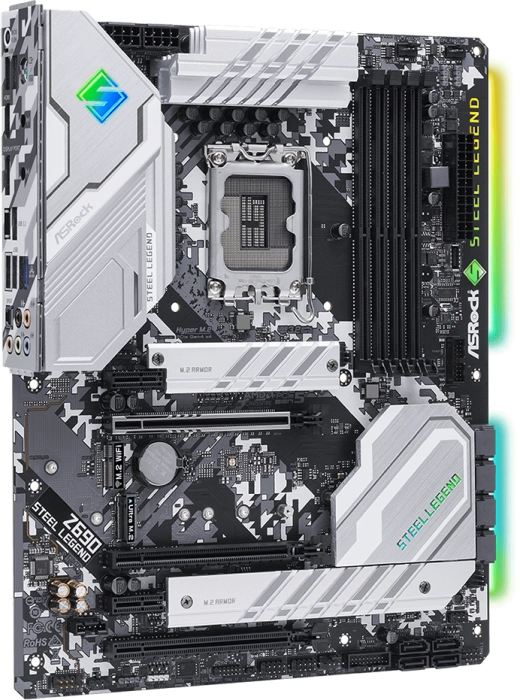

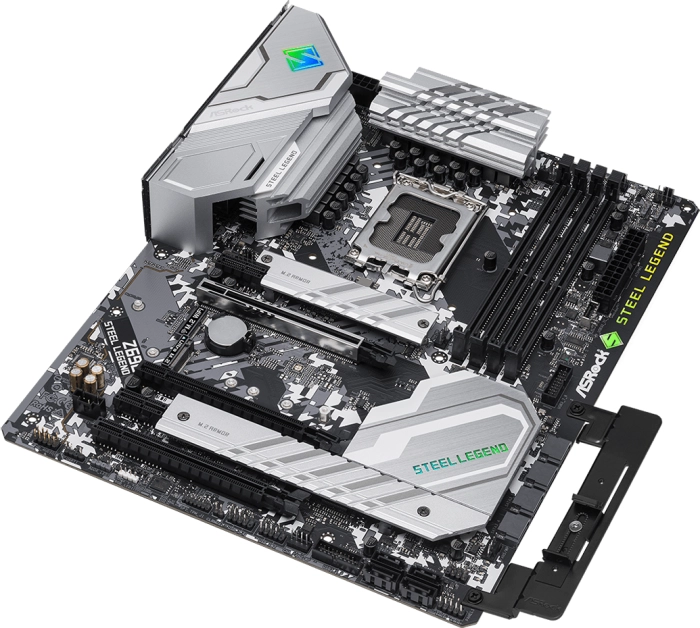

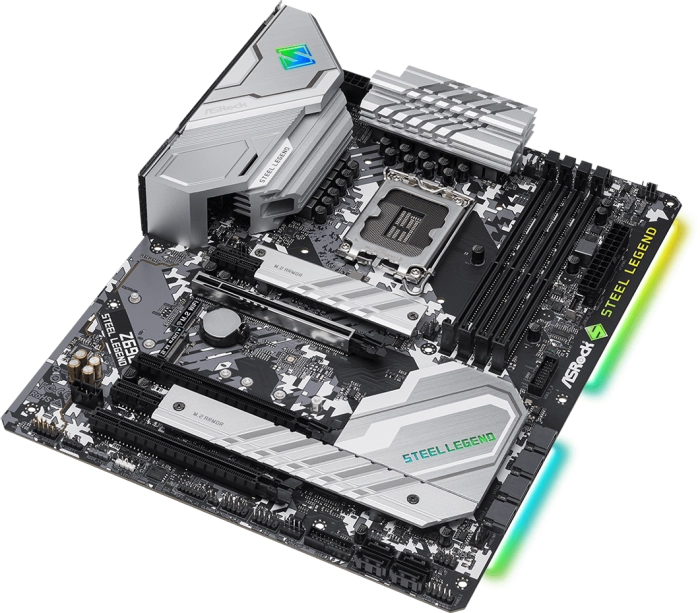

ASRock Z690 Steel Legend DDR4
Дънна платка , LGA1700, ATX, Polychrome RGB
ASRock Z690 Steel Legend DDR4
Дънна платка , LGA1700, ATX, Polychrome RGB
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | Intel Z690 |
| CPU Socket | 1700 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR4 |
| Аудио | 7.1 CH HD Audio Realtek ALC897 |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Поддържани процесори | Supports 12th Gen Intel® Core™ Processors (LGA1700) |
| Графична карта | Intel® Xe Graphics Architecture (Gen 12) |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC) |
| Поддръжка на Dual channel | Да |

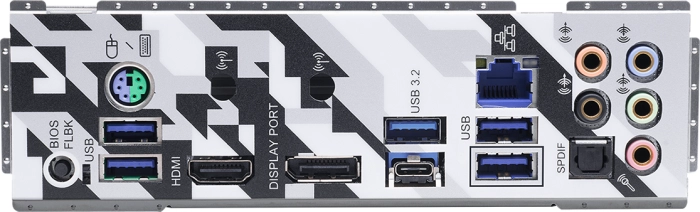

| Свързаност | - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) ( |
| Видео слот | PCI Express |
| Конектор захранване |
1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| Слотoве PCI-E x16 |
1 x PCIe 3.0 x16 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 |
| Слотoве PCI-E x1 | 2 |
| Поддържани технологии | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock |
| Други | 256Mb AMI UEFI Legal BIOS with multilingual GUI support |
| SATA Интерфейс | 8 x SATA3 6.0 Gb/s |

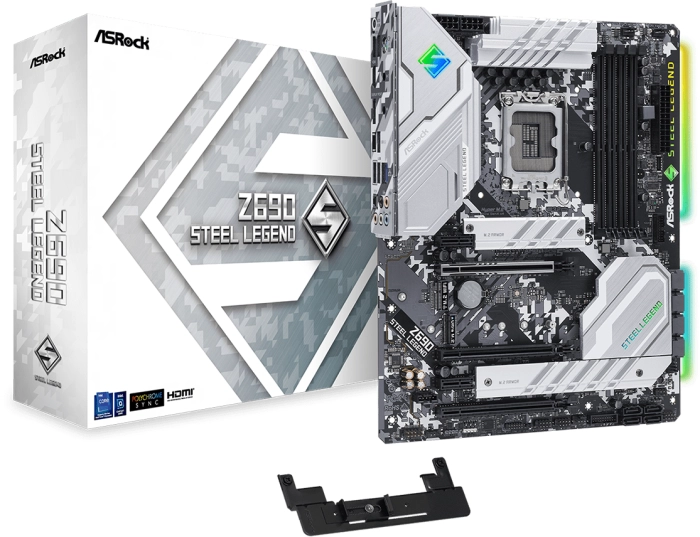

| Комплектът включва | - Quick Installation Guide, Support CD - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 3 x Screws for M.2 Sockets - 2 x Standoffs for M.2 Sockets - 1 x Graphics Card Holder |
| Мулти GPU технология | Supports AMD Quad CrossFireX™ and CrossFireX™ |
| M2 слот |
Supports Intel® Optane™ Technology 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode |
| Размери (MB) | 30.5 cm x 24.4 cm |
| USB 3.2 |
1 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A |
| USB Type-C | 1 |
| Поддръжка на RAID | 0, 1, 5, 10 |
| Гаранция | 36 месеца |
| Арт. номера |
Z690 STEEL LEGEND
66972
|
Дънна платка ASRock Z690 Steel Legend, LGA1700, ATX, Polychrome RGB
Z690 Steel Legend
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 13 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi - Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 8 SATA3
- 2 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3) - 1 USB 3.2 Gen2x2 Front Type-C
2 USB 3.2 Gen2 (Rear Type A+C)
8 USB 3.2 Gen1 (4 Rear, 4 Front) - Dragon 2.5G LAN

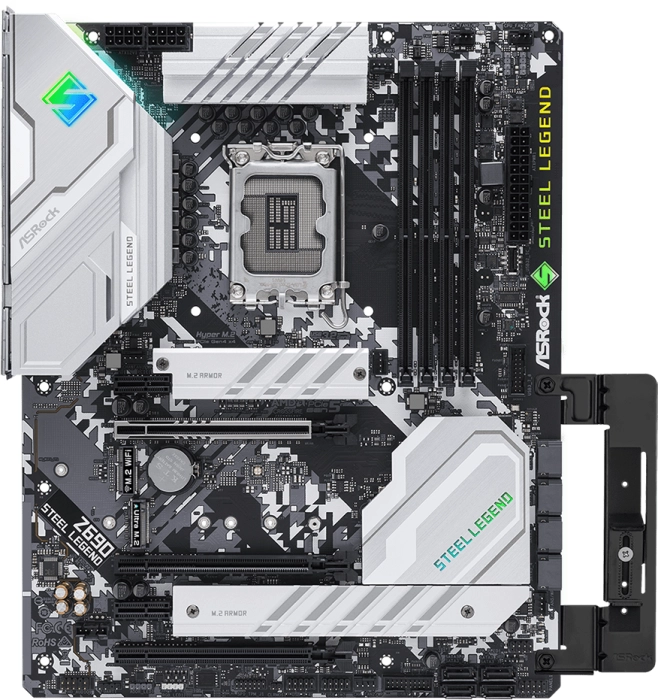

- ASRock Graphics Card Holder
