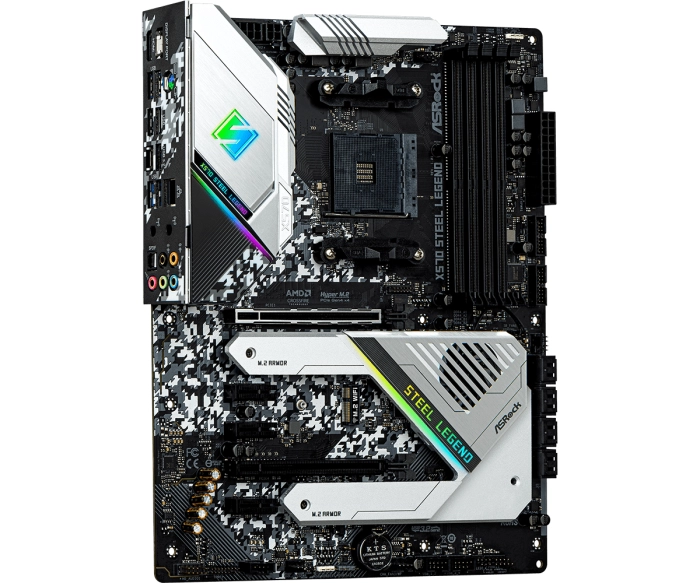

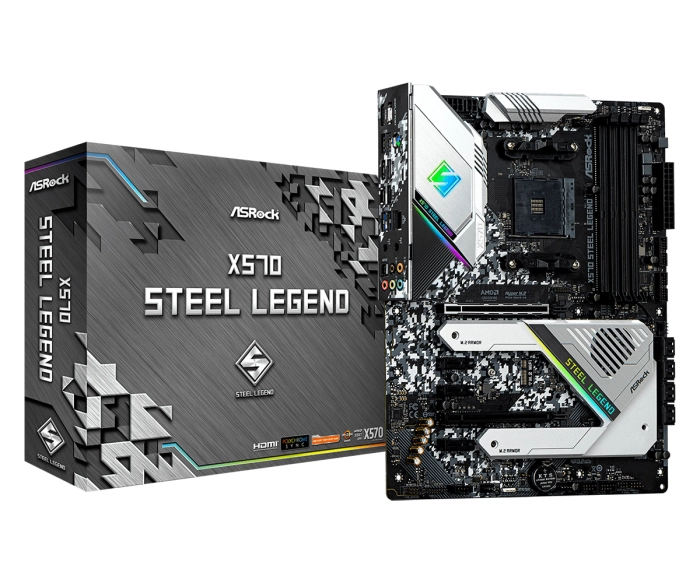

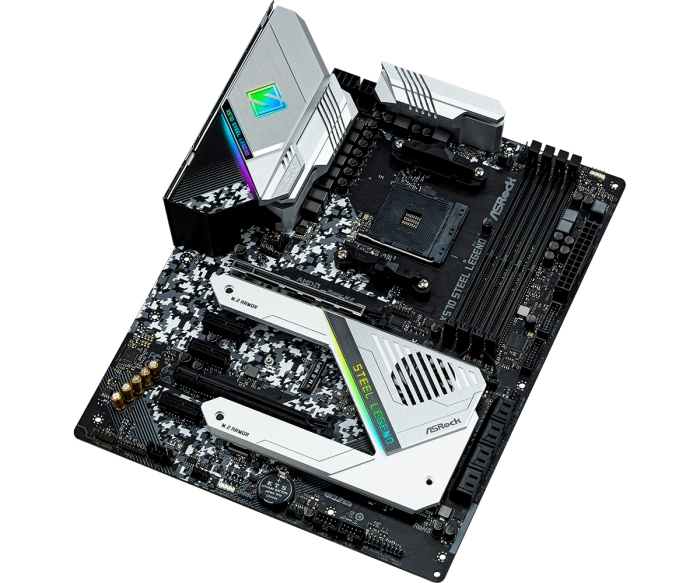

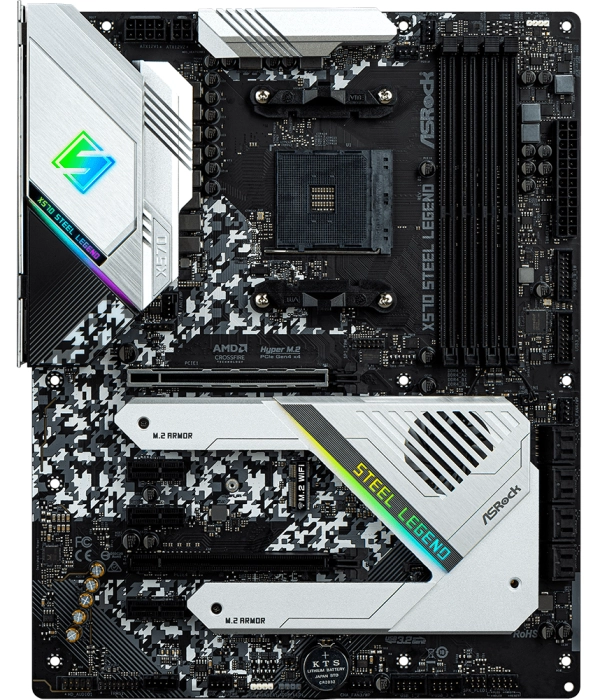

ASROCK X570 Steel Legend
Дънна платка , socket AM4, RGB Polychrome, PCIE 4.0
ASROCK X570 Steel Legend
Дънна платка , socket AM4, RGB Polychrome, PCIE 4.0
Лизингов калкулатор
Продуктът не е наличен и цената му може да не е актуална.
| Характеристика | Стойност |
|---|---|
| Чипсет | AMD X570 |
| CPU Socket | AM4 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR4 |
| Аудио | Realtek ALC1220 |
| LAN | Intel I211-AT Gigabit LAN |
| Поддържани процесори | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™ / 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics / AMD Ryzen™ with Radeon™ Vega Graphics |
| Графична карта | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | 4666(OC);4400(OC);4300(OC);4266(OC);4200(OC);4133(OC);3466(OC);3200;2933;2667;2400;2133 |
| Поддръжка на Dual channel | Да |

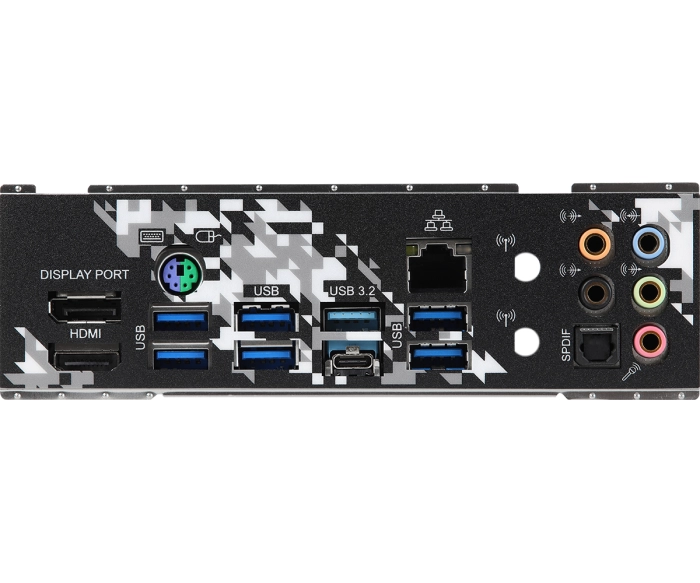

| Свързаност | 1 x PS/2;1 x HDMI;1 x DisplayPort;1 x USB Type-C;1 x USB 3.2 Gen2;6 x USB 3.2 Gen1;1 x RJ-45;1 x optical S/PDIF out;5 x audio jack's |
| Видео слот | PCI Express |
| Конектор захранване | 1 x 24-pin;1 x 8-pin;1 x 4-pin |
| Слотoве PCI-E x16 | 2 x PCIe 4.0/3.0 x16 |
| Слотoве PCI-E x1 | 3 |
| Други | 256Mb AMI UEFI Legal BIOS with GUI support;Supports "Plug and Play";ACPI 5.1 compliance wake up events;Supports jumperfree;SMBIOS 2.3 support;CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment |
| SATA Интерфейс | 8 x SATA3 6.0 Gb/s |
| Комплектът включва | Ръководство;I/O Shield;4 x SATA 6Gb/s кабели;Диск с драйвер |
| Мулти GPU технология | AMD Quad-GPU CrossFireX Technology;AMD 2-Way CrossFireX Technology |
| M2 слот |
1 x M.2 connector (Socket 3, M key, type2230/2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSDD support) 1 x M.2 connector (Socket 3, M key, type 2230/2242/2260/2280 PCIe 4.0/3.0 x4/x2 SSD support) |
| USB 3.2 | 7 |
| Поддръжка на RAID | 0,1,10 |
| Гаранция | 36 месеца |
| Арт. номера |
X570 STEEL LEGEND
90-MXBAR0-A0UAYZ
|
ASROCK X570 Steel Legend, socket AM4, RGB Polychrome, PCIE 4.0
- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
- 10 Power Phase Design
- Supports DDR4 4666+ (OC)
- 2 PCIe 4.0 x16, 3 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nichicon Audio Caps
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
- 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
