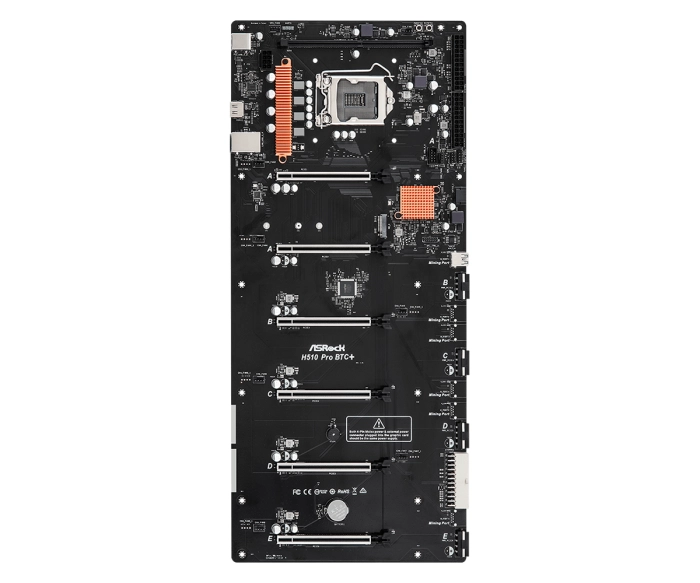

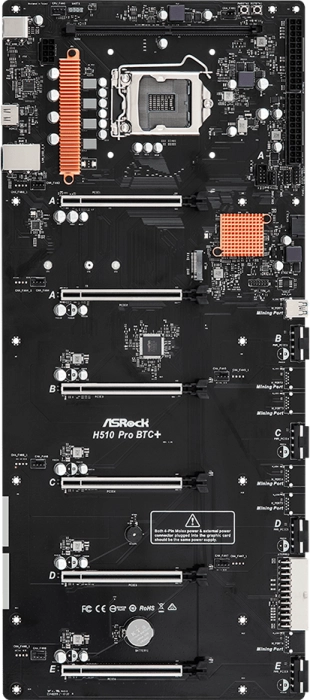

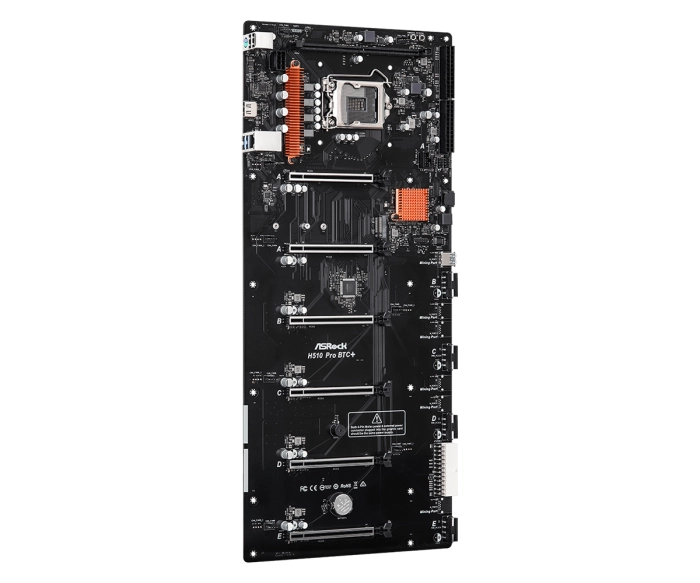

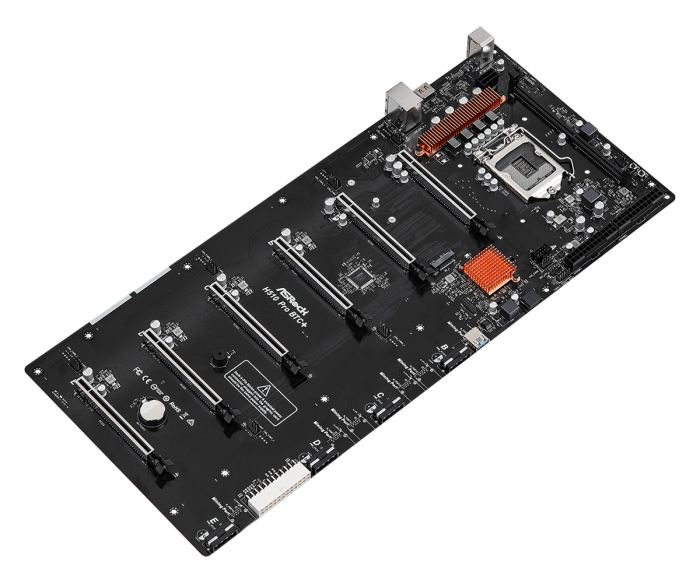

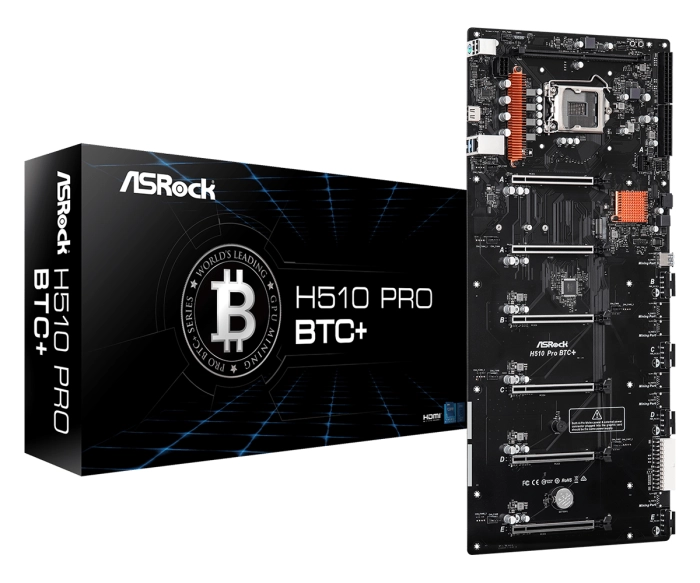

ASRock H510 Pro BTC+
Дънна платка , LGA1200, 6 PCIe 3.0 x16, 1 Mining Port
ASRock H510 Pro BTC+
Дънна платка , LGA1200, 6 PCIe 3.0 x16, 1 Mining Port
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | Intel H510 |
| CPU Socket | 1200 |
| Форм фактор | |
| Слотове памет | 1 |
| Поддържана памет | DDR4 |
| Аудио | |
| LAN | Gigabit Intel® I219V |
| Поддържани процесори | Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) |
| Графична карта | Intel® UHD |
| Максимален капацитет RAM памет | 32 GB |
| Честота памет | Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory |
| USB 2.0 | 2 |
| Свързаност |
Connector: - 1 x System Panel Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 8 x Chassis Fan Connectors (4-pin)**
- 3 x 24 pin ATX Power Connectors
- 1 x 8 pin 12V Power Connector

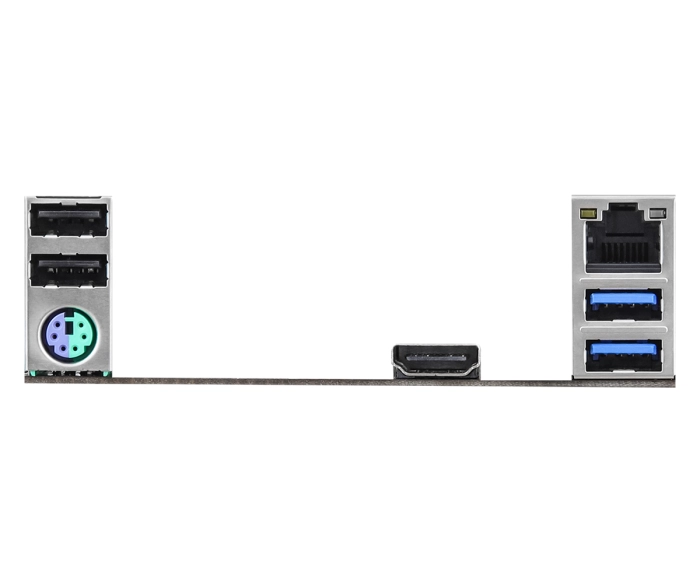

- 4 x 4 pin PCIe Rear Panel I/O: - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Видео слот | PCI Express |
| Конектор захранване |
1 x 8 pin 12V Power Connector 4 x 4 pin PCIe Power Connectors 3 x 24 pin ATX Power Connectors |
| Слотoве PCI-E x16 | 6 |
| Слотoве PCI-E x1 | 5 |
| Поддържани технологии | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Steel Slot ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| Други |
128Mb AMI UEFI Legal BIOS with multilingual GUI support SMBIOS 2.7 Support ACPI 6.0 Compliant wake up events CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIN AUX Voltage Multi-adjustment |
| SATA Интерфейс | 1 x SATA3 6.0 Gb/s |
| Комплектът включва | Quick Installation Guide, Support CD, 1 x SATA Data Cable, 1 x Screw for M.2 Socket |
| M2 слот | 1 x M.2 Socket, supports M Key type 2260/2280/22110 |
| Размери (MB) | 20.1-in x 8.8-in, 50.1 cm x 22.4 cm |
| USB 3.2 | 2 |
| Гаранция | 24 месеца |
| Арт. номера |
H510 PRO BTC PLUS
65809
|
Дънна платка ASRock H510 Pro BTC+, LGA1200, 6 PCIe 3.0 x16, 1 Mining Port
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 3200MHz
- Graphics Output: HDMI
- 6 PCIe 3.0 x16, 1 Mining Port (M_Port1 at x1)
- 1 SATA3, 1 M.2 (SATA3)
- 2 Rear USB 3.1 Gen1 Type-A
- 4 USB 2.0 Type-A (2 Rear, 2 Front)
- Intel® Gigabit LAN
- 2 Extra 24-pin ATX Power Connector
- Onboard Power On / Reset Button
- Fully Independent Power Rail
