AXAGON PCEA-S2N PCIe 2x Serial/RS232

PCI-Express card with two 250 kbps serial ports. ASIX AX99100. Standard & Low Profile
AXAGON PCEA-S2N PCIe 2x Serial/RS232
AXAGON PCEA-S2N PCIe 2x Serial/RS232
AXAGON PCEA-S2N PCIe 2x Serial/RS232
AXAGON PCEA-S2N PCIe 2x Serial/RS232
AXAGON PCEA-S2N PCIe 2x Serial/RS232

AXAGON PCEA-S2N PCIe 2x Serial/RS232

PCI-Express card with two 250 kbps serial ports. ASIX AX99100. Standard & Low Profile

Продуктов код: S23879
Запитване за AXAGON PCEA-S2N PCIe 2x Serial/RS232
Лизингов калкулатор
Характеристика Стойност
Други PCI Express
Интерфейс Serial port (DB-9 Male) x 2
Гаранция 24 месеца
Арт. номера
PCEA-S2N

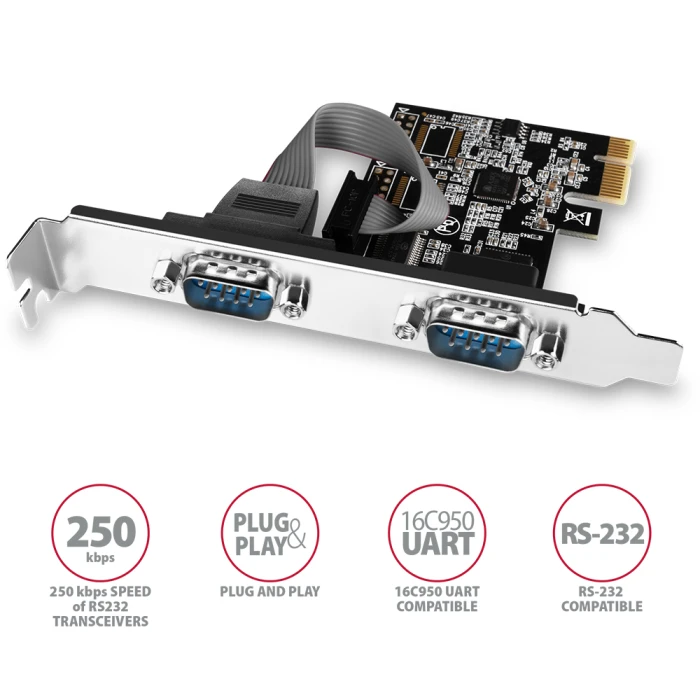

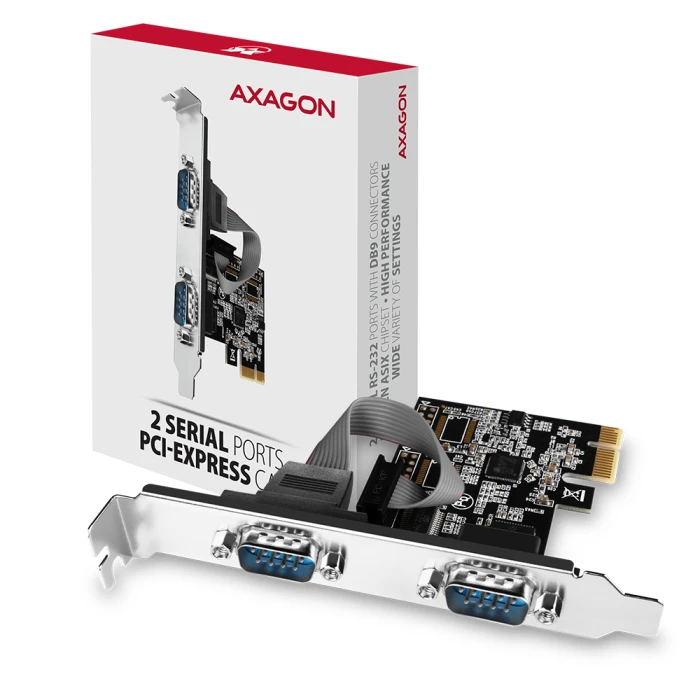

The AXAGON PCEA-S2N PCI-Express card extends your desktop PC by two RS-232 serial ports with DB-9 connectors.

High performance, seamless compatibility and wide port options are ensured by proven ASIX chipset.

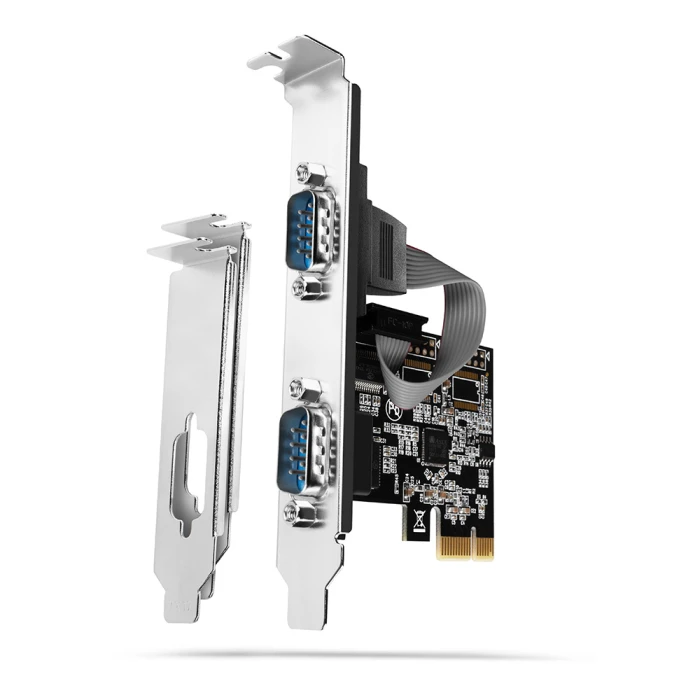

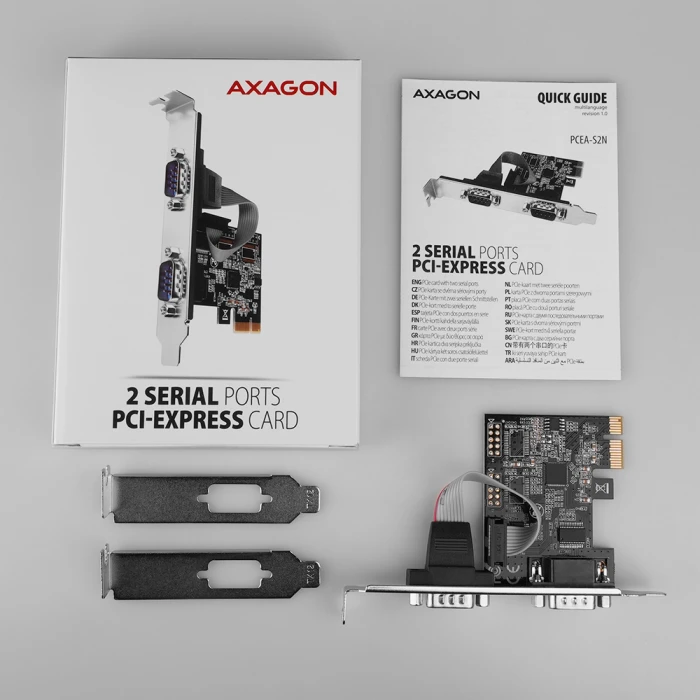

Included low profile brackets allow controller installation into standard and also low profile PC cases.

Input:
• PCI-Express 2.0 interface compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.
• Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.
• The bandwidth of 1-Lane PCI-Express 2.0 bus 5 Gb/s.

Output:

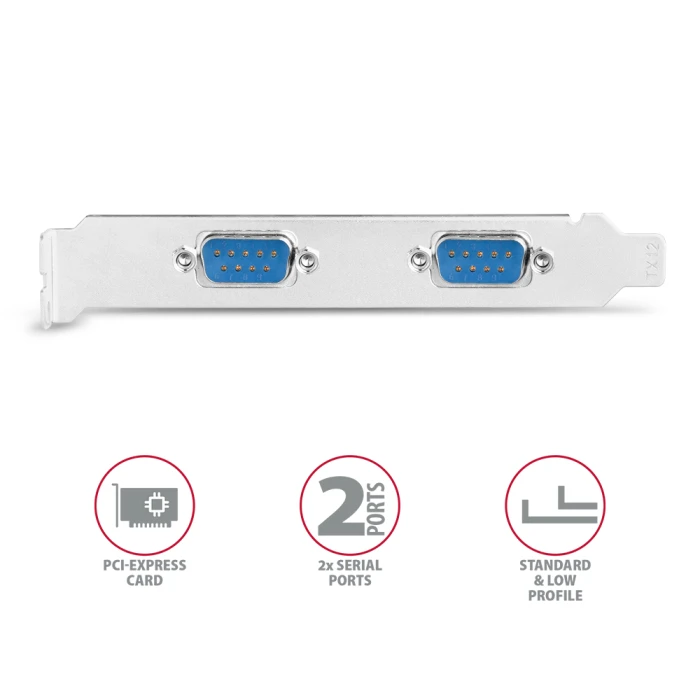

• 2x serial RS-232 port with DB9 male connectors, the ports are placed on the card’s bracket.
• Guaranteed data flow of used RS232 drivers up to 250 kBd.
• Compatible with 16C550 / Extended 16C550 / 16C950 UART.

Other features:
• Plug and Play Support - automatic selection of IRQ and I/O address.
• 256-Byte transmit & receive FIFO buffer for each port.
• Serial port baud rate setting.
• Adjustable word length 5, 6, 7, 8 or 9 bits.
• Adjustable parity (even, odd, none, mark, space), 1, 1.5 or 2 stop bits.
• Adjustable flow control Xon/Xoff, hardware or none.
• The COM port number change.
• Advanced 9-bit data transfer settings and custom baud rate settings.
• Supports TXD, RXD, RTS, CTS, DTR, DCD, DSR, and RI serial signals.
• Serial port electrostatic discharge (ESD) protection exceeding ±15KV Air Gap Discharge and ±8KV Contact Discharge.
• Supports connecting serial devices such as ATMs, cash registers, barcode readers, CNC machines, tablets, modems,  POSs or PDAs.
• The ASIX AX99100 chipset is used.

Supported operating systems:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported all 32 and 64-bit Windows OS versions), with kernel 2.6.11 and above.
