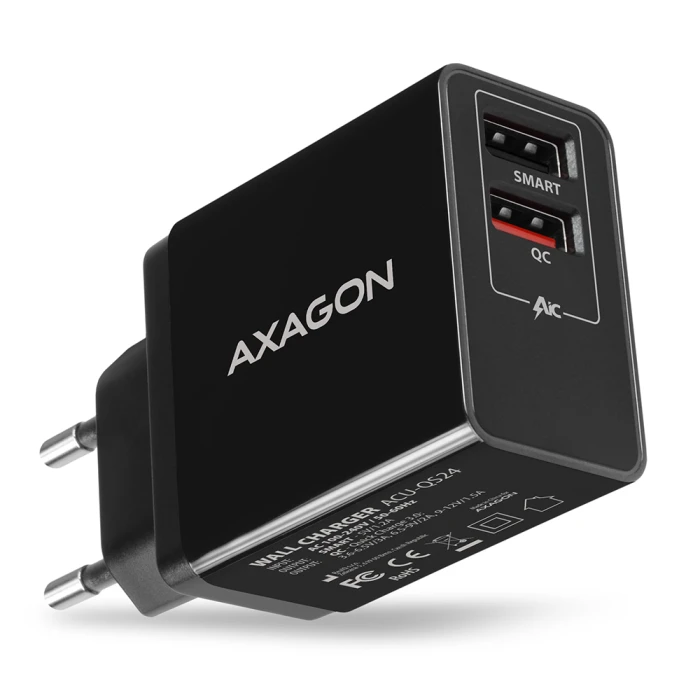

Universal AXAGON ACU-QS24 USB wall charger to quickly charge up to two mobile devices at a time.

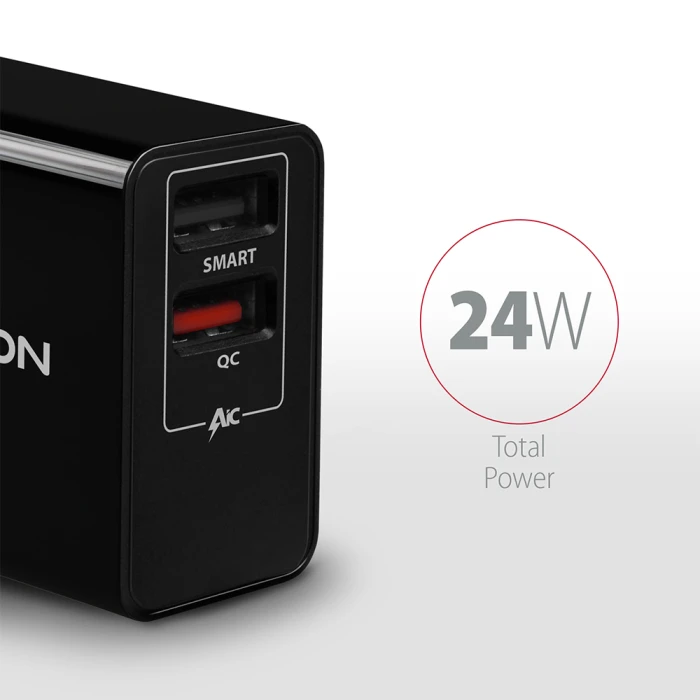

With 24W of total power, the charger recharges mobile devices at the highest possible speed.

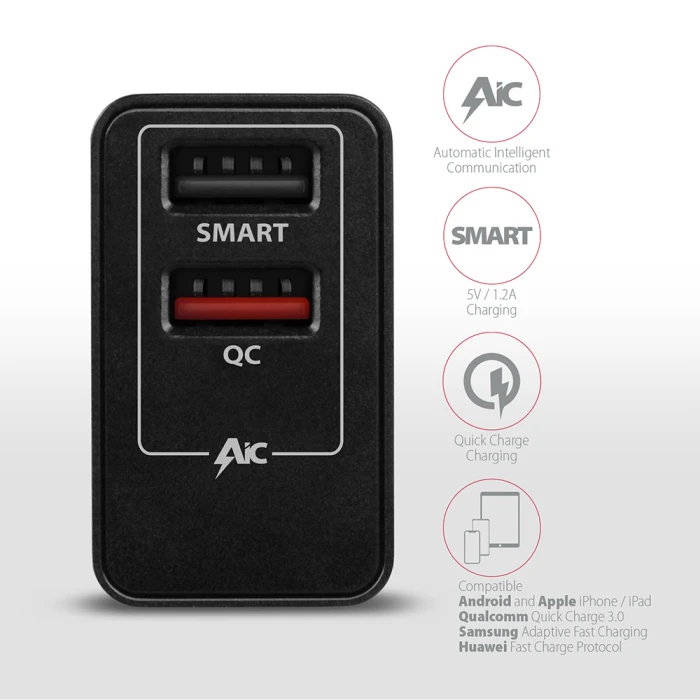

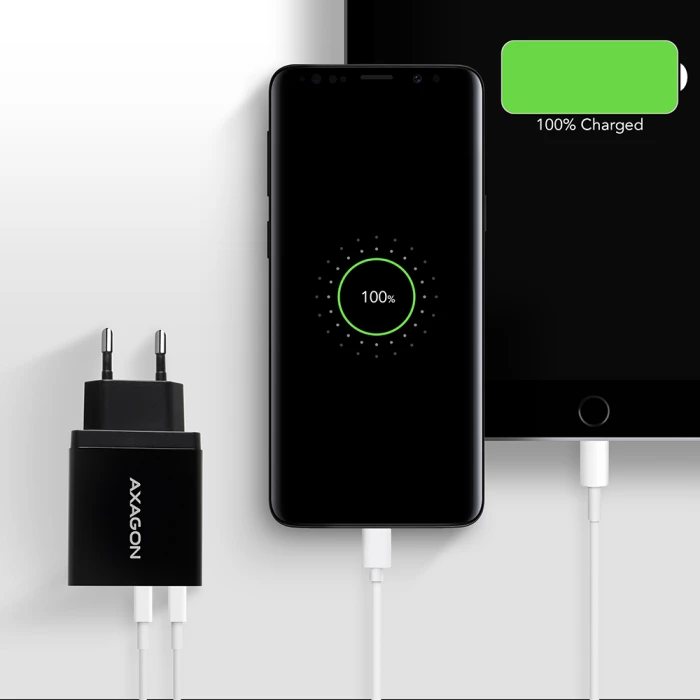

Two independent outputs Quick Charge 3.0 and SMART 5V/1.2A allows you fast charging of most mobile devices. It is compatible with Apple iPhone, iPad, Samsung, Huawei, Honor, HTC, Xiaomi, LG, Motorola and other.

The Quick Charge 3.0 technology allows up to 4 times faster charging of supported devices than a conventional USB charger.

The AIC function recognizes the connected device and automatically selects the optimal charging speed, while the CC function ensures steady course of charging.

The advanced protection system at the charging adapter output protects the device being charged from damage.

The body of the power adapter has a pleasant shape and size, true handy helper at home as well as on the road.

Input:

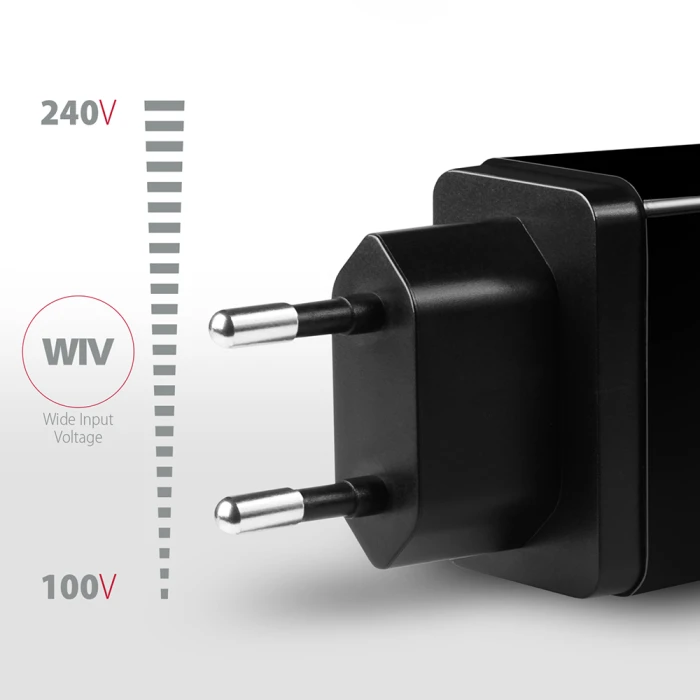

• input voltage AC 100V-240V / 50-60 Hz (WIV function) supports multiple national power standards
• two-pin euro plug - integrated in the body of the charger

Outputs:
• two independent outputs
• 1x USB Type A port SMART: standard 5V/1.2A charging
• 1x USB type A port QC: Quick Charge 3.0 - 3.6-6.5V/3A, 6.5-9V/2A, 9-12V/1.5A
• support for simultaneous charging from both outputs
• total maximum power 24W (QC port 18W + SMART port 6W)
• total maximum current 4.7A (QC port 3.5A + SMART port 1.2A)

Supported charging technologies:
• USB port SMART: standard 5V/1.2A charging
• USB port QC: Fast charging QC 2.0, QC3.0, AFC, FCP, Apple 2.4A, SMART charging max 5V/3.5A

The charger charges devices with the following technologies:
• Standard charging of all devices that support 5V and Apple iPhone 5, 6, SE, 7 charging.
• Smart 5V/3.5A charging, Qualcomm Quick Charge 1.0, USB Battery Charging 1.2 (DCP 1.5A) and Apple 2.4A (iPad)
• QC - fast charging of devices that support Qualcomm Quick Charge 2.0 and Quick Charge 3.0.
• AFC - fast charging of devices that support Samsung Adaptive Fast Charging.
• FCP - fast charging of devices that support Huawei Fast Charge Protocol.

The charger supports WIV, AIC, and CV/CC functions:
• Wide Input Voltage - function of a wide range of input voltage; it protects the adapter against undervoltage and overvoltage at the input and allows the use of more “national power standards”.
• Automatic Intelligent Communication - function of automatic recognition of the connected device to select optimal charging parameters.
• Constant Output Current - the current hold function prevents the output power fluctuations; this function ensures steady course of charging.

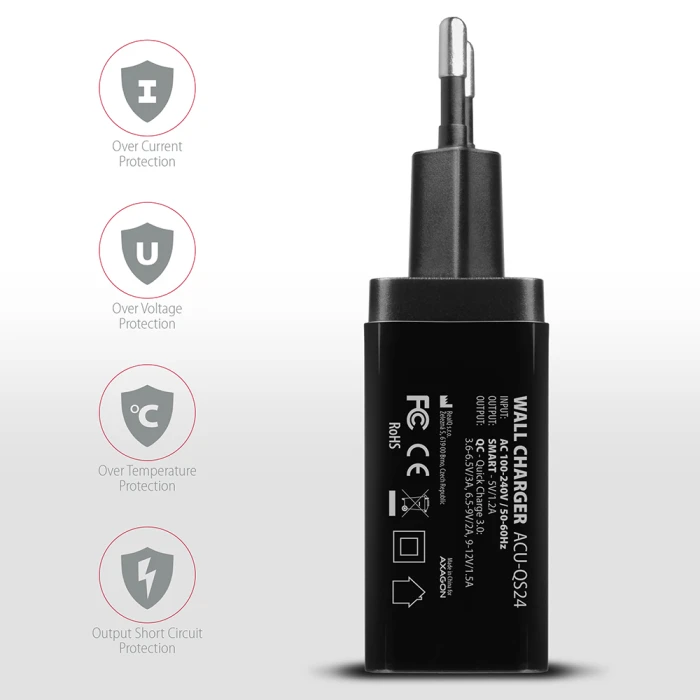

Complex output protection: OCP, OVP, OTP, OSP:
• Over Current Protection - protection of output against current overload.
• Over Voltage Protection - protection against overvoltage at the output.
• Over Temperature Protection - protection against overheating of the adapter.
• Output Short Circuit protection - short circuit protection at the output.

Other features:

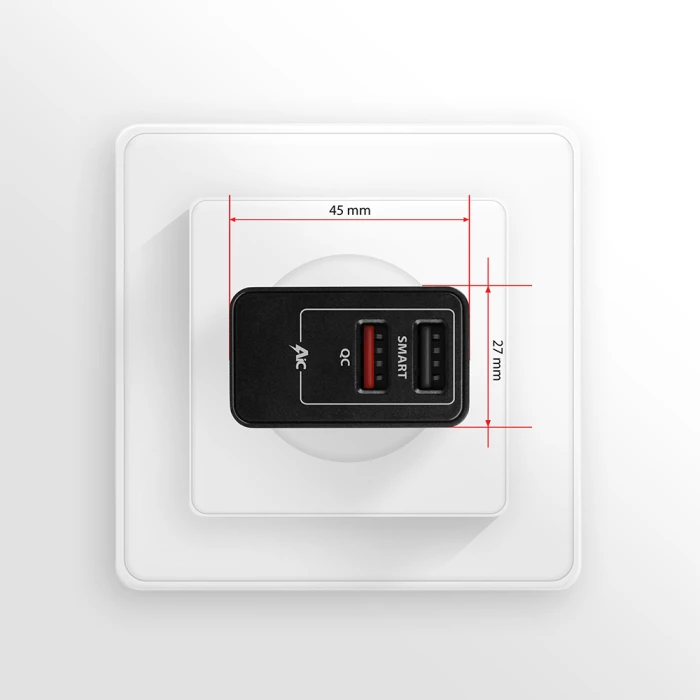

• dimensions of the charger body 90 x 45 x 27 mm including a fork (W x H x D),
• weight: 70 g,
• material: non-flammable plastic.
