ASUS TUF GAMING B760M-PLUS D4

LGA1700 mATX 4xDIMM DDR4 1xDP 1xHDMI 4xSATA 2xM.2 MB
ASUS TUF GAMING B760M-PLUS D4
ASUS TUF GAMING B760M-PLUS D4
ASUS TUF GAMING B760M-PLUS D4
ASUS TUF GAMING B760M-PLUS D4
ASUS TUF GAMING B760M-PLUS D4
ASUS TUF GAMING B760M-PLUS D4
ASUS TUF GAMING B760M-PLUS D4

ASUS TUF GAMING B760M-PLUS D4

LGA1700 mATX 4xDIMM DDR4 1xDP 1xHDMI 4xSATA 2xM.2 MB

Продуктов код: S17734
Запитване за ASUS TUF GAMING B760M-PLUS D4
Лизингов калкулатор
Характеристика Стойност
Чипсет Intel B760
CPU Socket 1700
Форм фактор Micro ATX
Слотове памет 4
Поддържана памет DDR4
Аудио Realtek 7.1 Surround Sound HD
LAN Realtek 2.5Gb Ethernet
Поддържани процесори Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Максимален капацитет RAM памет 128 GB
Честота памет 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC
Поддръжка на Dual channel Да
Свързаност 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A)

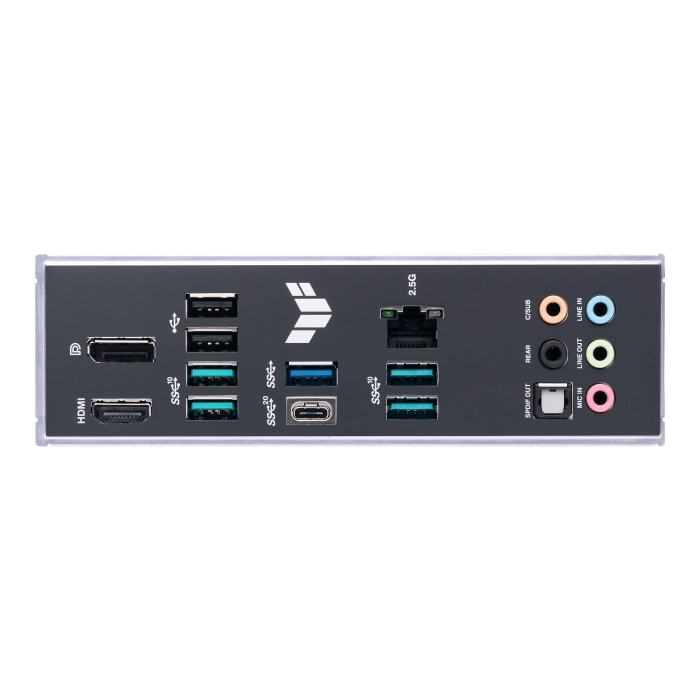

1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Видео слот PCI Express
Слотoве PCI-E x16 1 x PCIe 4.0 x16 slot (x4 mode)
1 x PCIe 5.0 x16 slot
Слотoве PCI-E x1 1
Поддържани технологии Windows® 11 64-bit, Windows® 10 64-bit
Други 128 Mb Flash ROM, UEFI AMI BIOS
SATA Интерфейс 4 x SATA3 6.0 Gb/s
M2 слот M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Размери (MB) 24.4cm x 24.4cm
Поддръжка на RAID SATA RAID 0/1/5/10
Гаранция 36 месеца
Арт. номера
90MB1DI0-M0EAY0
67839


TUF GAMING B760M-PLUS D4

TUF GAMING B760M-PLUS D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

12+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

logo of Intel Core logo of Intel B760
