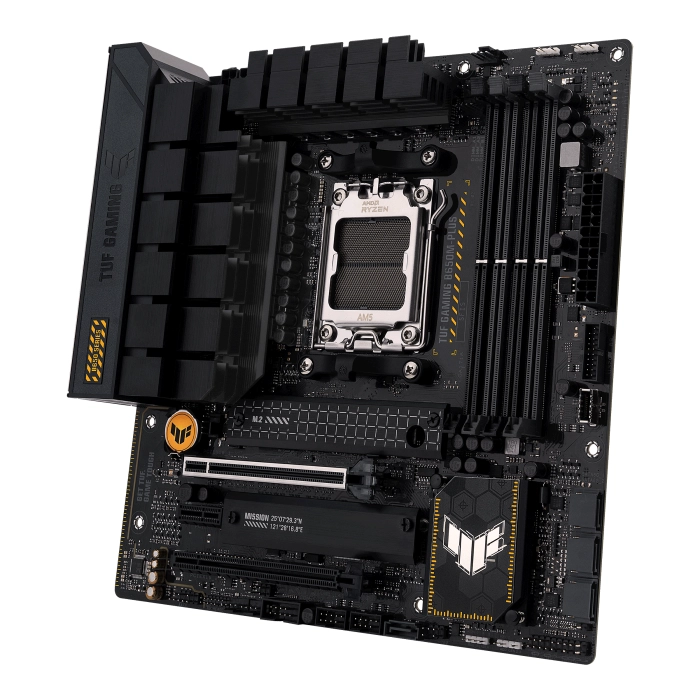

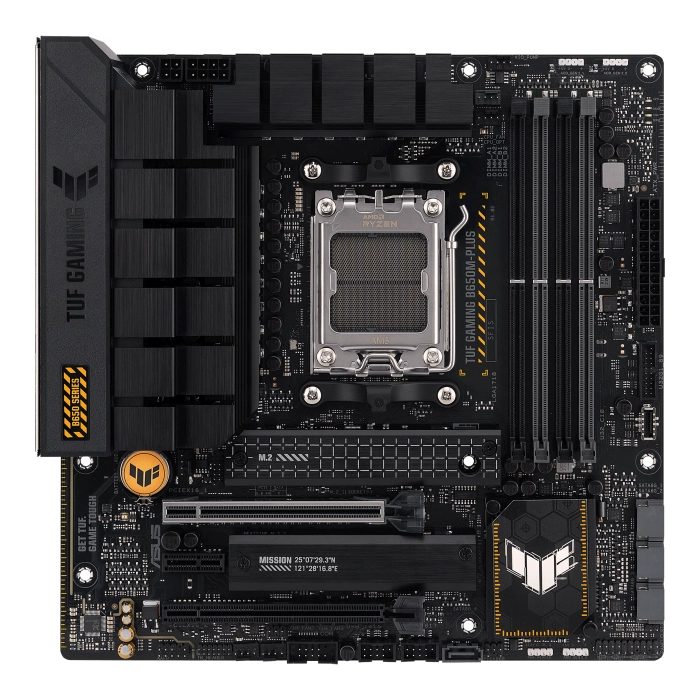

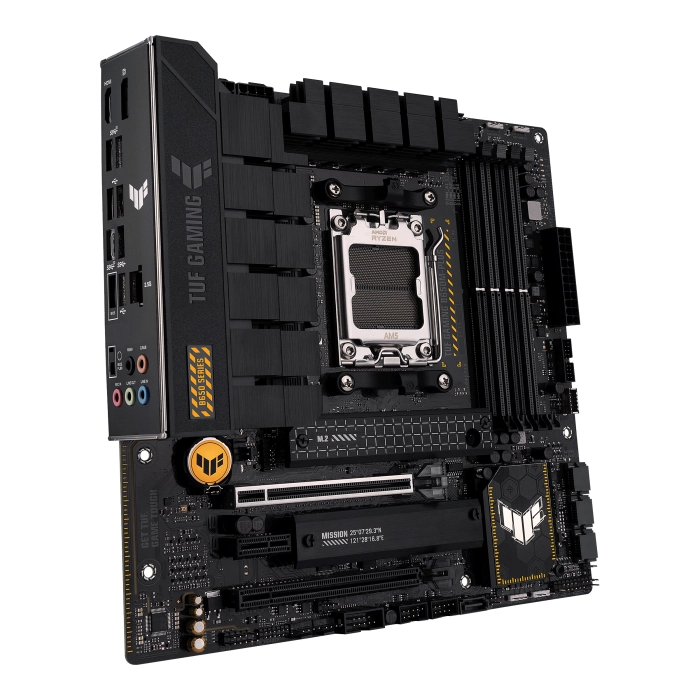

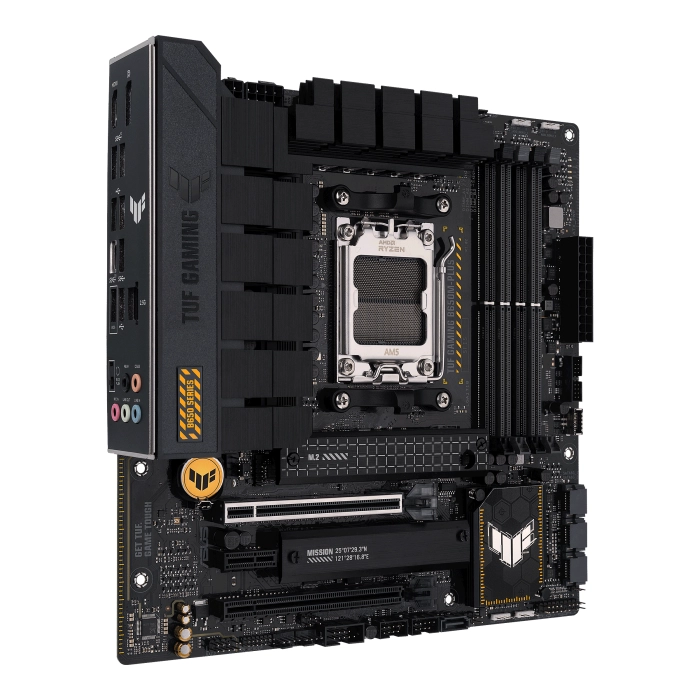

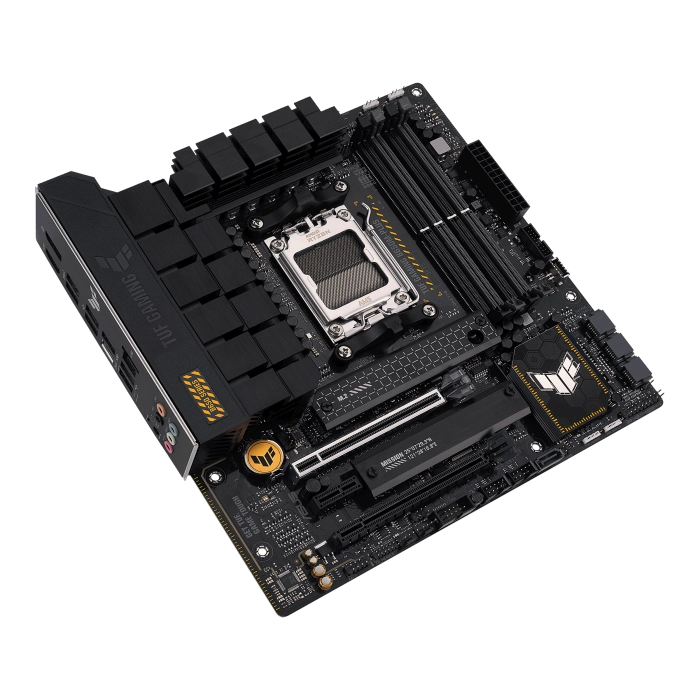

ASUS TUF GAMING B650M-PLUS

AM5 DDR5 mATX

Продуктов код: S17737
Запитване за ASUS TUF GAMING B650M-PLUS
Лизингов калкулатор
Характеристика Стойност
CPU Socket AM5
Чипсет AMD B650
Форм фактор Micro ATX
Слотове памет 4
Поддържана памет DDR5
Максимален капацитет RAM памет 128 GB
Честота памет
Аудио Realtek 7.1 Surround Sound HD
LAN Realtek 2.5Gb Ethernet
Поддържани процесори AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

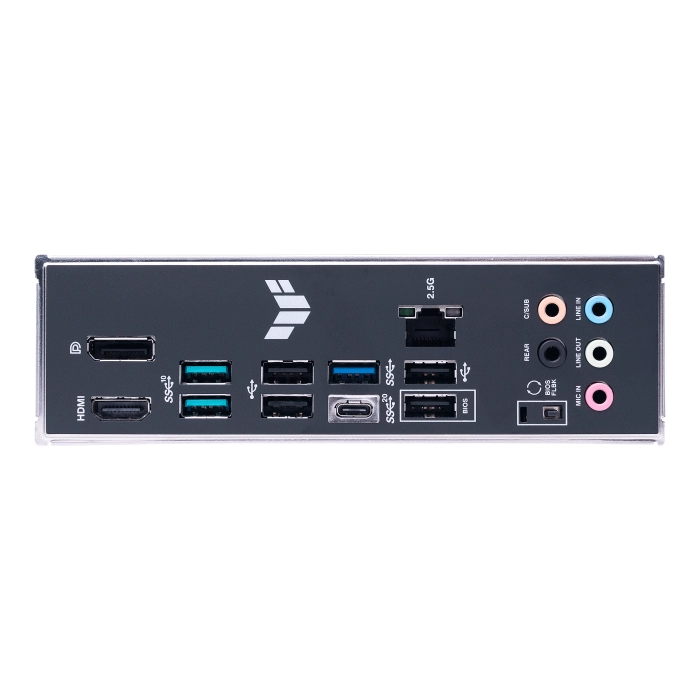

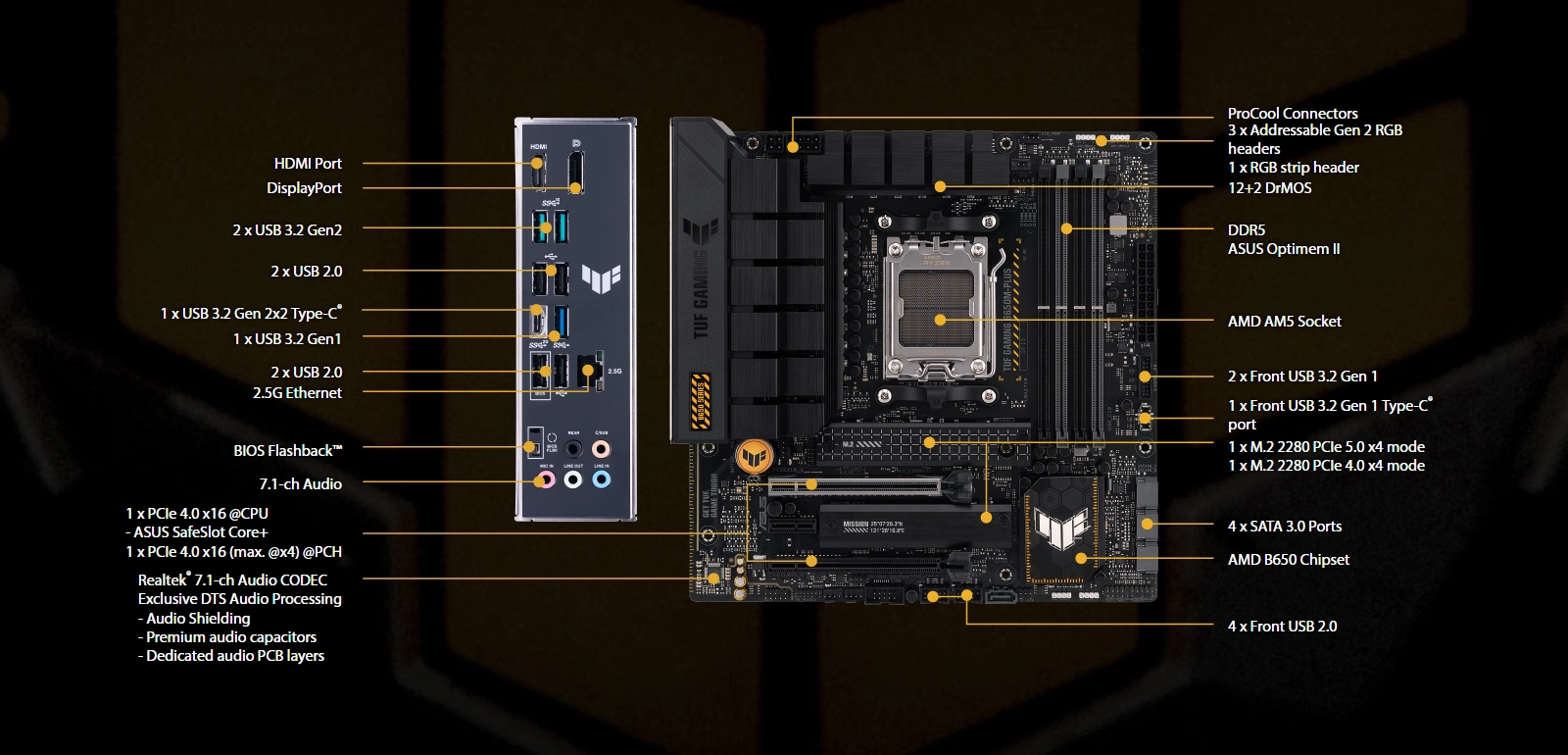

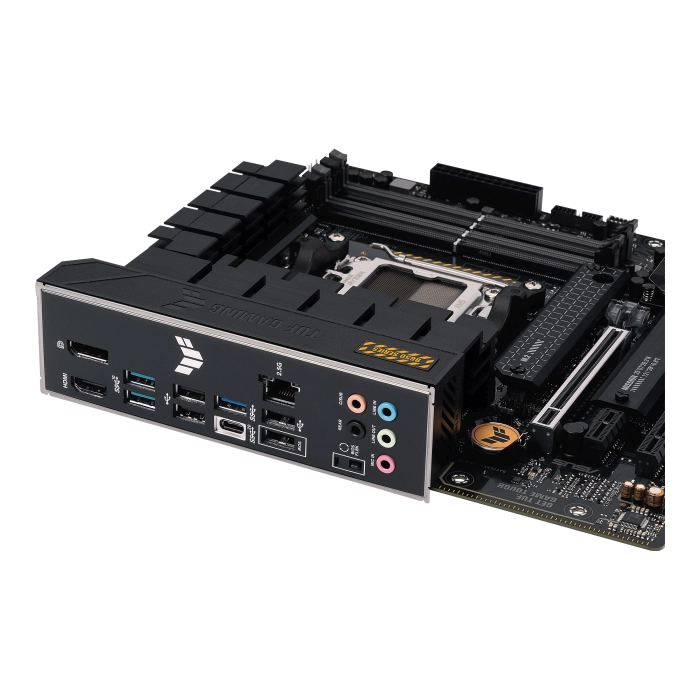

Свързаност 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort 1 x HDMI®port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button
Видео слот PCI Express
Слотoве PCI-E x16 1 x PCIe 4.0/3.0 x16 slot
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
Слотoве PCI-E x1 1
Поддържани технологии ASUS Aura Sync
Други Bios: 256 Mb Flash ROM, UEFI AMI BIOS
M2 слот M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
SATA Интерфейс 4 x SATA3 6.0 Gb/s
Поддръжка на RAID 0,1,10
Размери (MB) 24.4 cm x 24.4 cm
Гаранция 36 месеца
Арт. номера
90MB1BG0-M0EAY0
67831


TUF GAMING B650M-PLUS

ASUS TUF GAMING B650M-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
