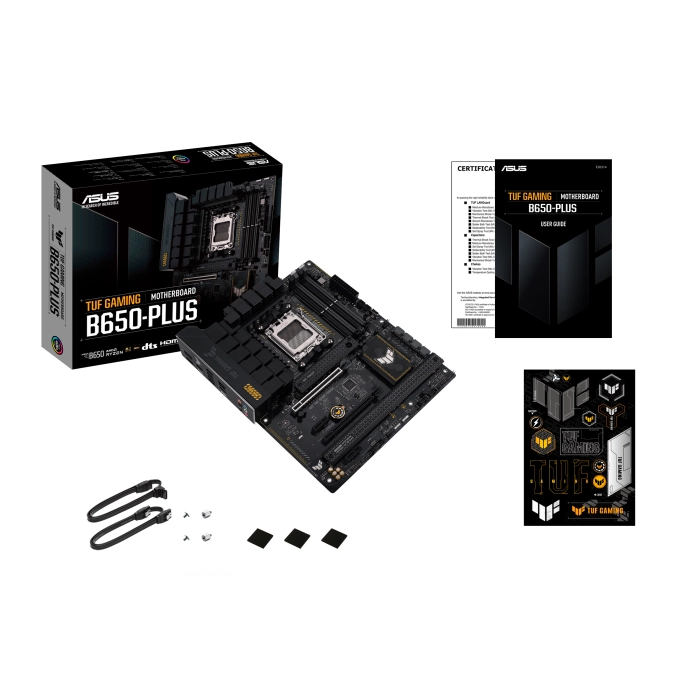

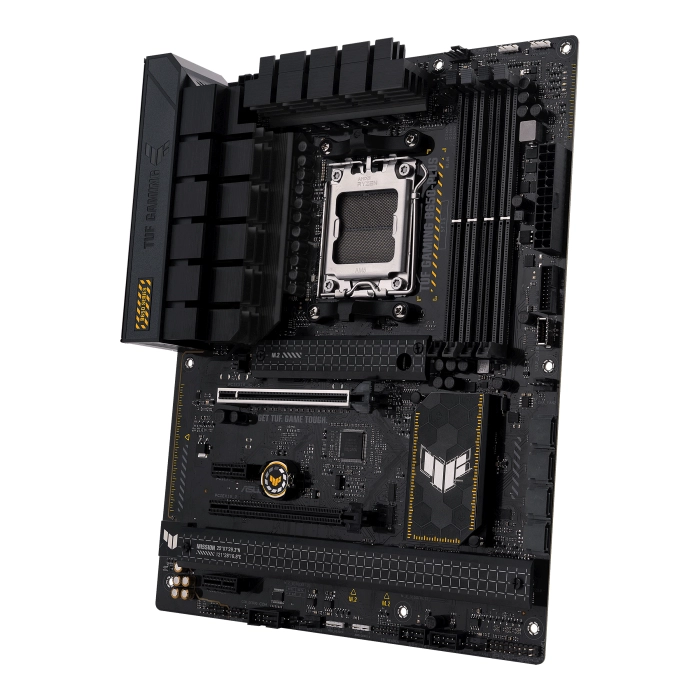

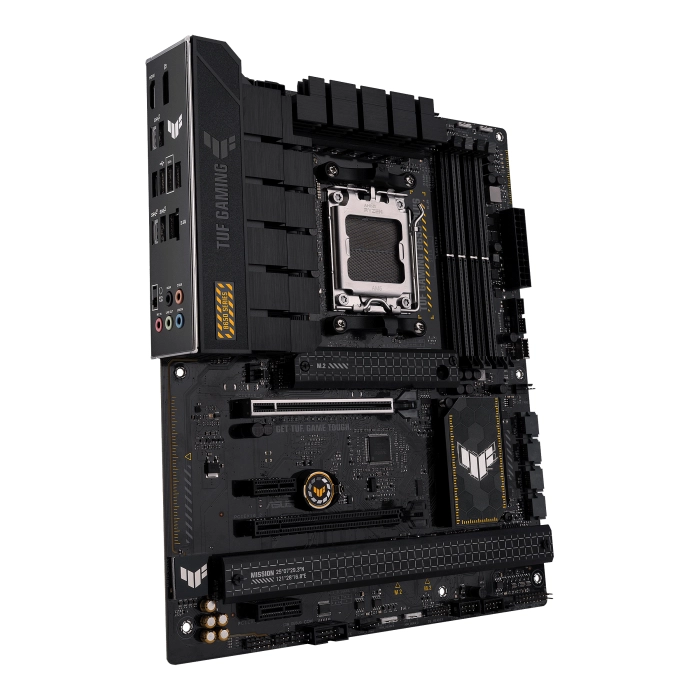

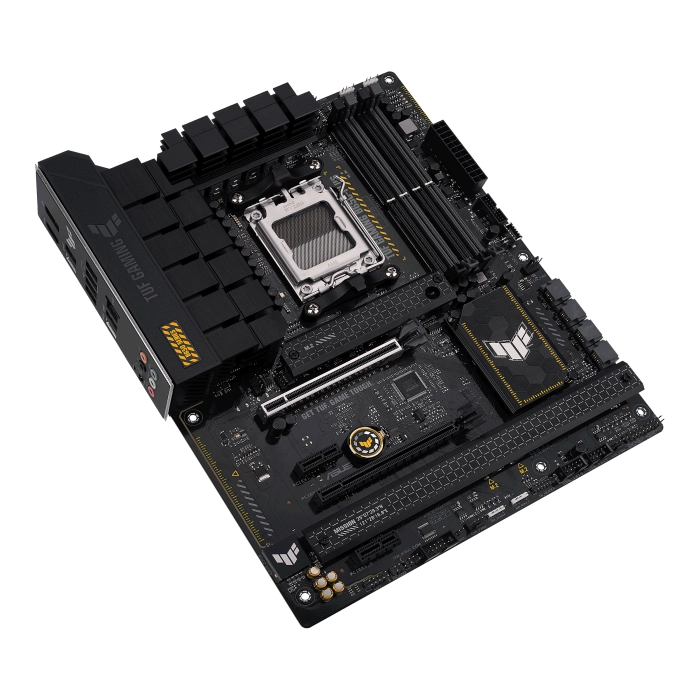

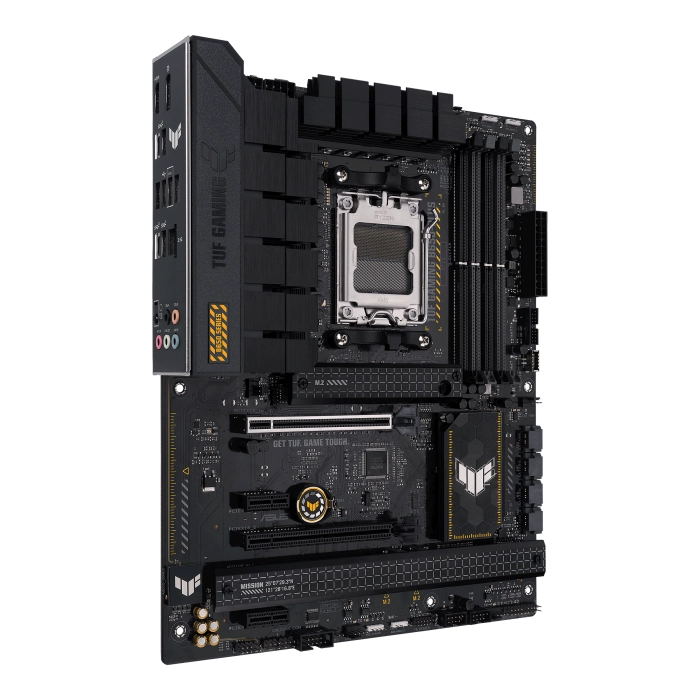

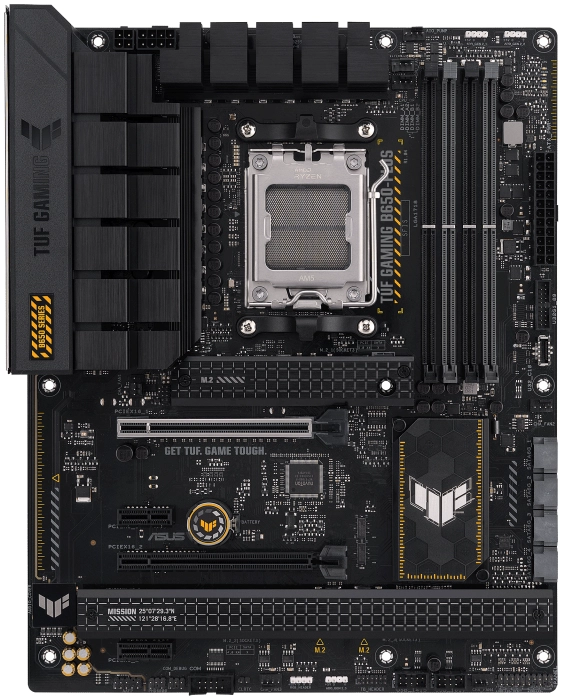

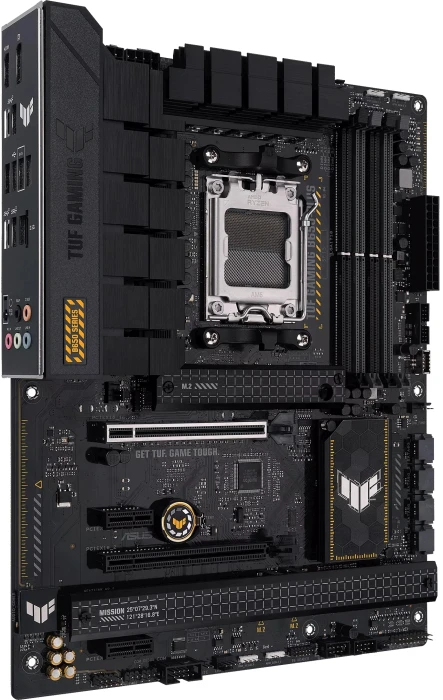

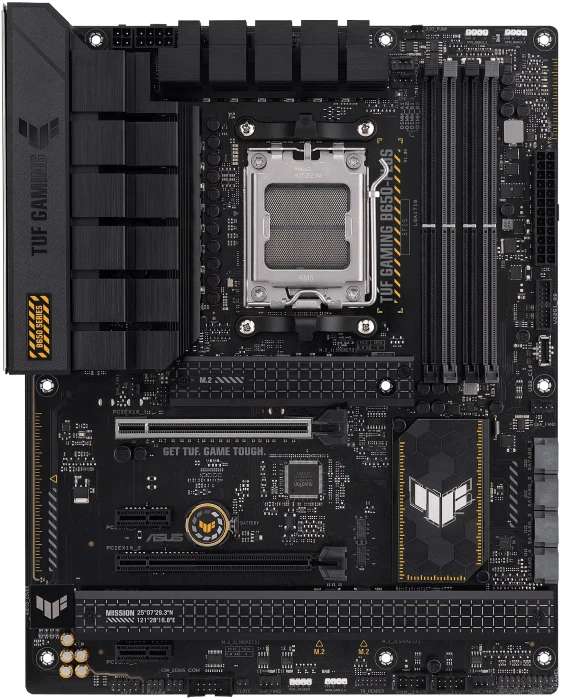

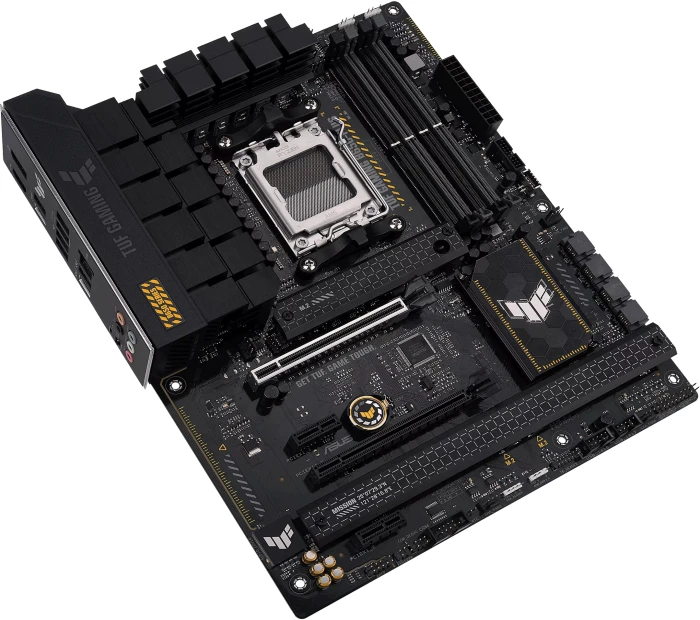

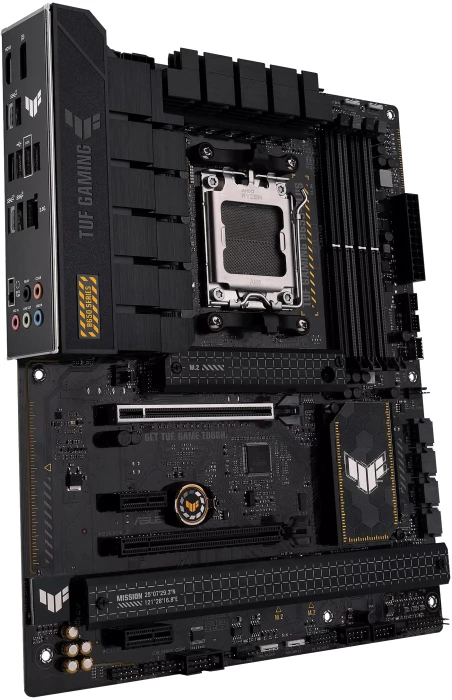

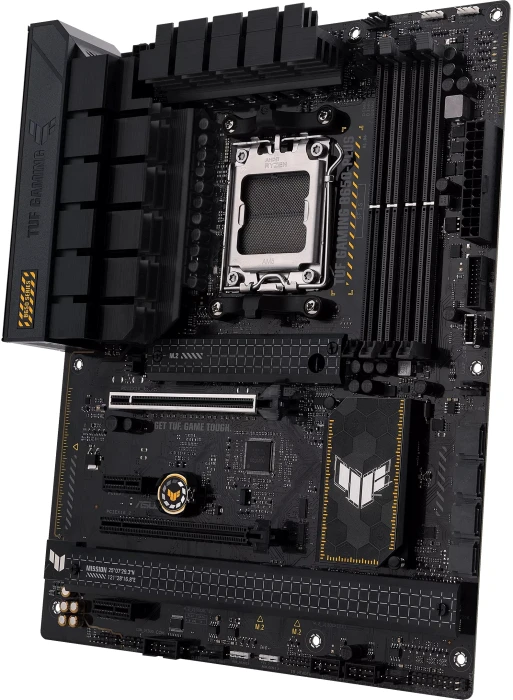

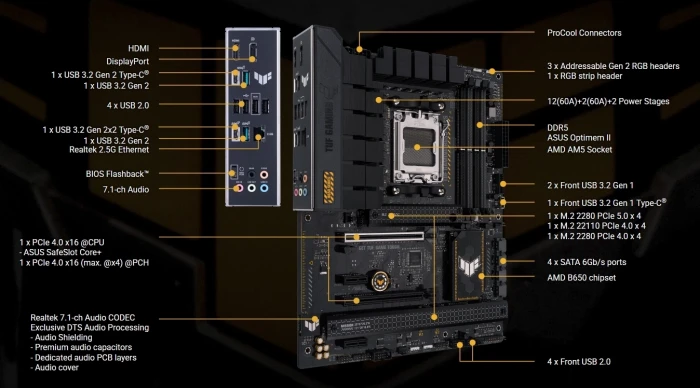

ASUS TUF GAMING B650-PLUS
| Характеристика | Стойност |
|---|---|
| Чипсет | AMD B650 |
| CPU Socket | AM5 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Аудио | Realtek 7.1 Surround Sound HD |
| LAN | Realtek 2.5Gb Ethernet |
| Поддържани процесори | AMD Ryzen™ 8000/7000 Series Desktop Processors |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory |
| Поддръжка на Dual channel | Да |
| Свързаност |

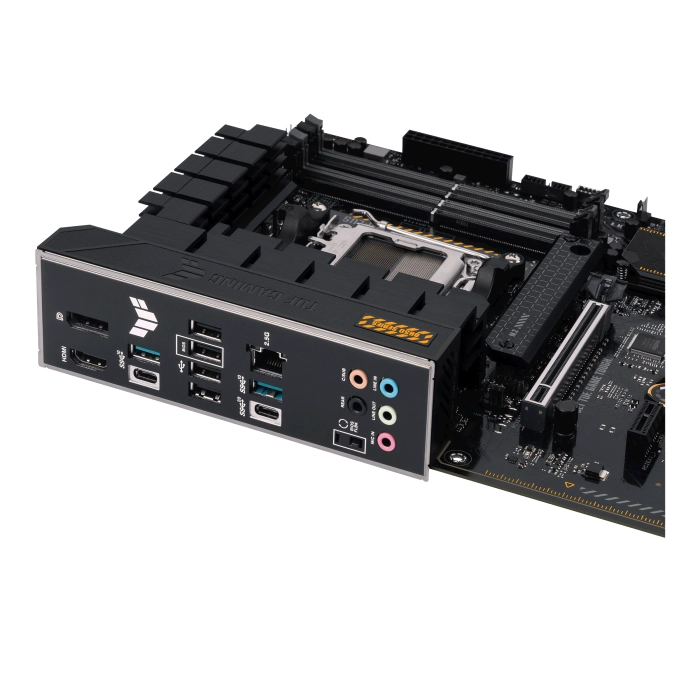

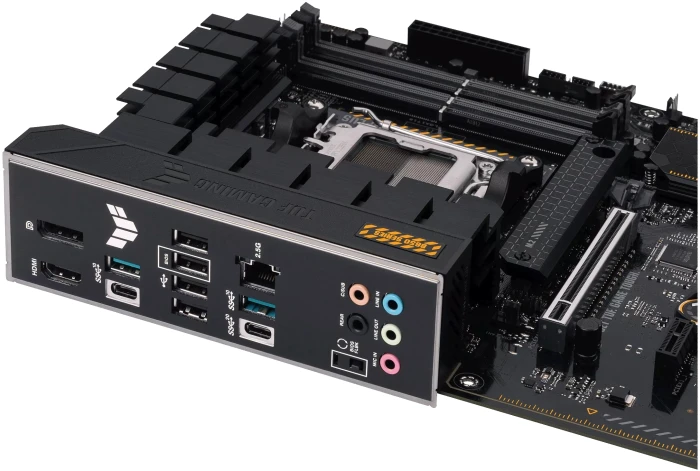

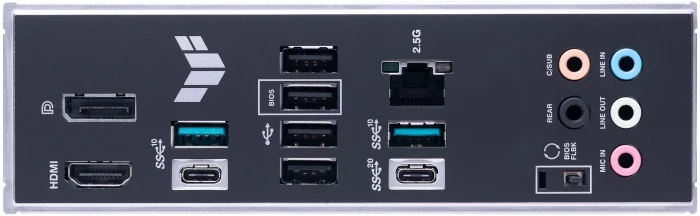

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| Видео слот | PCI Express |
| Слотoве PCI-E x16 |
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0/3.0 x16 slot(s) |
| Слотoве PCI-E x1 | 2 |
| Поддържани технологии | ASUS Aura Sync |
| Други | Bios: 256 Mb Flash ROM, UEFI AMI BIOS |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| M2 слот |
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Поддръжка на RAID | 0,1,10 |
| Гаранция | 36 месеца |
| Арт. номера |
90MB1BY0-M0EAY0
67822
ASUS-MB-TUF-B650-PLUS
|
TUF GAMING B650-PLUS

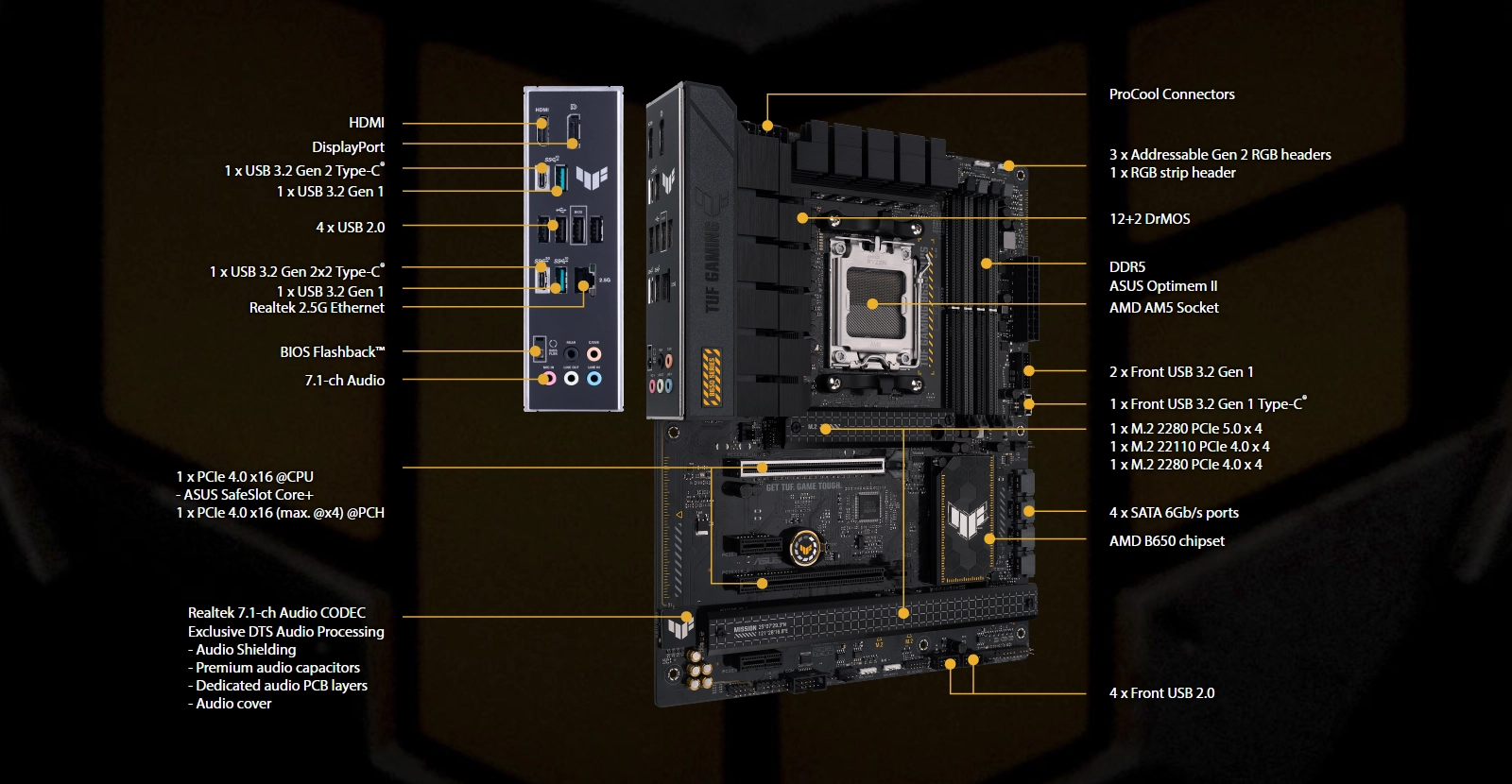

ASUS TUF GAMING B650-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
12+2 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
