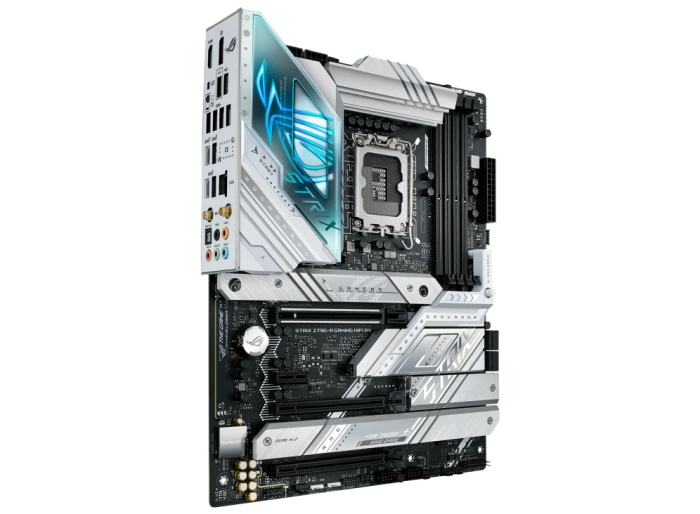

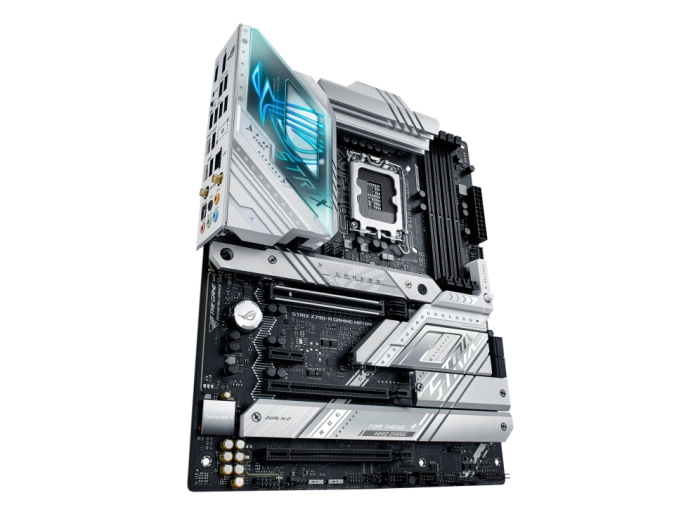

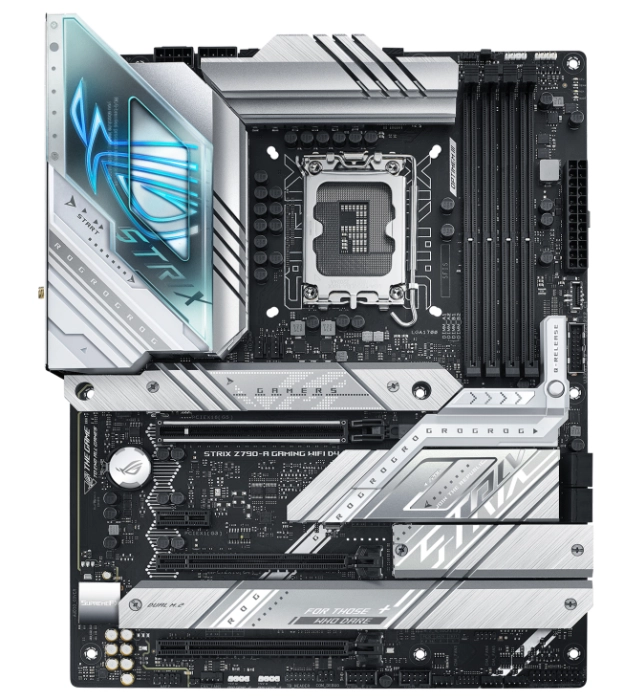

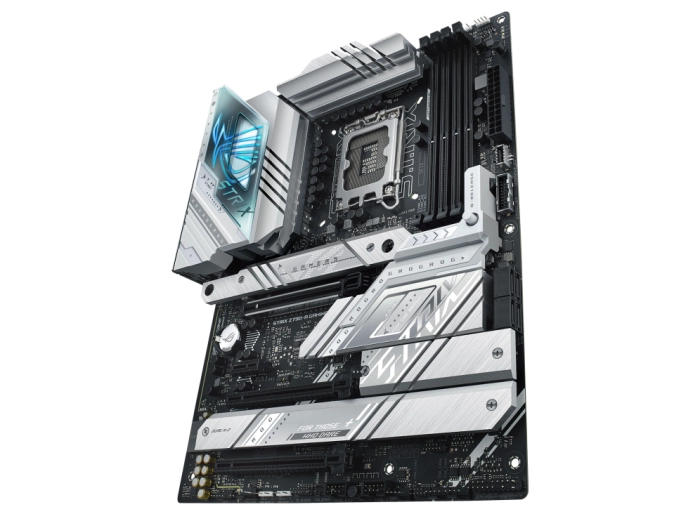

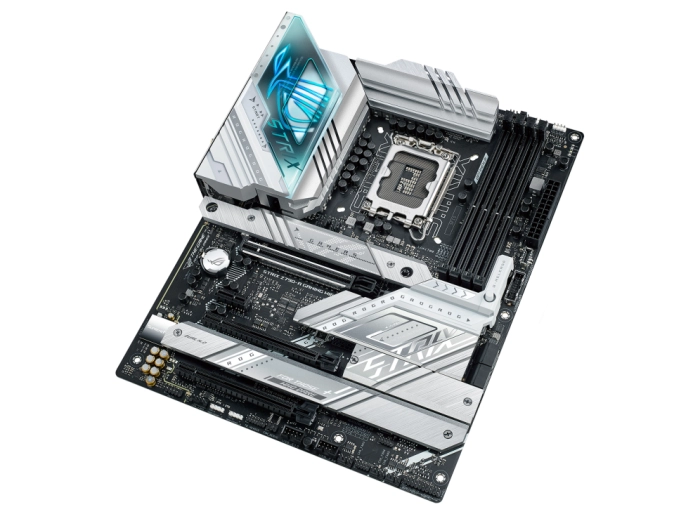

ASUS ROG STRIX Z790-A GAMING WIFI D4
ASUS ROG STRIX Z790-A GAMING WIFI D4 MB LGA1700 4xDIMM DDR4 4xM.2 4xSATA
ASUS ROG STRIX Z790-A GAMING WIFI D4
ASUS ROG STRIX Z790-A GAMING WIFI D4 MB LGA1700 4xDIMM DDR4 4xM.2 4xSATA
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1700 |
| Чипсет | Intel Z790 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет |
non-ECC up to 5333 MT/s |
| Аудио | ROG SupremeFX ALC4080 |
| LAN | Intel® 2.5Gb |
| Поддържани процесори |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |

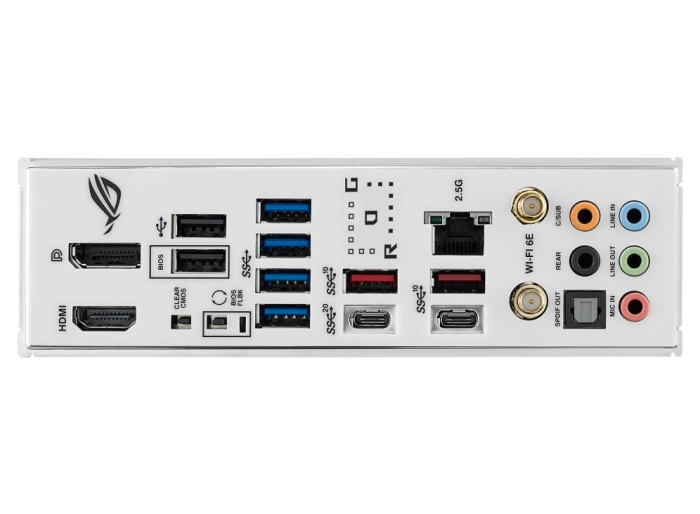

| Свързаност | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio |
| Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 slot 2 x PCIe 4.0 x16 slots (support x4 mode) |
| Слотoве PCI-E x1 | 1 |
| Други | 3 x Addressable Gen 2 headers 1 x Aura RGB header |
| M2 слот | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) , M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/ |
| SATA Интерфейс | 4 x SATA 6Gb/s |
| Вграден Wi-Fi |
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Wi-Fi 6 |
| Вграден Bluetooth | Bluetooth V5.3 |
| Поддръжка на RAID | 0, 1, 5, 10 |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
90MB1CN0-M0EAY0
68988
|
ROG STRIX Z790-A GAMING WIFI D4

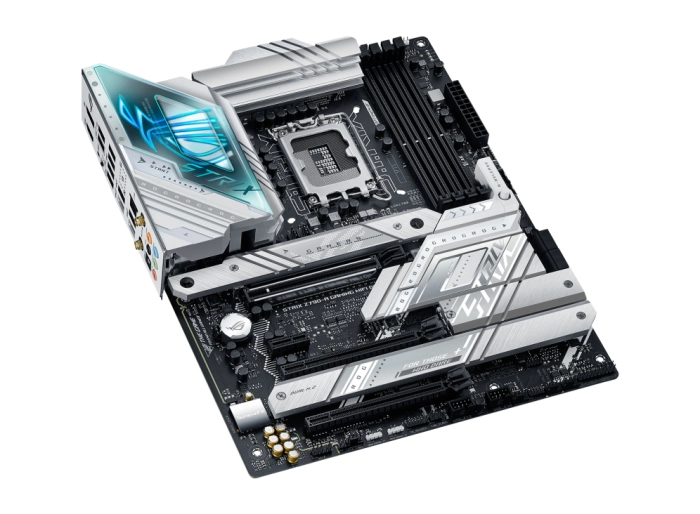

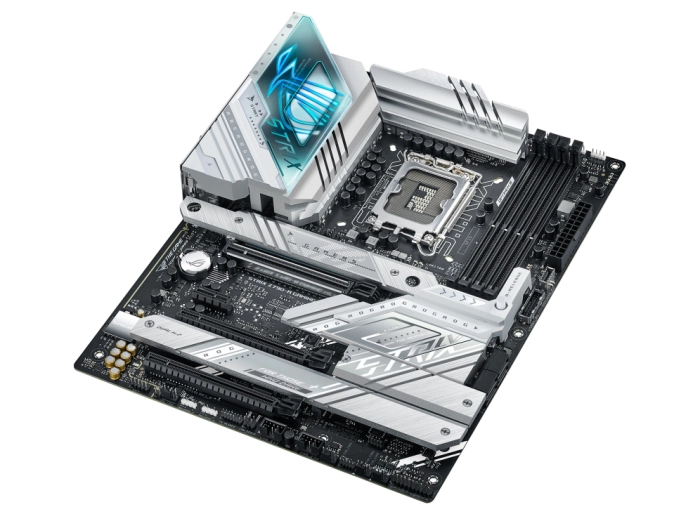

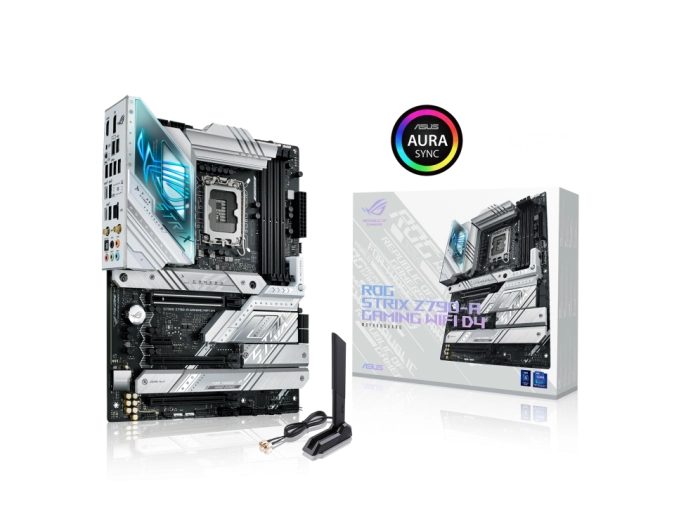

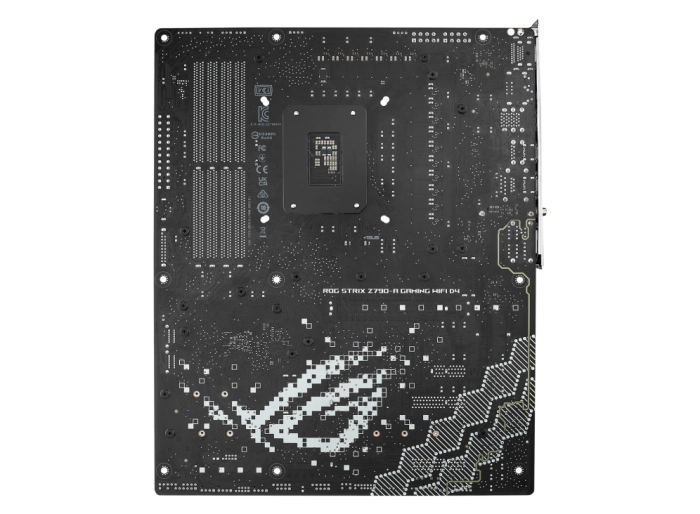

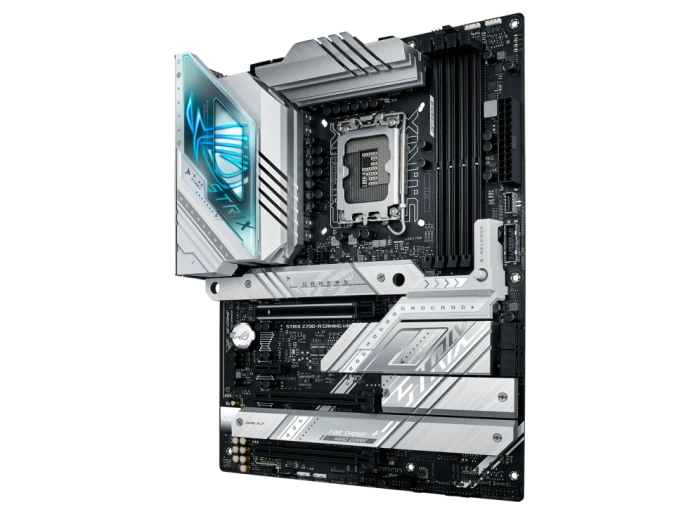

Intel® Z790 LGA 1700 ATX motherboard with 16 + 1 power stages, DDR4 memory support, four M.2 slots, PCIe® 5.0 x16 SafeSlot with Q-Release, WiFi 6E, USB 3.2 Gen 2x2 Type-C® rear I/O port and additional front-panel connector with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
- Robust Power Solution: 16 + 1 power solution rated for 70A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized VRM Thermals: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads.
- Ample M.2 Support: One PCIe® 4.0 M.2 slot with a heatsink and backplate, and three PCIe 4.0 M.2 slots with heatsinks

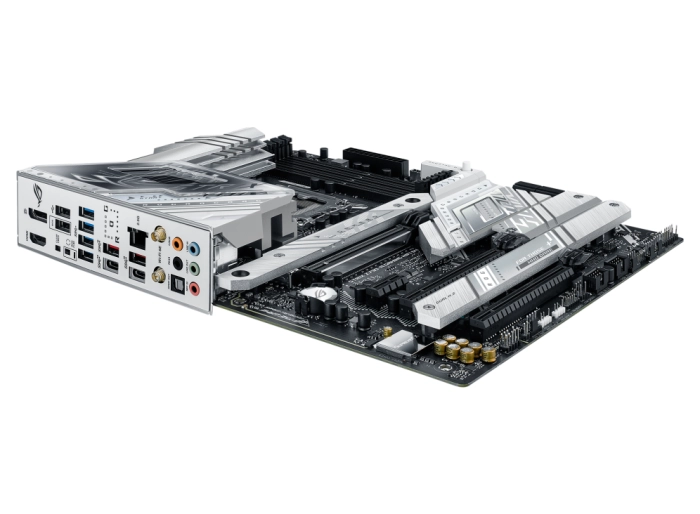

- Abundant Connectivity: USB 3.2 Gen 2x2 Type-C® rear I/O port and additional front-panel connector with PD 3.0 up to 30W, USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4

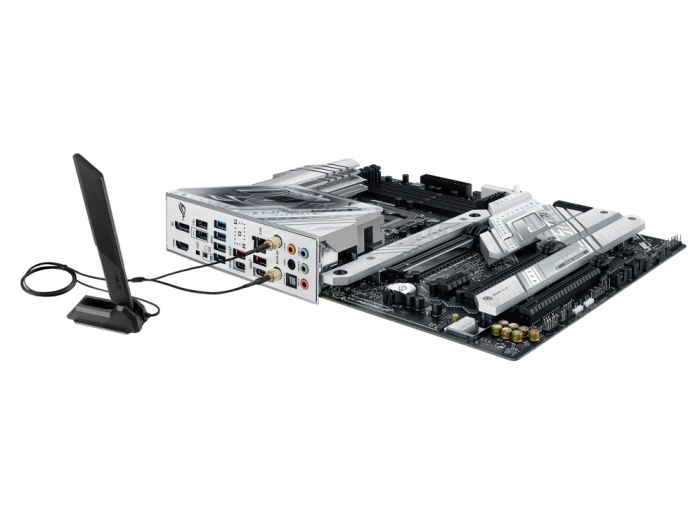

- High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation simplifies setup and improves performance
- Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and addressable Gen 2 headers
- DIY-friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack™ button, BIOS FlashBack LED, and Clear CMOS button
- Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
