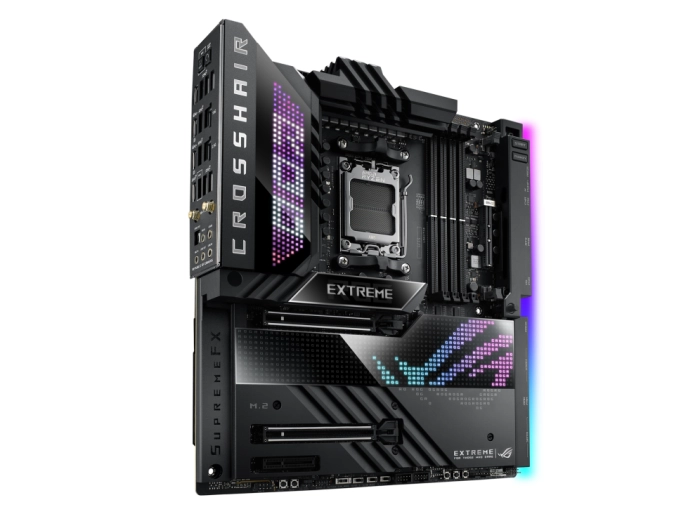

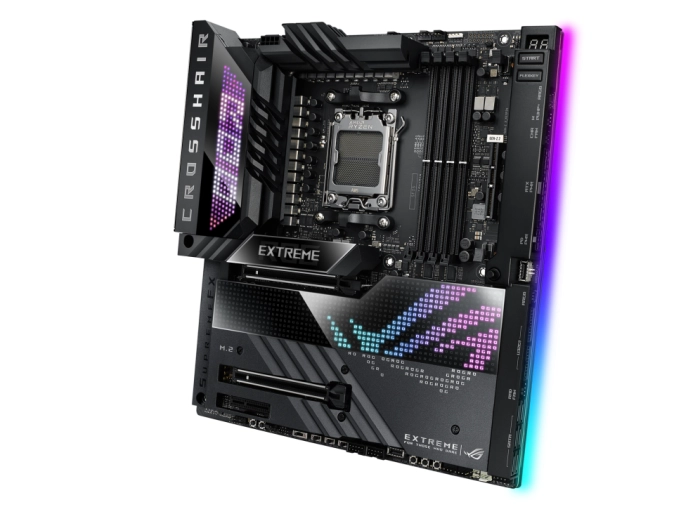

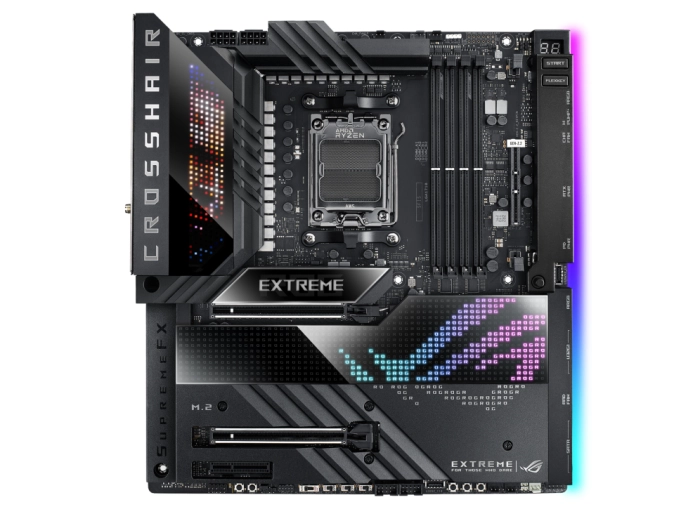

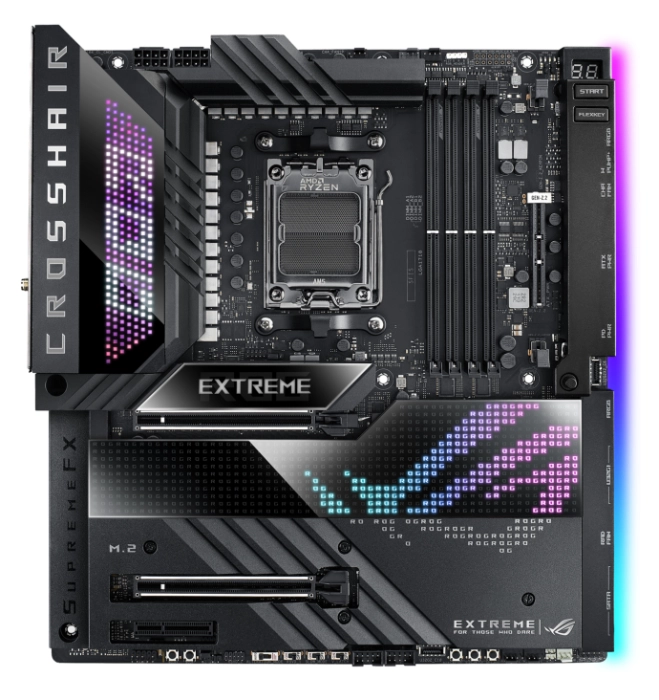

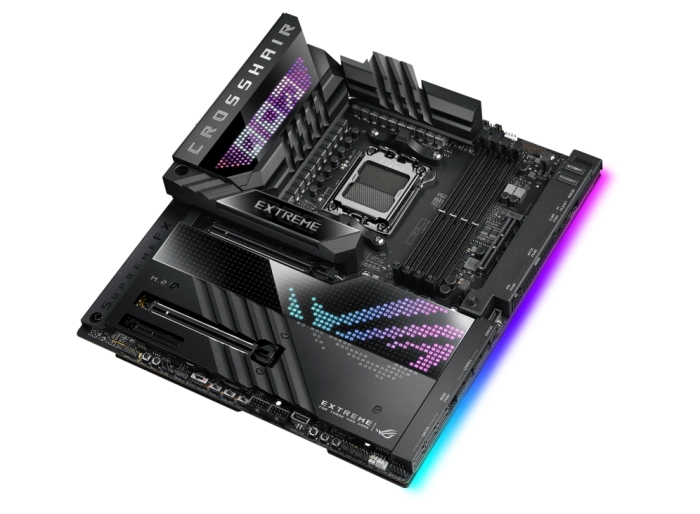

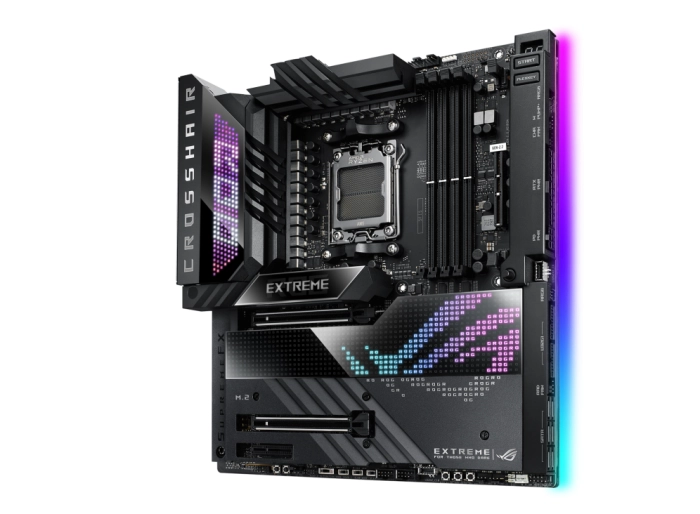

ASUS ROG CROSSHAIR X670E EXTREME DDR5
ASUS ROG CROSSHAIR X670E EXTREME AM5 EATX MB 4xDIMM DDR5 5xM.2 6xSATA
ASUS ROG CROSSHAIR X670E EXTREME DDR5
ASUS ROG CROSSHAIR X670E EXTREME AM5 EATX MB 4xDIMM DDR5 5xM.2 6xSATA
Този продукт е неналичен.
Продуктът не е наличен и цената му може да не е актуална.
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM5 |
| Чипсет | AMD X670 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | |
| Аудио | |
| LAN | Realtek 2.5Gb Ethernet |
| Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Свързаност |
2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®) 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 1 x Marvell® AQtion 10Gb Ethernet port 5 x LED-illuminated audio jacks* 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Видео слот | PCI Express |
| Други | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| M2 слот |
AMD Ryzen™ 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) When the PCIe 5.0 M.2 card is installed on the PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only AMD X670 Chipset 1 x PCIe 4.0 x4 slot When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4 |
| SATA Интерфейс | 6 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | 2x2 Dual Band Wi-Fi 6E (802.11a/b/g/n/ac/ax) |
| Вграден Bluetooth | Bluetooth V5.3 |
| Поддръжка на RAID | 0,1,10 |
| USB портове |
Rear USB (Total 12 ports) | 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®) | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)| 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®) Front USB (Total 10 ports) | 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)*| 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | 2 x USB 2.0 headers suppor |
| Размери (MB) | 30.5 cm x 27.7 cm |
| Гаранция | 36 месеца |
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
Storage related
2 x M.2 slots (Key M)
1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
1 x Addressable Gen 2 header
1 x Alteration Mode Switch
1 x Aura RGB header
1 x BIOS Switch button
2 x BCLK button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x Osc sence header
12 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x V_Latch switch
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
Storage related
2 x M.2 slots (Key M)
1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
1 x Addressable Gen 2 header
1 x Alteration Mode Switch
1 x Aura RGB header
1 x BIOS Switch button
2 x BCLK button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x Osc sence header
12 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x V_Latch switch
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Accessories
Cables
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
1 x RGB extension cable
3 x ROG weave SATA 6G cables pack
1 x 3-in-1 Thermistor cables pack
ROG Fan Controller
1 x ROG Fan Controller
1 x Fan EXT PWR cable
1 x ARGB input cable
1 x USB input cable
1 x ROG Fan Controller 3M Mounting tape package
1 x Fan Controller manual
ROG GEN.2 Card with Heatsink
1 x ROG GEN-Z.2 with heatsink
1 x M.2 pad package for ROG GEN-Z.2
2 x M.2 screw package for ROG GEN-Z.2
PCIe 5.0 M.2 Card with Heatsink
1 x PCIe 5.0 M.2 Card with heatsink
1 x M.2 screw package for ROG PCIe 5.0 M.2 Card
ROG True Voltician
1 x ROG True Voltician
4 x cables for ROG True Voltician
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Rubber Package for M.2 backplate
1 x Q-connector
2 x M.2 Q-Latch packages for M.2 backplate
1 x ROG Graphics card holder
1 x ROG key chain
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG thank you card
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User guide
1 x 1-to-3 ARGB splitter cable
1 x 1-to-2 ARGB splitter cable
2 x 1-to-4 fan splitter cable
1 x RGB extension cable
3 x ROG weave SATA 6G cables pack
1 x 3-in-1 Thermistor cables pack
ROG Fan Controller
1 x ROG Fan Controller
1 x Fan EXT PWR cable
1 x ARGB input cable
1 x USB input cable
1 x ROG Fan Controller 3M Mounting tape package
1 x Fan Controller manual
ROG GEN.2 Card with Heatsink
1 x ROG GEN-Z.2 with heatsink
1 x M.2 pad package for ROG GEN-Z.2
2 x M.2 screw package for ROG GEN-Z.2
PCIe 5.0 M.2 Card with Heatsink
1 x PCIe 5.0 M.2 Card with heatsink
1 x M.2 screw package for ROG PCIe 5.0 M.2 Card
ROG True Voltician
1 x ROG True Voltician
4 x cables for ROG True Voltician
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Rubber Package for M.2 backplate
1 x Q-connector
2 x M.2 Q-Latch packages for M.2 backplate
1 x ROG Graphics card holder
1 x ROG key chain
1 x ROG logo plate sticker
1 x ROG screwdriver
1 x ROG stickers
1 x ROG thank you card
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x User guide
