ASUS ROG CROSSHAIR VIII DARK HERO X570
ASUS ROG CROSSHAIR VIII DARK HERO AMD X570 ATX gaming motherboard with PCIe 4.0 16 WiFi 6 802.11ax 2.5Gbps USB 3.2 SATA M.2 RGB
ASUS ROG CROSSHAIR VIII DARK HERO X570
ASUS ROG CROSSHAIR VIII DARK HERO AMD X570 ATX gaming motherboard with PCIe 4.0 16 WiFi 6 802.11ax 2.5Gbps USB 3.2 SATA M.2 RGB
Този продукт е неналичен.
Продуктът не е наличен и цената му може да не е актуална.
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM4 |
| Чипсет | AMD X570 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR4 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет |
non-ECC up to 5100 MT/s |
| Аудио | ROG SupremeFX7.1 Surround HD |
| LAN |
1 x Intel® I211-AT 1Gb Ethernet Realtek RTL8125-CG 2.5G LAN |
| Поддържани процесори | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors |
| Свързаност |

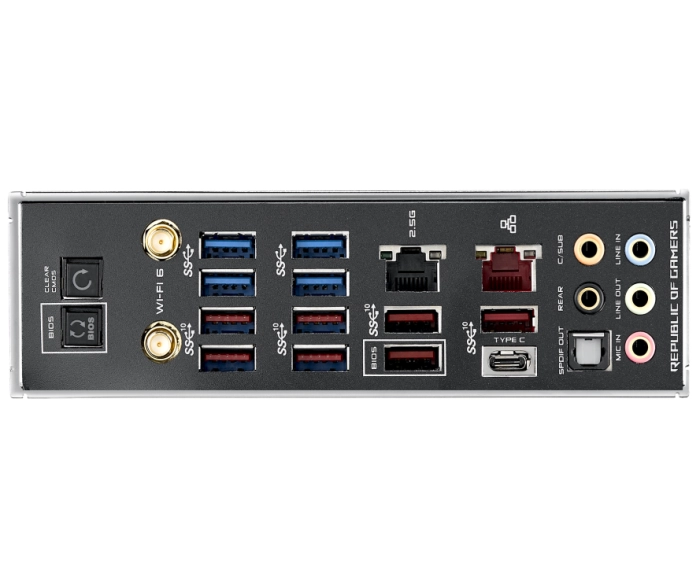

1 x BIOS FlashBack™ Button(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () 1 x Anti-surge 2.5G LAN (RJ45) port Anti-surge LAN (RJ45) port |
| Видео слот | PCI Express |
| Слотoве PCI-E x16 | 3 |
| Слотoве PCI-E x1 | 1 |
| Други | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| M2 слот |
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) |
| SATA Интерфейс | 8 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi |
Intel® Wi-Fi 6 AX200 Bluetooth v5.1 |
| Поддръжка на RAID | 0,1,10 |
| Гаранция | 36 месеца |
AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages, OptiMem III, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps Ethernet, USB 3.2, SATA, M.2 and Aura Sync RGB lighting
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Comprehensive thermal design: Passive chipset heatsink, M.2 aluminum heatsinks and ROG Water Cooling Zone.
- Robust power delivery: Designed power solution 14+2 TI power stages rated for 90A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
- High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst VI software.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
- DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
- Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.
