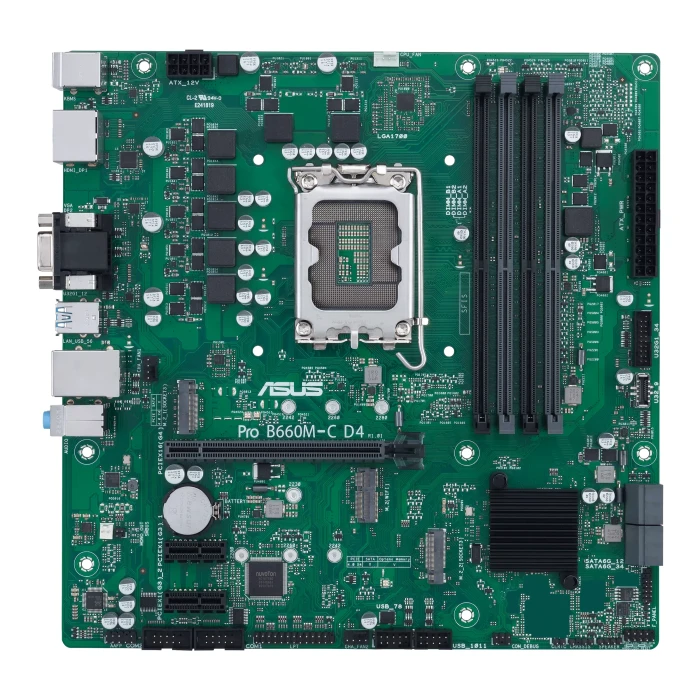

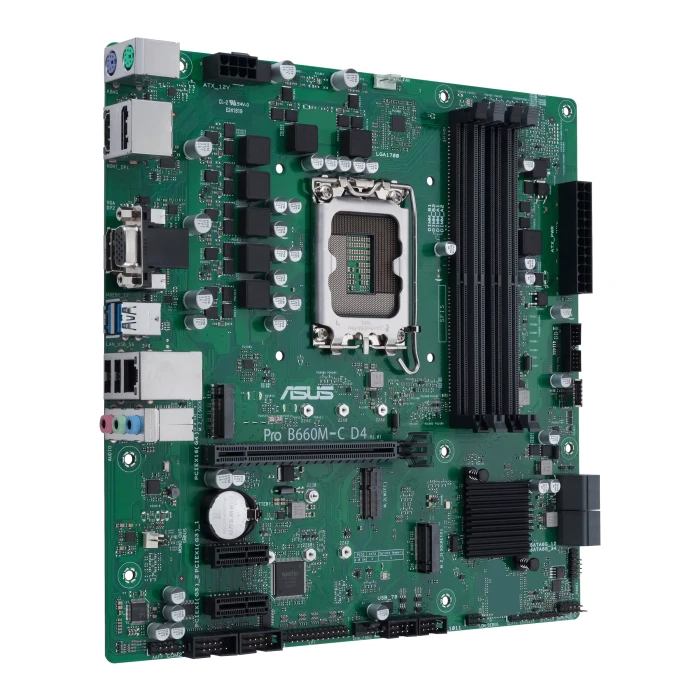

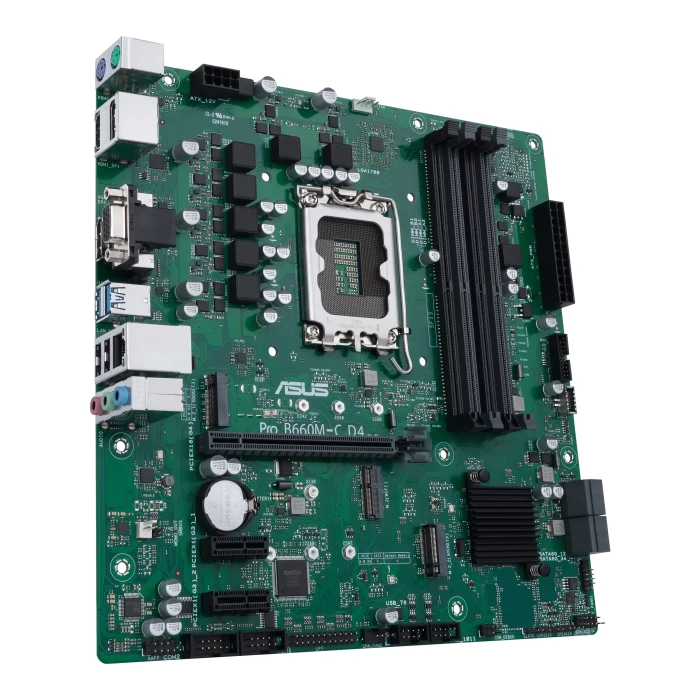

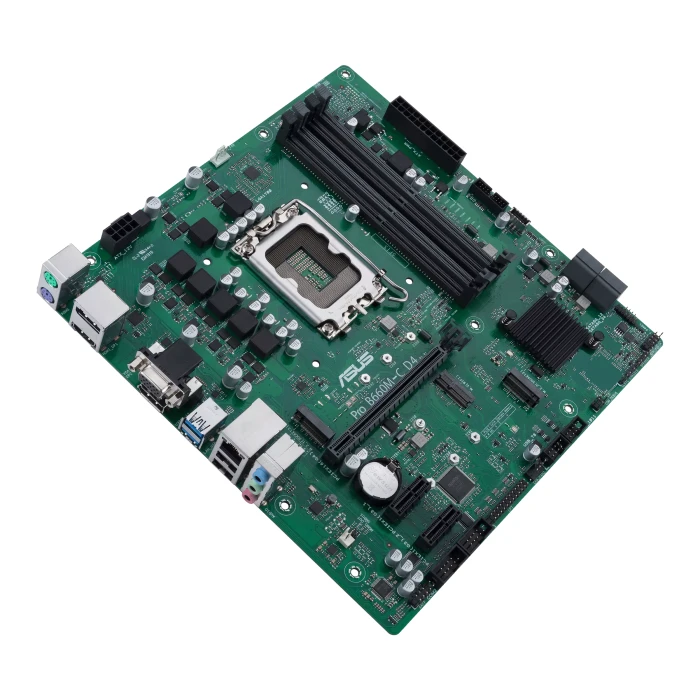

ASUS Pro B660M-C D4-CSM

90MB19B0-M1EAYC

90MB19B0-M1EAYC

Продуктов код: S19391

Запитване за ASUS Pro B660M-C D4-CSM

Лизингов калкулатор

Характеристика	Стойност
Чипсет	Intel B660
CPU Socket	1700
Форм фактор	Micro ATX
Слотове памет	4
Поддържана памет	DDR4
Аудио	Realtek AUDIO CODEC
LAN	Intel 1Gb Ethernet
Поддържани процесори	13th/12th Gen Intel
Максимален капацитет RAM памет	128 GB
Честота памет	up to 4600 MHz
Поддръжка на Dual channel	Да
Слотoве PCI-E x16	1 x PCIe 4.0/3.0 x16
Слотoве PCI-E x1	2
M2 слот	2x M.2 slots
Размери (MB)	24.4cm x 24.4cm
Поддръжка на RAID	0, 1, 5, 10

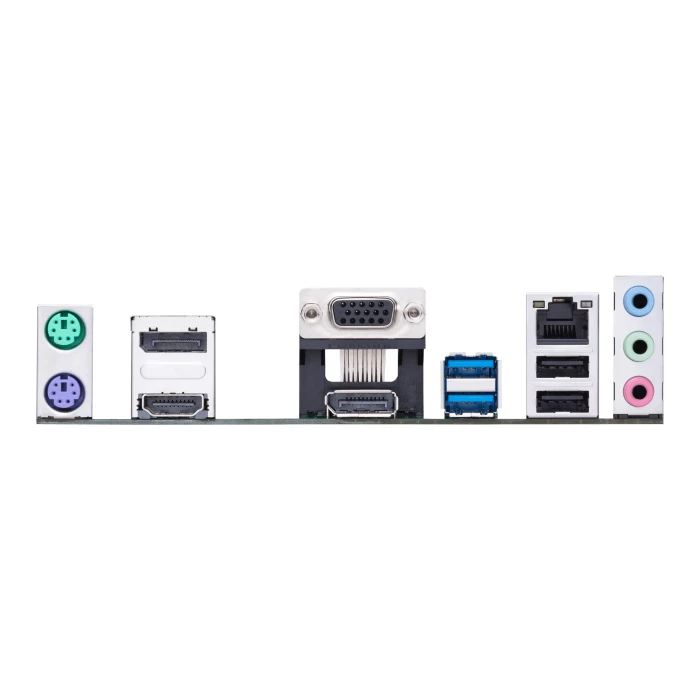

Заден панел I/O	1 x HDMI 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x RJ-45 LAN 1 x VGA (D-Sub) 2 x DisplayPort 2 x USB 2.0 2 x USB 3.2 Gen 1 3 x audio jacks
Гаранция	36 месеца
Арт. номера	90MB19B0-M1EAYC 66262

Micro-ATX B660 business motherboard with enhanced security, reliability, manageability and serviceability

Intel^® LGA 1700 socket: Ready for 12th Gen Intel Core^TM processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
