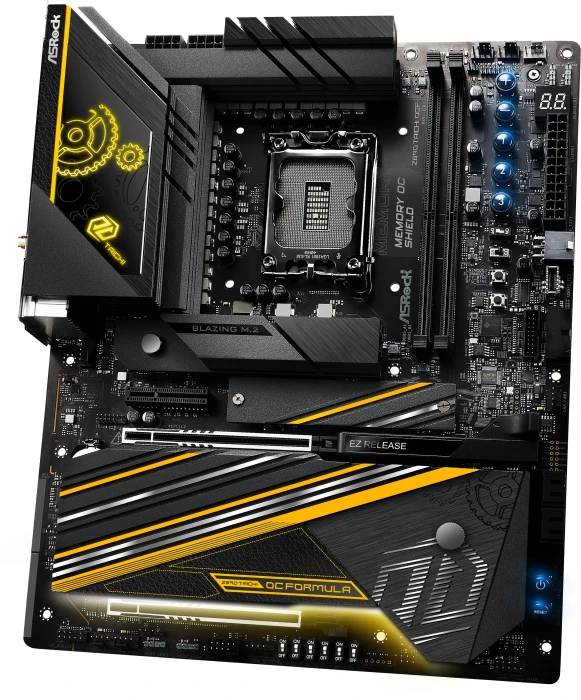

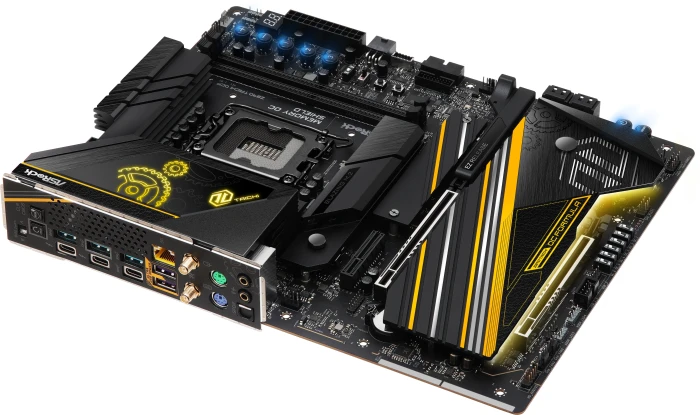

ASRock Z890 Taichi OCF
It's built for high-end gamers, offering luxury aesthetics and powerful performance | 90-MXBPM0-A0UAYZ
ASRock Z890 Taichi OCF
It's built for high-end gamers, offering luxury aesthetics and powerful performance | 90-MXBPM0-A0UAYZ
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1851 |
| Чипсет | Intel Z890 |
| Форм фактор | ATX |
| Слотове памет | 2 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | up to 10133 MT/s |
| Аудио | Realtek ALC4082 |
| LAN | 5 Gigabit LAN Realtek RTL8126 |
| Поддържани процесори | Support Intel® Core™ Ultra Processors (Series 2) LGA1851 |
| Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 5.0 x16 (x8 mode) |
| Слотoве PCI-E x4 | 1 x PCIe 4.0 x4 |
| Слотoве PCI-E x1 | Не |
| M2 слот |
1 x PCIe Gen5 x4 4 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Wi-Fi 7 |
| Вграден Bluetooth | Bluetooth V5.4 |
| Поддръжка на RAID | 0, 1, 5, 10 |

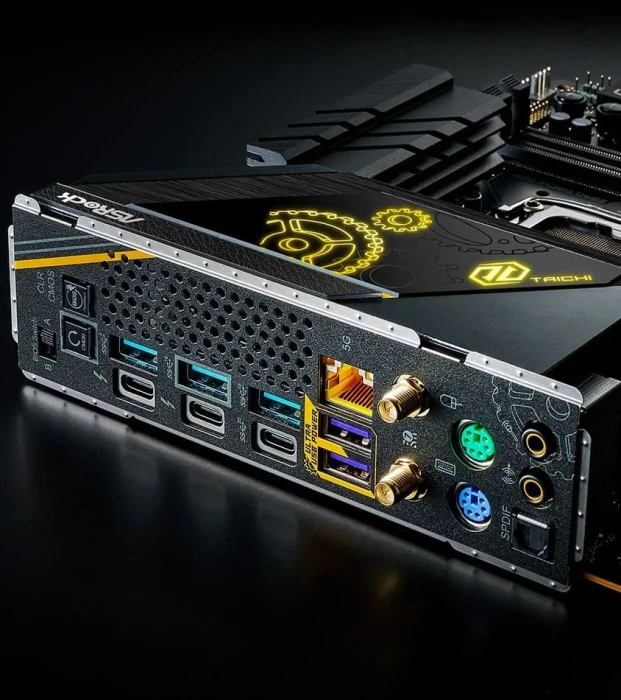

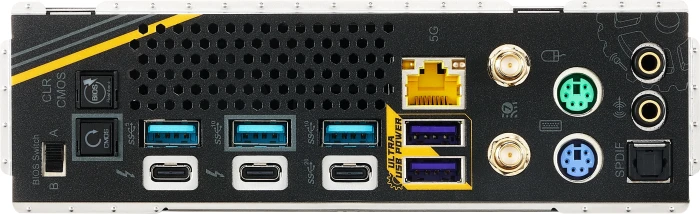

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x Clear CMOS button 1 x Optical SPDIF Out 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x RJ-45 LAN 1 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 Type-C 2 x Antenna Ports 2 x Аudio jacks 4 x USB 3.2 Gen 2 2 x USB4 Thunderbolt™ 4 Type-C 1 x BIOS Selection Switch |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
Z890 TAICHI OCF
90-MXBPM0-A0UAYZ
|
Z890 Taichi OCF

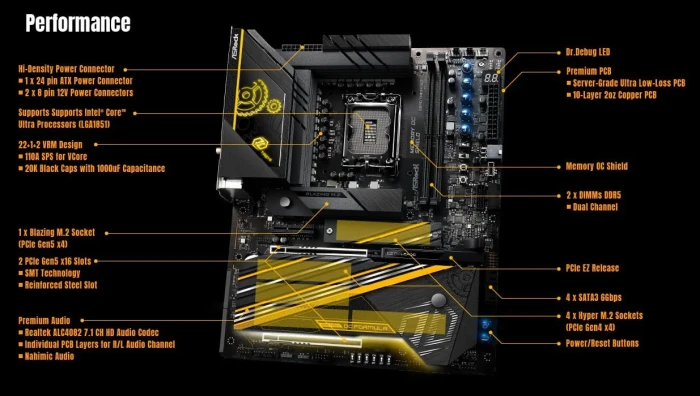

- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 22+1+2+1+1 Power Phase, 110A SPS for VCore
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 10133+ (OC)* - 2 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Output Options: 2 Thunderbolt™ 4 Type-C
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
3 Hyper M.2 (PCIe Gen4 x4)

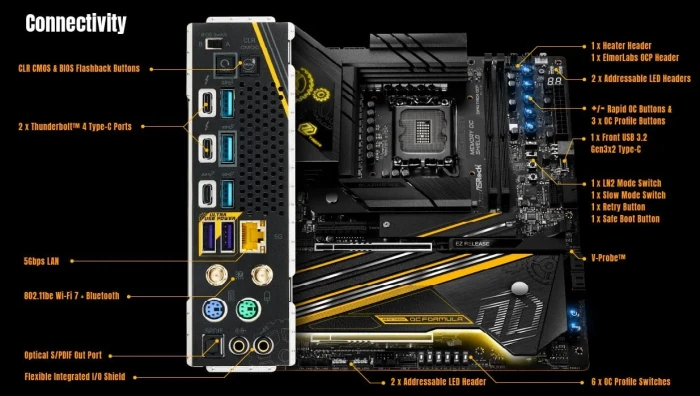

2 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
4 USB 3.2 Gen2 Type-A (Rear)
5 USB 3.2 Gen1 (1 Rear, 4 Front)
3 USB 2.0 (Front) - 5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance
- Professional Overclocking Toolkit
