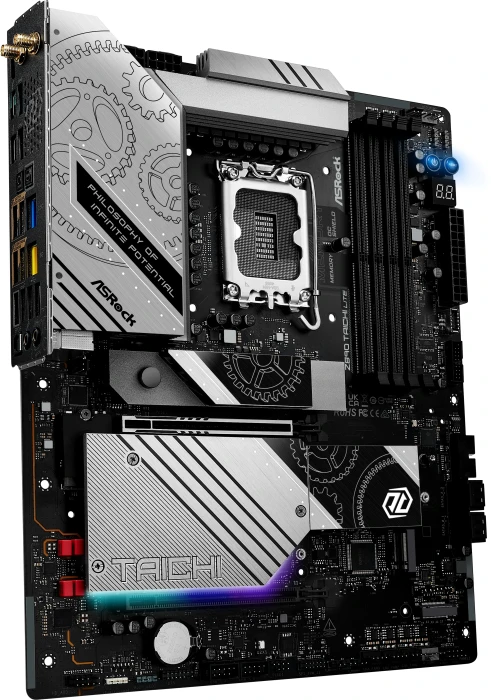

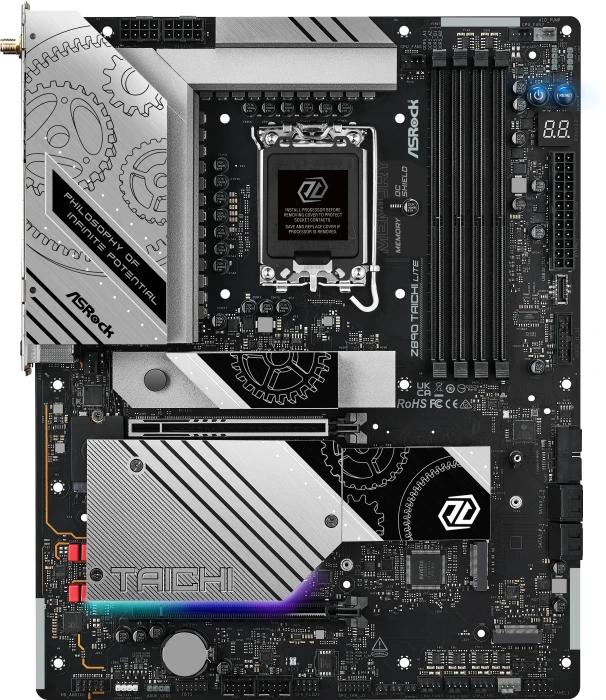

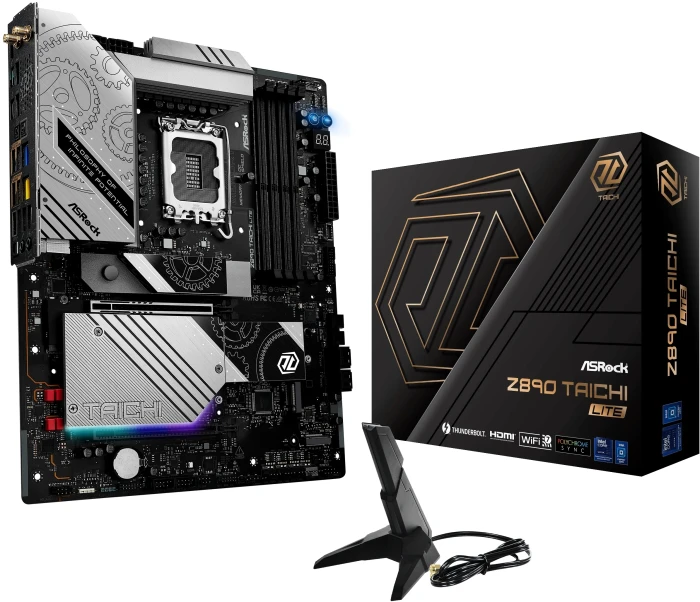

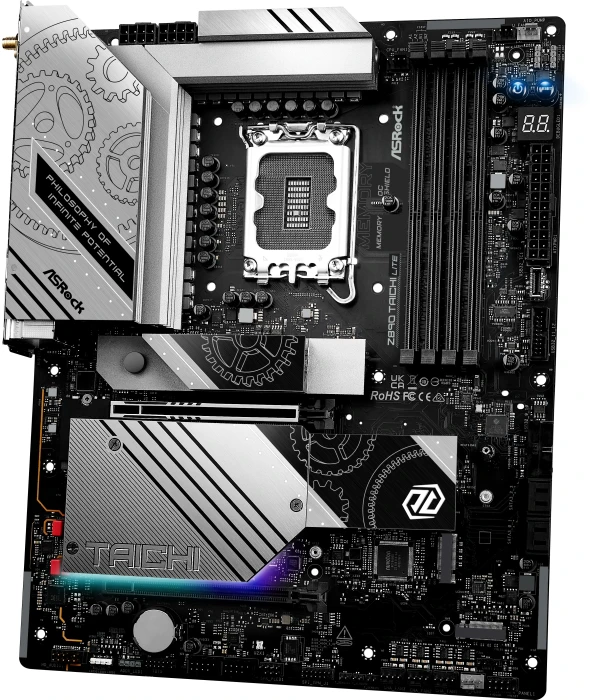

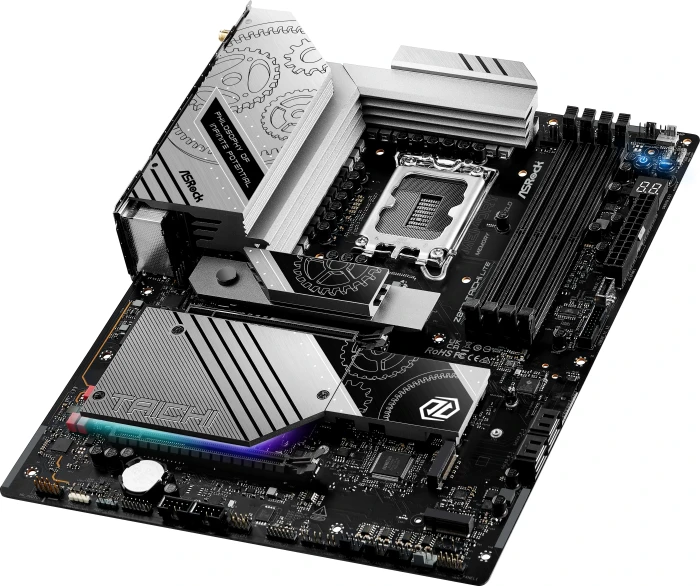

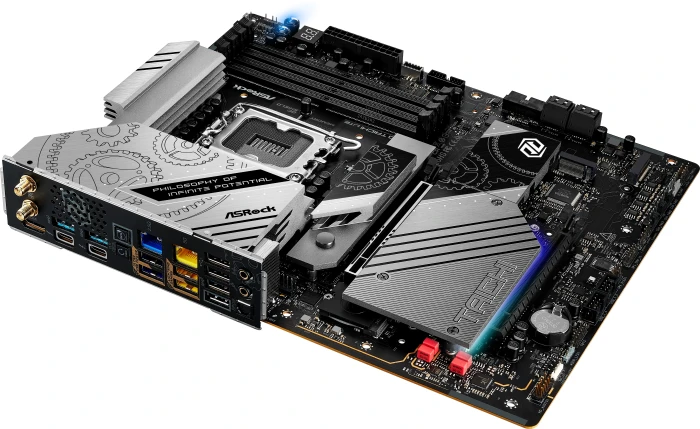

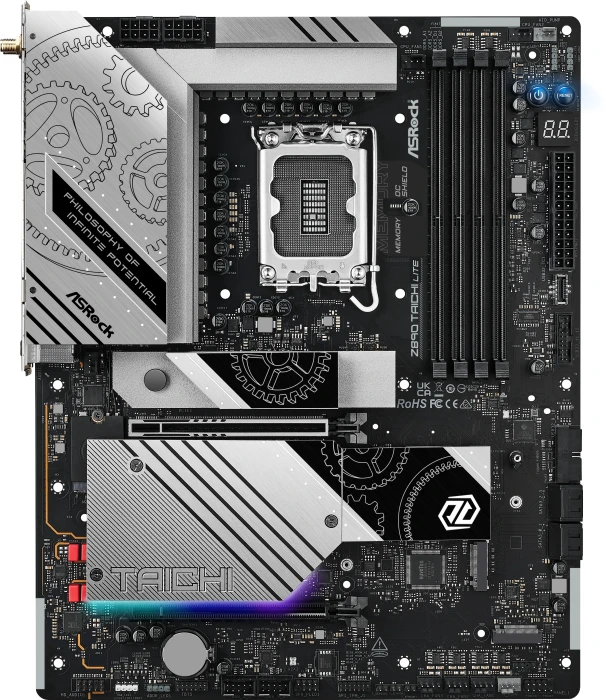

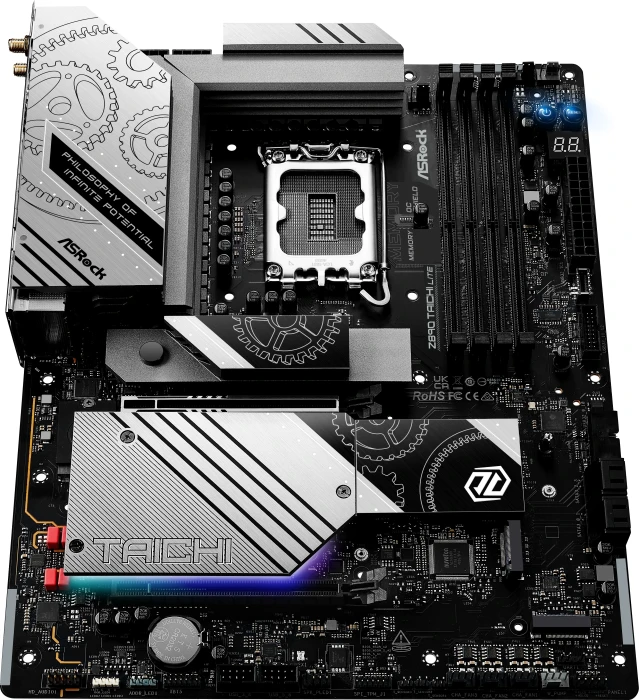

ASRock Z890 Taichi Lite
The Taichi Lite series is simply brilliant, offering top-tier performance in a streamlined, functionality-focused design | 90-MXBPQ0-A0UAYZ
ASRock Z890 Taichi Lite
The Taichi Lite series is simply brilliant, offering top-tier performance in a streamlined, functionality-focused design | 90-MXBPQ0-A0UAYZ
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1851 |
| Чипсет | Intel Z890 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 9600 MT/s |
| Аудио | Realtek ALC4082 |
| LAN |
Realtek RTL8125BG 2.5G LAN 5 Gigabit LAN Realtek RTL8126 |
| Поддържани процесори | Support Intel® Core™ Ultra Processors (Series 2) LGA1851 |
| Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) |
| Слотoве PCI-E x4 | Не |
| Слотoве PCI-E x1 | Не |
| M2 слот |
1 x PCIe Gen5 x4 4 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Wi-Fi 7 |
| Вграден Bluetooth | Bluetooth V5.4 |
| Поддръжка на RAID | 0, 1, 5, 10 |

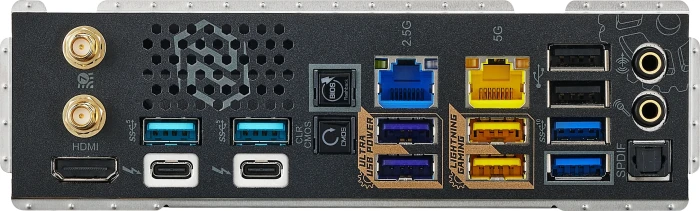

| Заден панел I/O |

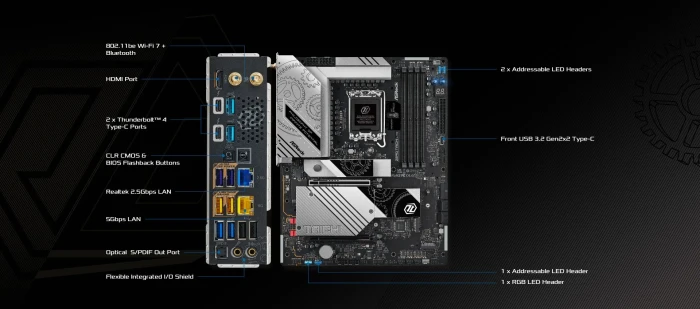

1 x BIOS FlashBack Button 1 x Clear CMOS button 1 x HDMI 1 x Optical SPDIF Out 2 x Antenna Ports 2 x RJ-45 LAN 2 x USB 2.0 2 x Аudio jacks 4 x USB 3.2 Gen 1 4 x USB 3.2 Gen 2 2 x USB4 Thunderbolt™ 4 Type-C |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
Z890 TAICHI LITE
90-MXBPQ0-A0UAYZ
ASR-MB-Z890-TAICHI-LITE
|
Z890 Taichi Lite

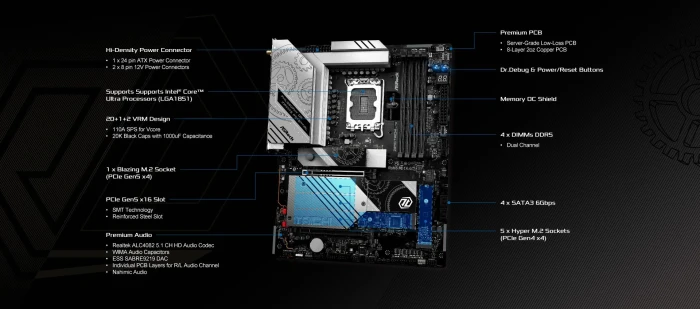

- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 20+1+2+1+1 Power Phase, 110A SPS for VCore
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 9600+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 2 Thunderbolt™ 4 Type-C
- Realtek ALC4082 5.1 CH HD Audio Codec,
ESS SABRE9219 DAC, WIMA Audio Cap, Nahimic Audio - 4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
4 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
4 USB 3.2 Gen2 Type-A (Rear)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
6 USB 2.0 (2 Rear, 4 Front) - 5Gbps LAN, 2.5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports Memory OC Shield, BIOS Flashback, 20K Caps with 1000uF Capacitance
