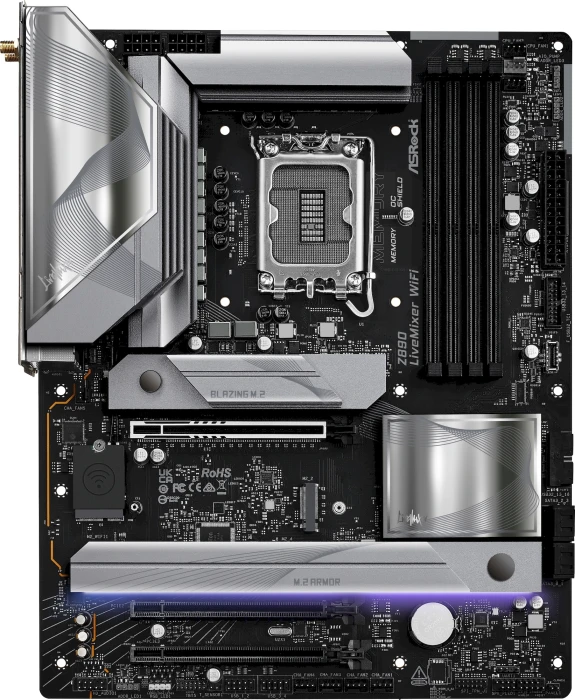

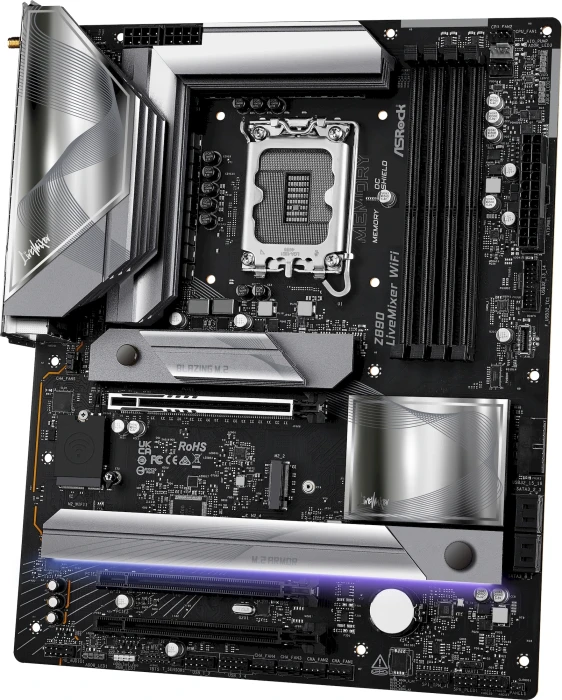

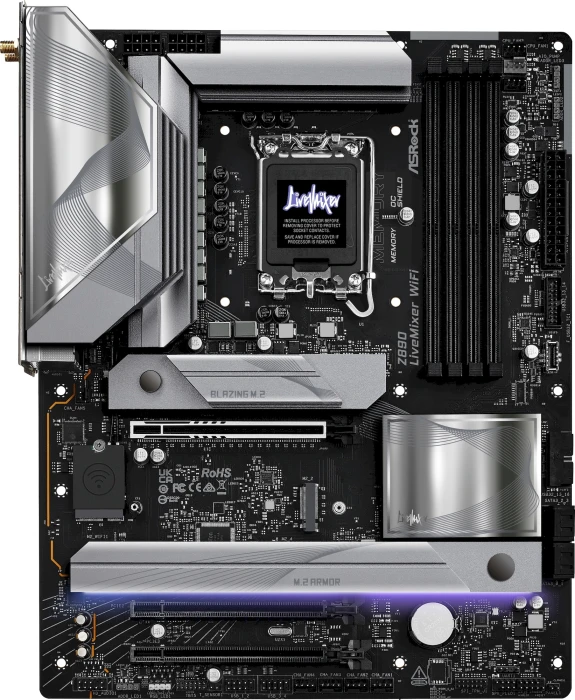

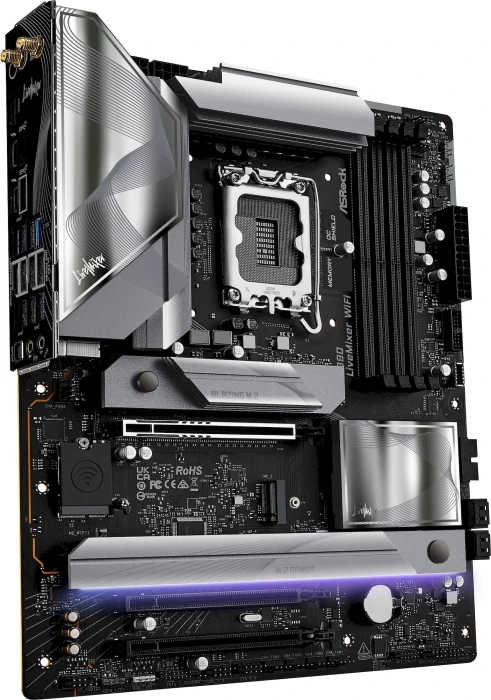

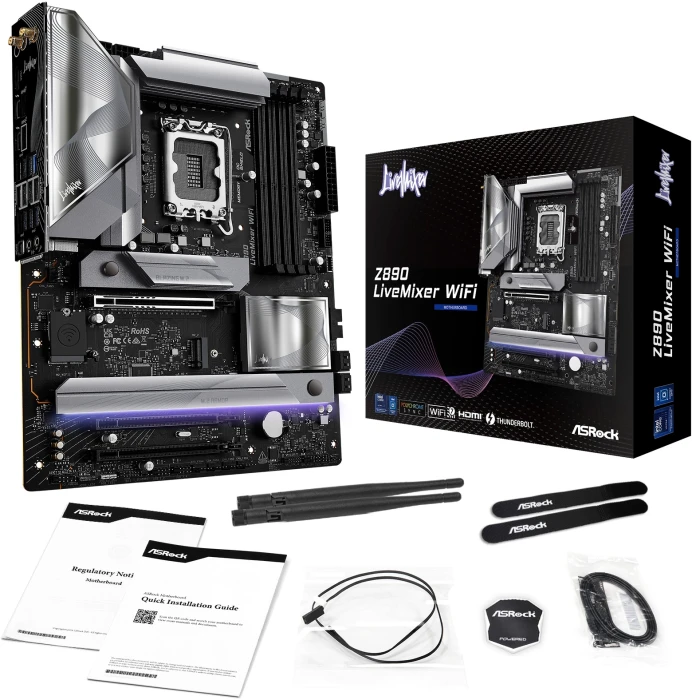

ASRock Z890 LiveMixer WiFi
Нов
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1851 |
| Чипсет | Intel Z890 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 9466 MT/s |
| Аудио | Realtek ALC1220 |
| LAN (Ethernet) | Realtek RTL8125BG 2.5Gb |
| Поддържани процесори | Support Intel® Core™ Ultra Processors (Series 2) LGA1851 |
| Слотoве PCI-e |
1 x PCIe 5.0 x16 (x16 mode) 2 x PCIe 4.0 x16 (x4 mode) |
| Вграден Wi-Fi | Wi-Fi 7 |
| Вграден Bluetooth | Bluetooth V5.4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| M2 слотове |
1 x PCIe Gen5 x4 3 x PCIe Gen4 x4 |
| Поддръжка на RAID | 0, 1, 5, 10 |

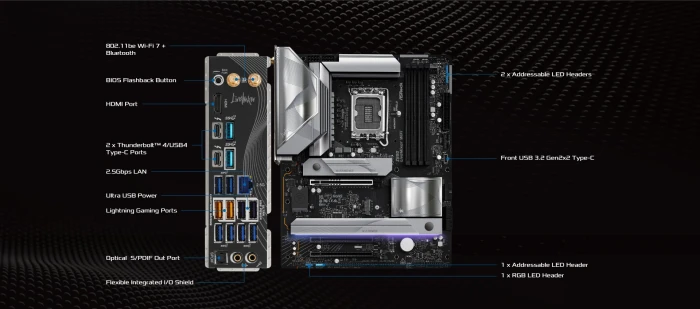

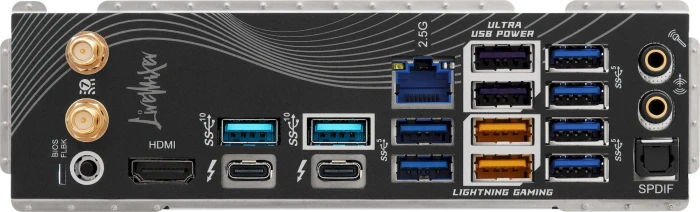

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x HDMI 1 x Optical S/PDIF Out 1 x RJ-45 LAN 2 x Antenna Ports 2 x Audio jacks 2 x USB-C Thunderbolt™ 4 40Gbps 2 x USB 10Gbps 10 x USB 5Gbps |
| Power Design | 18+1+1+1+1 |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
72949
|

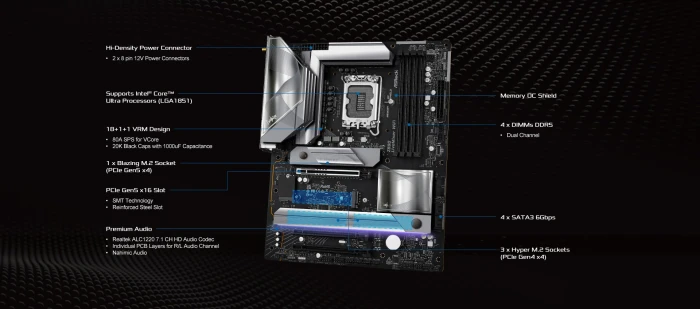

- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 9466+ (OC) - 1 PCIe 5.0 x16, 2 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 2 Thunderbolt™ 4/USB4 Type-C
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 2 Thunderbolt™ 4/USB4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
14 USB 3.2 Gen1 (10 Rear, 4 Front)
4 USB 2.0 (Front) - Realtek 2.5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance
