ASRock Z890 Lightning WiFi
Lightning series stands as a symbol of both speed and power | 90-MXBPG0-A0UAYZ
ASRock Z890 Lightning WiFi
Lightning series stands as a symbol of both speed and power | 90-MXBPG0-A0UAYZ
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1851 |
| Чипсет | Intel Z890 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 9466 MT/s |
| Аудио | Realtek ALC1220 |
| LAN | Intel Killer E3100G 2.5G |
| Поддържани процесори | Support Intel® Core™ Ultra Processors (Series 2) LGA1851 |
| Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) |
| Слотoве PCI-E x4 | 1 x PCIe 4.0 x4 |
| Слотoве PCI-E x1 | Не |
| M2 слот |
1 x PCIe Gen5 x4 3 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Wi-Fi 7 |
| Вграден Bluetooth | Bluetooth V5.4 |
| Поддръжка на RAID | 0, 1, 5, 10 |

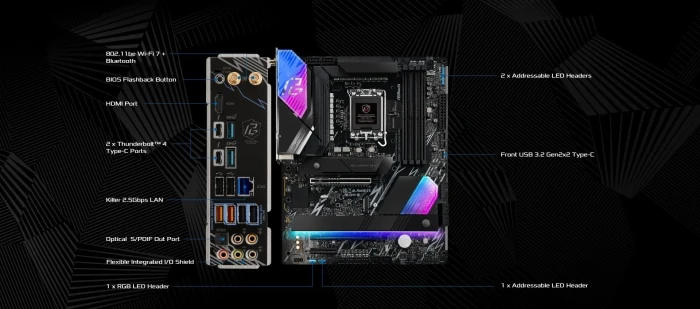

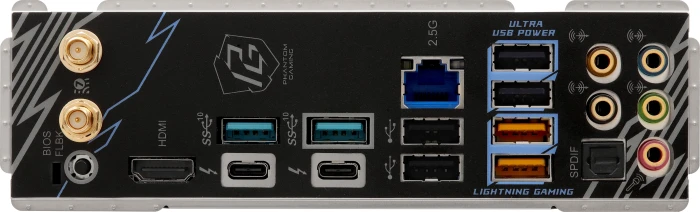

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x HDMI 1 x Optical SPDIF Out 1 x RJ-45 LAN 2 x Antenna Ports 2 x USB 2.0 2 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 5 x Audio jacks 2 x USB4 Thunderbolt™ 4 Type-C |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
Z890 LIGHTNING WIFI
90-MXBPG0-A0UAYZ
ASR-MB-Z890-PG-LIGHT-WIFI
|

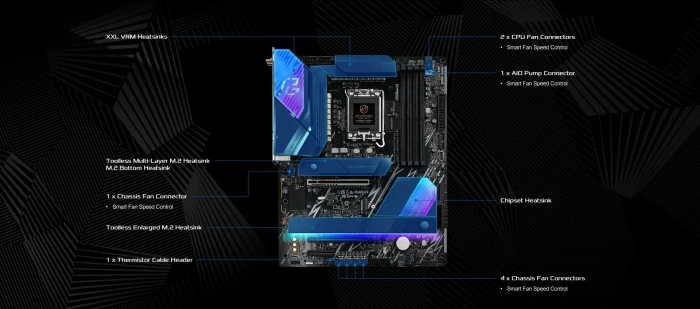

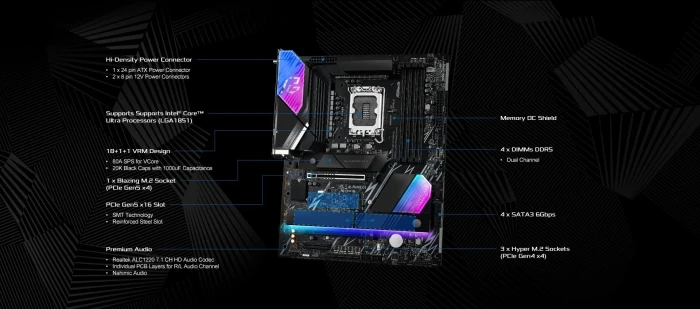

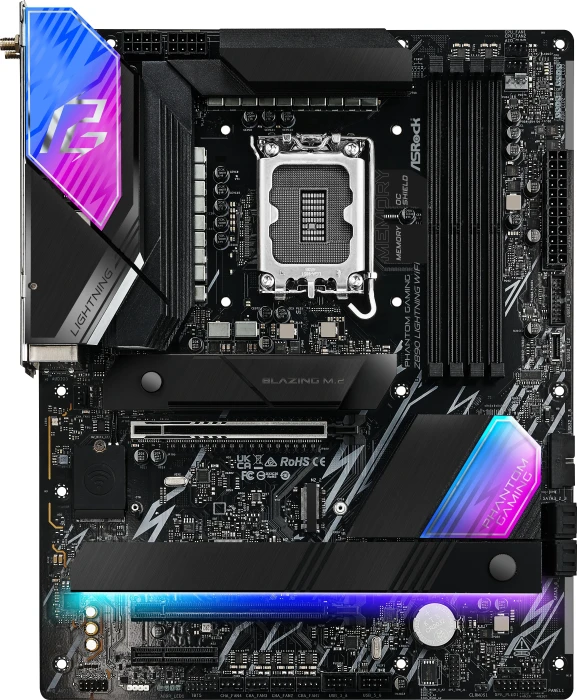

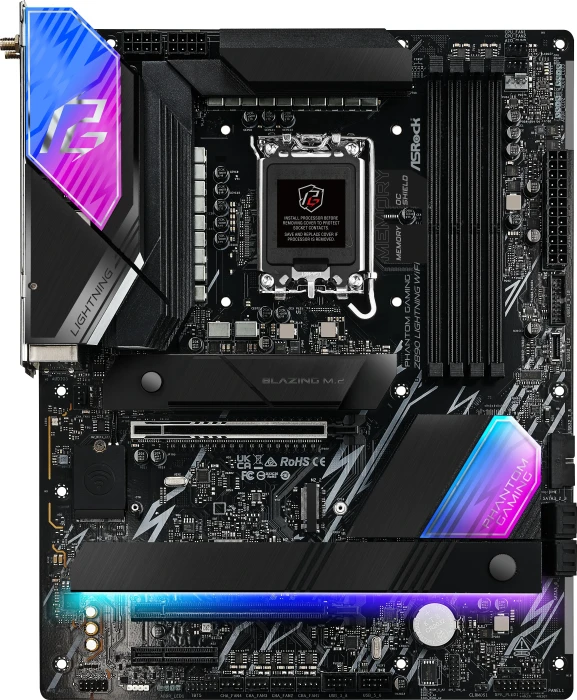

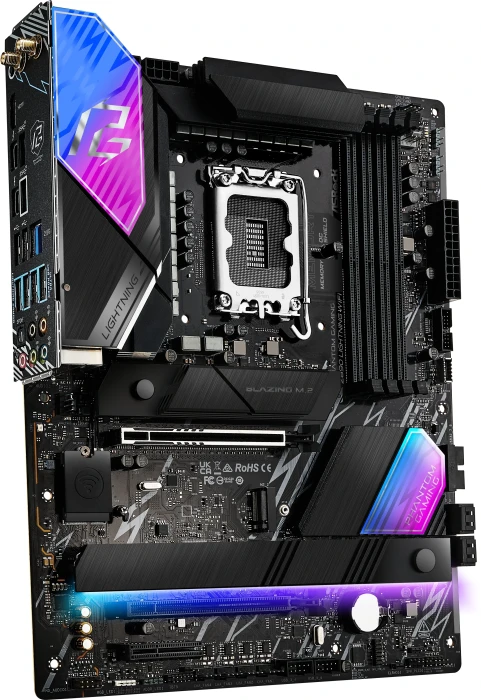

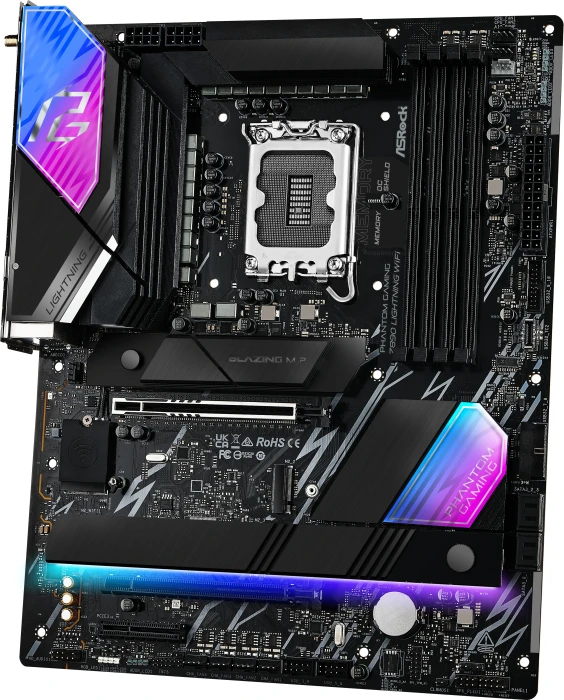

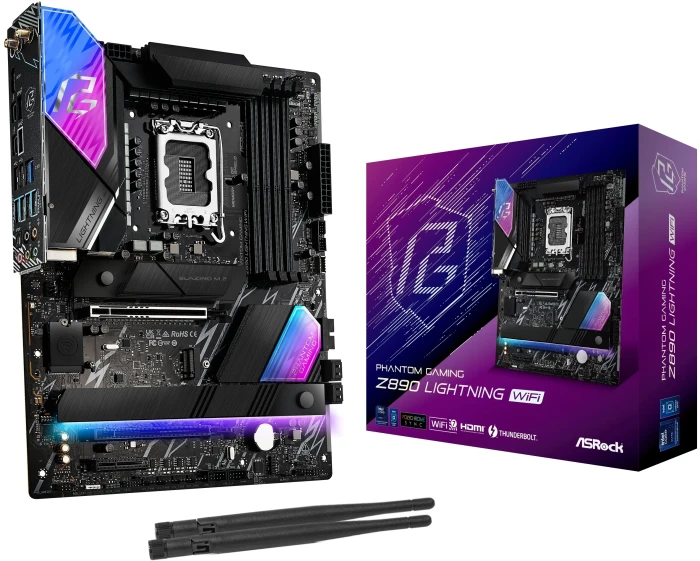

ASRock Z890 Lightning WiFi
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 9466+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x4
- Graphics Output Options: 1 HDMI
2 Thunderbolt™ 4 Type-C - Realtek ALC1220 7.1 CH HD Audio Codec
Nahimic Audio - 4 SATA3
1 Blazing M.2 (PCIe Gen5 x4)
2 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 2 Thunderbolt™ 4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 Type-A (Rear)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
6 USB 2.0 (2 Rear, 4 Front) - Killer 2.5G LAN
- Intel® 802.11be Wi-Fi 7 + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacitance
