ASROCK Z790 TAICHI Wi-Fi DDR5
Дънна платка ASROCK Z790 TAICHI Wi-Fi 6E, LGA 1700, DDR5, PCIe 5.0
ASROCK Z790 TAICHI Wi-Fi DDR5
Дънна платка ASROCK Z790 TAICHI Wi-Fi 6E, LGA 1700, DDR5, PCIe 5.0
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | Intel Z790 |
| CPU Socket | 1700 |
| Форм фактор | Extended ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Аудио | 7.1 CH HD Audio Realtek ALC897 |
| LAN | Killer E3100G 2.5G |
| Поддържани процесори |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | 7000(OC); 6000(OC); 5600(OC); 4800(OC); 4400(OC); 4000(OC); 3600MHz |
| Поддръжка на Dual channel | Да |
| USB 2.0 | 2 |

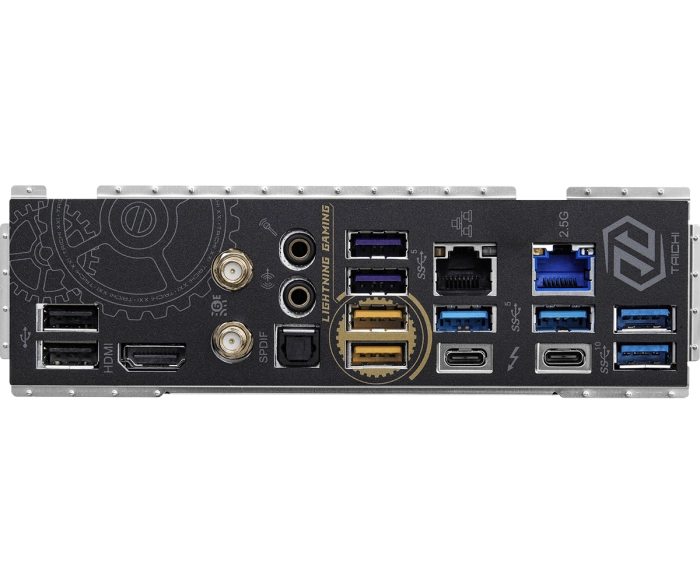

| Свързаност | 2 x Antenna Ports; 1 x HDMI Port; 1 x Optical SPDIF Out Port; 2 x USB4 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol); 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s); 6 x USB 3.2 Gen1 Ports; 2 x USB 2.0 Ports; 2 x RJ-45 |
| Видео слот | PCI Express |
| Конектор захранване |
1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector |
| Слотoве PCI-E x16 |
1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes) 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) |
| Слотoве PCI-E x1 | 2 |
| Други | 256 Mb Flash ROM, UEFI AMI BIOS |
| SATA Интерфейс | 8 x SATA 6Gb/s |

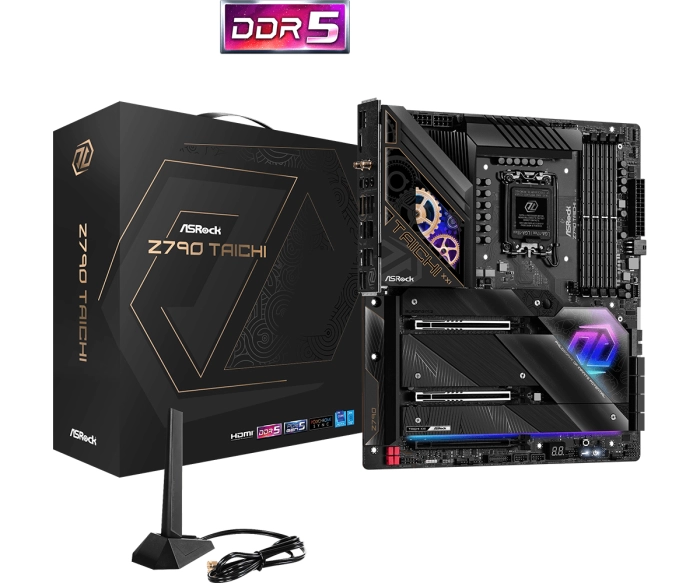

| Комплектът включва | 4 x SATA Data Cables; 1 x Wireless Dongle USB Bracket; 1 x ASRock WiFi 2.4/5/6 GHz Antenna; 4 x Screws for M.2 Sockets |
| M2 слот |
3 x Hyper M.2 Socket, supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) |
| Вграден Wi-Fi | 802.11ax Wi-Fi 6E |
| Слотoве PCI-E x4 | 1 |
| Размери (MB) | 30.5 cm x 26.7 cm |
| USB 3.2 | 8 |
| USB Type-C | 2 |
| Поддръжка на RAID |
NVMe RAID 0/1/5 SATA RAID 0/1/5/10 |
| Гаранция | 36 месеца |
| Арт. номера |
Z790 TAICHI
90-MXBJD0-A0UAYZ
ASR-MB-Z790-TAICHI
|
Z790 Taichi
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 24+1+2 Phase Power Design, SPS for VCore+GT
- 4 x DDR5 DIMMs, supports up to 7000+(OC)
- 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key-E for WiFi
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), ESS SABRE9218 DAC, WIMA Audio Caps, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front)
- Killer 2.5G LAN, Intel® 1G LAN
- Killer 802.11ax Wi-Fi 6E + Bluetooth
