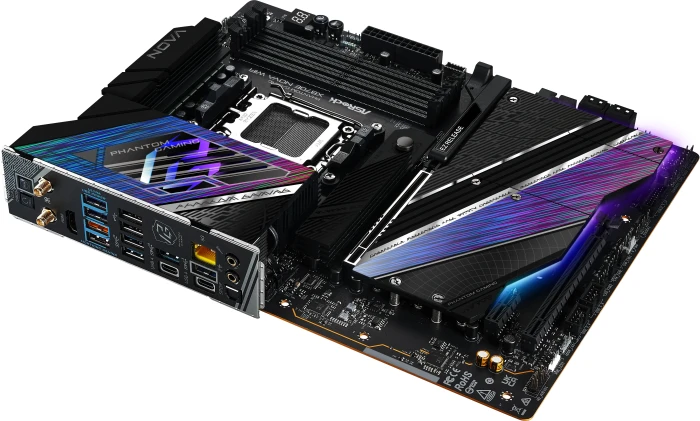

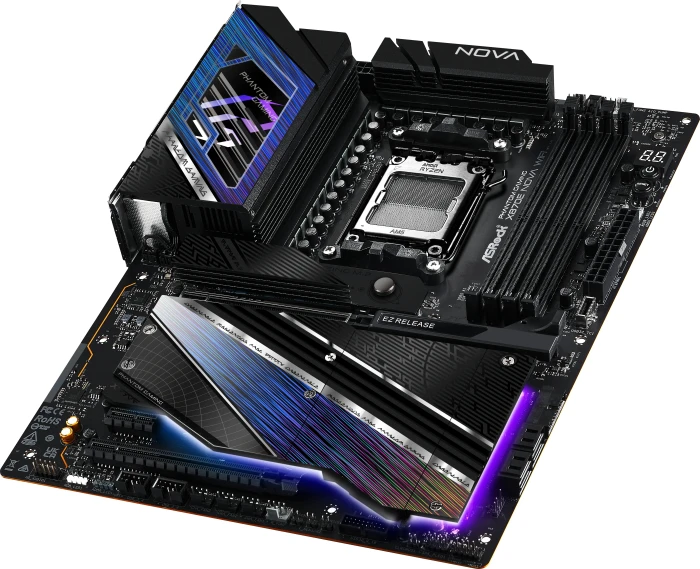

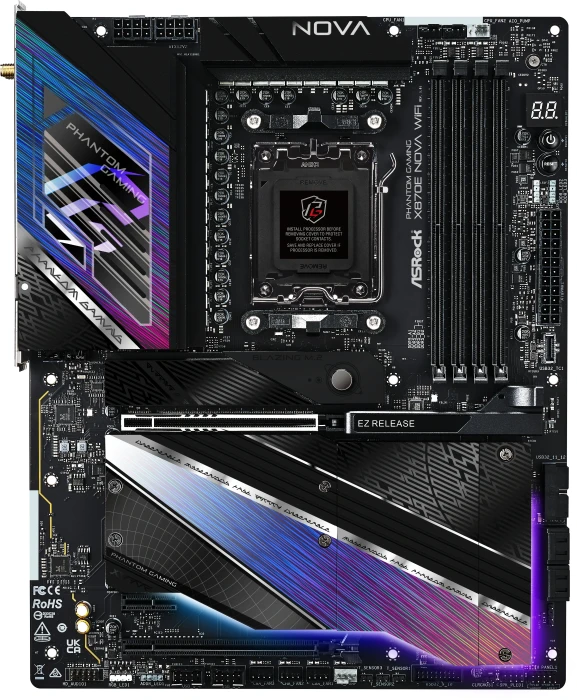

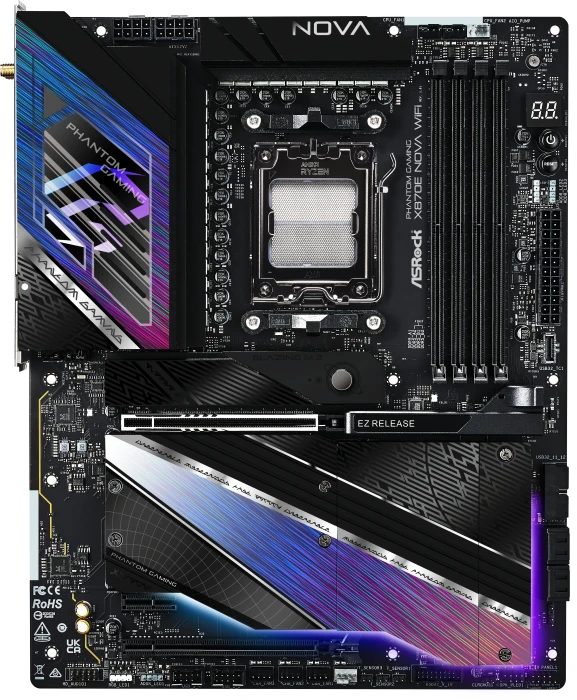

ASRock X870E Nova WiFi
90-MXBPX0-A0UAYZ
ASRock X870E Nova WiFi
90-MXBPX0-A0UAYZ
Лизингов калкулатор
Продуктът не е наличен и цената му може да не е актуална.
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM5 |
| Чипсет | AMD X870E |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 8200 MT/s |
| Аудио | Realtek ALC4082 |
| LAN | 5 Gigabit LAN Realtek RTL8126 |
| Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x2 mode) |
| Слотoве PCI-E x1 | 1 x PCIe 3.0 x1 |
| M2 слот |
1 x PCIe Gen5 x4 3 x PCIe Gen4 x4 1 x PCIe Gen3 x2 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Wi-Fi 7 |
| Вграден Bluetooth | Bluetooth V5.4 |
| Поддръжка на RAID | 0,1,10 |
| Заден панел I/O |

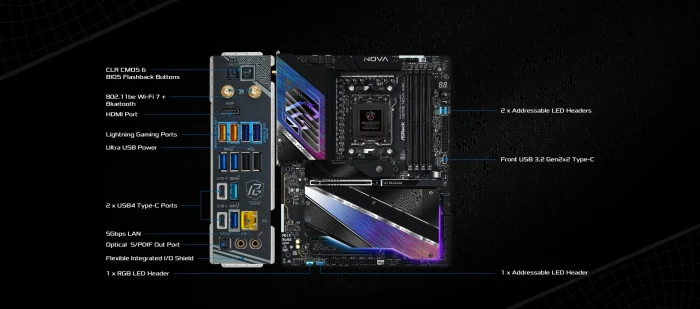

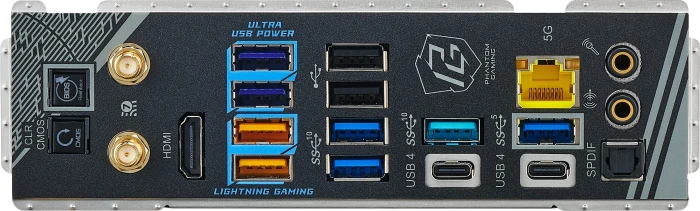

1 x BIOS FlashBack Button 1 x Clear CMOS button 1 x HDMI 1 x Optical SPDIF Out 1 x RJ-45 LAN 2 x Antenna Ports 2 x USB 2.0 2 x Аudio jacks 3 x USB 3.2 Gen 1 2 x USB4 Type-C 5 x USB 3.2 Gen 2 |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
X870E NOVA WIFI
90-MXBPX0-A0UAYZ
|
PHANTOM GAMING
X870E Nova WiFi Nova
is the most significant energy discharge ever witnessed by mankind, it’s super-powerful which represents the performance our motherboard can deliver.

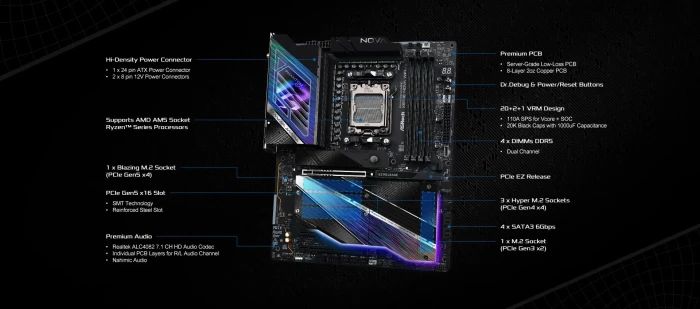

- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 20+2+1 Phase Power Design, 110A SPS for VCore+SOC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8200+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4)
1 M.2 (PCIe Gen3x2 & SATA3)
4 SATA3 - 2 USB4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
5 USB 3.2 Gen2 Type-A (Rear)
7 USB 3.2 Gen1 (3 Rear, 4 Front)
6 USB 2.0 (2 Rear, 4 Front) - 5Gbps LAN
- 802.11be Wi-Fi 7 + Bluetooth

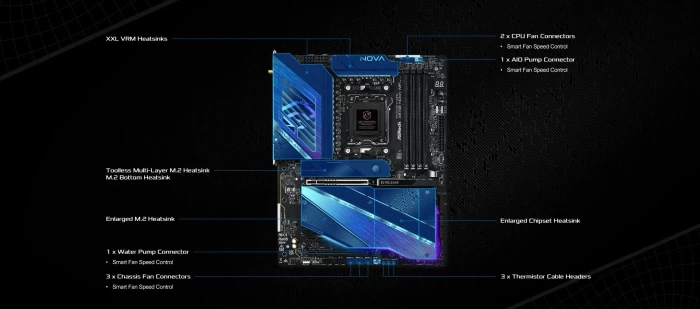

- Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
