ASRock X870 PRO RS
Modern and futuristic, with the attractive specifications and perfect balance | 90-MXBPZ0-A0UAYZ
ASRock X870 PRO RS
Modern and futuristic, with the attractive specifications and perfect balance | 90-MXBPZ0-A0UAYZ
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM5 |
| Чипсет | AMD X870 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 8000 MT/s |
| Аудио | Realtek ALC1220 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) |
| Вграден Wi-Fi | Не |
| Вграден Bluetooth | Не |
| M2 слот |
1 x PCIe Gen5 x4 1 x PCIe Gen4 x4 1 x PCIe Gen3 x4 1 x 2230 for WiFi/BT PCIe WiFi module |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |

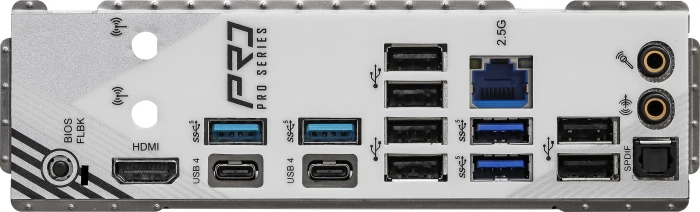

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x HDMI 1 x Optical SPDIF Out 1 x RJ-45 LAN 2 x Antenna Mounting Points 4 x USB 3.2 Gen 1 2 x Audio jacks 6 x USB 2.0 2 x USB4 Type-C |
| Power Design | 14+2+1 |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
X870 PRO RS
70506
90-MXBPZ0-A0UAYZ
|
X870 Pro RS
- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key E for WiFi
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4 & SATA3) - 4 SATA3
- 2 USB4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
6 USB 3.2 Gen1 (4 Rear, 2 Front)
9 USB 2.0 (6 Rear, 3 Front) - Realtek 2.5G LAN
- Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
