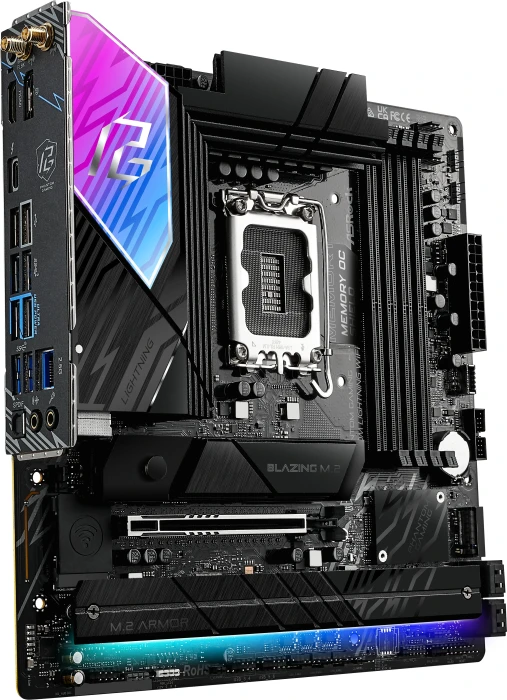

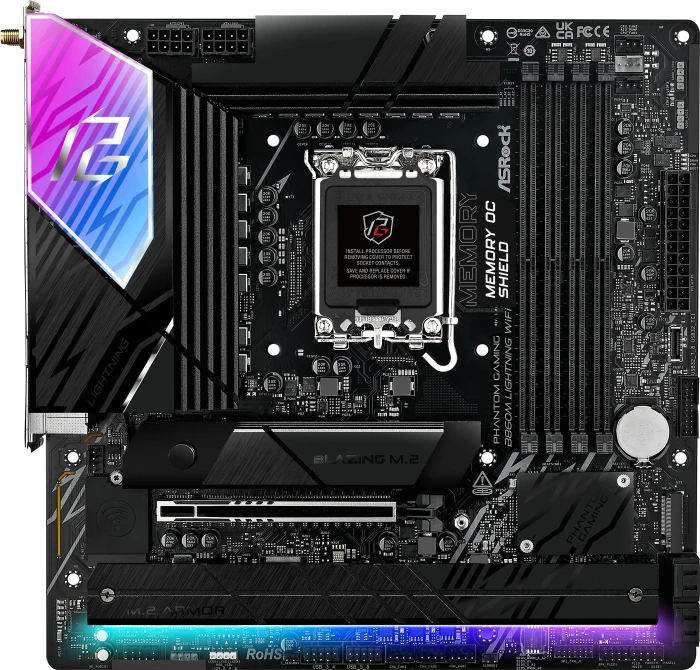

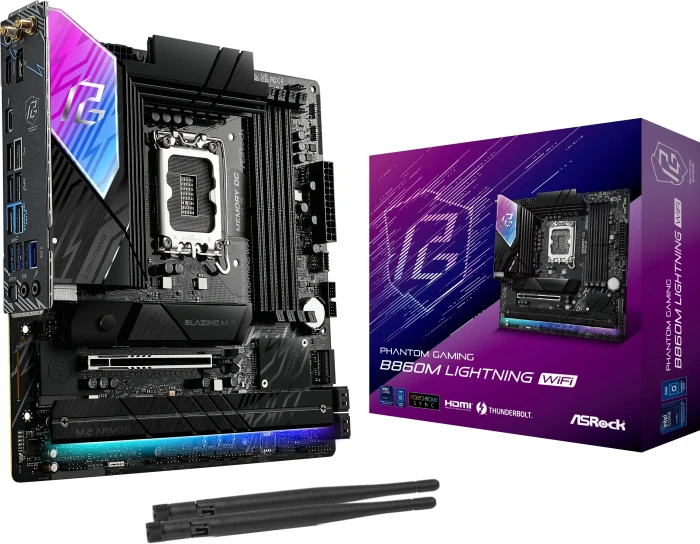

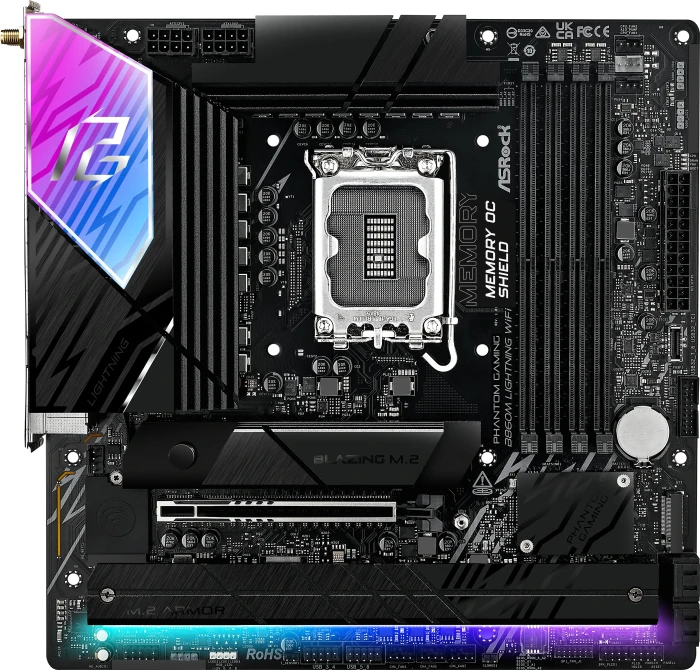

ASRock B860M Lightning WiFi
Lightning series stands as a symbol of both speed and power
ASRock B860M Lightning WiFi
Lightning series stands as a symbol of both speed and power
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | 1851 |
| Чипсет | Intel B860 |
| Форм фактор | Micro ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 8666 MT/s |
| Аудио | Realtek ALC1220 |
| LAN | Intel Killer E3100G 2.5G |
| Поддържани процесори | Support Intel® Core™ Ultra Processors (Series 2) LGA1851 |
| Слотoве PCI-E x16 | 1 x PCIe 5.0 x16 (x16 mode) |
| M2 слот |
1 x PCIe Gen5 x4 3 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Wi-Fi 6E |
| Вграден Bluetooth | Bluetooth V5.3 |
| Поддръжка на RAID | 0, 1, 5, 10 |

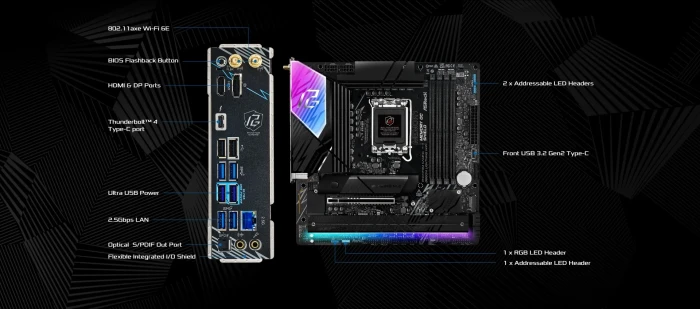

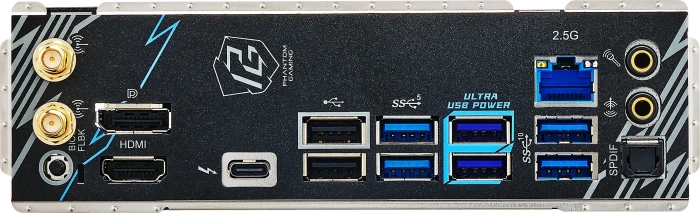

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x DisplayPort 1 x HDMI 1 x Optical SPDIF Out 1 x RJ-45 LAN 2 x Antenna Ports 2 x USB 2.0 2 x USB 3.2 Gen 2 2 x Аudio jacks 4 x USB 3.2 Gen 1 1 x USB4 Thunderbolt™ 4 Type-C |
| Power Design | 12+1+1+1+1 |
| Размери (MB) | 24.4 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
70884
|

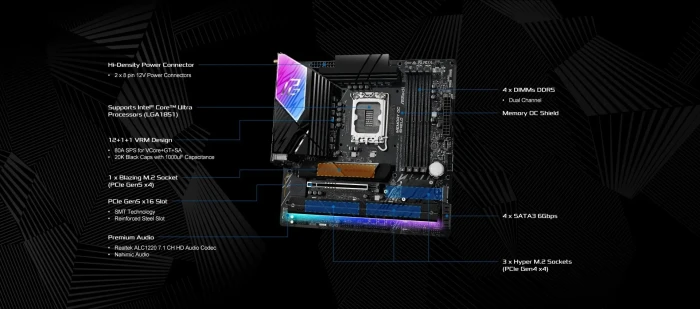

- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)

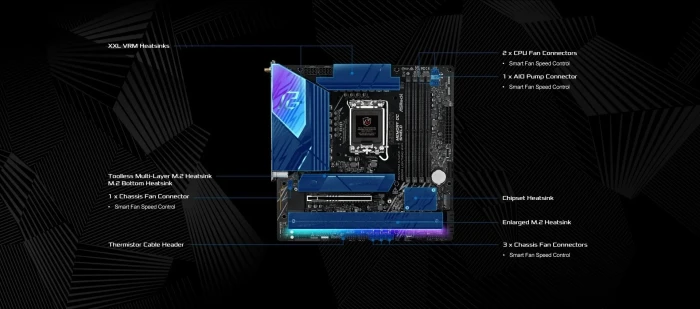

- 12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8666+ (OC) - 1 PCIe 5.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4) - 1 Thunderbolt™ 4 Type-C (Rear)
3 USB 3.2 Gen2 (2 Rear, 1 Front Type-C)
6 USB 3.2 Gen1 (4 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front) - Killer 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
- Supports BIOS Flashback, Memory OC Shield
