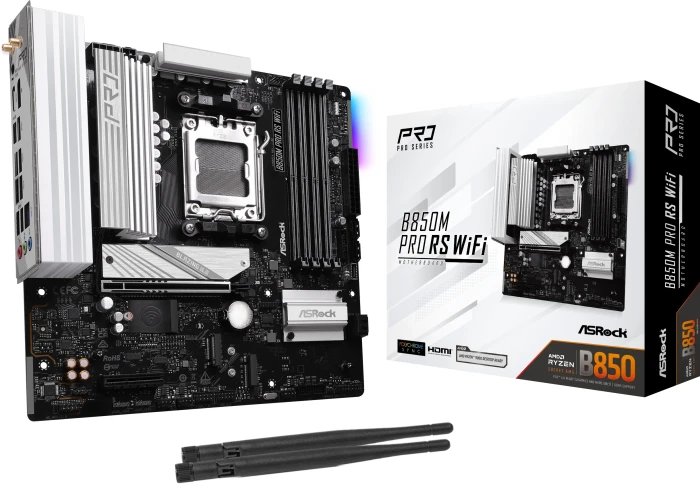

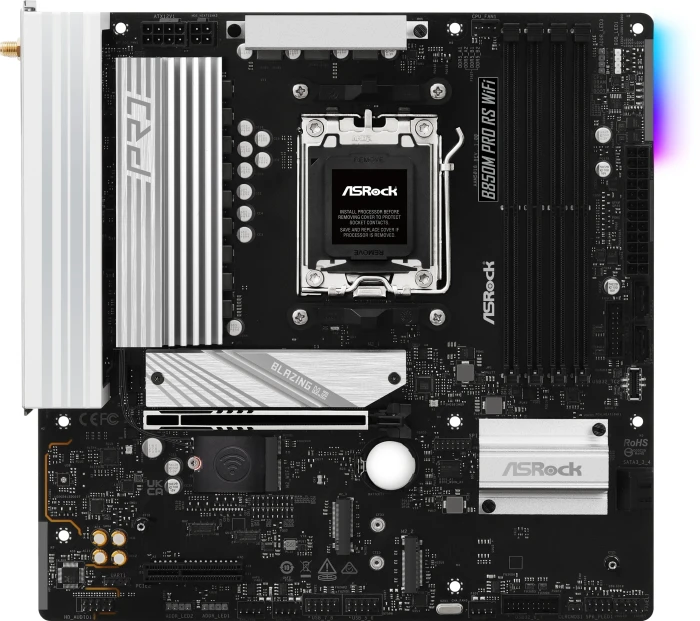

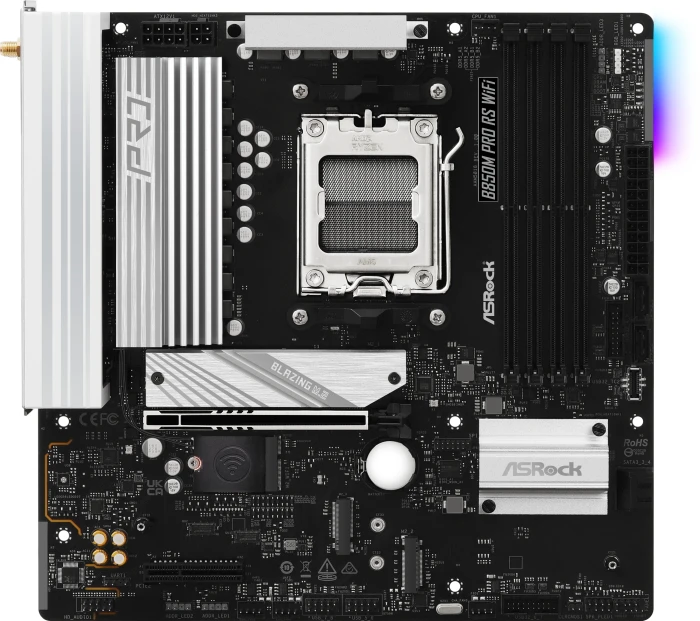

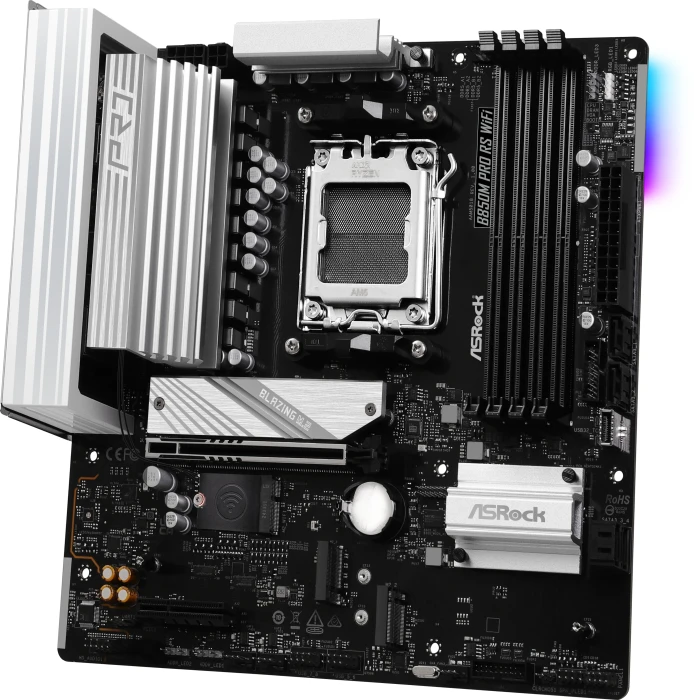

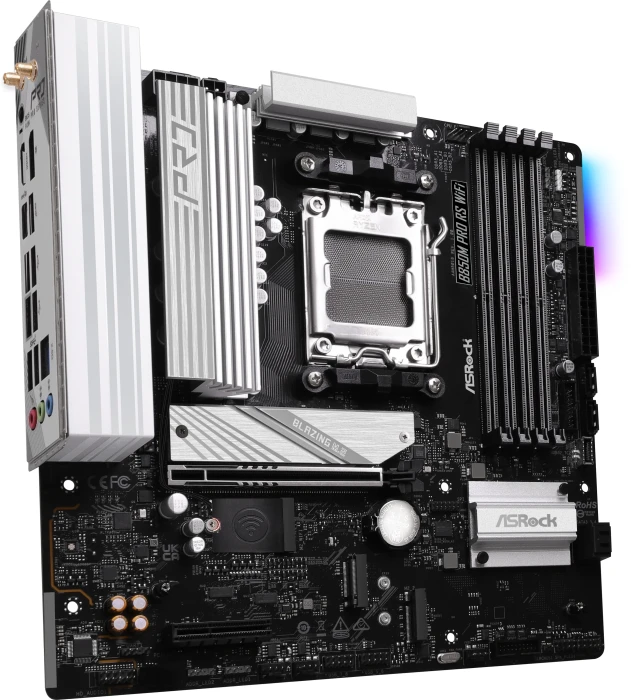

ASRock B850M Pro RS WiFi
Modern and futuristic, with the attractive specifications and perfect balance
ASRock B850M Pro RS WiFi
Modern and futuristic, with the attractive specifications and perfect balance
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM5 |
| Чипсет | AMD B850 |
| Форм фактор | Micro ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 8000 MT/s |
| Аудио | Realtek ALC897 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Слотoве PCI-E x16 | 1 x PCIe 5.0 x16 (x16 mode) |
| Слотoве PCI-E x4 | 1 x PCIe 4.0 x4 |
| M2 слот |
1 x PCIe Gen5 x4 2 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Wi-Fi 6E |
| Вграден Bluetooth | Bluetooth V5.2 |
| Поддръжка на RAID | 0, 1, 10 |

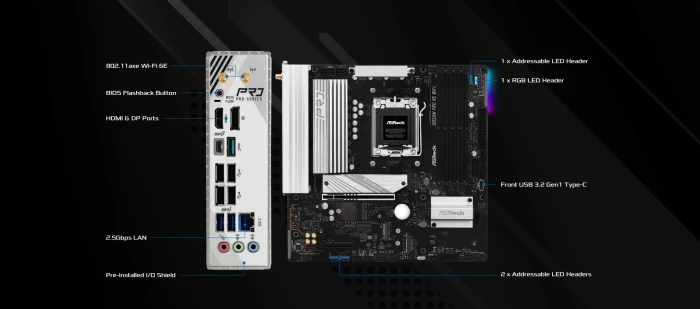

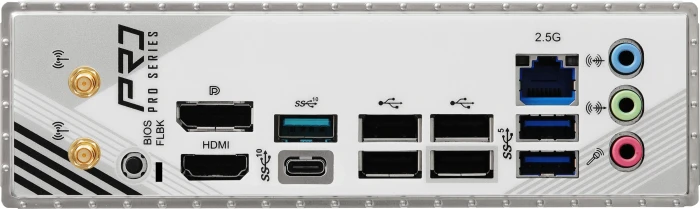

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x DisplayPort 1 x HDMI 1 x RJ-45 LAN 1 x USB 3.2 Gen 2 1 x USB 3.2 Gen 2 Type-C 2 x Antenna Ports 2 x USB 3.2 Gen 1 3 x Audio jacks 4 x USB 2.0 |
| Power Design | 8+2+1 |
| Размери (MB) | 24.4 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
70881
|

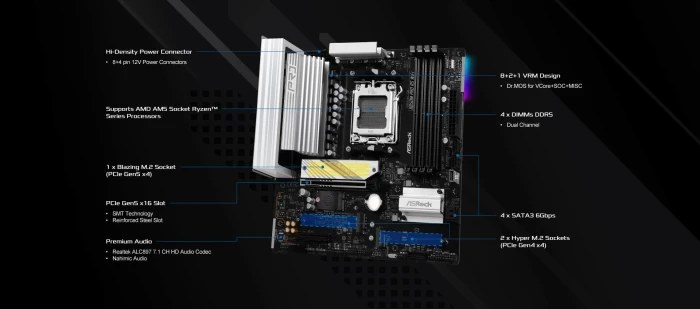

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

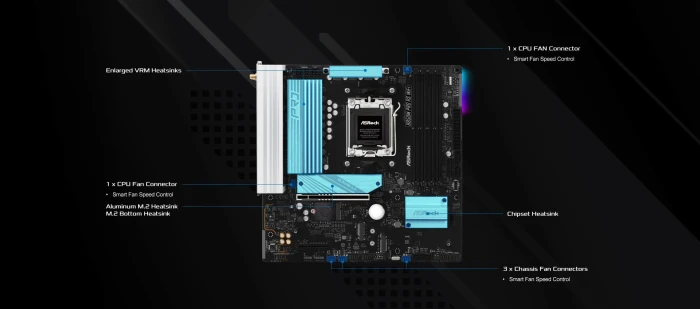

- 8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
4 SATA3 - 1 USB 3.2 Gen2 Type-C (Rear)
1 USB 3.2 Gen2 Type-A (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (2 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11axe WiFi 6E +Bluetooth
- Supports M.2 Bottom Heatsink, BIOS Flashback
