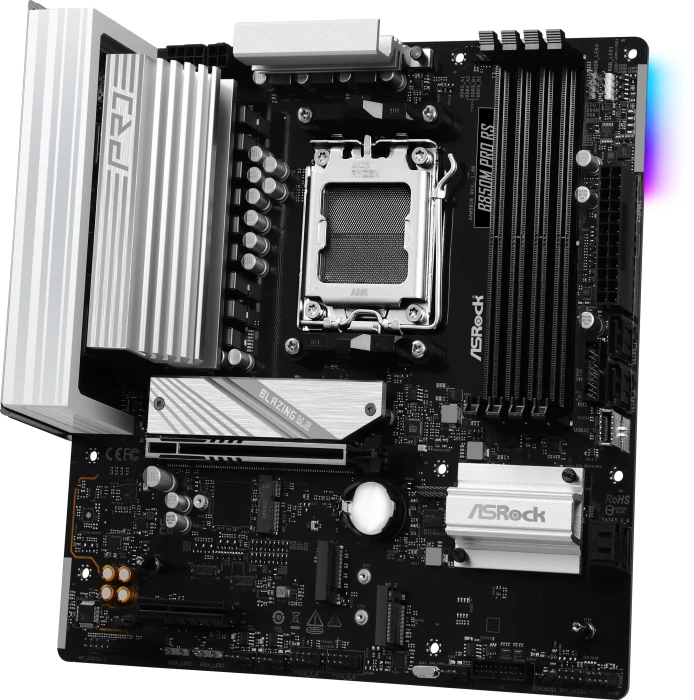

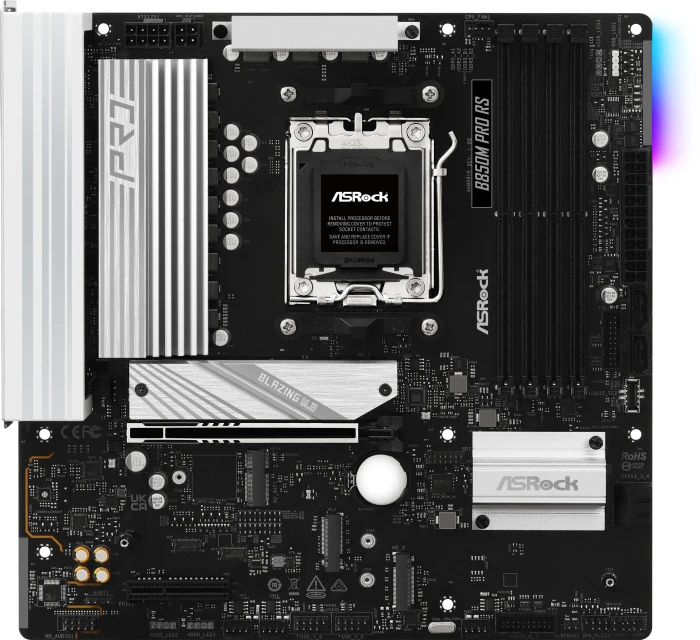

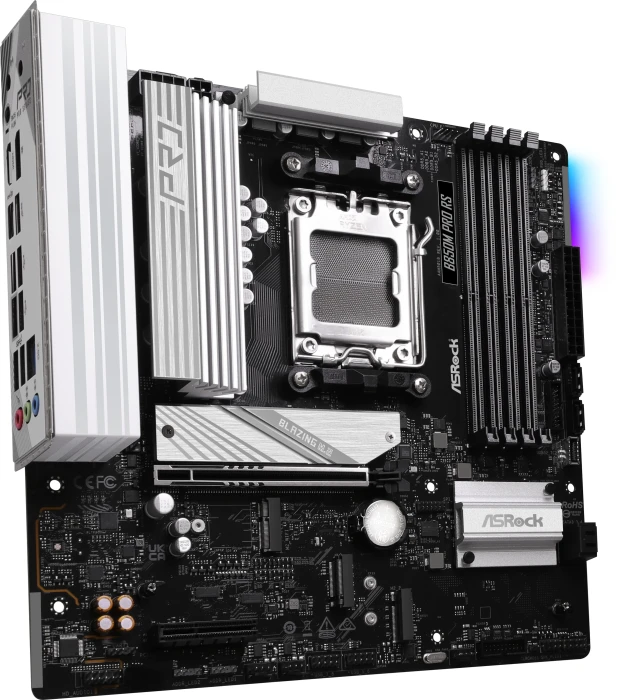

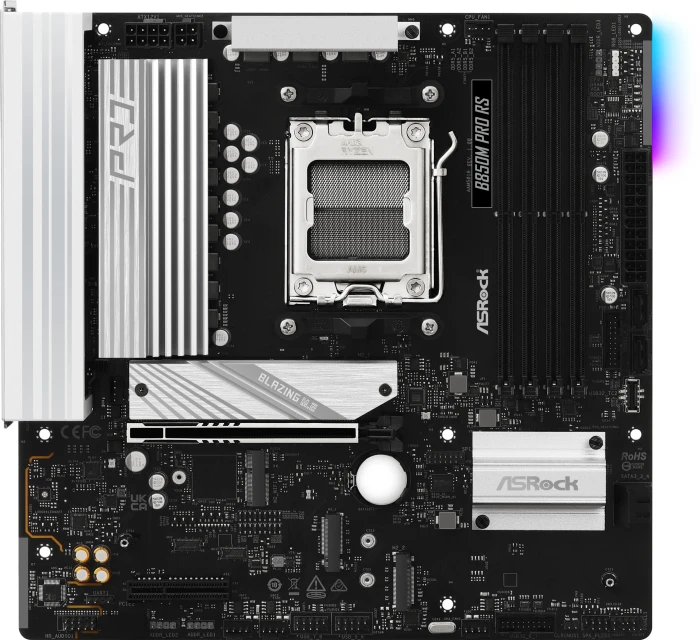

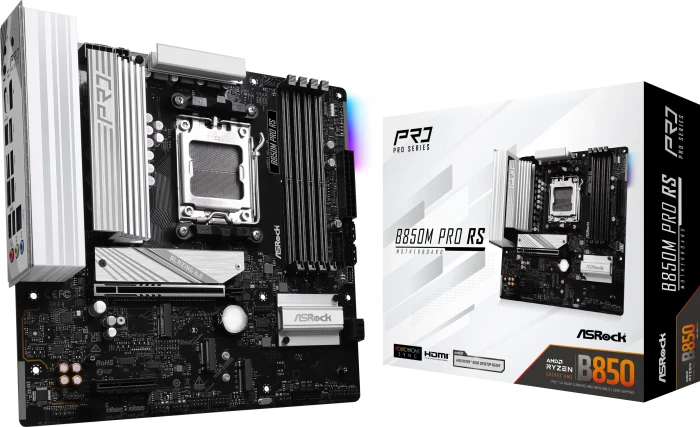

ASRock B850M Pro RS
Modern and futuristic, with the attractive specifications and perfect balance
ASRock B850M Pro RS
Modern and futuristic, with the attractive specifications and perfect balance
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM5 |
| Чипсет | AMD B850 |
| Форм фактор | Micro ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 8000 MT/s |
| Аудио | Realtek ALC897 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Слотoве PCI-E x16 | 1 x PCIe 5.0 x16 (x16 mode) |
| Слотoве PCI-E x4 | 1 x PCIe 4.0 x4 |
| M2 слот |
1 x PCIe Gen5 x4 2 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Не |
| Вграден Bluetooth | Не |
| Поддръжка на RAID | 0, 1, 10 |

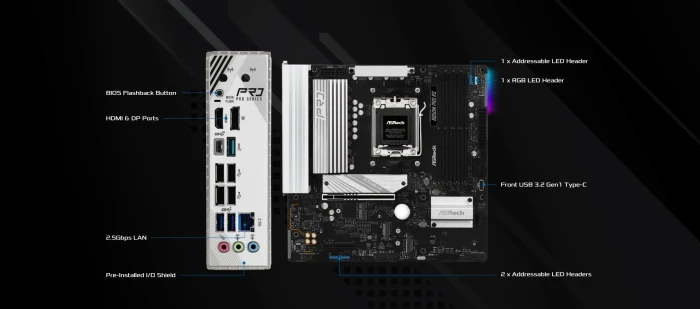

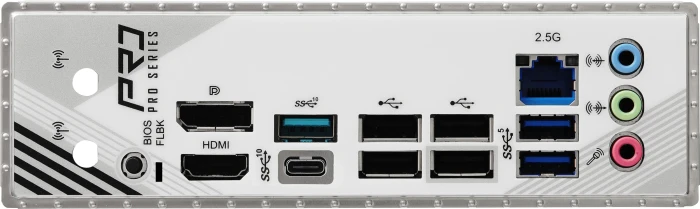

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x DisplayPort 1 x HDMI 1 x RJ-45 LAN 1 x USB 3.2 Gen 2 1 x USB 3.2 Gen 2 Type-C 2 x Antenna Mounting Points 2 x USB 3.2 Gen 1 3 x Audio jacks 4 x USB 2.0 |
| Power Design | 8+2+1 |
| Размери (MB) | 24.4 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
B850M PRO RS
70882
|

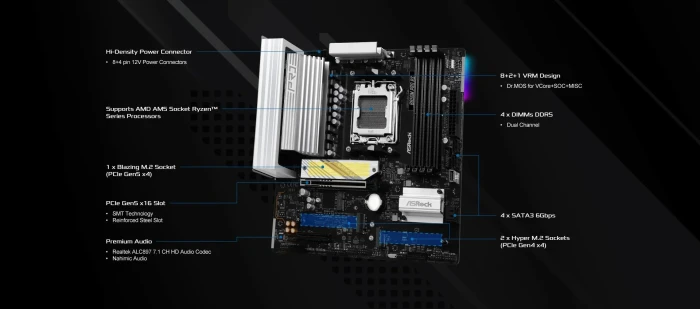

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 M.2 Key E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
4 SATA3 - 1 USB 3.2 Gen2 Type-C (Rear)
1 USB 3.2 Gen2 Type-A (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 (2 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11axe WiFi 6E +Bluetooth
- Supports M.2 Bottom Heatsink, BIOS Flashback
