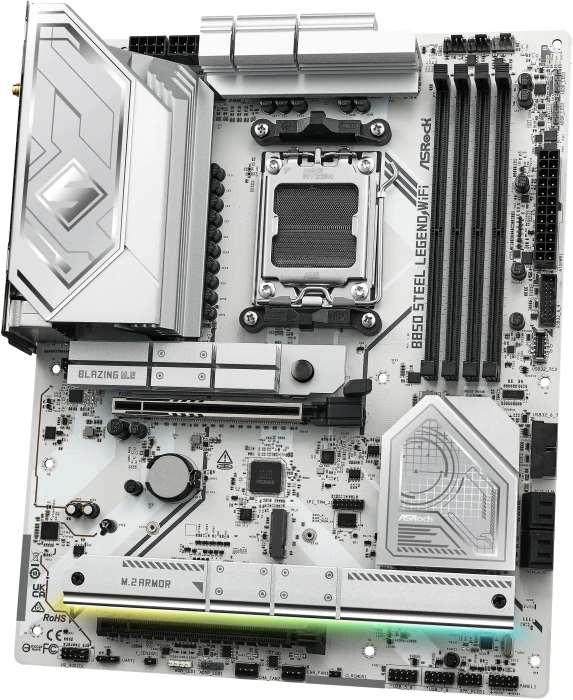

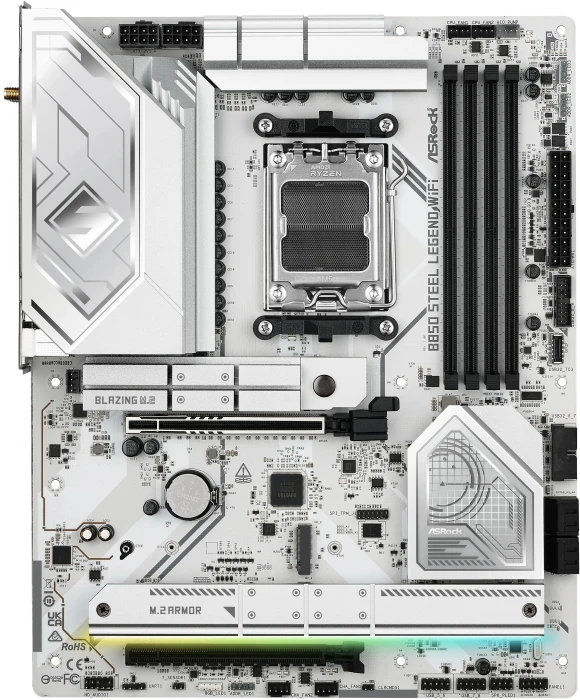

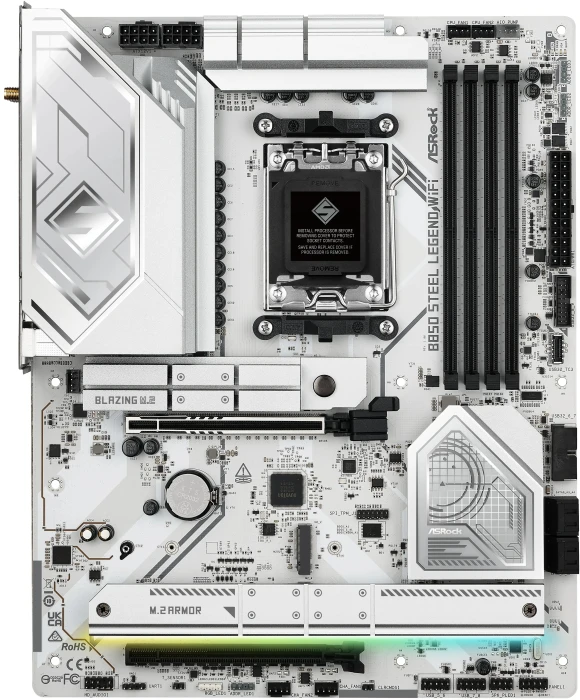

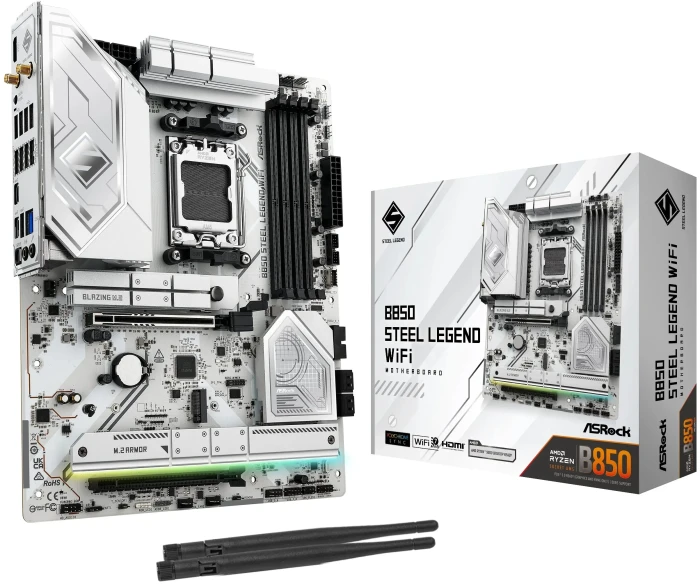

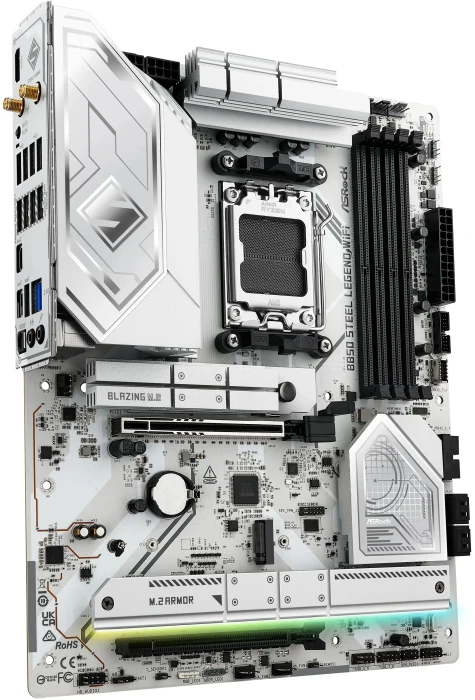

ASRock B850 Steel Legend WiFi
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics.
ASRock B850 Steel Legend WiFi
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics.
Лизингов калкулатор
Продуктът не е наличен и цената му може да не е актуална.
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM5 |
| Чипсет | AMD B850 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Максимален капацитет RAM памет | 256 GB |
| Честота памет | up to 8000 MT/s |
| Аудио | Realtek ALC4082 |
| LAN | Realtek RTL8125BG 2.5G LAN |
| Поддържани процесори | AMD Ryzen™ 9000/8000/7000 Series Desktop Processors |
| Слотoве PCI-E x16 |
1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) |
| M2 слот |
1 x PCIe Gen5 x4 3 x PCIe Gen4 x4 |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Вграден Wi-Fi | Wi-Fi 7 |
| Вграден Bluetooth | Bluetooth V5.4 |
| Поддръжка на RAID | 0, 1, 10 |

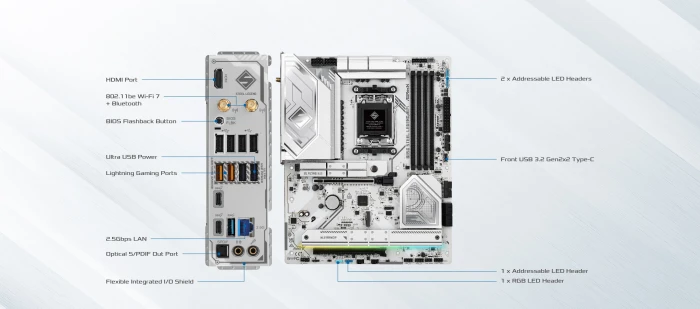

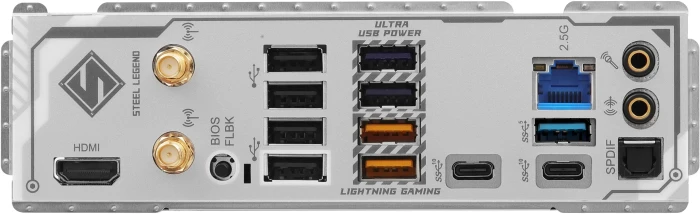

| Заден панел I/O |
1 x BIOS FlashBack Button 1 x HDMI 1 x Optical SPDIF Out 1 x RJ-45 LAN 2 x Antenna Ports 2 x USB 3.2 Gen 2 2 x Аudio jacks 3 x USB 3.2 Gen 1 4 x USB 2.0 2 x USB 3.2 Gen 2 Type-C |
| Power Design | 14+2+1 |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Гаранция | 36 месеца |
| Арт. номера |
B850 STEEL LEGEND WIFI
90-MXBQS-A0UAYZ
|

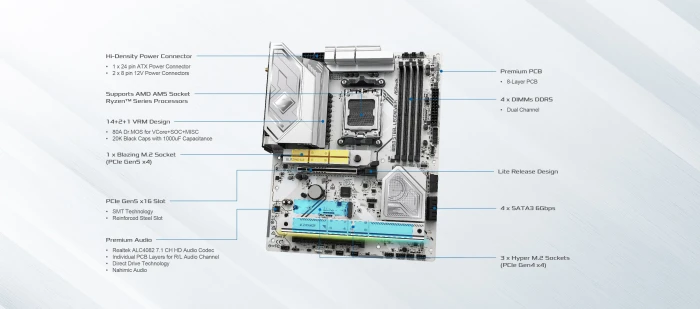

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4)
4 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Front)
4 USB 3.2 Gen2 (2 Rear, 2 Rear Type-C)
7 USB 3.2 Gen1 (3 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11be Wi-Fi 7 + Bluetooth

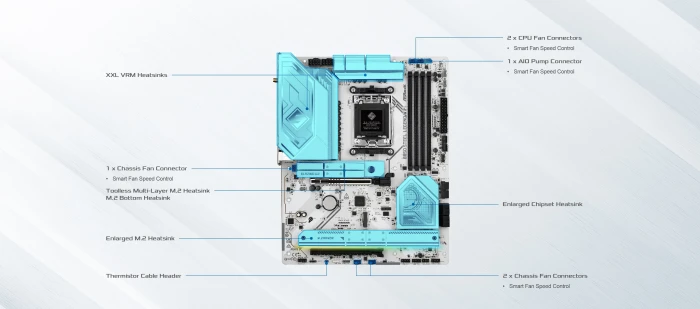

- Supports Lite Release Design,
Toolless Multi-Layer M.2 Heatsink,
M.2 Bottom Heatsink
