ASRock B760M STEEL LEGEND WIFI DDR5
ASRock B760M STEEL LEGEND WIFI DDR5
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | Intel B760 |
| CPU Socket | 1700 |
| Форм фактор | Micro ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Аудио | 7.1 CH HD Audio Realtek ALC897 |
| LAN | 2.5 Gigabit Dragon RTL8125BG |
| Поддържани процесори | 13th/12th Gen Intel |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | up to 7200 MHz |
| Поддръжка на Dual channel | Да |

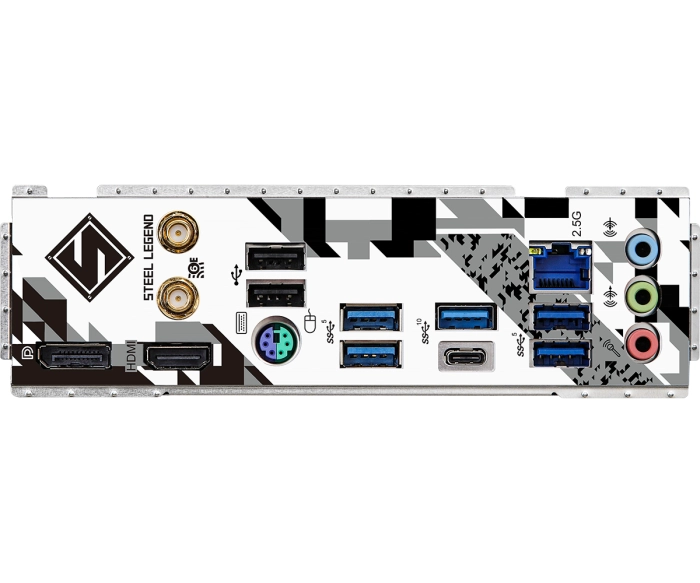

| Свързаност | 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Видео слот | PCI Express |
| Слотoве PCI-E x16 | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| Слотoве PCI-E x1 | 1 |
| Поддържани технологии | Windows® 11 64-bit, Windows® 10 64-bit |
| Други | 128Mb AMI UEFI Legal BIOS with GUI support |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| M2 слот |
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| Вграден Wi-Fi | Wi-Fi 6E |
| Вграден Bluetooth | Bluetooth V5.3 |
| Размери (MB) | 24.4cm x 24.4cm |
| Поддръжка на RAID | SATA RAID 0/1/5/10 |
| USB портове | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports |
| Гаранция | 36 месеца |
| Арт. номера |
B760M STEEL LEGEND WIFI
67756
90-MXBL70-A0UAYZ
ASR-MB-B760M-STEEL-WIFI
|
B760M Steel Legend WiFi

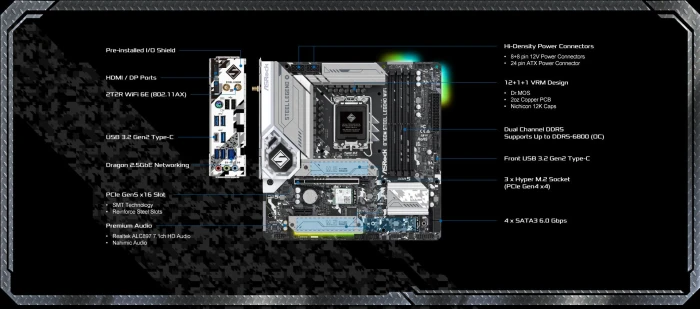

- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 12+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (4 Rear, 2 Front),
6 USB 2.0 (2 Rear, 4 Front) - Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
- Supports ASRock Auto Driver Installer
