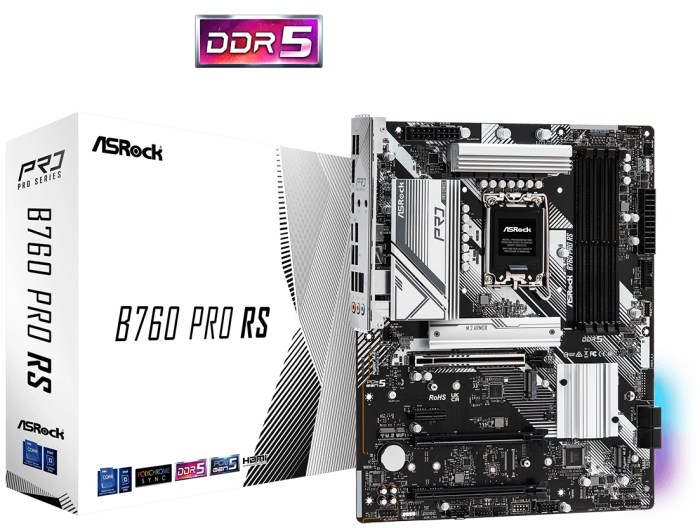

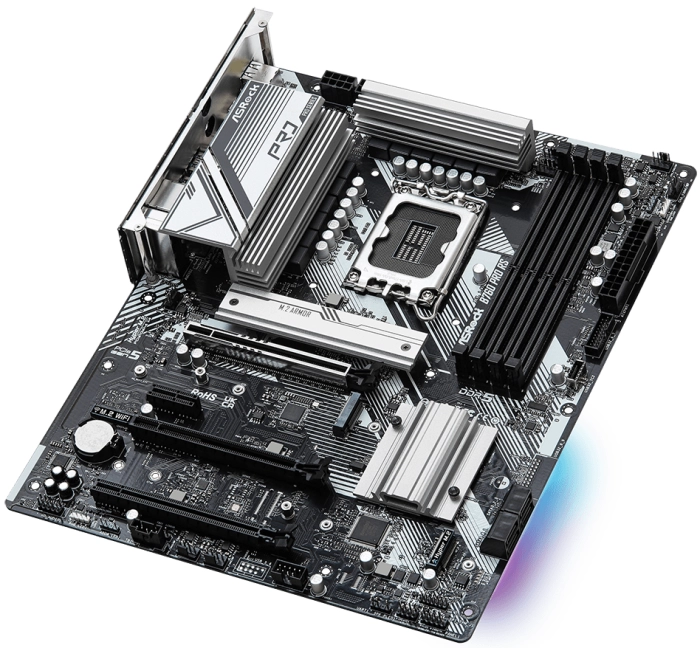

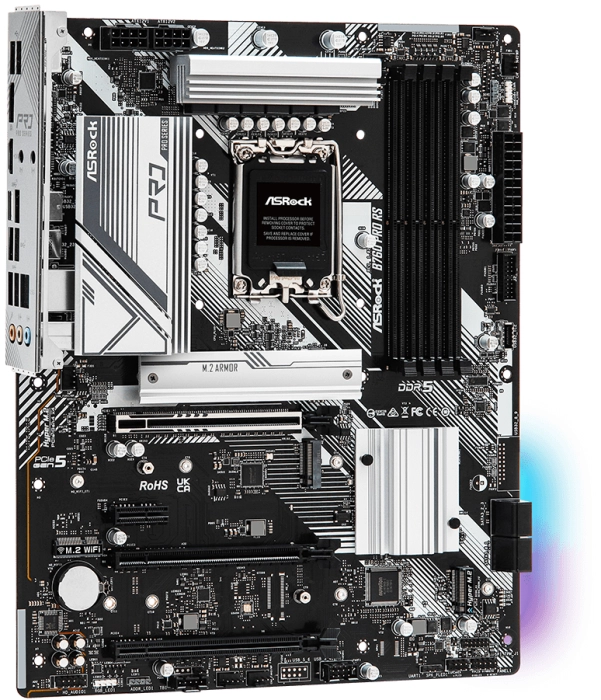

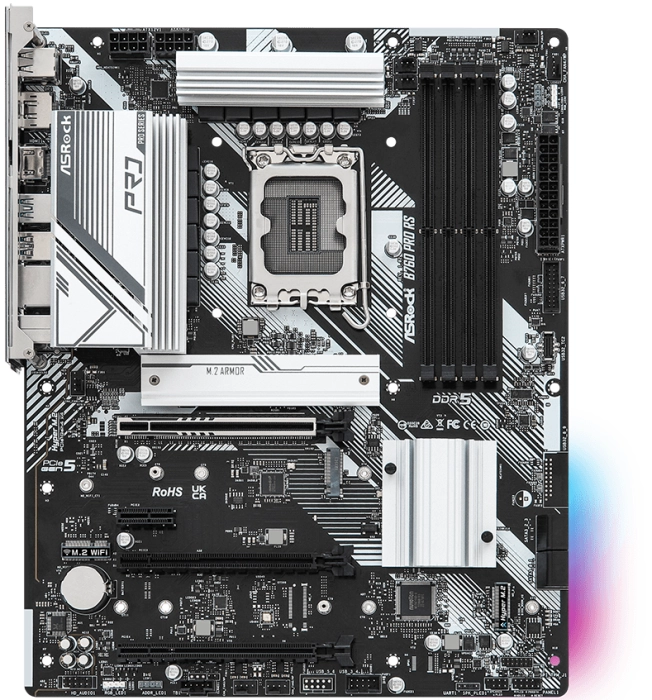

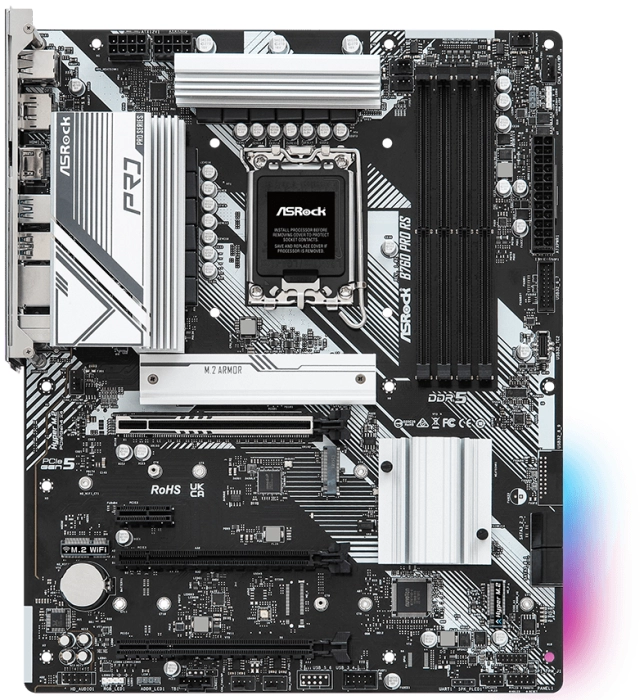

ASRock B760 Pro RS DDR5
S1700, 4x DDR5, 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x PCIe 3.0 x1, 2x Hyper M.2 PCIe Gen4x4, 1x M.2 PCIe Gen 4x2, 4x SATA3, 2x USB-C, 6x USB 3.2, 4x USB 2.0, 1xRJ-45 2.5GB, 1x HDMI, 1x DP, ATX
ASRock B760 Pro RS DDR5
S1700, 4x DDR5, 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x PCIe 3.0 x1, 2x Hyper M.2 PCIe Gen4x4, 1x M.2 PCIe Gen 4x2, 4x SATA3, 2x USB-C, 6x USB 3.2, 4x USB 2.0, 1xRJ-45 2.5GB, 1x HDMI, 1x DP, ATX
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | Intel B760 |
| CPU Socket | 1700 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR5 |
| Аудио | 7.1 CH HD Audio Realtek ALC897 |
| LAN | 2.5 Gigabit Dragon RTL8125BG |
| Поддържани процесори | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | up to 7200 MHz |
| Поддръжка на Dual channel | Да |

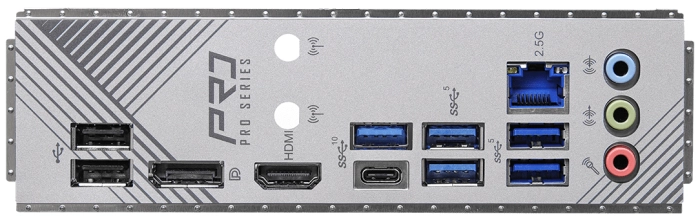

| Свързаност | 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Видео слот | PCI Express |
| Слотoве PCI-E x16 |
1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode |
| Слотoве PCI-E x1 | 1 |
| Поддържани технологии | Windows® 11 64-bit, Windows® 10 64-bit |
| Други | 128Mb AMI UEFI Legal BIOS with GUI support |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| M2 слот |
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Поддръжка на RAID | SATA RAID 0/1/5/10 |
| USB портове | 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports |
| Гаранция | 36 месеца |
| Арт. номера |
B760 PRO RS
67755
90-MXBKS0-A0UAYZ
ASR-MB-B760-PRO-RS
|
ASRock B760 Pro RS
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 10+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16,
1 PCIe 3.0 x1, 1 M.2 Key E for WiFi - Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen4x2) - 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (4 Rear, 2 Front),
4 USB 2.0 (2 Rear, 2 Front) - Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
