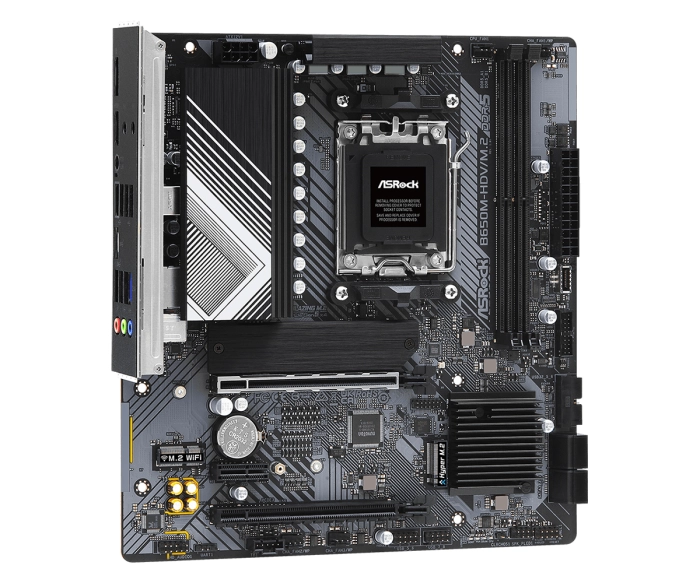

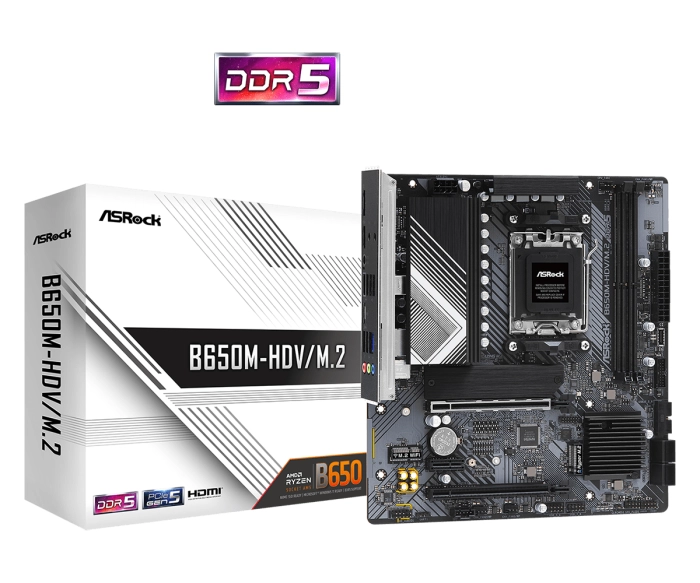

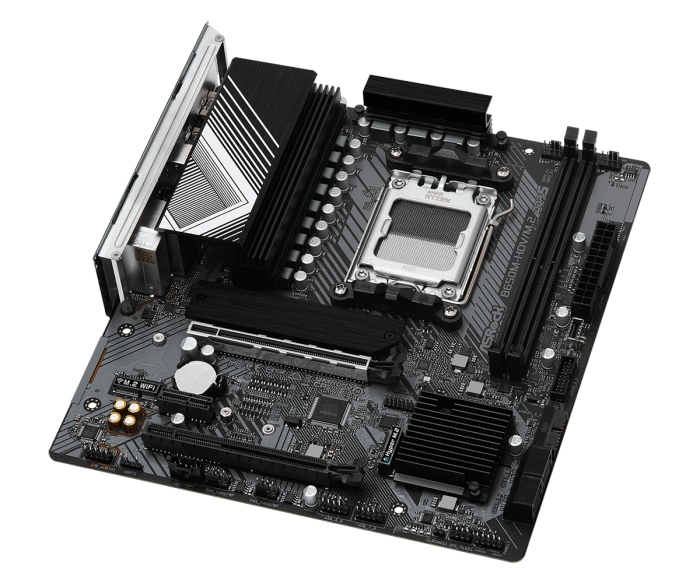

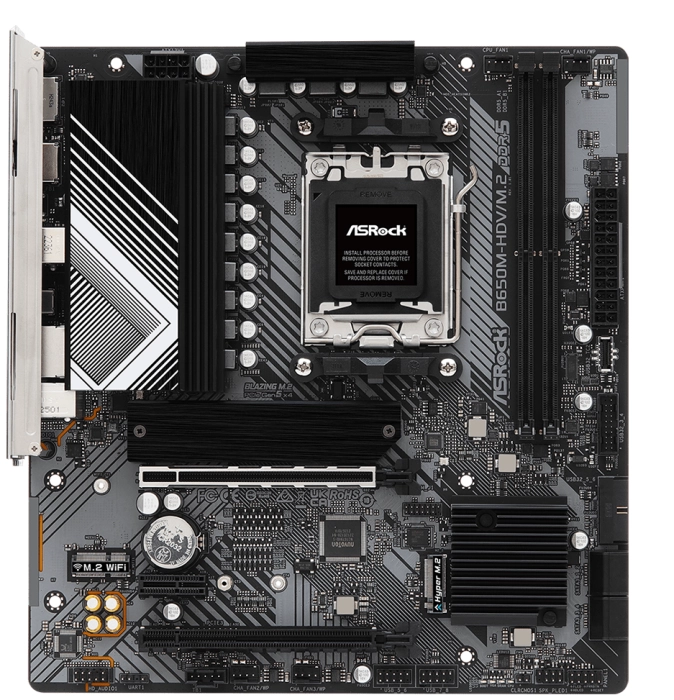

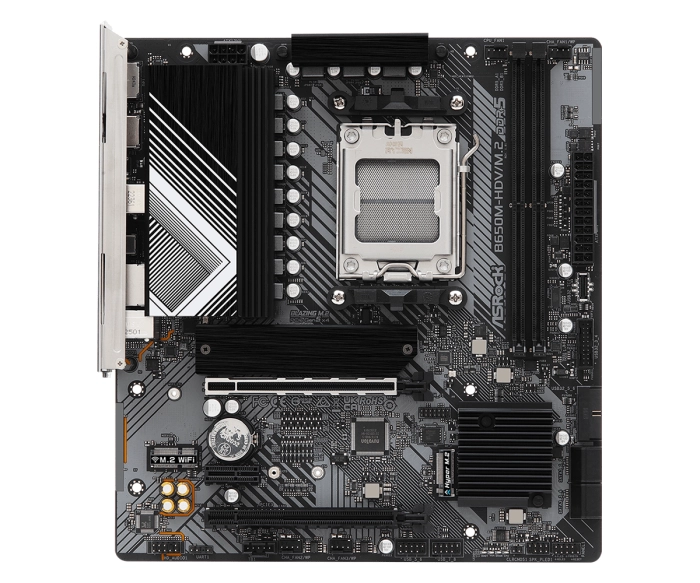

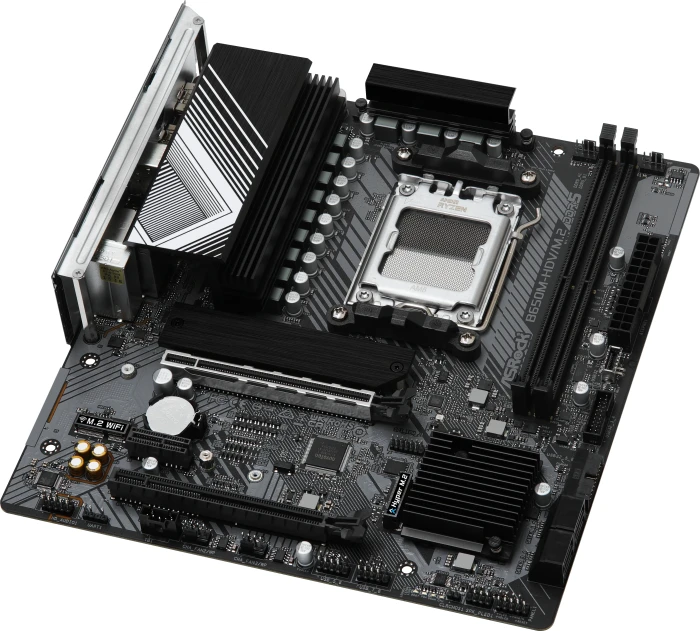

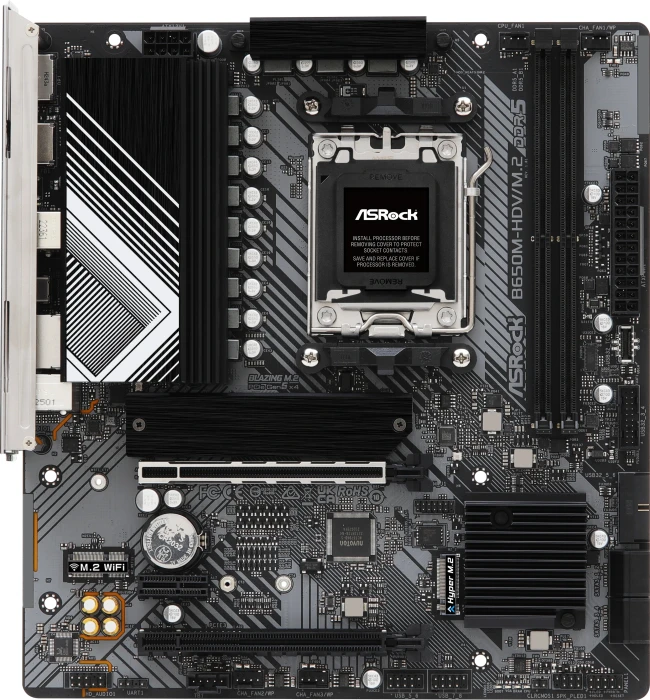

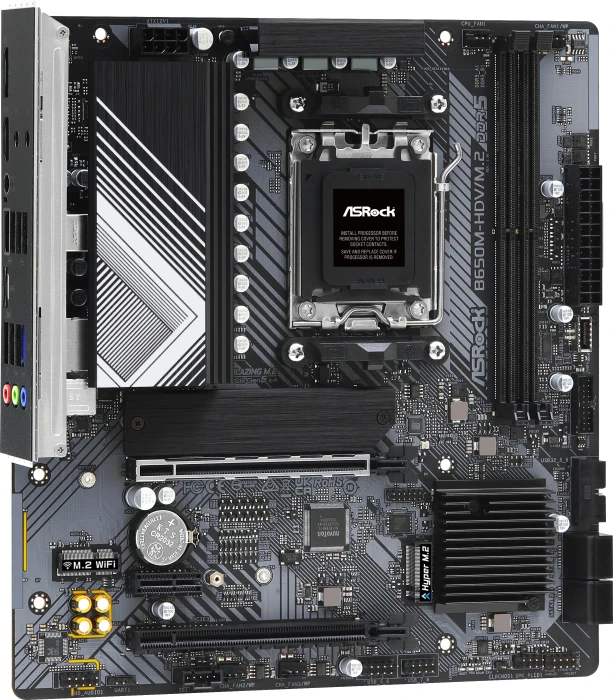

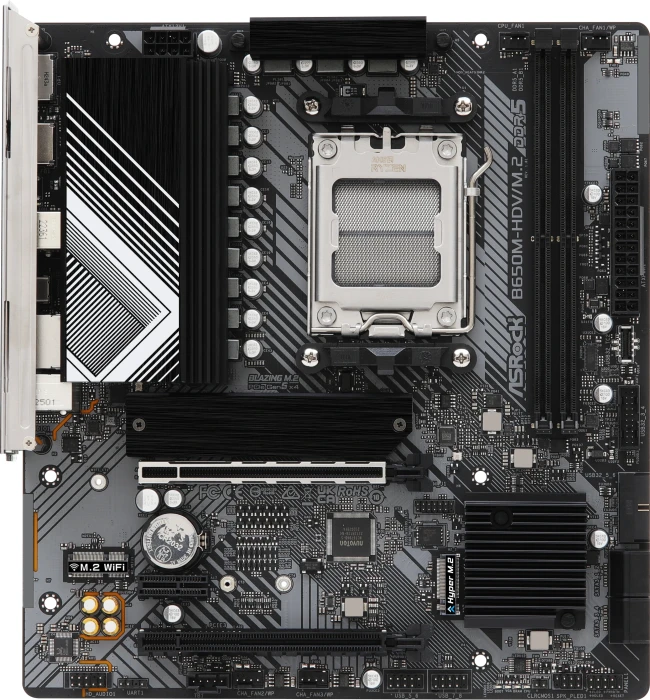

ASRock B650M-HDV/M.2
2x PCIe 4.0 x16, 1x PCIe 4.0 x1, 1x Blazing M.2(PCIe Gen5x4), 1x Hyper M.2(PCIe Gen4x4), 1x M.2, 4x SATA3 6.0 Gb/s, 1x HDMI, 1x DisplayPort, 2.5G LAN, 7x USB 3.2, 8x USB 2.0, 1x USB-C
ASRock B650M-HDV/M.2
2x PCIe 4.0 x16, 1x PCIe 4.0 x1, 1x Blazing M.2(PCIe Gen5x4), 1x Hyper M.2(PCIe Gen4x4), 1x M.2, 4x SATA3 6.0 Gb/s, 1x HDMI, 1x DisplayPort, 2.5G LAN, 7x USB 3.2, 8x USB 2.0, 1x USB-C
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | AMD B650 |
| CPU Socket | AM5 |
| Форм фактор | Micro ATX |
| Слотове памет | 2 |
| Поддържана памет | DDR5 |
| Аудио | Realtek ALC897 7.1 HD |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Поддържани процесори | AMD Ryzen™ 8000/7000 Series Desktop Processors |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 |
| Поддръжка на Dual channel | Да |
| Слотoве PCI-E x16 |
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode |
| Слотoве PCI-E x1 | 1 x PCIe 4.0 x1 |
| Поддържани технологии | Windows® 11 64-bit, Windows® 10 64-bit |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| M2 слот |
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| Размери (MB) | 24.4 cm x 22.6 cm |
| Поддръжка на RAID | 0,1,10 |
| USB портове | 1 x USB 3.2 Gen2 Type-C (Front) - 1 x USB 3.2 Gen1 Type-C (Rear) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |

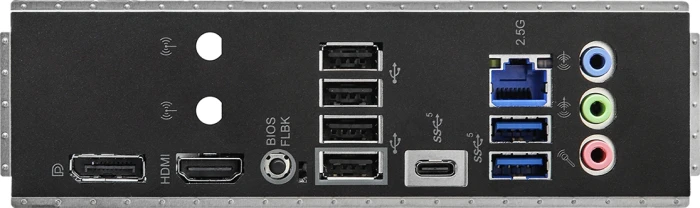

| Заден панел I/O |
1 x BIOS Flashback Button 1 x DisplayPort 1 x HDMI 1 x RJ-45 LAN 1 x USB 3.2 Gen 1 Type-C 2 x Antenna Mounting Points 2 x USB 3.2 Gen 1 4 x USB 2.0 HD Audio Jacks: Line in / Front Speaker / Microphone |
| Гаранция | 36 месеца |
| Арт. номера |
B650M-HDV/M.2
68215
90-MXBLA0-A0UAYZ
ASR-MB-B650M-HDV-M2
|
B650M-HDV/M.2

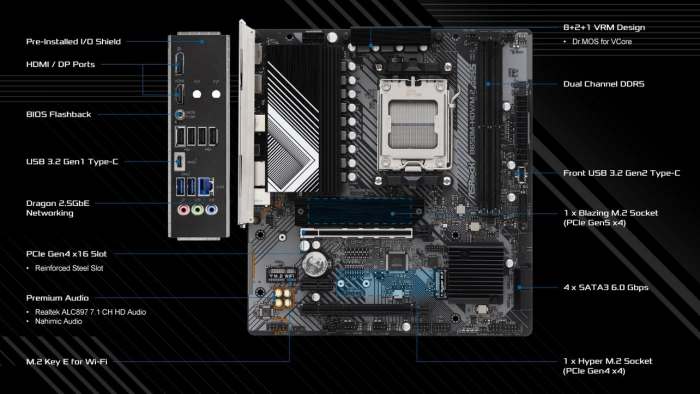

- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 8+2+1 Power Phase, Dr.MOS
- Supports DDR5 6400+ MHz (OC)
- 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Integrated AMD RDNA™ 2 Graphics*
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4) - 1 USB 3.2 Gen2 Front Type-C,
7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front) - Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback
- Pre-Installed I/O Shield
